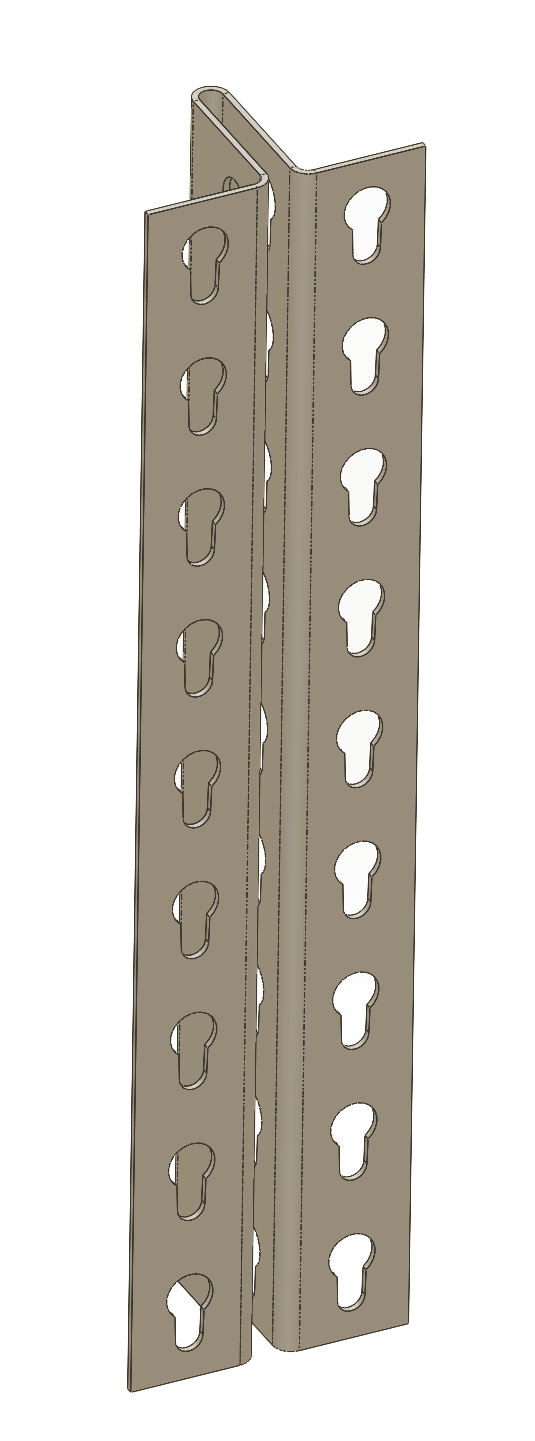

Used for high-density shelving requirements. Used with standard Hi-Tech shelving components side sway braces (5341). Order H-Posts front and back

Shall be 1-7/8" x 1-7/8" x 14 gauge cold rolled steel uprights. The choice when heavy-duty shelving is required. Perfect for multilevel installations.

• Each intermediate shelf has lapped and welded corners
• Available in three load capacity classes up to 48" wide spans and 36" depths
• Exclusive triple bend side flanges for added strength

3" x 1-7/8" x 14 gauge cold rolled steel. Punched for self-adjustment on 1-1/2" centers.

For H-posts.

(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an "X"

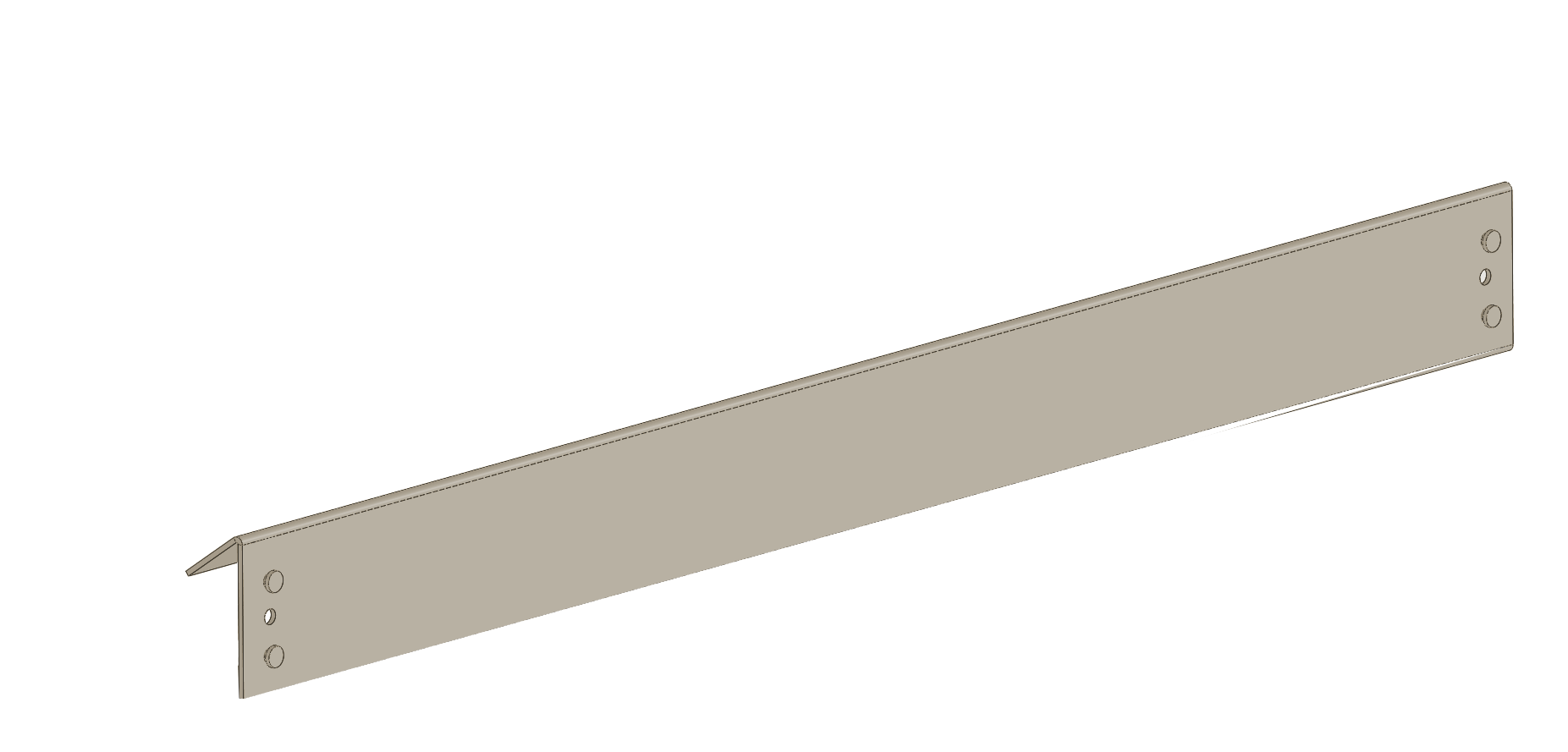

Bolts to double rivet angle or channel beams to add support to decking and stabilize beams. Supplied with nuts and bolts for fast assembly.

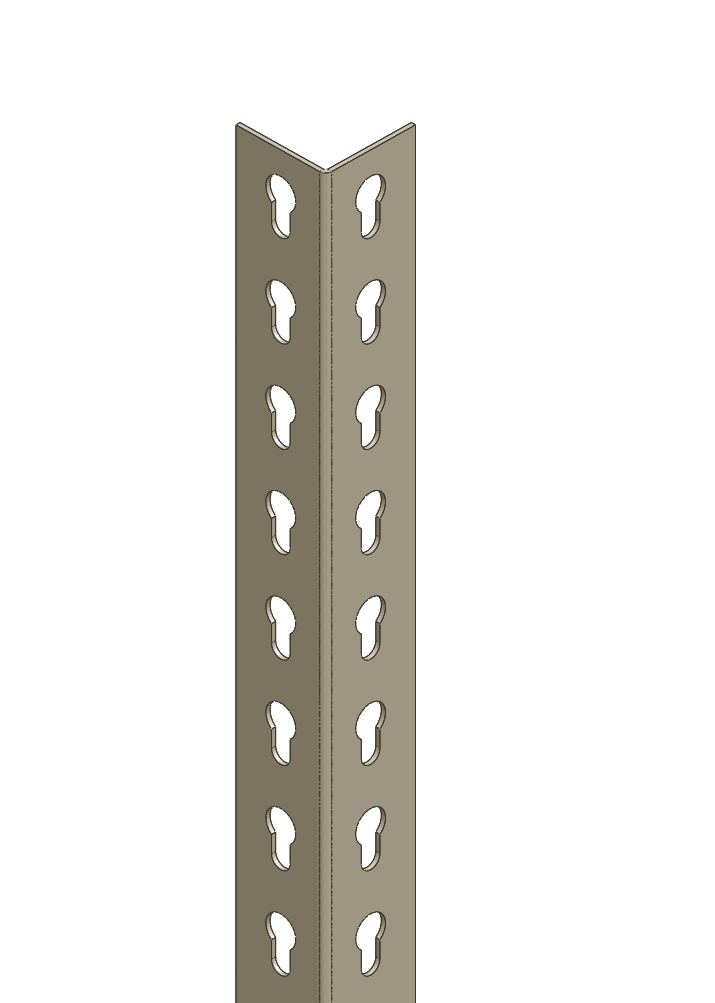

• Roll formed into a unique angle shape for maximum strength
• The long leg is punched on 1-1/2" centers to allow independent shelf adjustment
• Four angle posts are used per section allowing units to be individually located, bolted side-by-side or bolted back-to-back

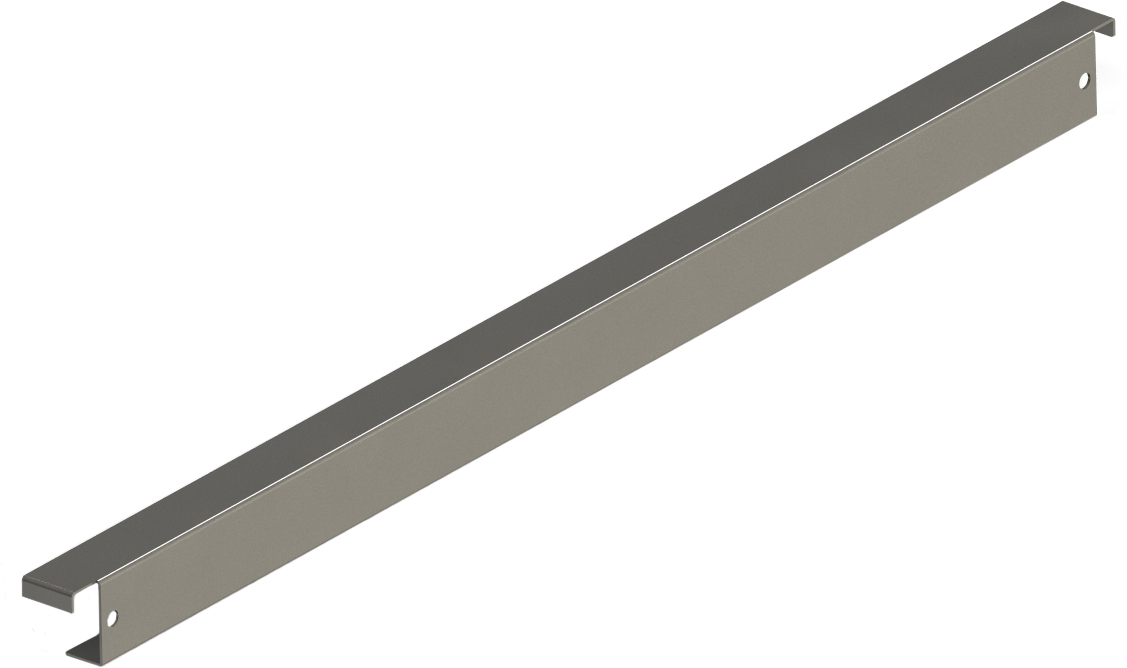

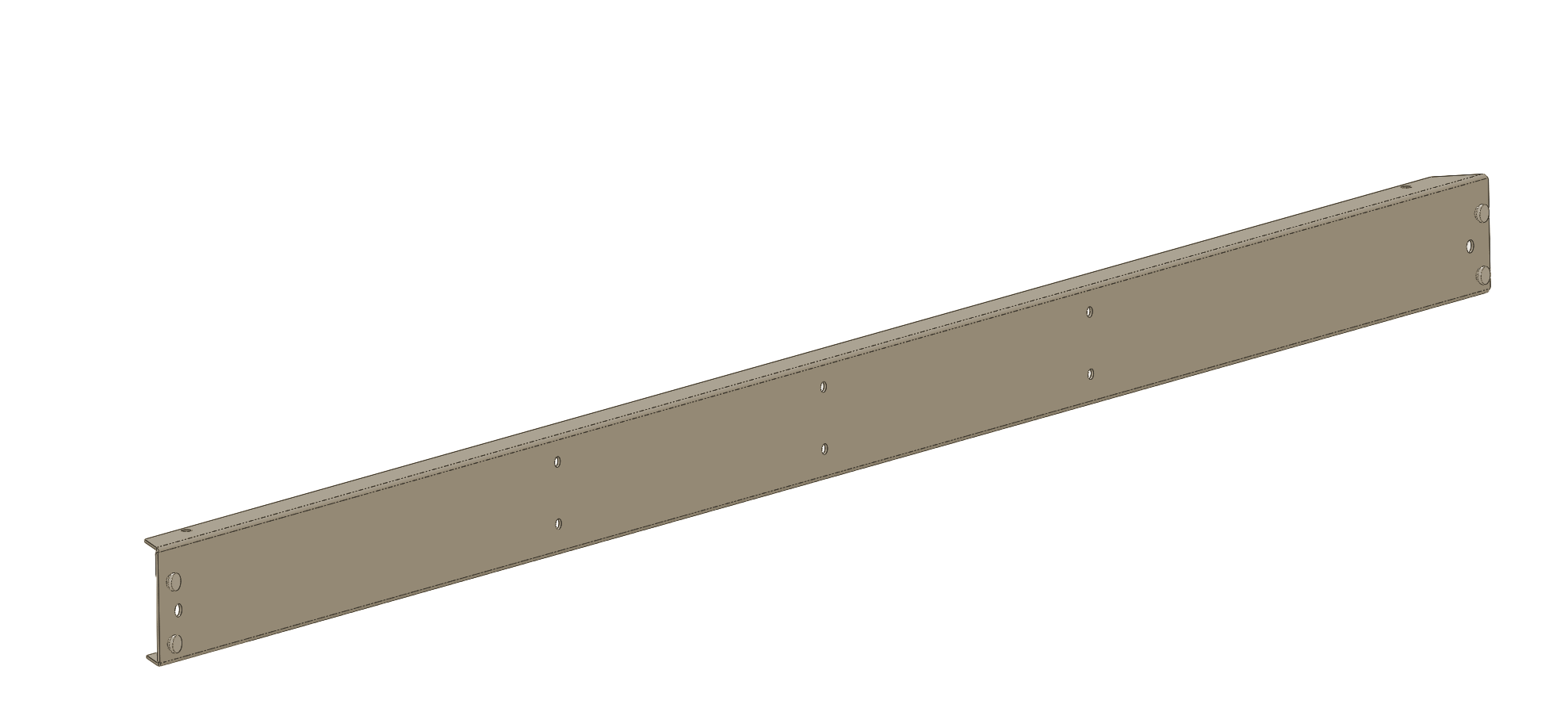

This 16 gauge shelf beam is essential for stability of standard units; therefore, is used on all four sides at the top and bottom levels. Can also be used front and back or on all four sides of intermediate levels to increase unit stability and load capacity.

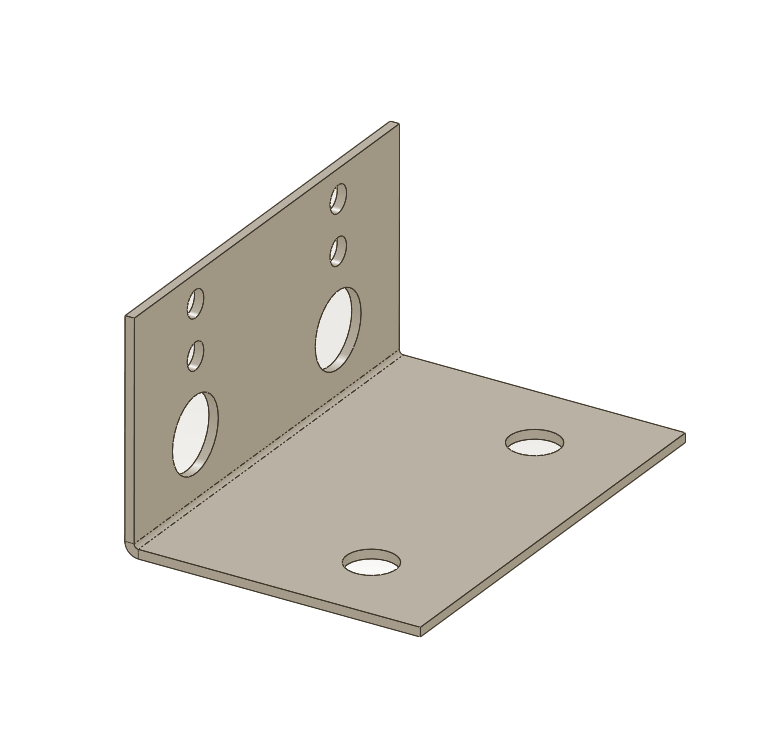

Fits under heavy-duty foot plate for leveling.

For use in anchoring angle and T posts to floor.

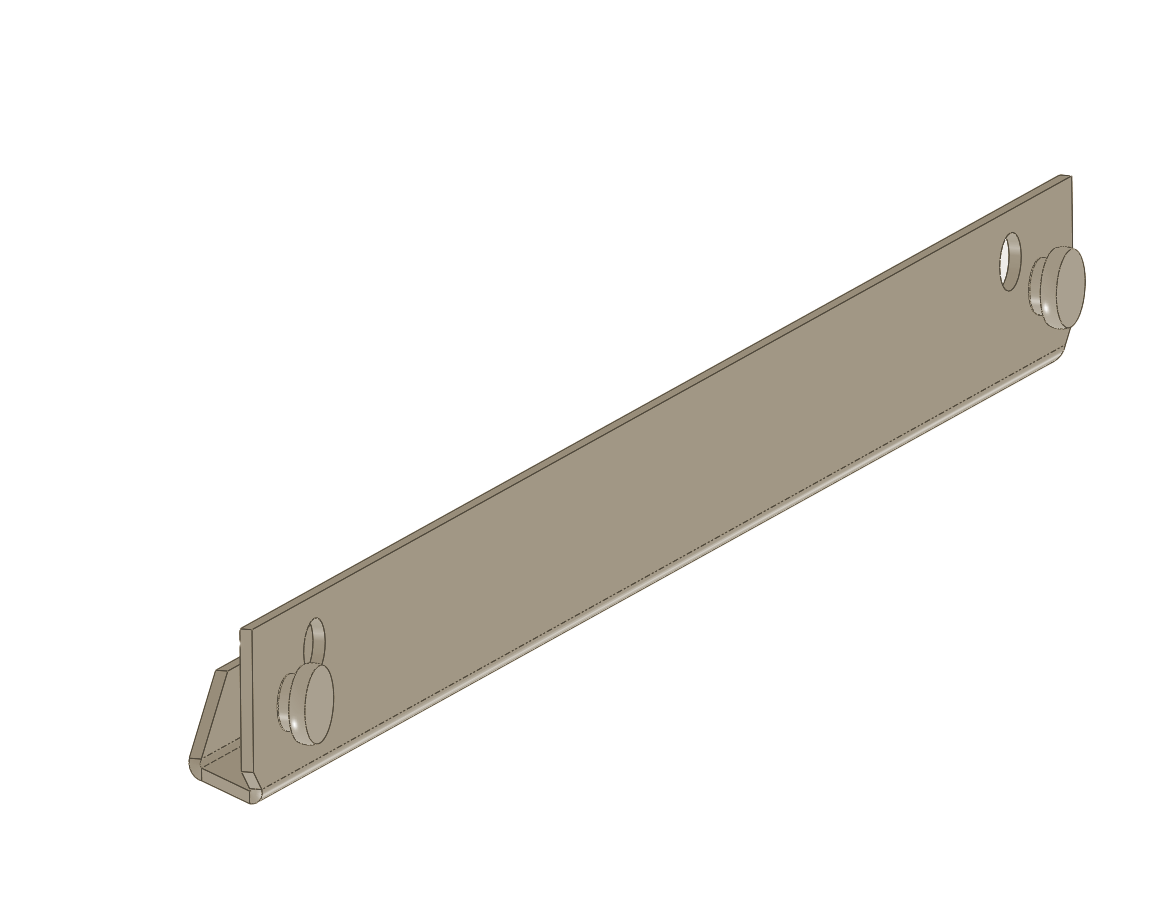

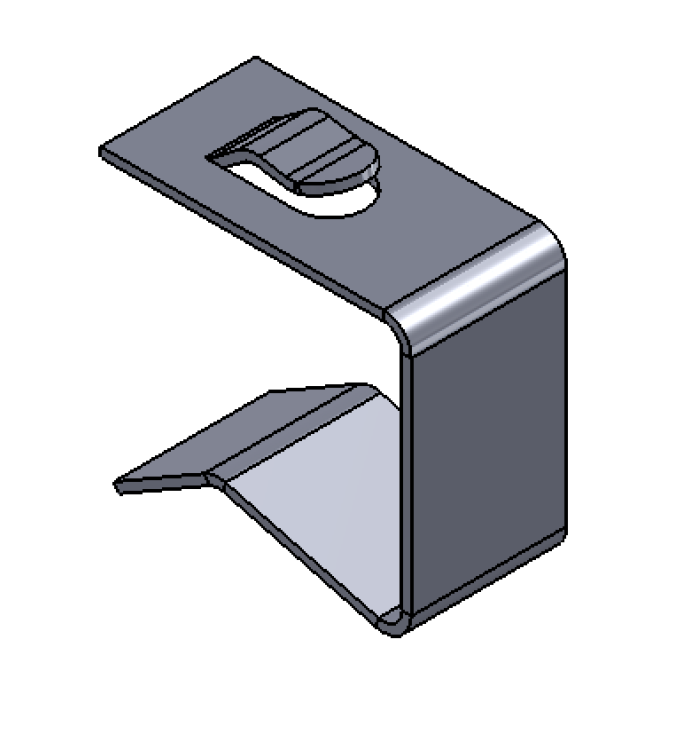

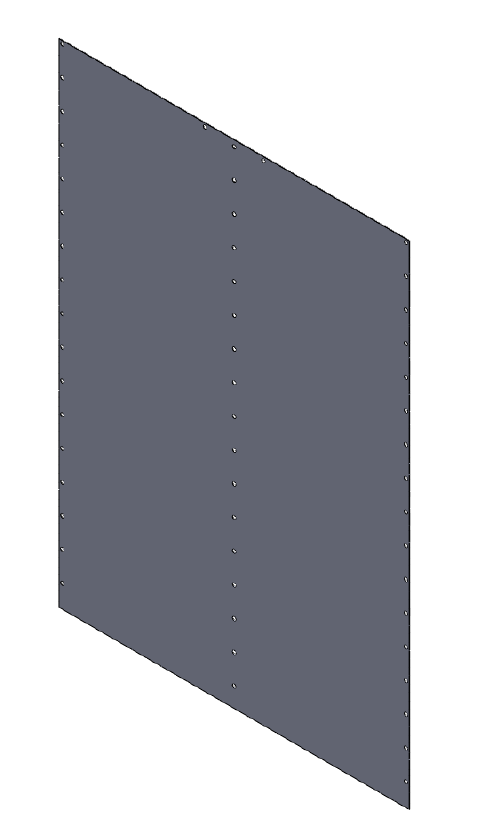

Formed to fit bottom flange of standard shelf and tabbed to pick up holes in center of back panel. Holds back panel to shelf and prevents panel bowing.

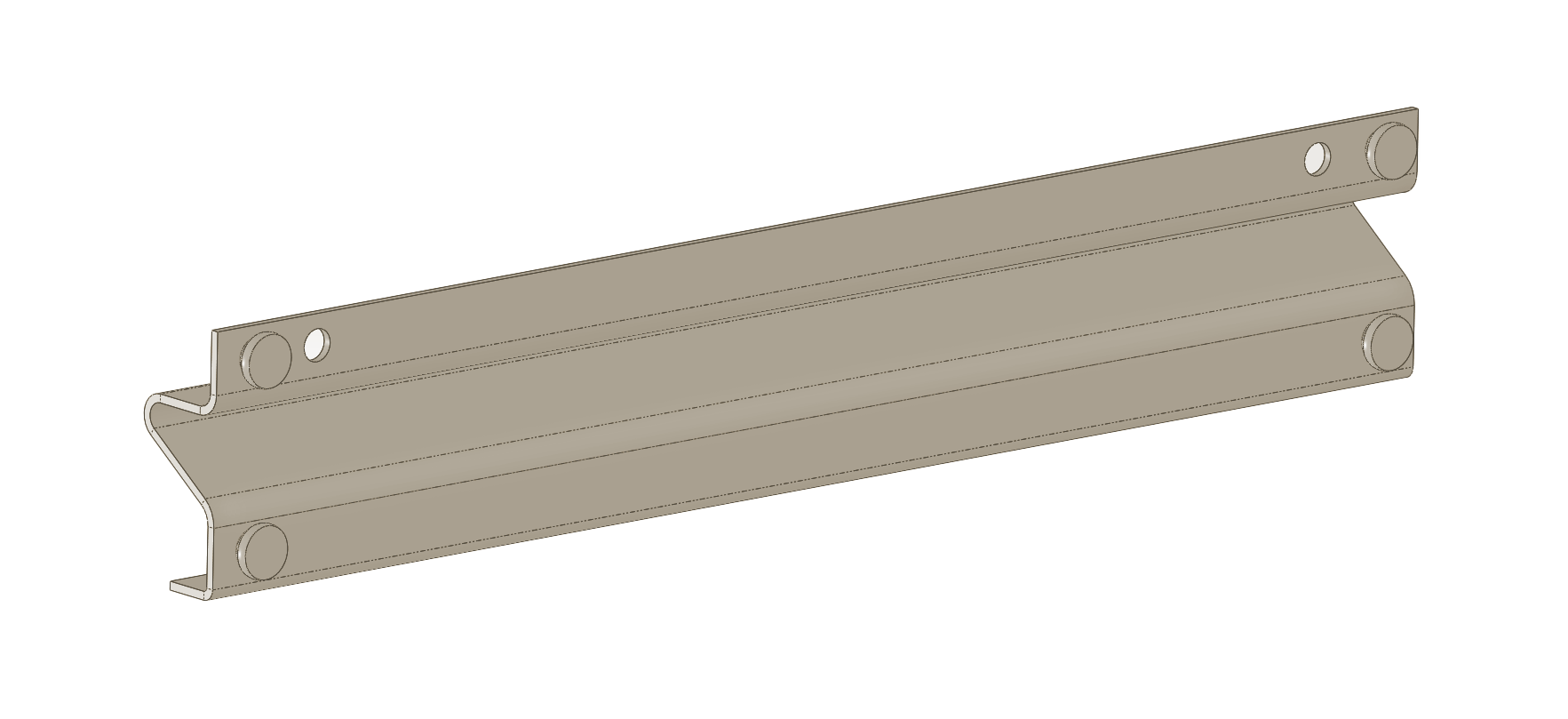

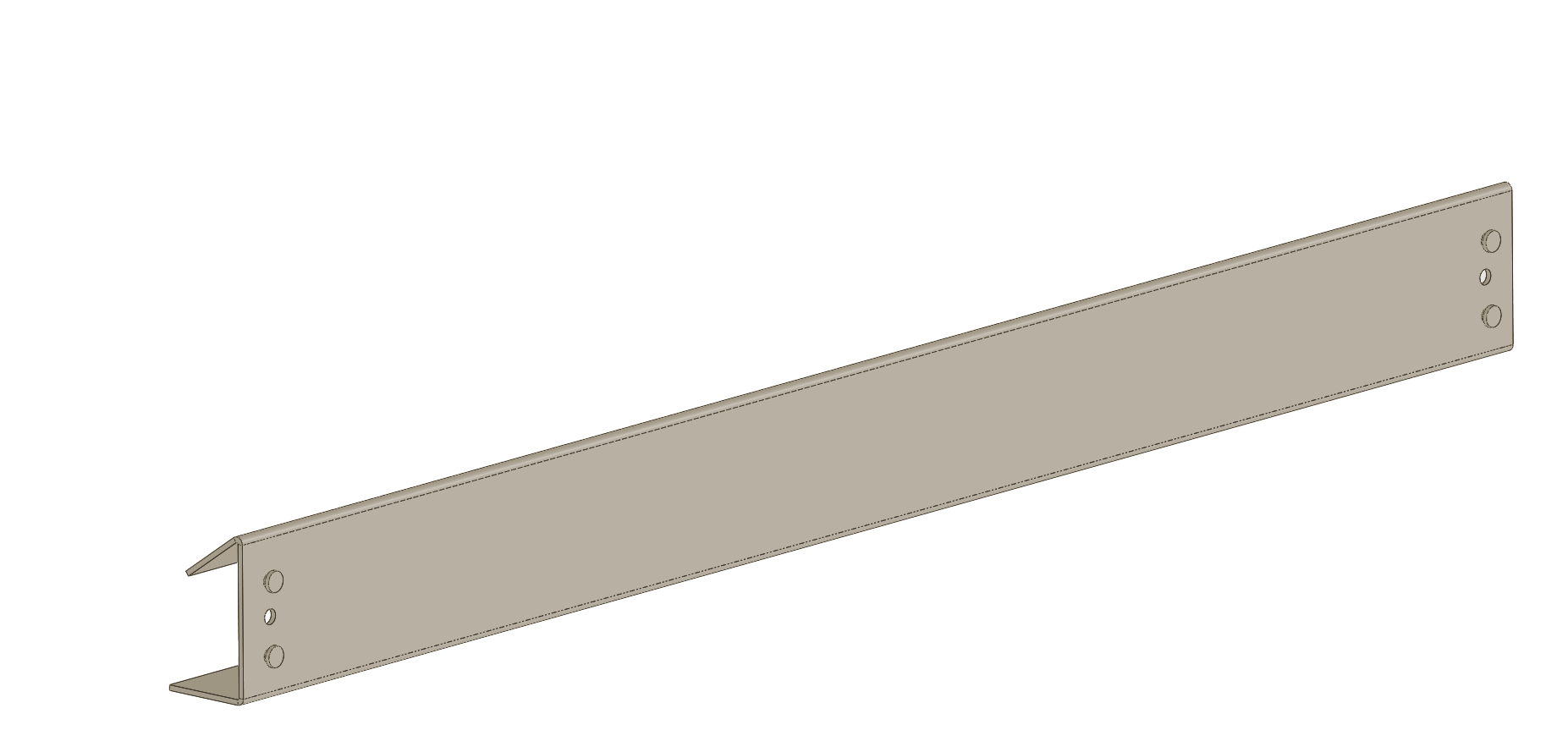

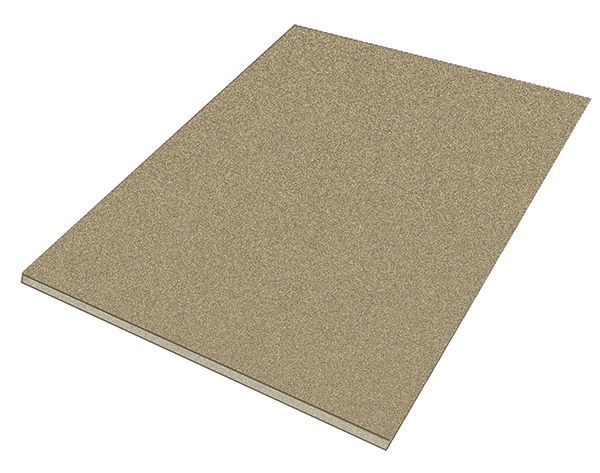

Used in place of double rivet angle beams to add 1" additional clearance between shelf levels. Allows particle board decking to sit flush with beam. Protects decking edges. Heavy-Duty Z beams are 14 gauge

For left to right shelf support of tires. 9 degrees angle on supporting edge.

Provides secure support for grating when decking over entire installation.

Attaches to unit front between rows to provide support for grating on 2-level Rivetwell installations

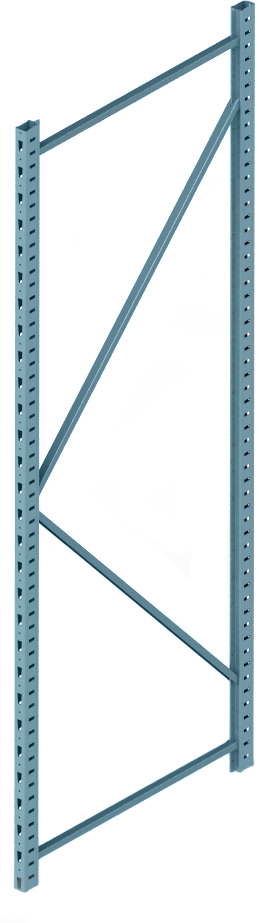

Sections consisting of front H-post,  back H-post, and one-piece side panel.
Factory welded.

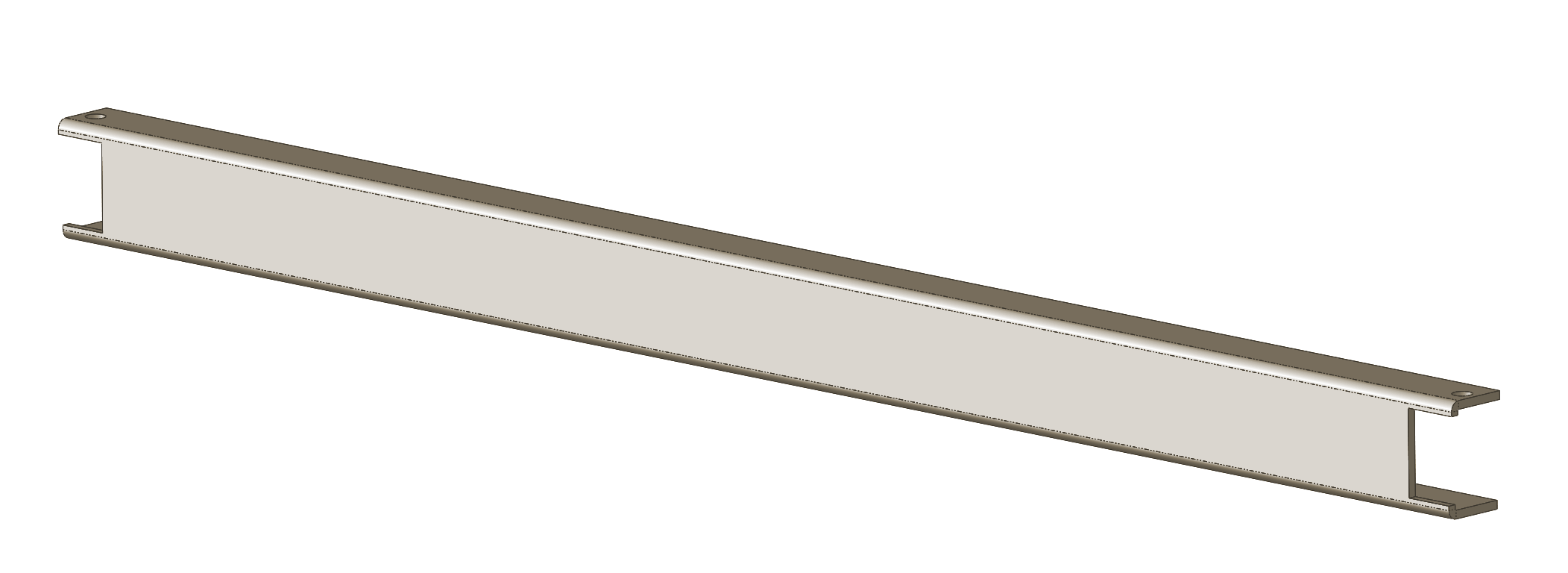

Use with Z-beams for additional decking support front to back.

Available in sets of 6. One set required to mount swinging doors to beaded front posts.

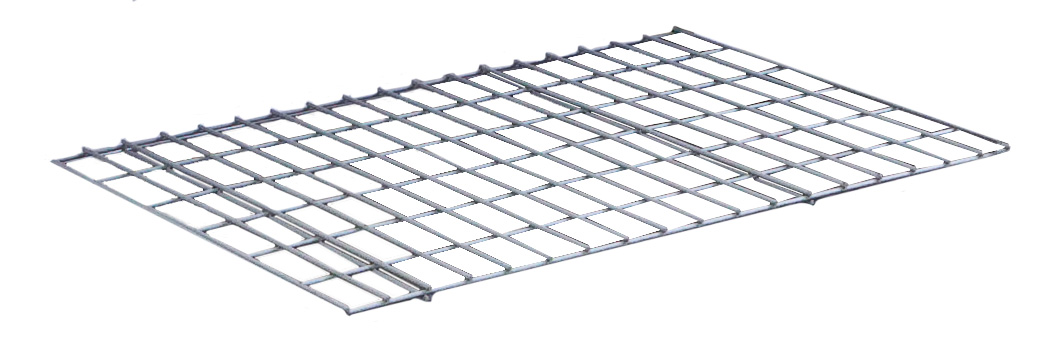

Rivetwell wire decking is powdercoat gray

For beaded posts and H-posts.

Intermediate.
