HSPS-05 Single Point Solid Lockers

More from: Wardrobe Lockers Lockers

Unibody All-Welded Corridor Lockers

With the elegance of our Twin-Frame design, smooth deep drawn seamless stainless steel recessed handle, continuous piano hinge and torque-free reinforced heavy-gauge door, you can rest assured that you have chosen a locker which will enhance the architectural design of your facility while providing a lifetime of maintenance-free use.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Recessed Single Point

Deep drawn stainless steel recessed handle with single-point latching. The recessed handle protects the finish from being marred by a padlock.

Single Point Latch

A heavy-gauge single-point latch is welded to the frame for maximum strength & durability.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

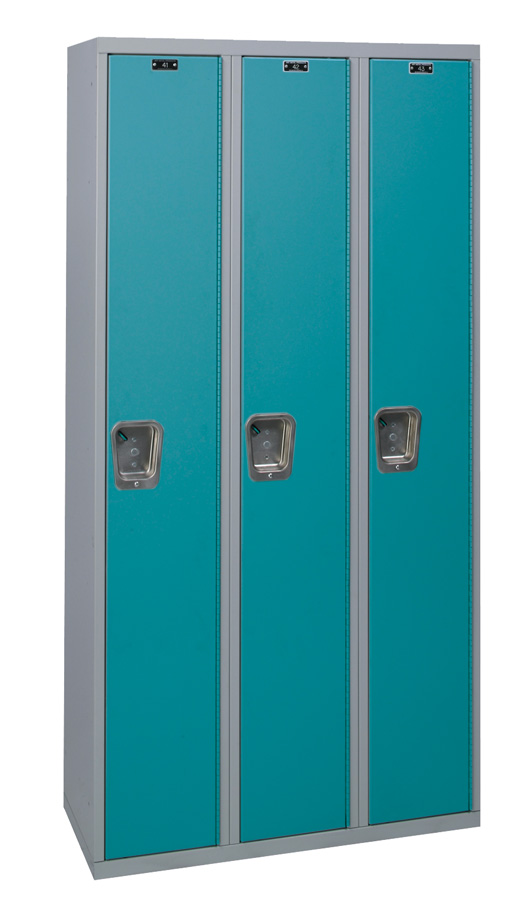

Single Point Solid Lockers

High-Performance School Lockers.

Body/Frame Description:

Unibody all-welded construction, 16 gauge 1-1/2" high continuous bottom with reinforcing channels welded to the underside at each side panel providing a rigid unit base, 16 gauge continuous top, 16 gauge solid sides are integral with front vertical frame, 18 gauge solid back

Body/Frame:

Unibody All-Welded

Doors:

14 gauge plain doors and a full-height door stiffener are standard. Secure-Air-Flow, diamond perforated and louvered door styles are available

Door Strike:

Continuous vertical door strike at both hinge and latch side

Handle:

Deep-drawn seamless stainless steel recessed handle

Latching:

Single-point maintenance-free quiet latching system, 11 gauge MIG welded latch

Hinges:

16 gauge continuous piano hinge

Hooks:

2-single hooks and 1-double hook is standard. 1-double hook only for triple tier, 1-double and 1-single hook for 9" wide openings 30" and higher

Coat Rods:

none

Shelves:

16 gauge hat shelf for single tier openings 60" and 72" high, 16 gauge intermediate shelves

Legs:

none

Catalog

Tier	Width	Depth	Column Heights

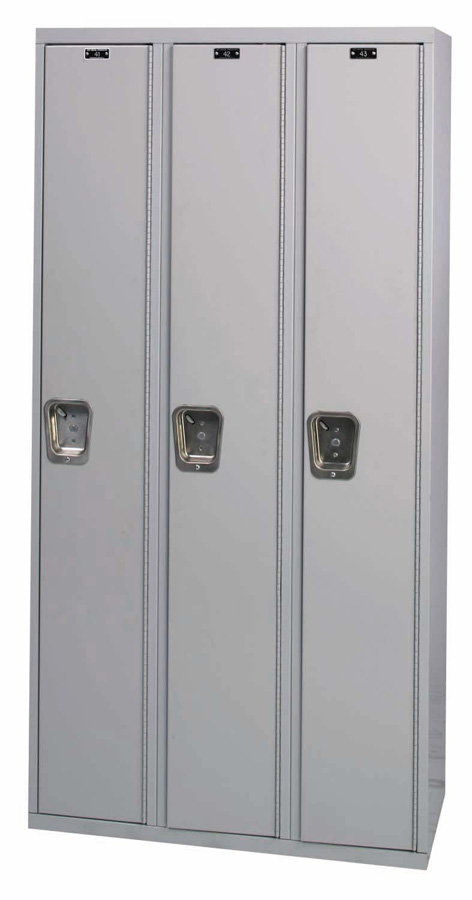

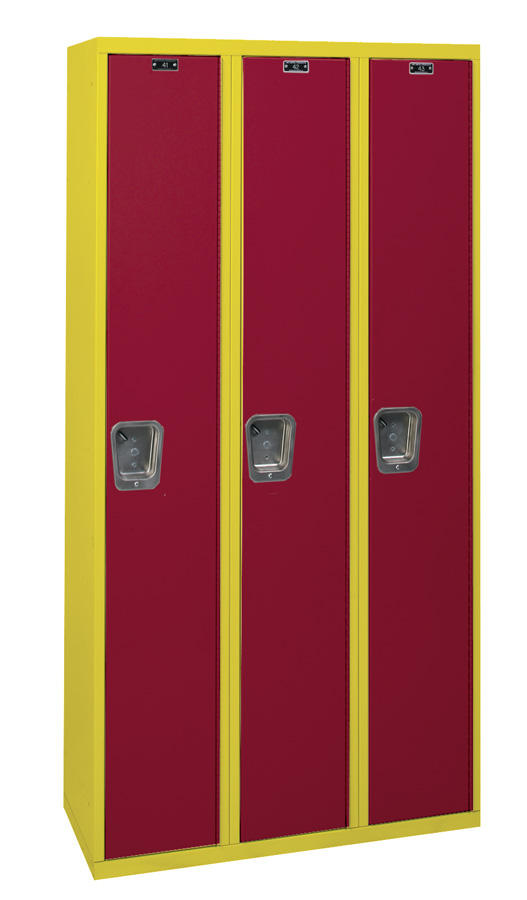

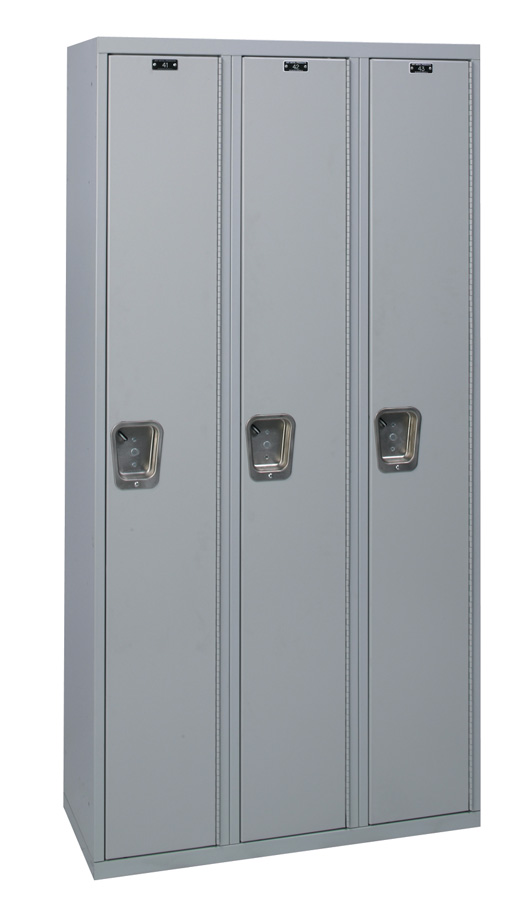

Single Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"

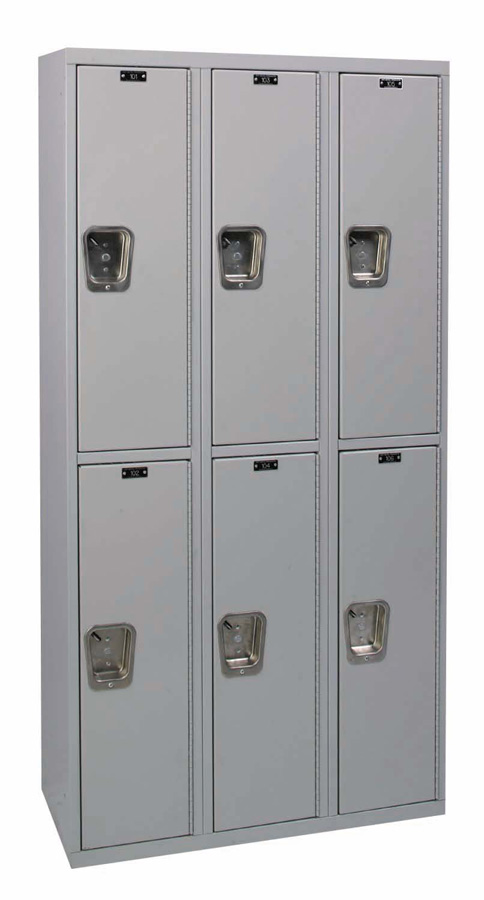

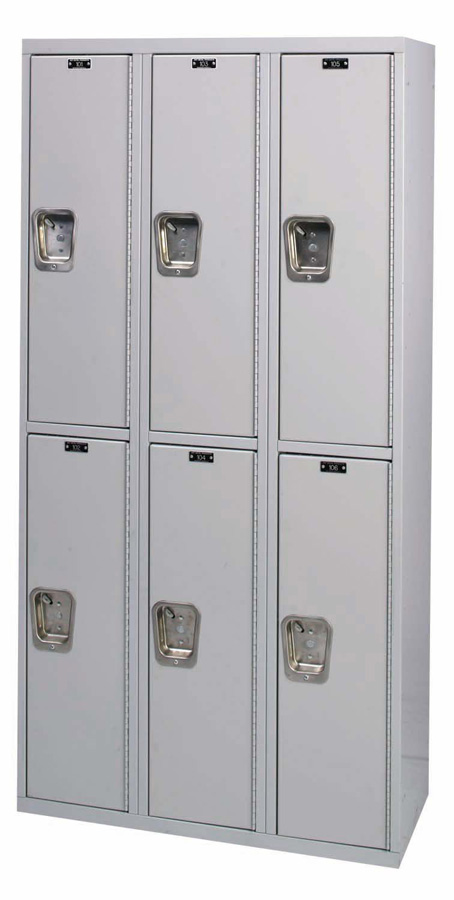

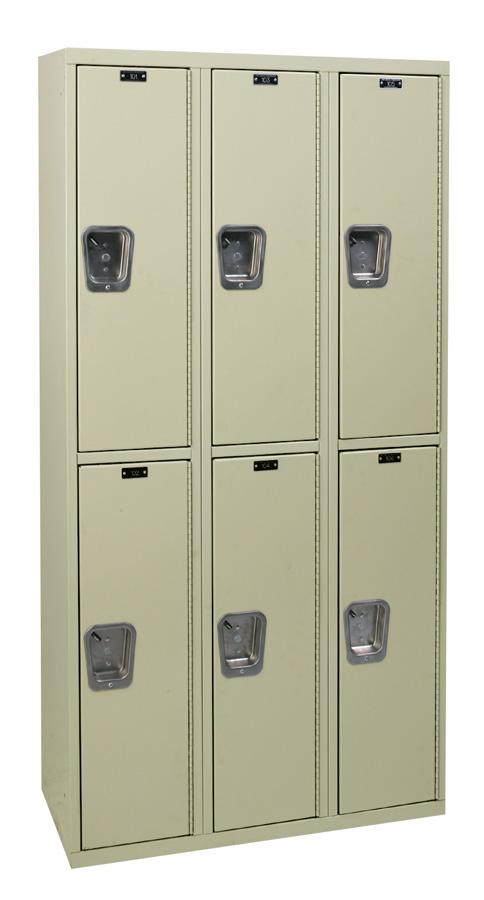

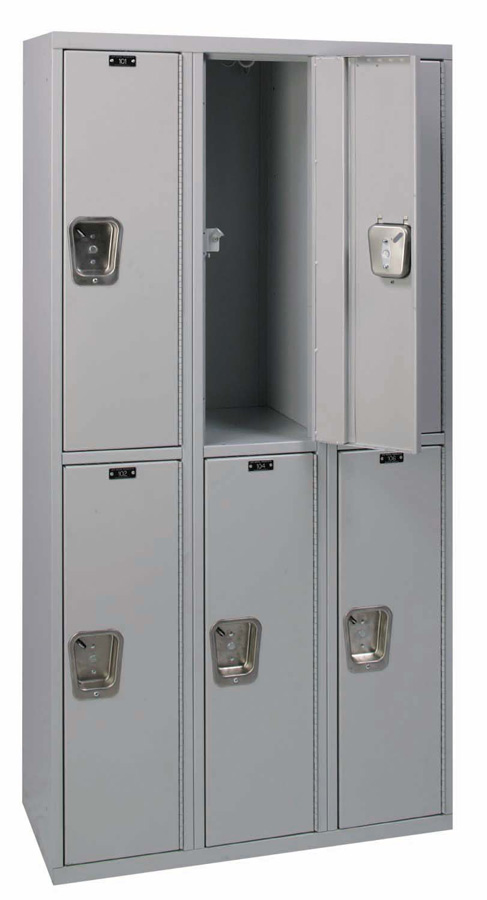

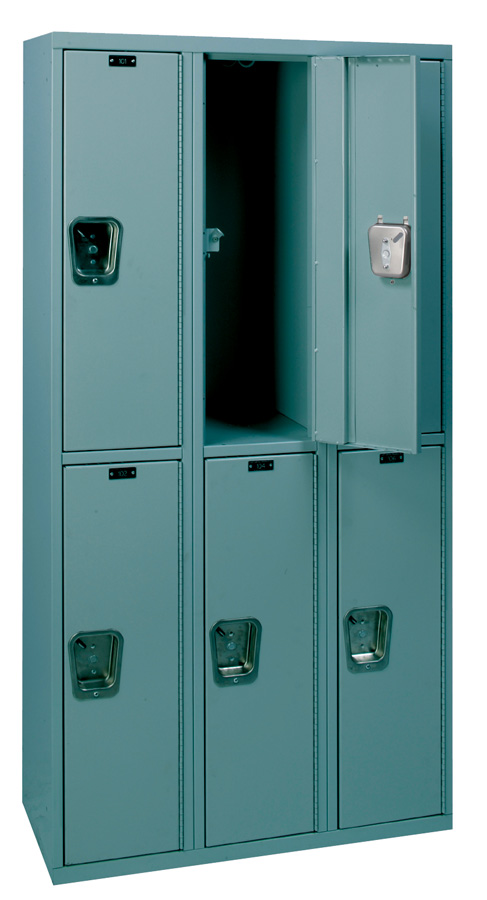

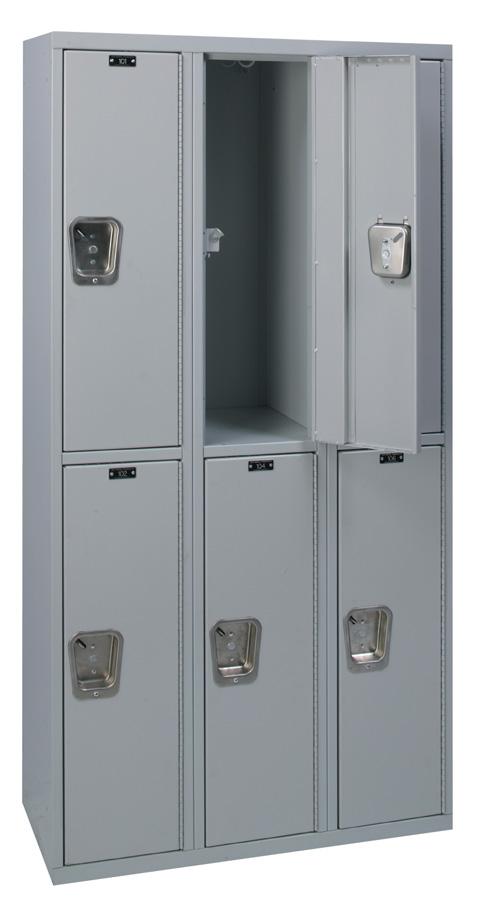

Double Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	48" 60" 72"

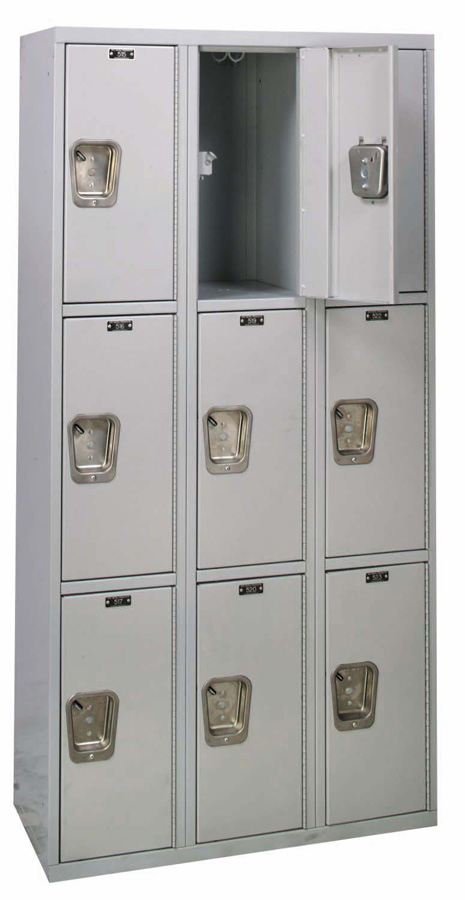

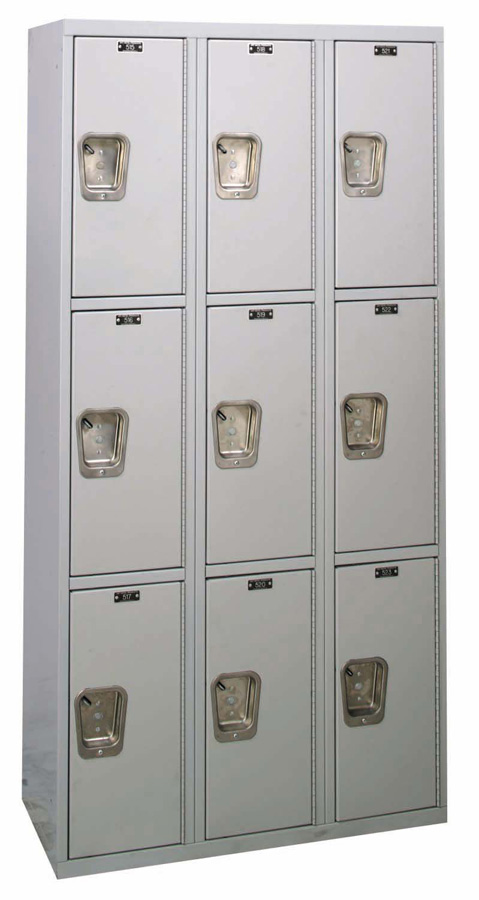

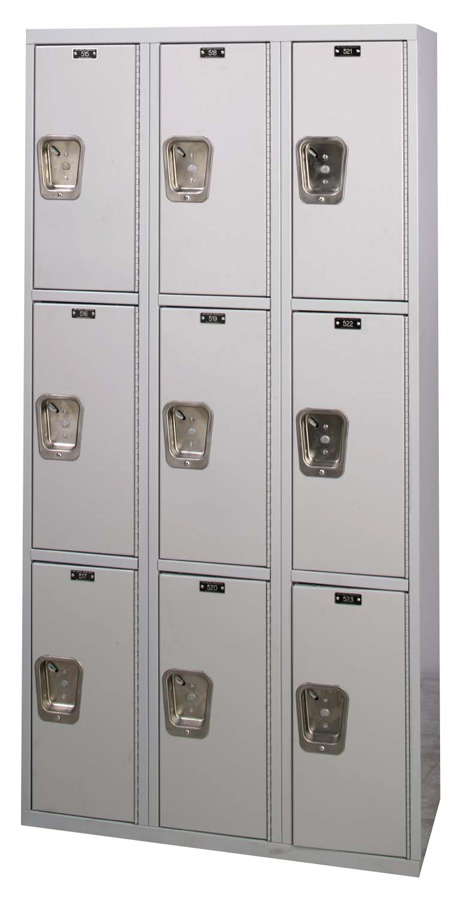

Triple Tier	9" 12" 15" 18" 24"	12" 16" 18" 22"	60" 72"
Note: All welded lockers will ship in multiple column units up to 60'' wide to meet Individual job site conditions.
