Including louvered doors and are perfect for storing personal items.

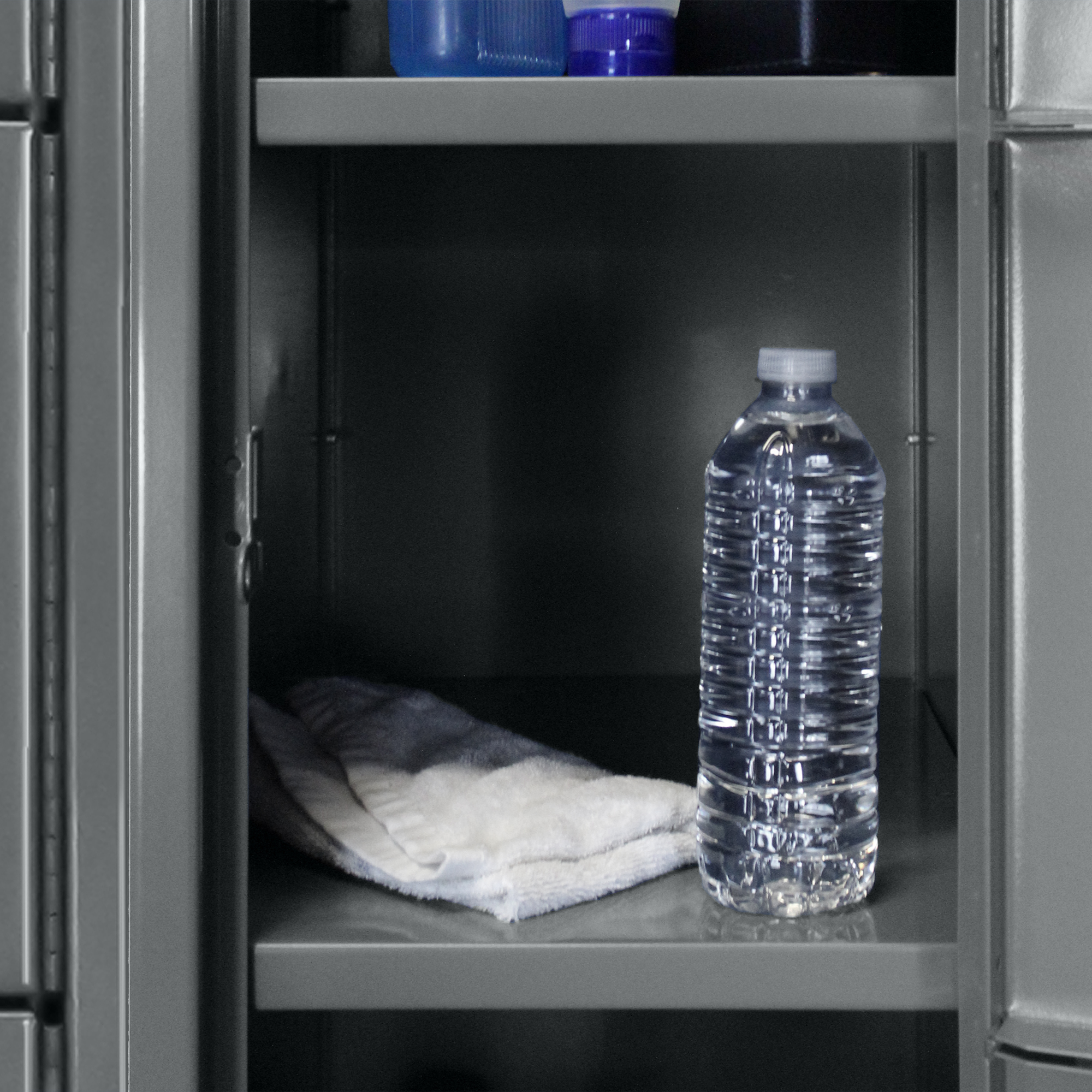

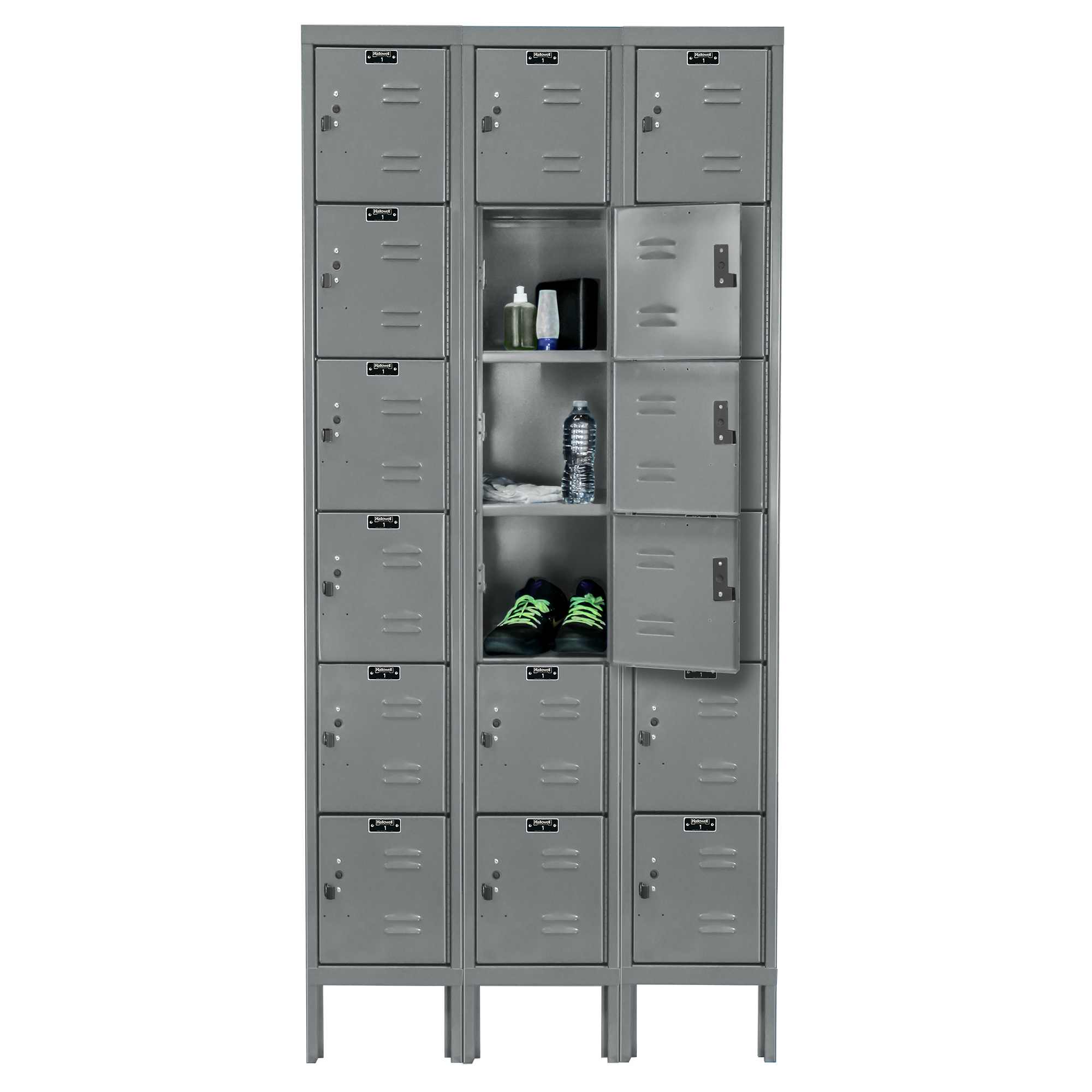

Maximize your storage space with premium KD box lockers. Available in five and six-tier models, these lockers are ideal for storing items that don't require hanging, like shoes, bags, or boxes..

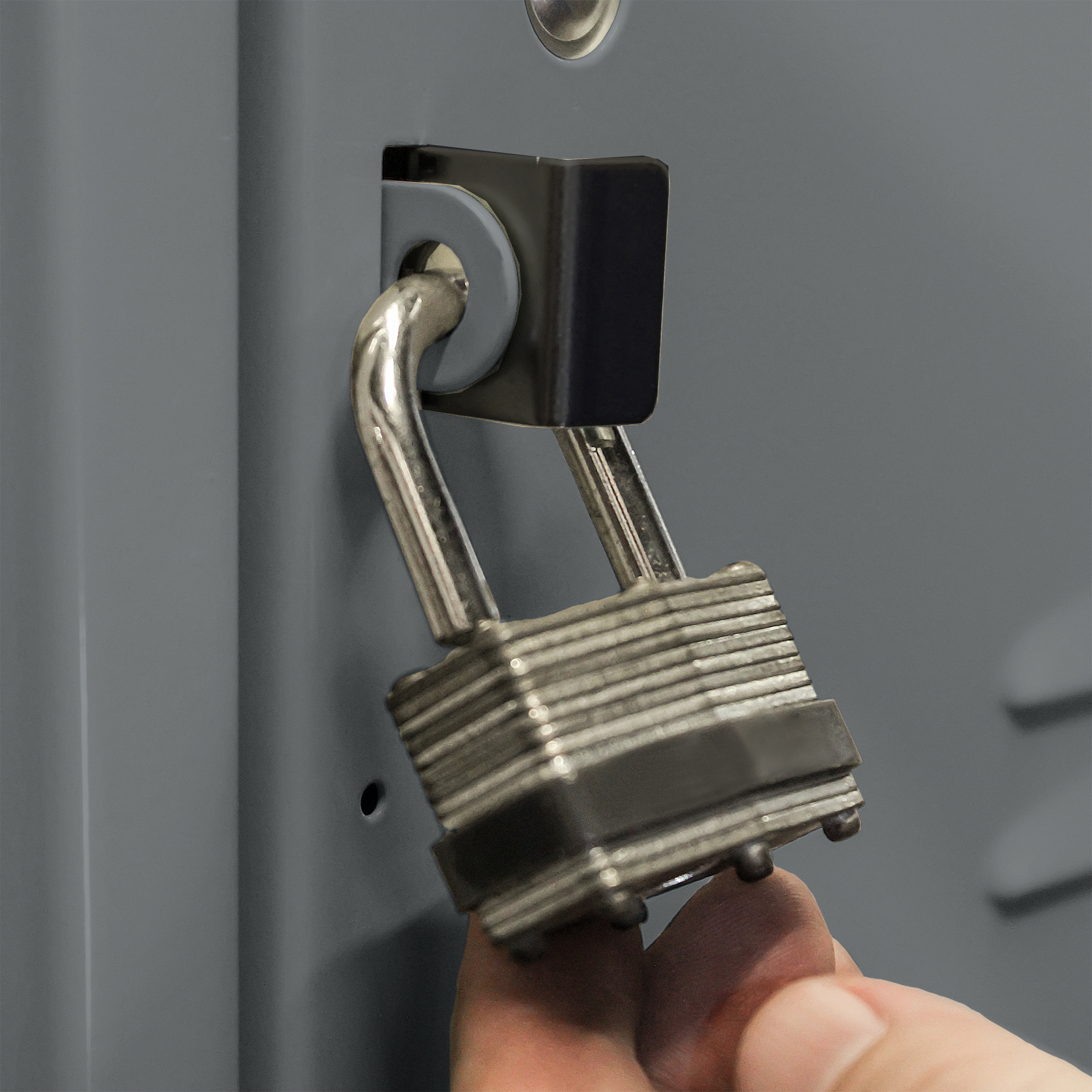

Single Point Latching

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation. All box door finger pulls are made of a super tough nylon material which includes an Antimicrobial agent

Louvers for discrete ventilation
Louvers

Louvers at the top and bottom of each locker provide discrete ventilation and an attractive appearance.

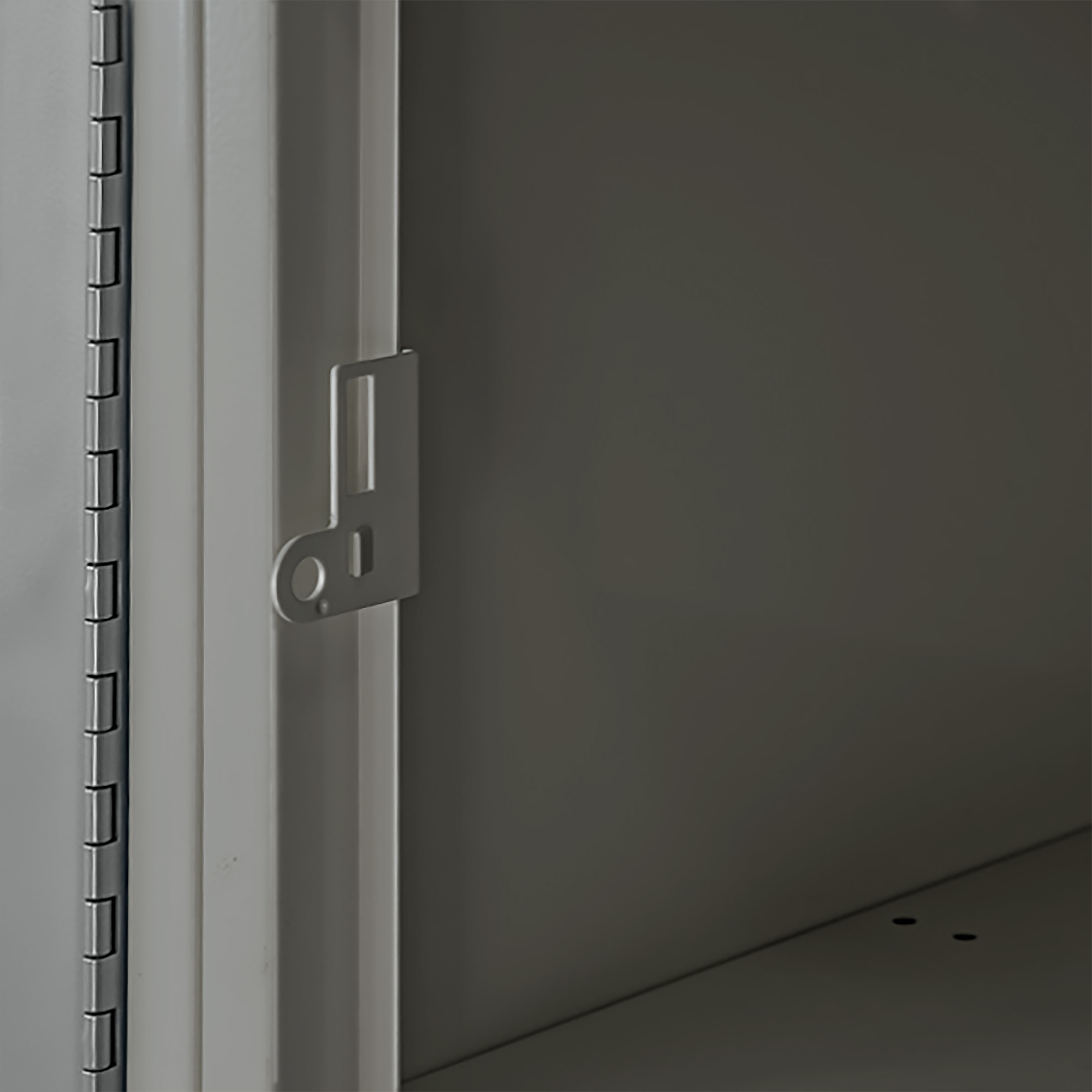

Full Length Piano Hinge
Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Product Overview
Box Lockers Are Ideal Where Space Is A Premium

KD lockers include matching body colors. Order Finished End Panels for exposed row ends if desired. Finished End Panels install over top of universal side panels adding strength and rigidity at exposed row ends and can be ordered to match KD locker door/frame color.

More Box Locker Features:

  • Lockers can be ordered fully-assembled or knock-down for assembly at destination.
  • Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row.
  • Lockers can be ordered in combination with Premium wardrobe lockers
  • All items shown are available for quick shipment within 5 business days of receipt of order.

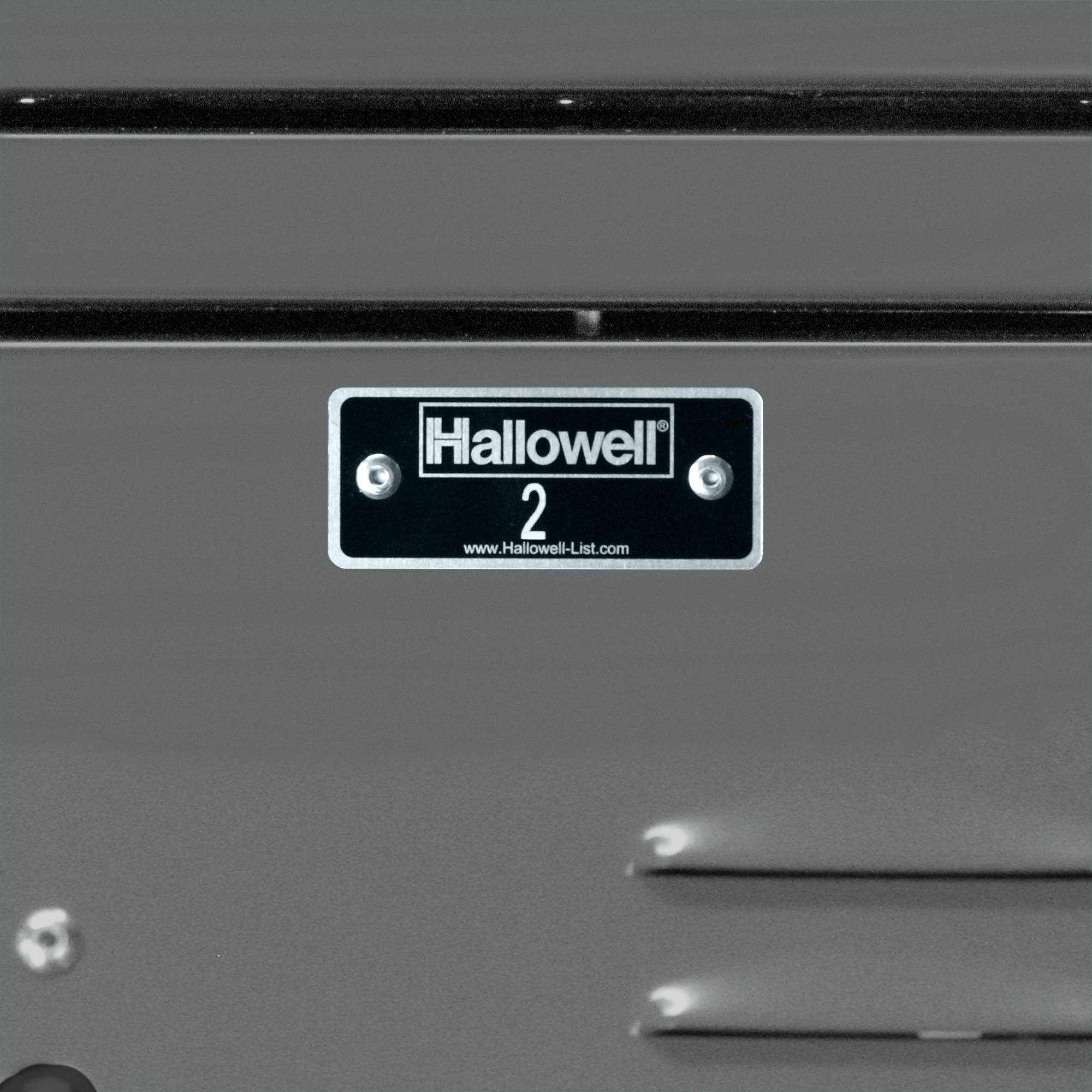

  • Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.
  • Locks are not included.
Body/Frame Description:
Knock-down, 24 gauge
Body/Frame:
KD
Body Styles:
five, six tier
Doors:
18 gauge, Louvered for added ventilation
Handle:

Single-point projecting friction catch door pull prepared for both padlock or built-in lock. No moving parts ensure quiet maintenance-free operation.

Hinges:
Continuous piano type
Hooks:
None
Coat Rods:
None
Shelves:
None
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge
Catalog
Classic KD Box

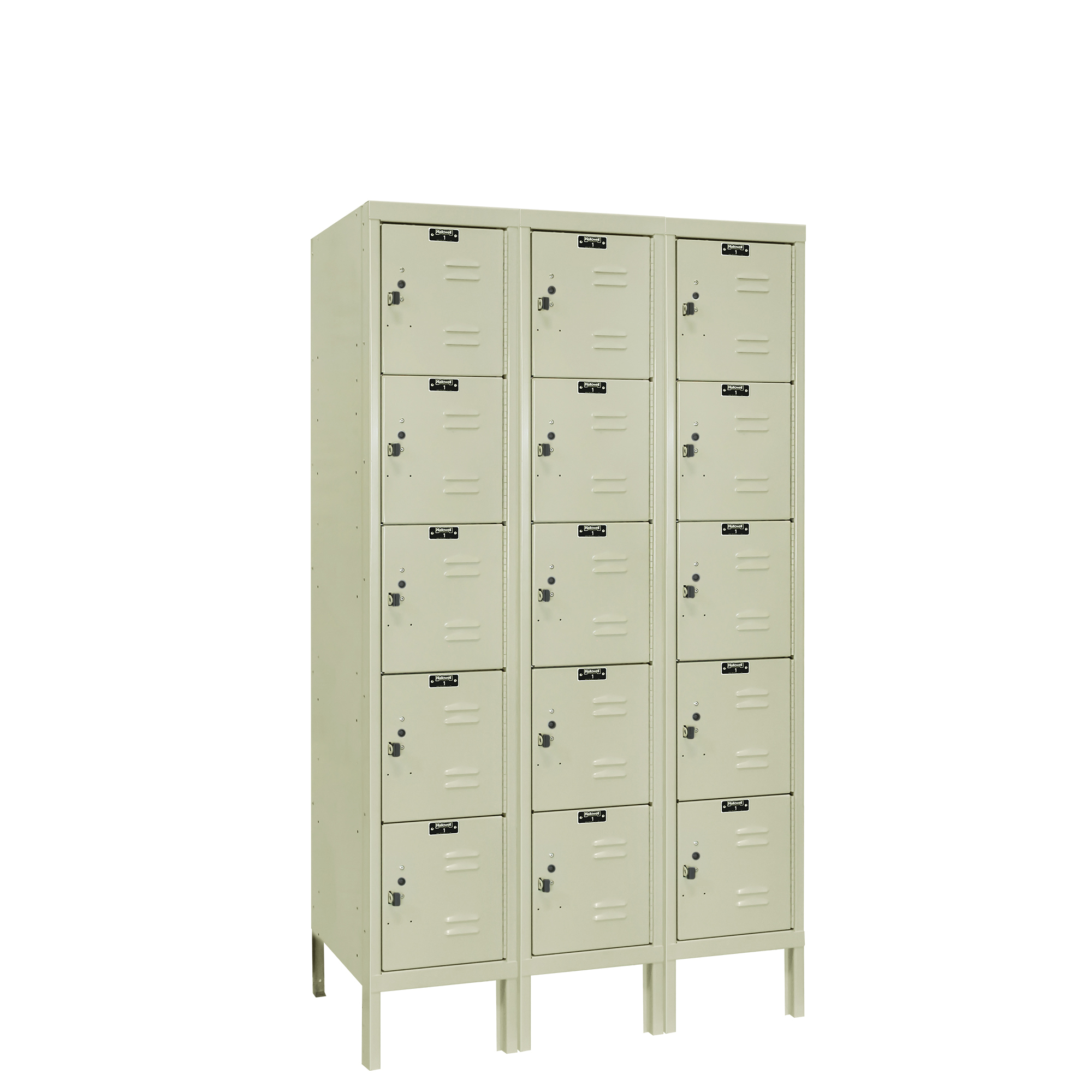

5-Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors
12 12 12 12/66 1-wide 5 5 U1226-5 U1226-5A Tan, Dark Gray
12 12 12 12/66 3-wide 15 5 U3226-5 U3226-5A Tan, Dark Gray
12 15 12 12/66 1-wide 5 5 U1256-5 U1256-5A Tan, Dark Gray
12 15 12 12/66 3-wide 15 5 U3256-5 U3256-5A Tan, Dark Gray
12 18 12 12/66 1-wide 5 5 U1286-5 U1286-5A Tan, Dark Gray
12 18 12 12/66 3-wide 15 5 U3286-5 U3286-5A Tan, Dark Gray
6-Tier
Width Depth Opening Height Frame Height Grouping Openings per Group Tier KD Assembled colors

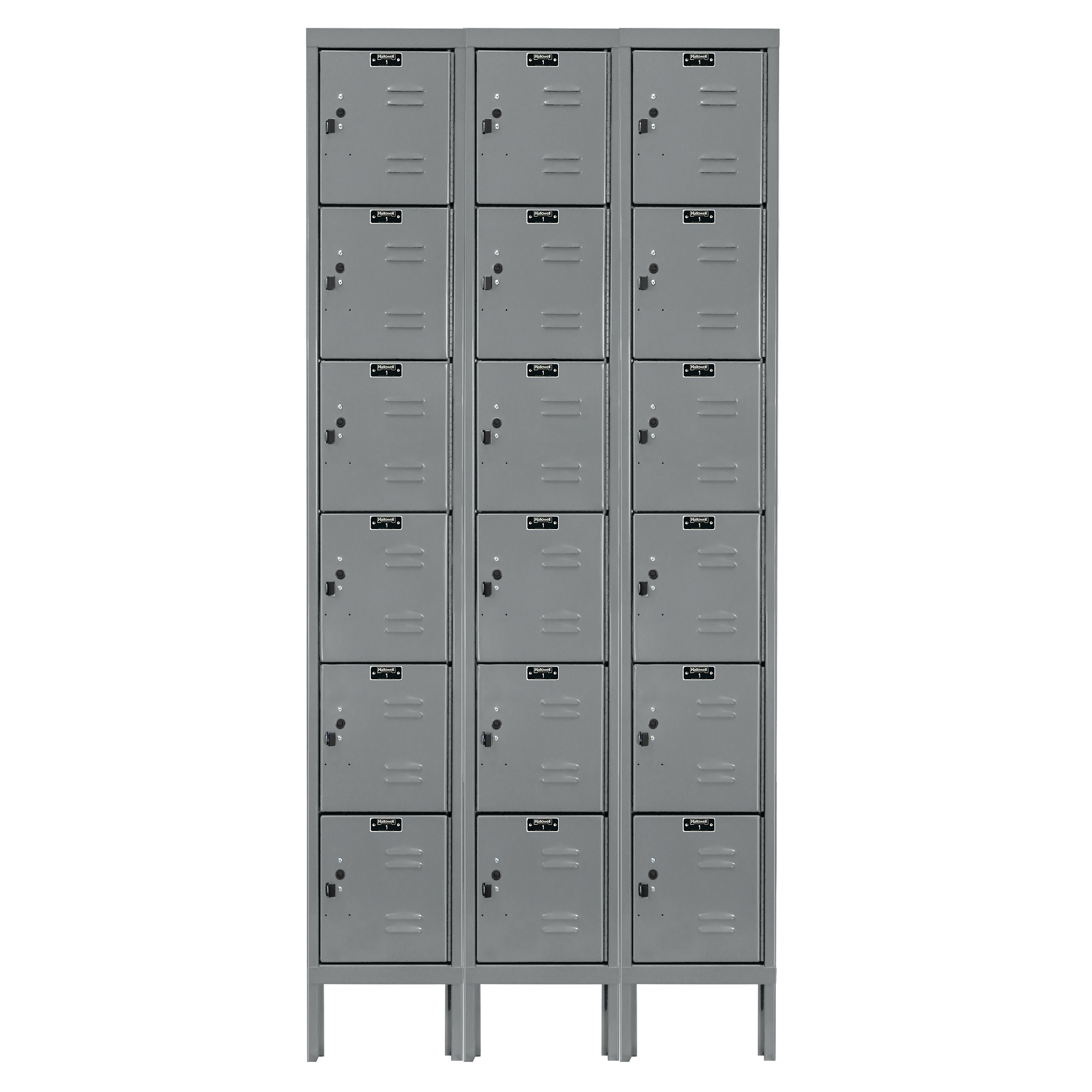

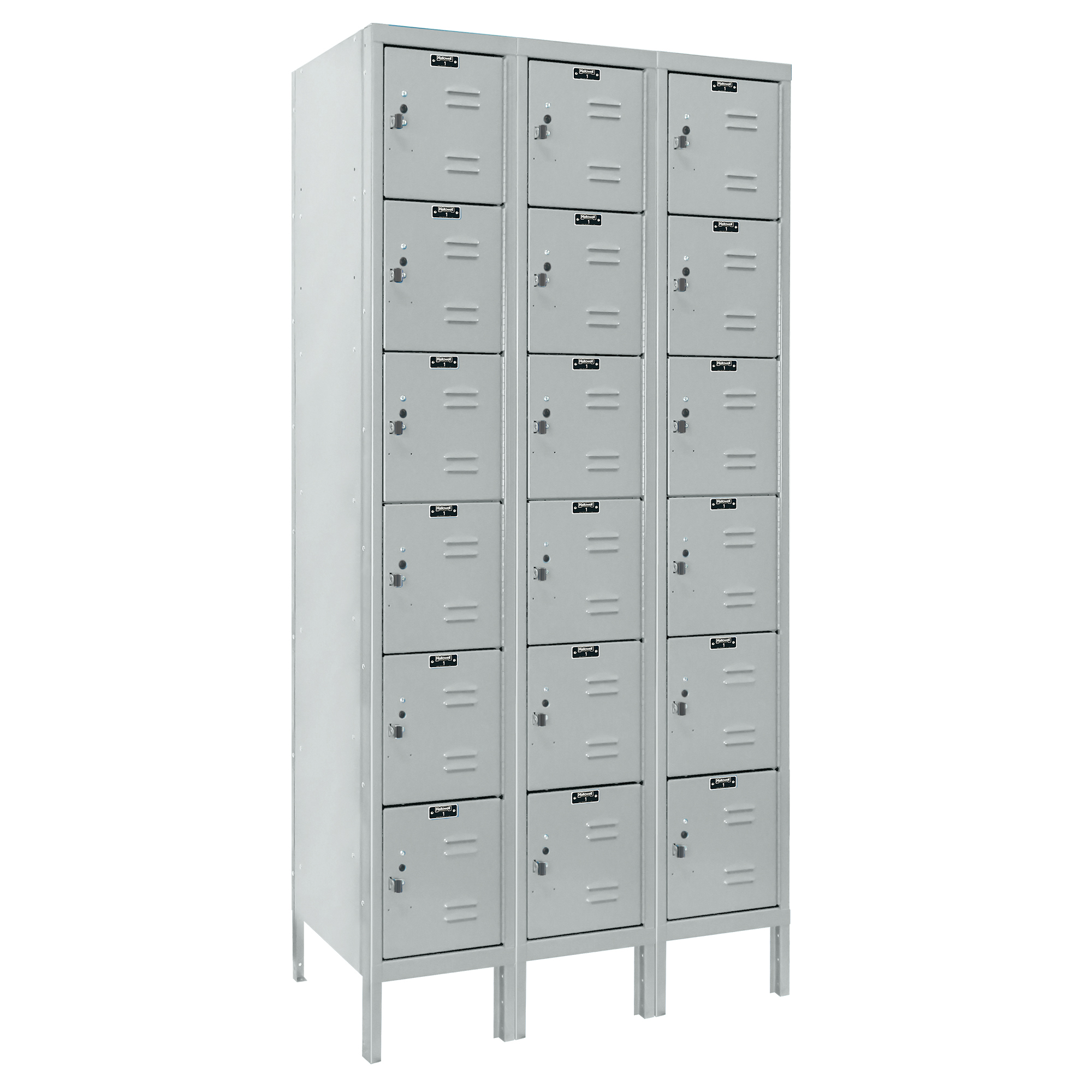

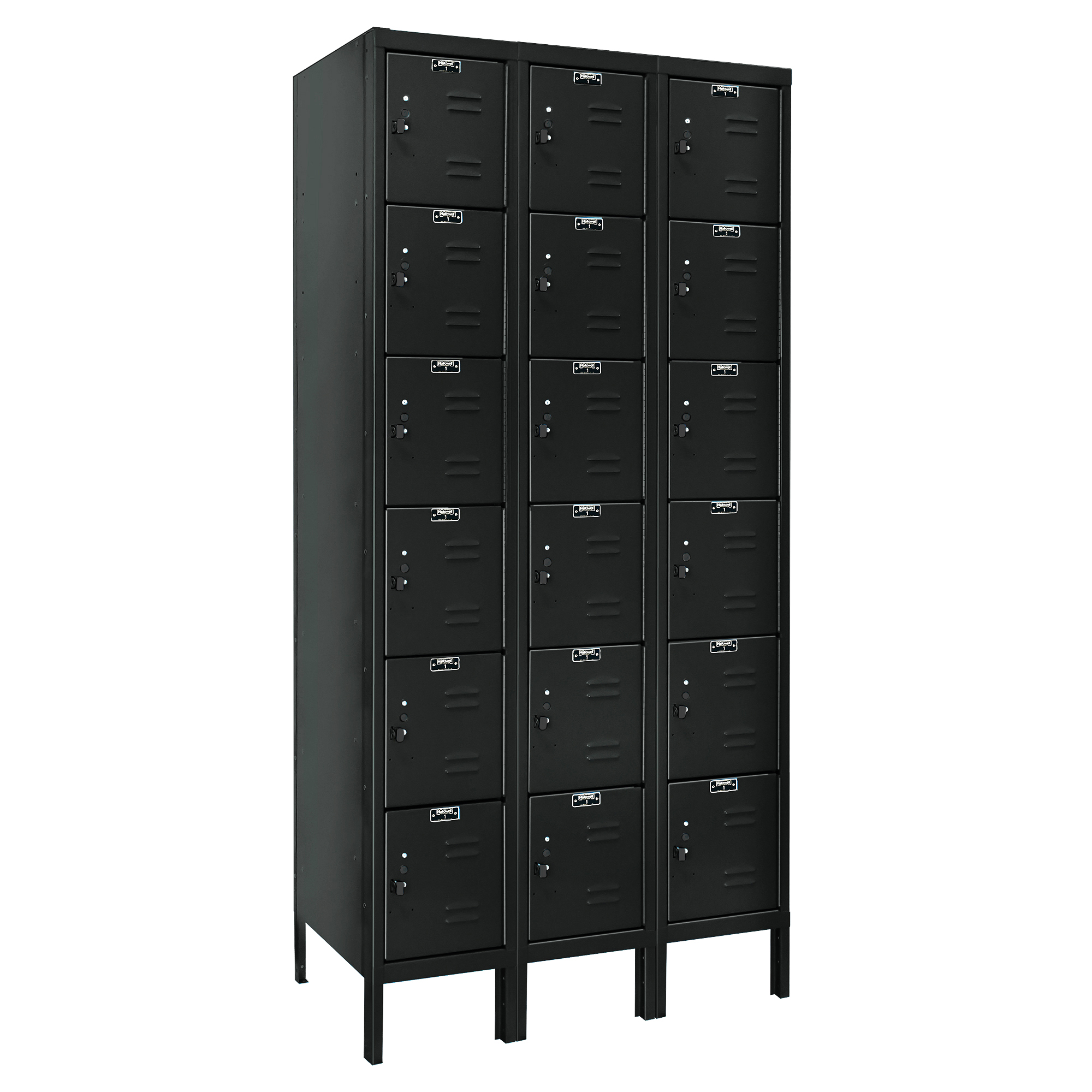

12 12 12 12/78 1-wide 6 6 U1228-6 U1228-6A Tan, Dark Gray, Marine Blue, Light Gray, Black
12 12 12 12/78 3-wide 18 6 U3228-6 U3228-6A Tan, Dark Gray, Marine Blue, Light Gray, Black
12 15 12 12/78 1-wide 6 6 U1258-6 U1258-6A Tan, Dark Gray, Marine Blue, Light Gray, Black

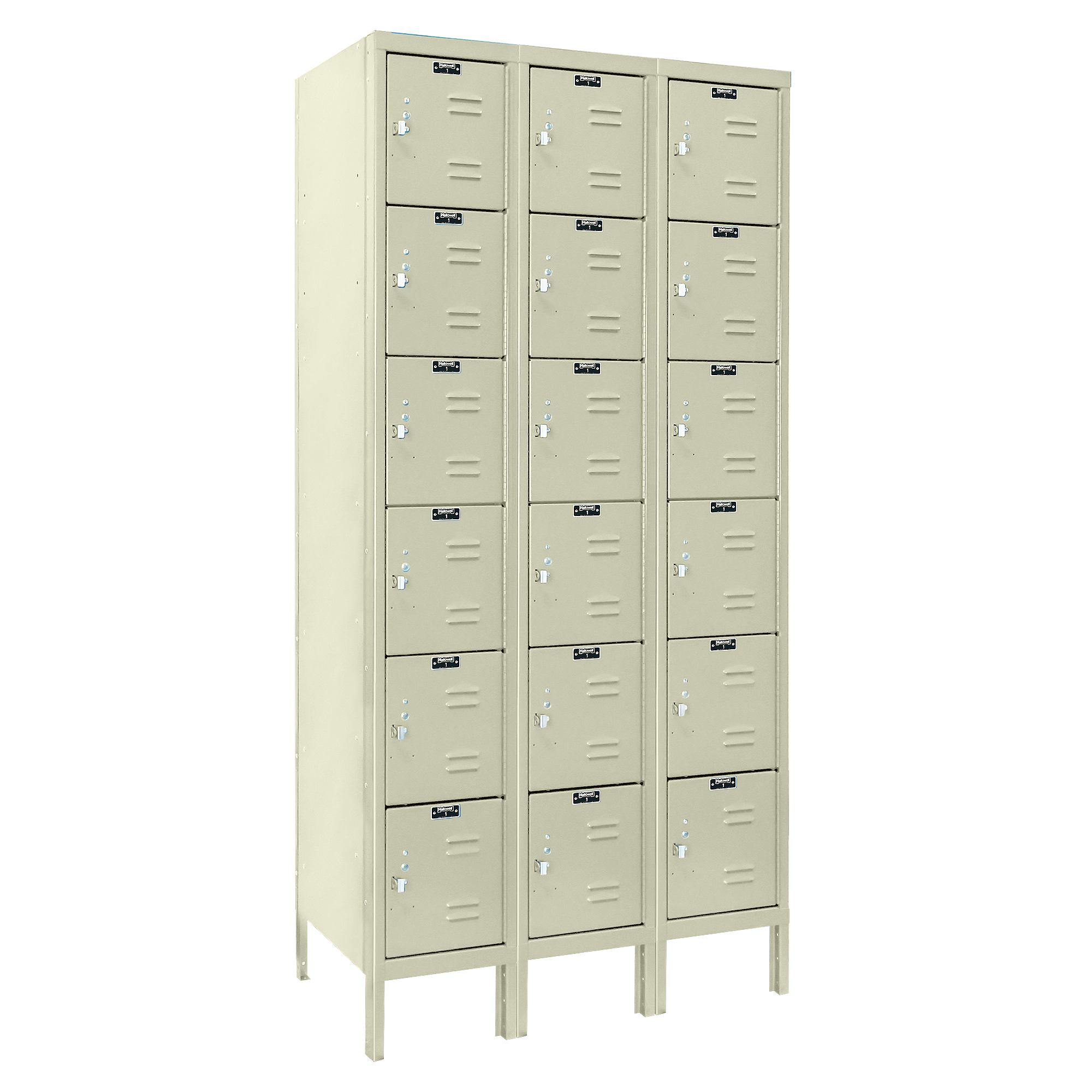

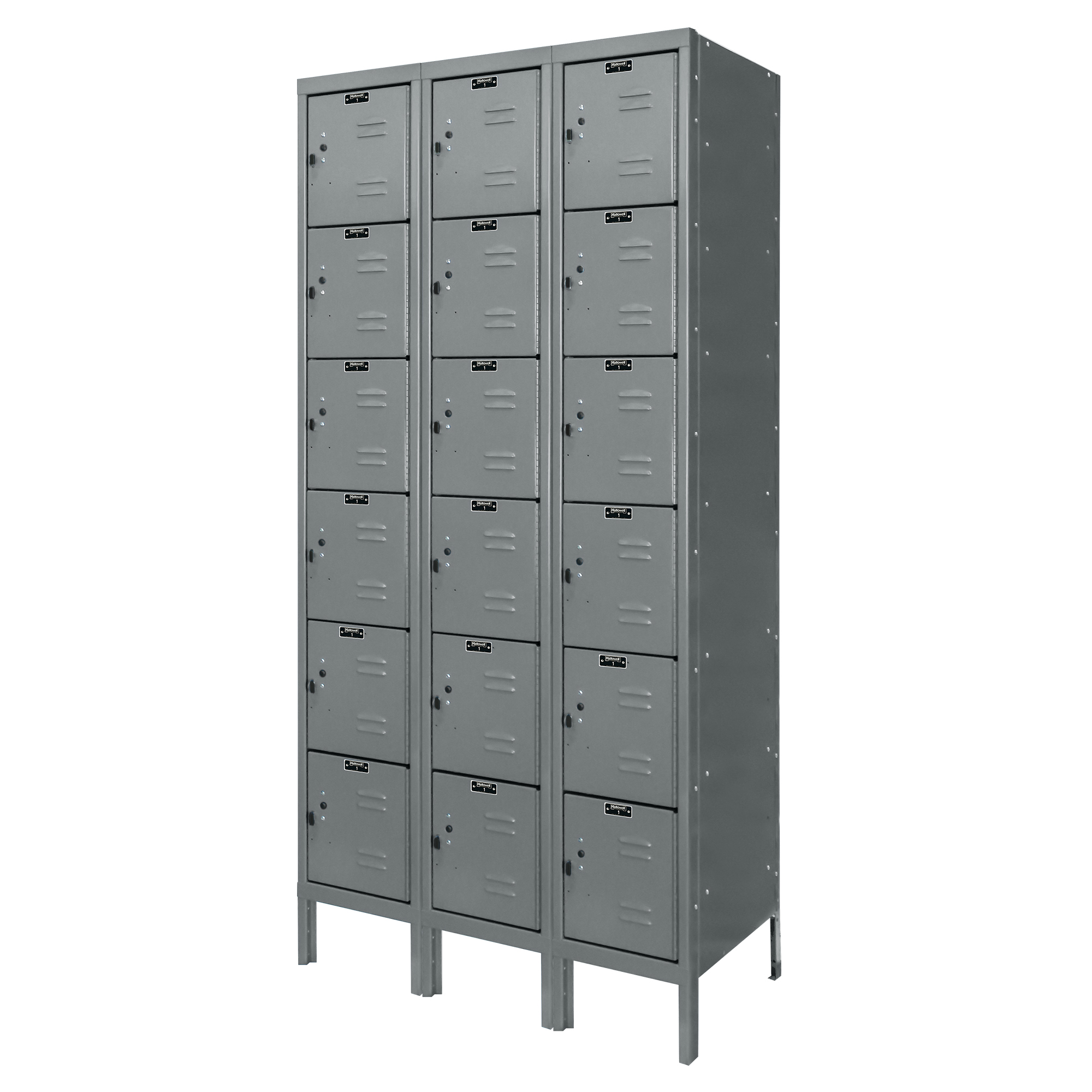

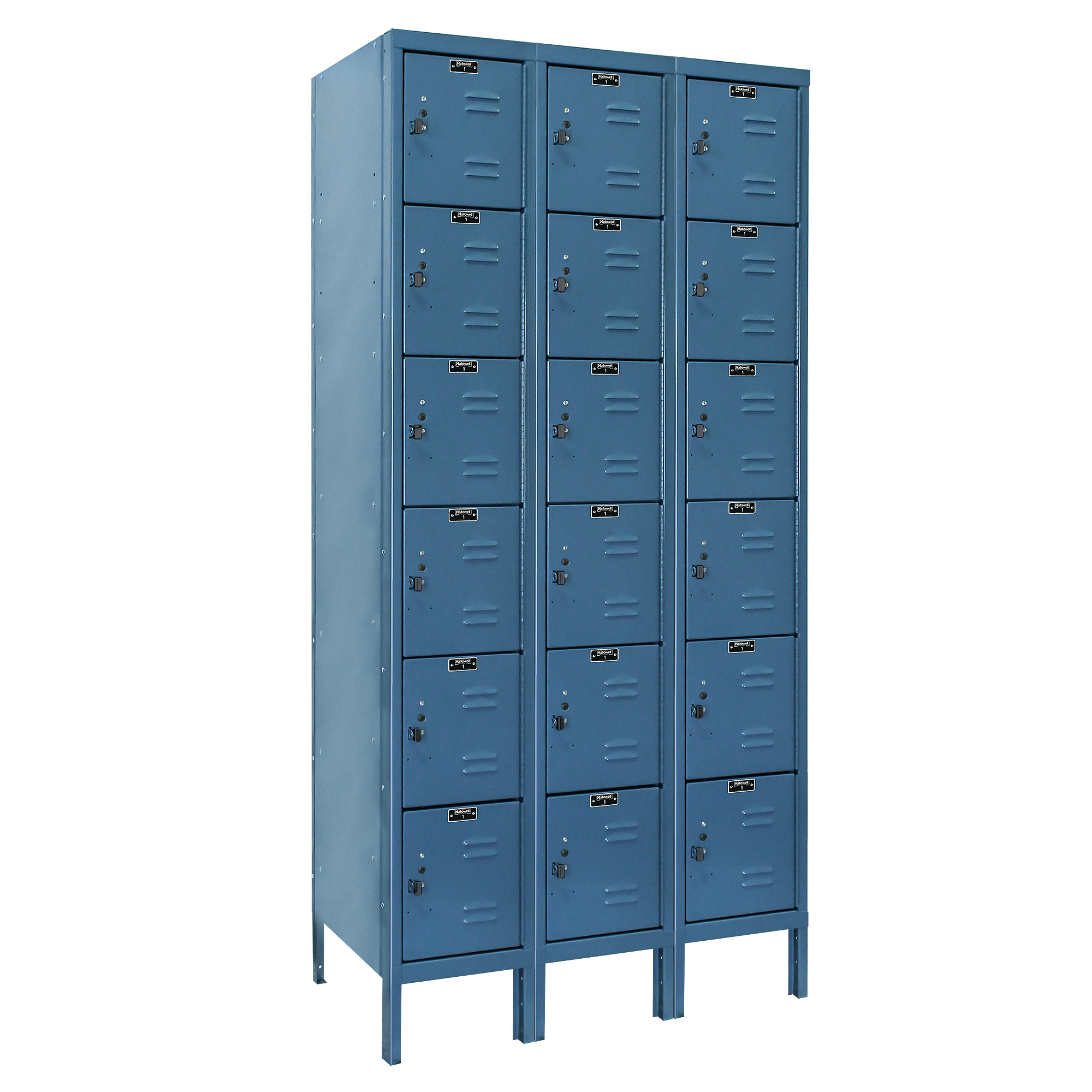

12 15 12 12/78 3-wide 18 6 U3258-6 U3258-6A Tan, Dark Gray, Marine Blue, Light Gray, Black
12 18 12 12/78 1-wide 6 6 U1288-6 U1288-6A Tan, Dark Gray, Marine Blue, Light Gray, Black
12 18 12 12/78 3-wide 18 6 U3288-6 U3288-6A Tan, Dark Gray, Marine Blue, Light Gray, Black
Colors

Please Note: Color selection is limited by catalog number - see above chart.

Color Selection:

#221f1a
708 Black (ME)
#dad8b1
729 Tan (PT)
#3d7da0
707 Marine Blue (MB)
#d4d4d4
711 Light Gray (PL)
#7a918b
725 Dark Gray (HG)
