Designed for today's Firefighter
Fully-framed all-welded construction is rugged enough to handle extreme and daily use.
Maximum Ventilation with expanded metal sides and open front
Maximum Ventilation

Maximum ventilation with expanded metal sides.

Equipment Storage - Turnout Gear
Equipment Storage

One Galvanneal hat/intermediate shelf, two single prong hooks, and a stainless steel coat rod.

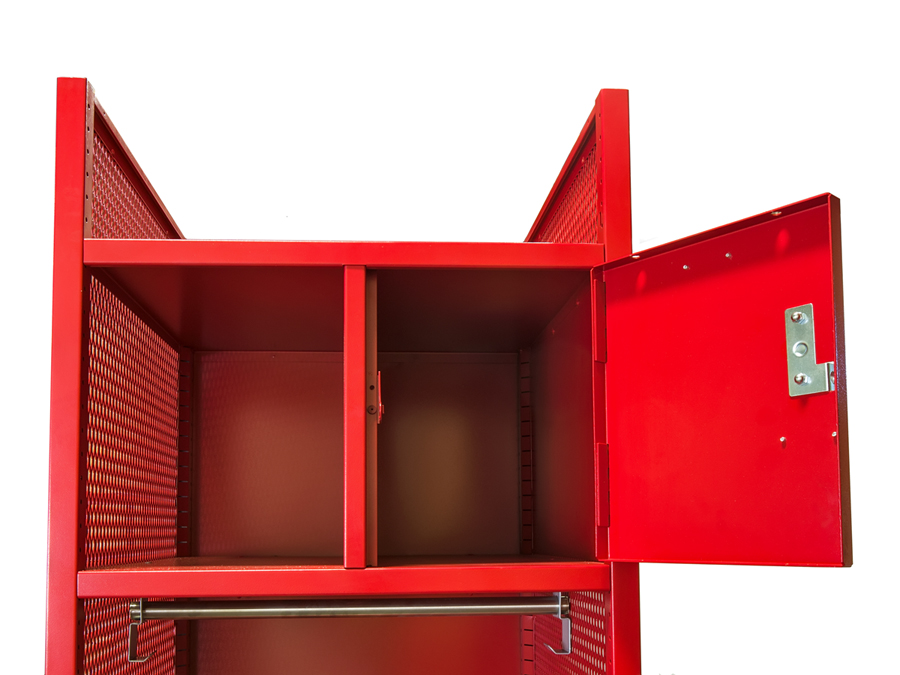

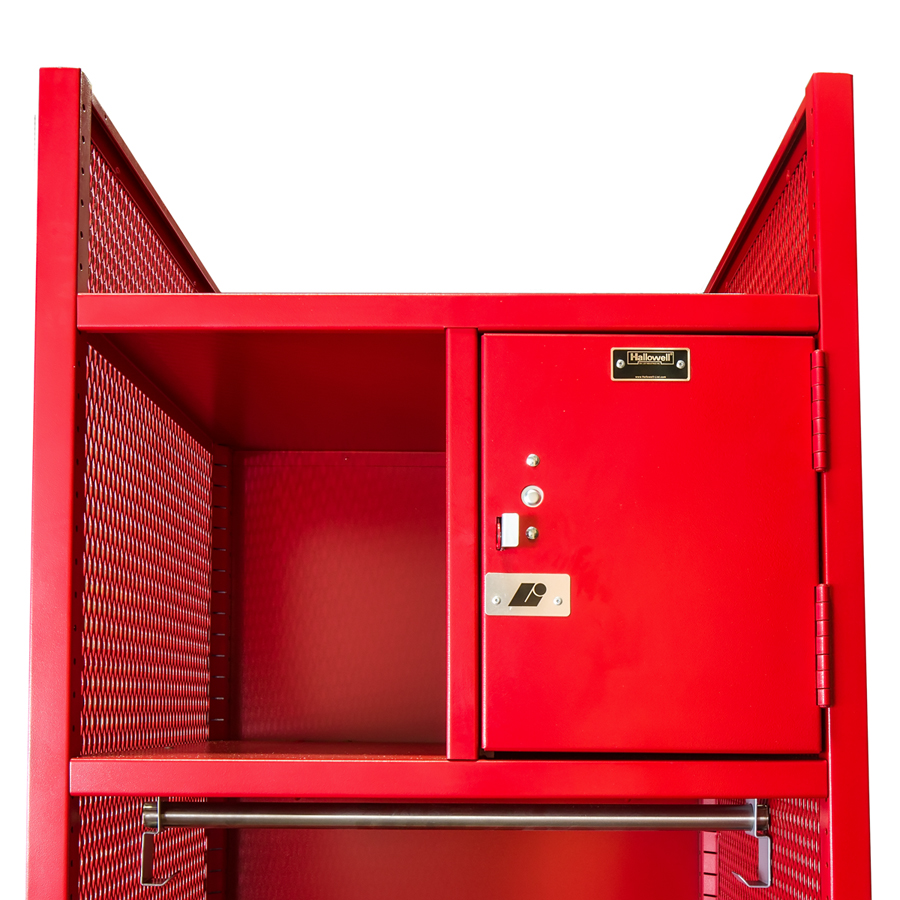

Upper Security Box - Turnout Gear
Upper Security Box

The optional upper-security box uses single-point latching prepared for after-market padlock.

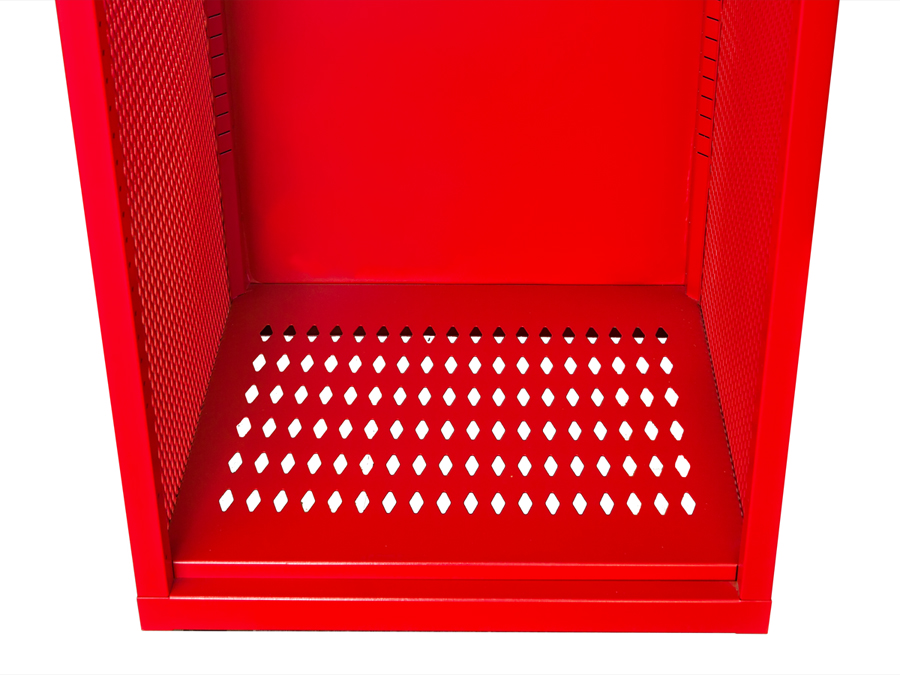

Ventilated Base
Ventilated Base

Units without the raised base have a diamond perforated ventilated bottom.

Product Overview
With Upper Security Box With Base

With Upper Security Box With Base

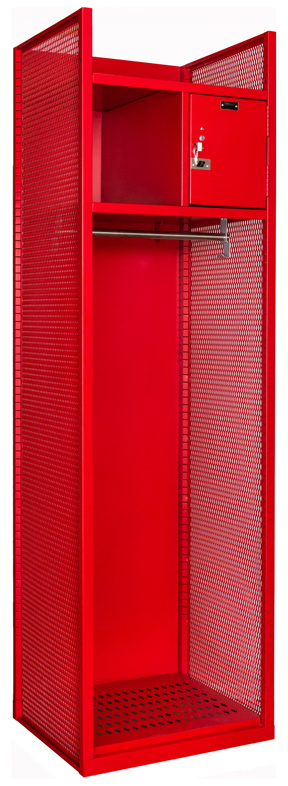

With Upper Security Box Without Base

With Upper Security Box Without Base

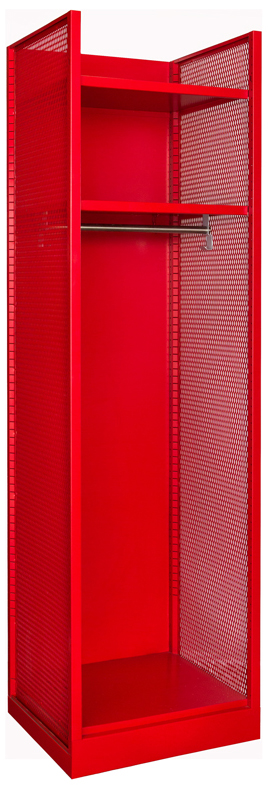

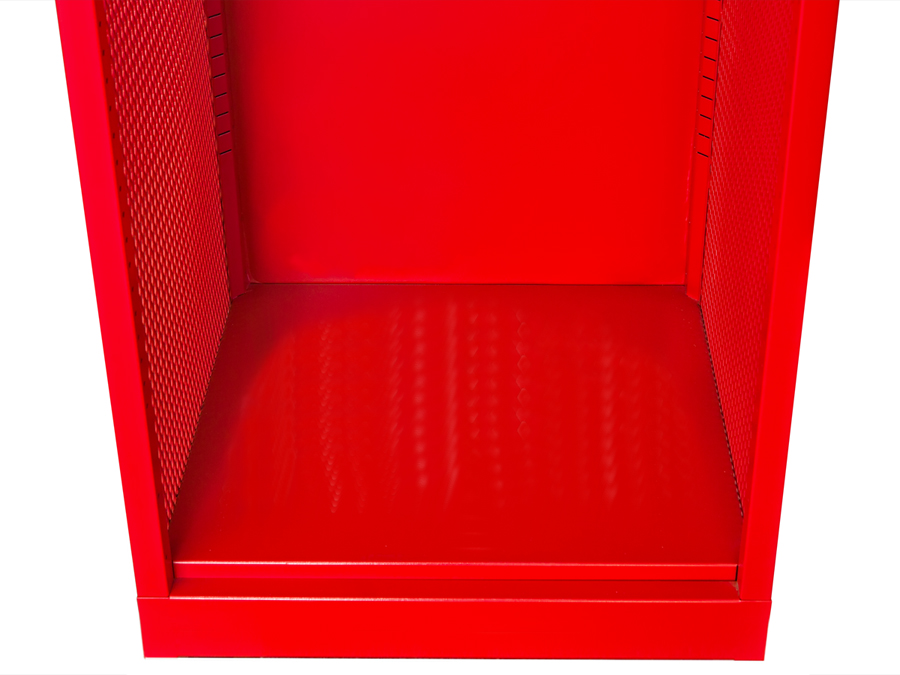

Base Model  With Base

Base Model With Base

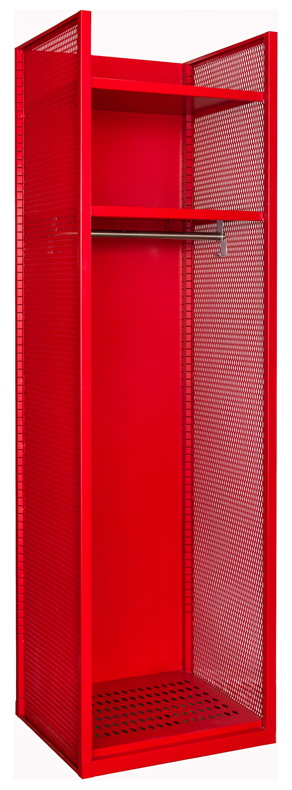

Base Model  Without Base

Base Model Without Base

Designed for Today's Firefighter

Designed for Today's Firefighter. Turnout lockers give you the advantage of instant access to mission gear

  • Fully-framed, all welded, rugged construction.
  • Maximum ventilation with expanded metal sides.
  • Upper shelf provides storage for helmets and head gear.
  • Without base models include ventilated bottom.
  • Open-front provides quick access to gear and clothing.
  • 721 Relay Red hammertone textured powder coat finish.

Features:
Body/Frame Description:
16 gauge Hollow "T" tubular frame with 13 gauge ½” flattened expanded metal sides
Body/Frame:
Fully Framed All-Welded
Body Styles:
Open front
Doors:
14 gauge cold rolled sheet-steel
Handle:

Projecting combination spring-bolt/padlock hasp door pull

Hinges:
Two heavy-duty 13 gauge 7-knuckle 3-1/2"
Hooks:
One Galvanneal hat/intermediate shelf and two single prong hooks.
Shelves:
1 fixed hat shelf
Catalog
Turnout Gear / Firefighter Lockers
Base Model
SKU Width Depth Frame Height Description Assembled
TGNN42(84)-1C-G-RR-HT 24-3/4 22 84

Without Base

Assembled
TGNN42(84)-1BC-G-RR-HT 24-3/4 22 86-1/4

With Base

Assembled
With Upper Security Box
SKU Width Depth Frame Height Description Assembled
TGBN42(84)-1C-G-RR-HT 24-3/4 22 84

Without Base

Assembled
TGBN42(84)-1BC-G-RR-HT 24-3/4 22 86-1/4

With Base

Assembled
Wall mounting angle for models without base
SKU Width Depth Frame Height Assembled
TGWMA030372 72 3 3 KD
Colors

Color Selection:

#b81528
721 Relay Red (RR)
