All-Welded DuraTough Cabinets are in stock in Charcoal and come completely assembled.
Choose from Classic, Heavy-Duty, or Extra-Heavy-Duty

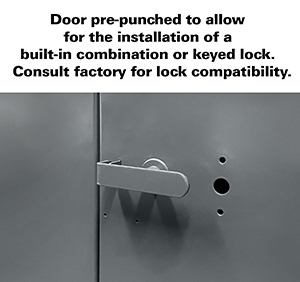

Positive 3-Point Latching
3-Point Latching

3-point turn handle locking using 3/8" diameter locking rods operated by a 3/16" gauge steel handle (handle painted to match unit)

Full Height Door Stiffener
Full Height Door Stiffener

Solid doors are reinforced with an 18 gauge full-height door stiffener providing a rigid torque-free door.

Leg Kits - Welded cabinets
DuraTough™ Cabinet Leg Kits

Leg kits can be added to any Hallowell DuraTough Cabinet.
Legs are fabricated from galvanneal corrosion resistant steel and are
easily bolted to cabinet bottom. Includes hardware for field attachment.

Cabinet Drawers - Welded cabinets
DuraTough™ Cabinet Drawers

Note: Drawer units should always be installed into the lower
portion of the cabinets to insure stability when opening the
drawers.  Only one drawer should be opened at a time.

Product Overview
Storage

Storage

Combination

Combination

Ventilated

Ventilated

Safety View

Safety View

Solid Door and Ventilated in stock

Classic Series Cabinets:
Fabricated from prime grade cold rolled sheet steel.

  • All-welded construction Double door design
  • Solid doors are reinforced with an 18 gauge full-height door stiffener providing a rigid torque-free door.
  • 3-point turn handle locking using 3/8” diameter locking rods operated by a 3/16" gauge steel handle.
  • Heavy-duty 13 gauge 7-knuckle 3-1/2" butt hinges welded to door and securely riveted to frame.
  • Solid sides are formed to be integral with vertical door frame.
  • Top is formed to be integral with horizontal top door frame.
  • Bottom is formed to be integral with horizontal bottom door frame and includes double return bends at all four sides maximizing unit rigidity.
  • Back is welded to cabinet top, bottom and sides
  • Shelves are formed to provide maximum capacity and are adjustable on 3” centers. Shelves bolt to shelf support channels which are welded to sides.

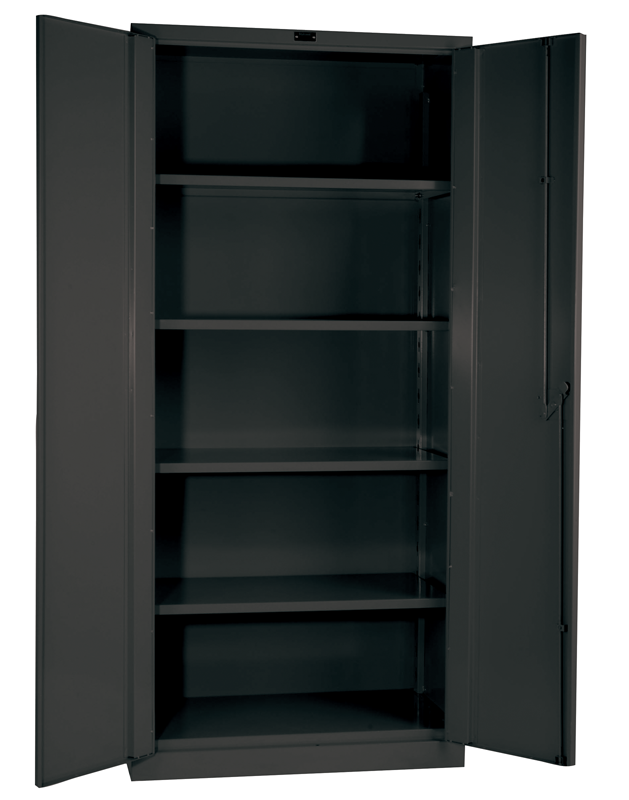

Available in Storage or Combination configurations.

  • 78” high storage cabinets include 4-adjustable shelves
  • 60” high storage cabinets include 3-adjustable shelves
  • 42” high storage cabinets include 2-adjustable shelves
  • 78'' high combination cabinets include one full-width upper shelf, a center partition, 3 partial-width shelves and one partial-width coat rod
  • Optional leg kits are available and can be bolted on to all DuraTough cabinets.
  • Color: 738 Charcoal

Heavy-Duty Cabinets:
Fabricated from 16 gauge sheet steel and are fully-welded creating a rigid, durable unit

Extra Heavy-Duty Cabinets:
Fabricated from 14 gauge steel which is 25% thicker than 16 gauge providing MAXIMUM durability

Catalog
DuraTough™ Classic Series
Extra Heavy-Duty All-Welded Cabinets
SKU Cabinet Type Width Depth Frame Height Description Number of Shelves colors Assembled
HW4SCS61CL Additional Shelf 36 21 -

Additional Shelves, Extra Heavy-Duty 14 GAUGE

1 Charcoal KD
HW4SC6142-2CL Storage 36 21 42

Extra Heavy-Duty 14 GAUGE

2 Charcoal Assembled
HW4SC6160-3CL Storage 36 21 60

Extra Heavy-Duty 14 GAUGE

3 Charcoal Assembled
HW4SC6178-4CL Storage 36 21 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4SCS64CL Additional Shelf 36 24 -

Additional Shelves, Extra Heavy-Duty 14 GAUGE

1 Charcoal  KD
HW4SC6478-4CL Storage 36 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4CC6478-4CL Combination 36 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4SCS84CL Additional Shelf 48 24 -

Additional Shelves, Extra Heavy-Duty 14 GAUGE

1 Charcoal KD
HW4SC8460-3CL Storage 48 24 60

Extra Heavy-Duty 14 GAUGE

3 Charcoal Assembled
HW4CC8478-4CL Combination 48 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4SC8478-4CL Storage 48 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4CC0478-4CL Combination 60 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4SC0478-4CL Storage 60 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
Heavy-Duty All-Welded Cabinets
SKU Cabinet Type Width Depth Frame Height Description Number of Shelves colors Assembled
HW6SCS61CL Additional Shelf 36 21 -

Additional Shelves, Heavy-Duty 16 GAUGE

1 Charcoal KD
HW6SC6142-2CL Storage 36 21 42

Heavy-Duty 16 GAUGE

2 Charcoal Assembled
HW6SC6160-3CL Storage 36 21 60

Heavy-Duty 16 GAUGE

3 Charcoal Assembled
HW6SC6178-4CL Storage 36 21 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled
HW6SCS64CL Additional Shelf 36 24 -

Additional Shelves, Heavy-Duty 16 GAUGE

1 Charcoal KD
HW6SC6478-4CL Storage 36 24 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled
HW6CC6478-4CL Combination 36 24 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled
HW6SCS84CL Additional Shelf 48 24 -

Additional Shelves, Heavy-Duty 16 GAUGE

1 Charcoal KD
HW6SC8460-3CL Storage 48 24 60

Heavy-Duty 16 GAUGE

3 Charcoal Assembled
HW6SC8478-4CL Storage 48 24 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled
HW6CC8478-4CL Combination 48 24 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled
HW6CC0478-4CL Combination 60 24 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled
HW6SC0478-4CL Storage 60 24 78

Heavy-Duty 16 GAUGE

4 Charcoal Assembled

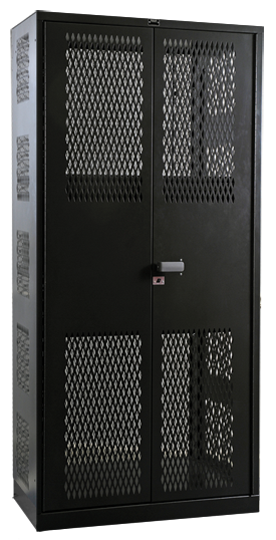

Ventilated Series DuraTough™ Cabinets
SKU Cabinet Type Width Depth Frame Height Description Number of Shelves colors Assembled
HW4VSC6478-4CL Storage 36 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4VSC8478-4CL Storage 48 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled

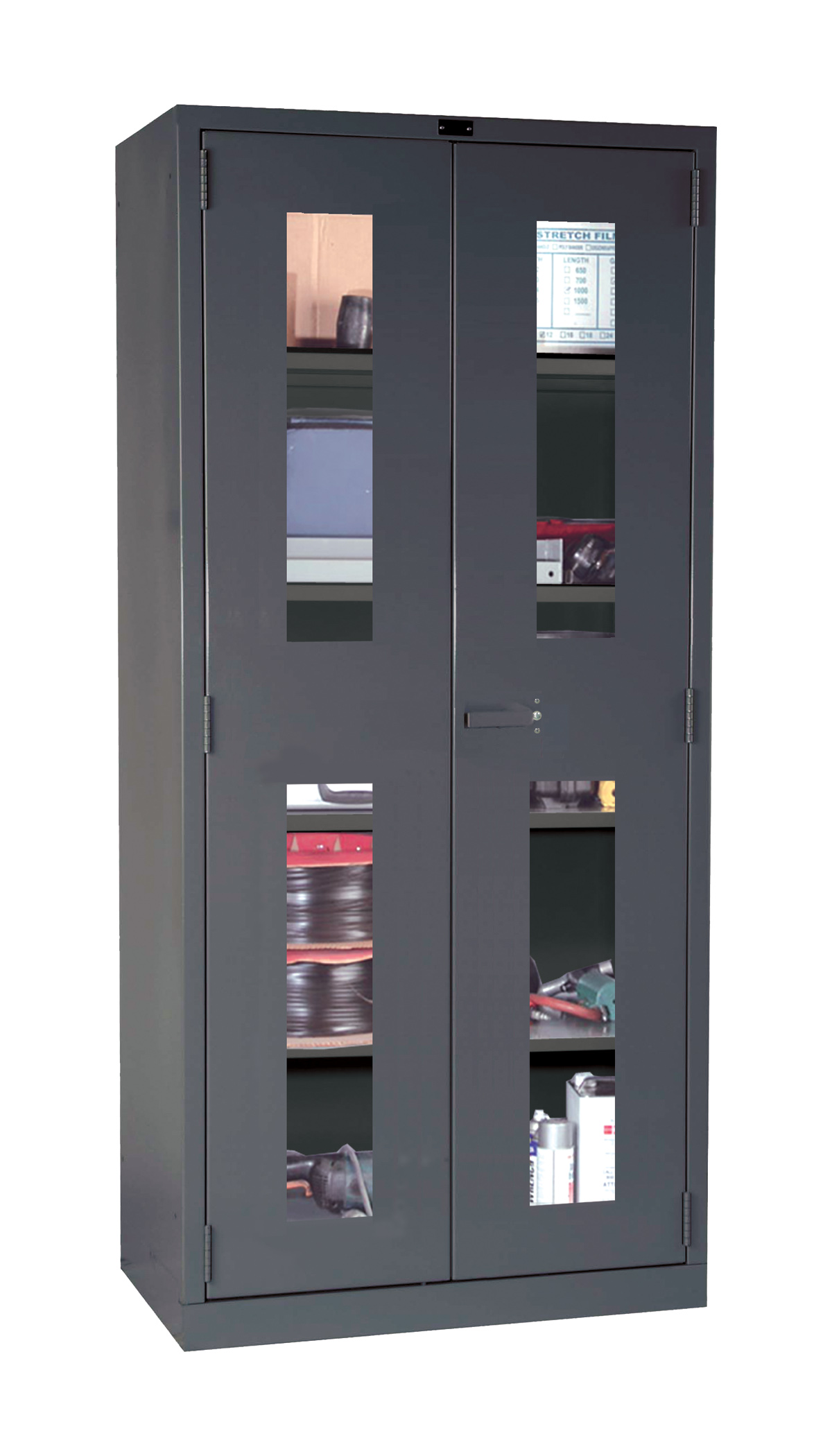

Safety-View Series DuraTough™ Cabinets
SKU Cabinet Type Width Depth Frame Height Description Number of Shelves colors Assembled
HW4SVSC6478-4CL Storage 36 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
HW4SVSC8478-4CL Storage 48 24 78

Extra Heavy-Duty 14 GAUGE

4 Charcoal Assembled
DuraTough™ Accessories
Cabinet Drawers
SKU Cabinet Type Width Depth Frame Height Description colors Number Per Kit Assembled
FKSCD48-2CL Leg Kit 36 24 7.5

DuraTough™ Cabinet 2 Drawer

Charcoal 2 KD
FKSCD48-3CL Leg Kit 36 24 5

DuraTough™ Cabinet 3 Drawer

Charcoal 3 KD
FKSCD36-3CL Leg Kit 48 24 5

DuraTough™ Cabinet 3 Drawer

Charcoal 3 KD
FKSCD36-2CL Leg Kit 48 24 7.5

DuraTough™ Cabinet 2 Drawer

Charcoal 2 KD
Leg Kit
SKU Cabinet Type Width Depth Frame Height Description colors Number Per Kit Assembled
HWC4LK-1G-CL Leg Kit 4 21 4

DuraTough Cabinet Leg Kits

Charcoal 2 KD
HWC4LK-4G-CL Leg Kit 4 24 4

DuraTough Cabinet Leg Kits

Charcoal 2 KD
Colors

Color Selection:

#353d40
738 Charcoal
