Safety-View™ Wardrobe KD Lockers - In stock

More from: Wardrobe Lockers Lockers

Safety-View Windowed Lockers are the perfect solution.

When close monitoring of locker contents is desired, Safety-View uses two high strength injection molded polycarbonate panels per door for content viewing.

304 Stainless Steel Recessed Handle

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Safety-View Clear Panels

16 gauge steel with two high-strength injection molded polycarbonate panels per door for easy content viewing.

Piano Hinge

A full-length piano hinge runs from the top to the bottom of each door and provides sturdy and smooth door operation.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Single Tier

Double Tier

Triple Tier

Ideal For Monitoring Locker Contents

Safety-View Windowed Lockers are the perfect solution when close monitoring of locker contents is desired. Two, high strength injection molded polycarbonate panels per door for content viewing. Available in Single Tier, Double Tier, & Triple Tier configurations.

NOTE: Meets UL flammability standards, Polycarbonate is approved by the Consumer Product Safety Commission

Features:

Aluminum number plates (#1-up) with mounting hardware are included.
Locks are not included.
Safety-View plus doors provide an unobstructed view of locker contents
Can be ordered fully-assembled or knock-down for assembly at destination
Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row

Body/Frame Description:

Knock-down, 24 gauge

Body/Frame:

KD

Body Styles:

Single, double and triple tier

Doors:

16 gauge steel with two high strength injection molded polycarbonate panels per door for easy content viewing

Handle:

Stainless steel recessed handle with multi-point gravity lift-type latching. Recessed handle protects finish from being marred by padlock.

Hinges:

Continuous piano type

Hooks:

One double prong ceiling hook and two single hooks per single and double tier opening. One double ceiling hook for triple tier

Coat Rods:

Available for single tier at a nominal cost

Shelves:

Hat shelf is included in single tier lockers

Legs:

6" high legs are standard. Lockers without legs are available for a nominal charge

Catalog

Safety-View™ Windowed Wardrobe Locker Sizes

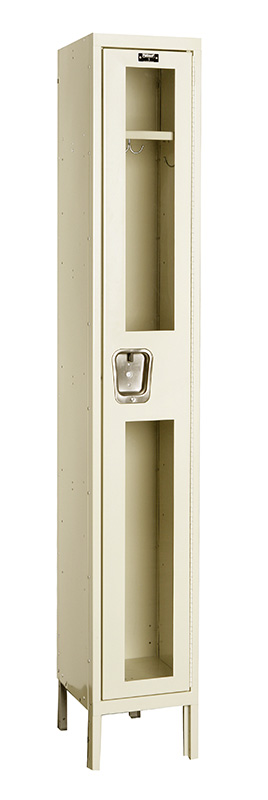

Single Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	72	72/78	1-wide	1	1	USV1228-1	USV1228-1A	Tan
12	12	72	72/78	3-wide	3	1	USV3228-1	USV3228-1A	Tan
12	15	72	72/78	1-wide	1	1	USV1258-1	USV1258-1A	Tan
12	15	72	72/78	3-wide	3	1	USV3258-1	USV3258-1A	Tan
12	18	72	72/78	1-wide	1	1	USV1288-1	USV1288-1A	Tan
12	18	72	72/78	3-wide	3	1	USV3288-1	USV3288-1A	Tan

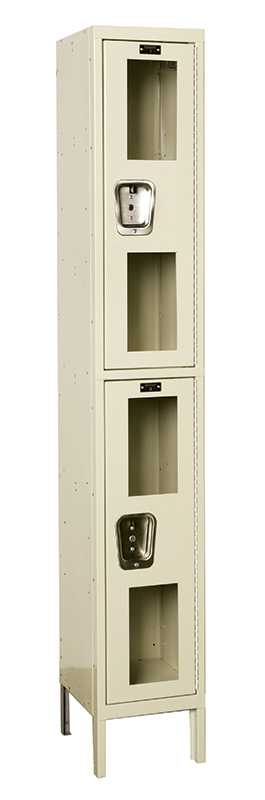

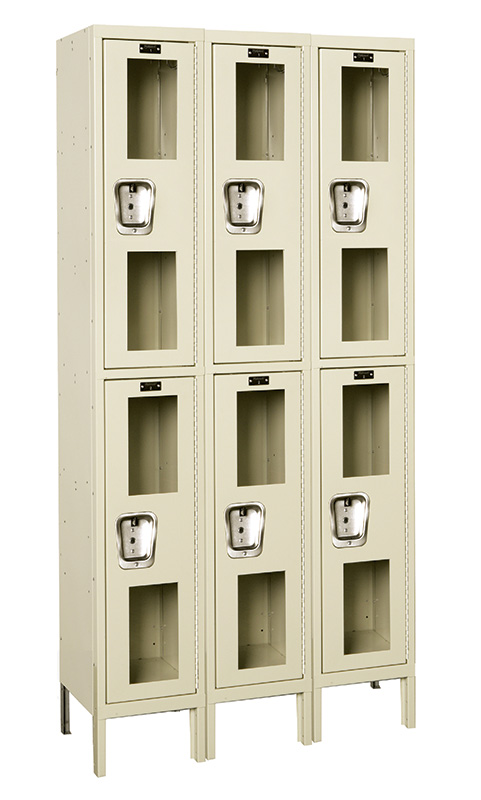

Double Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	36	36/78	1-wide	2	2	USV1228-2	USV1228-2A	Tan
12	12	36	36/78	3-wide	6	2	USV3228-2	USV3228-2A	Tan
12	15	36	36/78	1-wide	2	2	USV1258-2	USV1258-2A	Tan
12	15	36	36/78	3-wide	6	2	USV3258-2	USV3258-2A	Tan
12	18	36	36/78	1-wide	2	2	USV1288-2	USV1288-2A	Tan
12	18	36	36/78	3-wide	6	2	USV3288-2	USV3288-2A	Tan

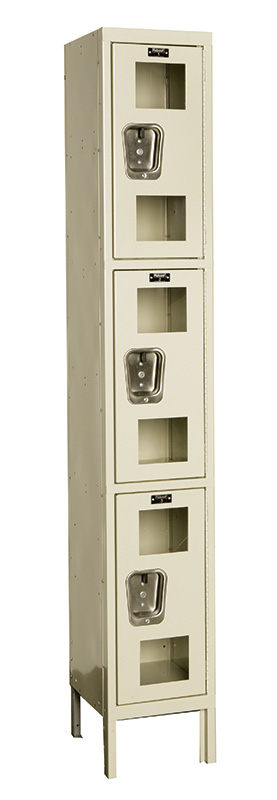

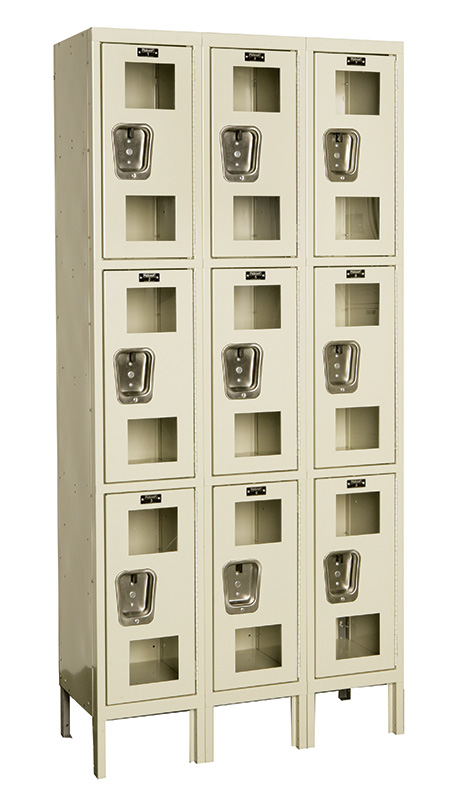

Triple Tier
Width	Depth	Opening Height	Frame Height	Grouping	Openings per Group	Tier	KD	Assembled	colors
12	12	24	24/78	1-wide	3	3	USV1228-3	USV1228-3A	Tan
12	12	24	24/78	3-wide	9	3	USV3228-3	USV3228-3A	Tan
12	15	24	24/78	1-wide	3	3	USV1258-3	USV1258-3A	Tan
12	15	24	24/78	3-wide	9	3	USV3258-3	USV3258-3A	Tan
12	18	24	24/78	1-wide	3	3	USV1288-3	USV1288-3A	Tan
12	18	24	24/78	3-wide	9	3	USV3288-3	USV3288-3A	Tan
