PRODUCT CATEGORIES

Hi-Tech Shelving Systems

Hi-Tech

Shelving Systems

Hi-Tech

Industrial Grade Steel Shelving

Hi-Tech shelving is more than just shelving. It's a complete shelving system that offers endless configuration options and maximum material efficiency. With its extensive library of components, Hi-Tech shelving can be used in nearly any space and for any application.

Unit Load Capacity Information - HERE

Shelving

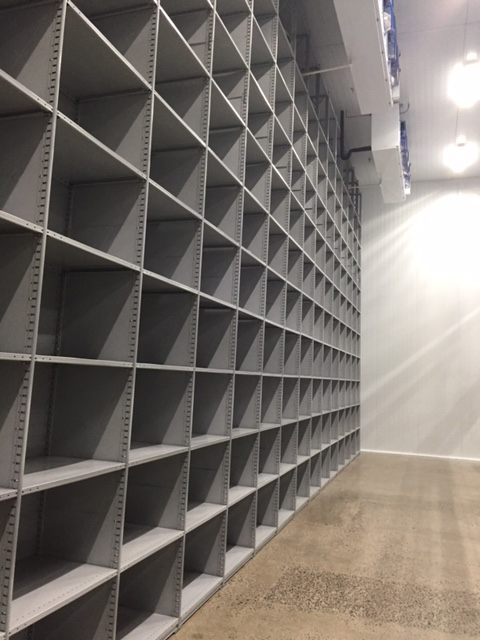

Galleries

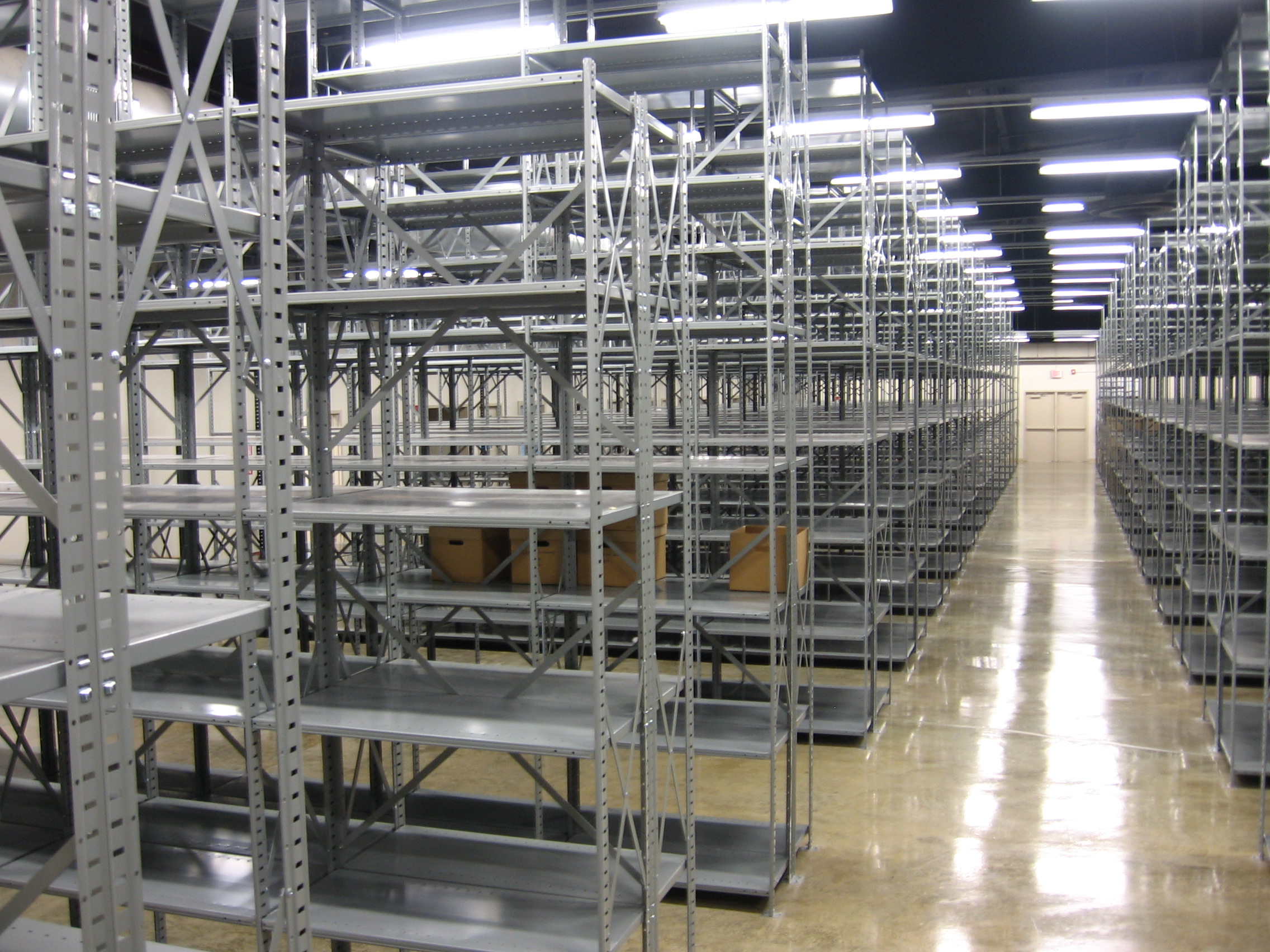

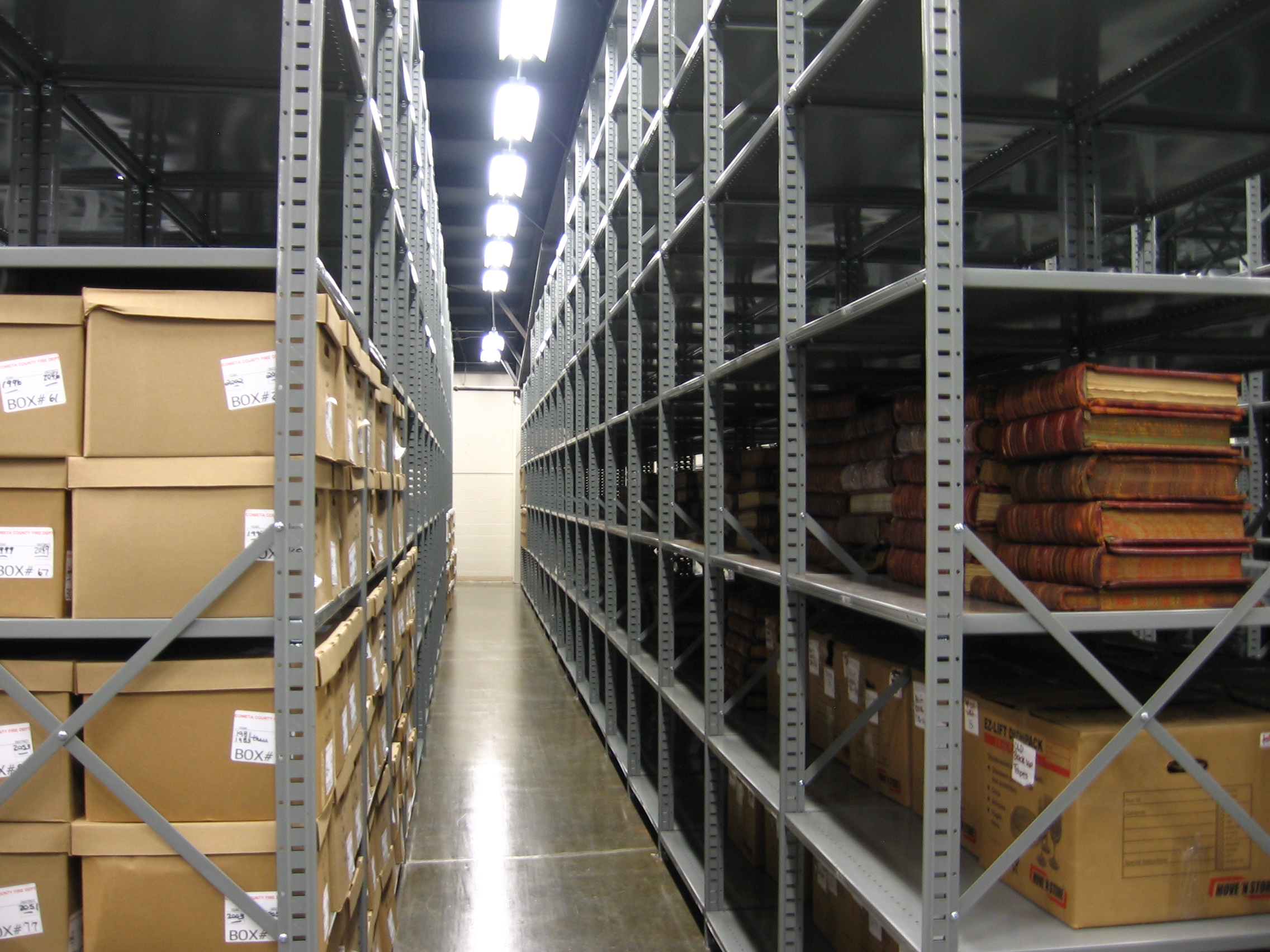

Single Level

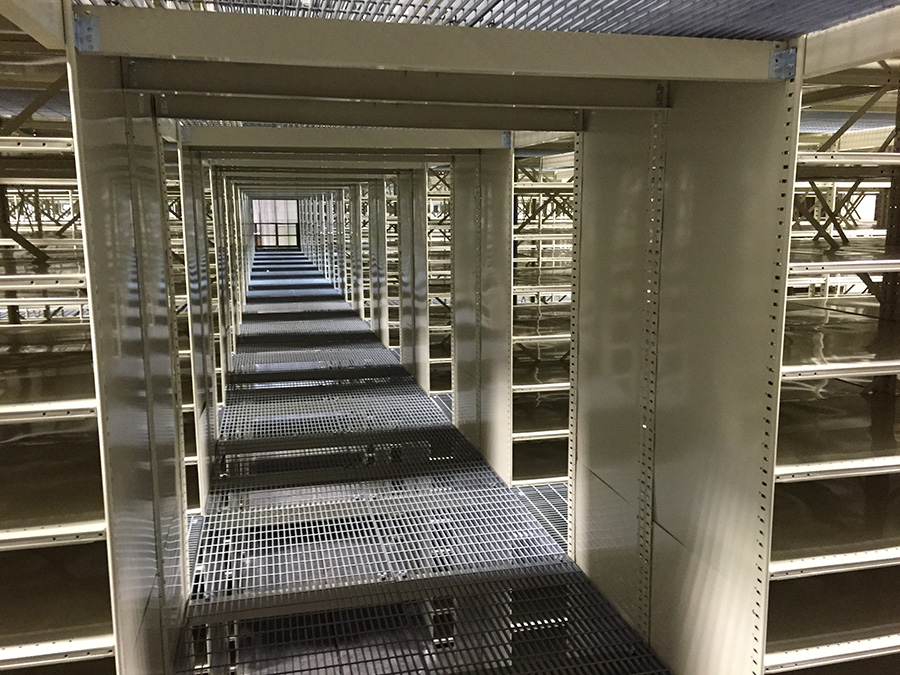

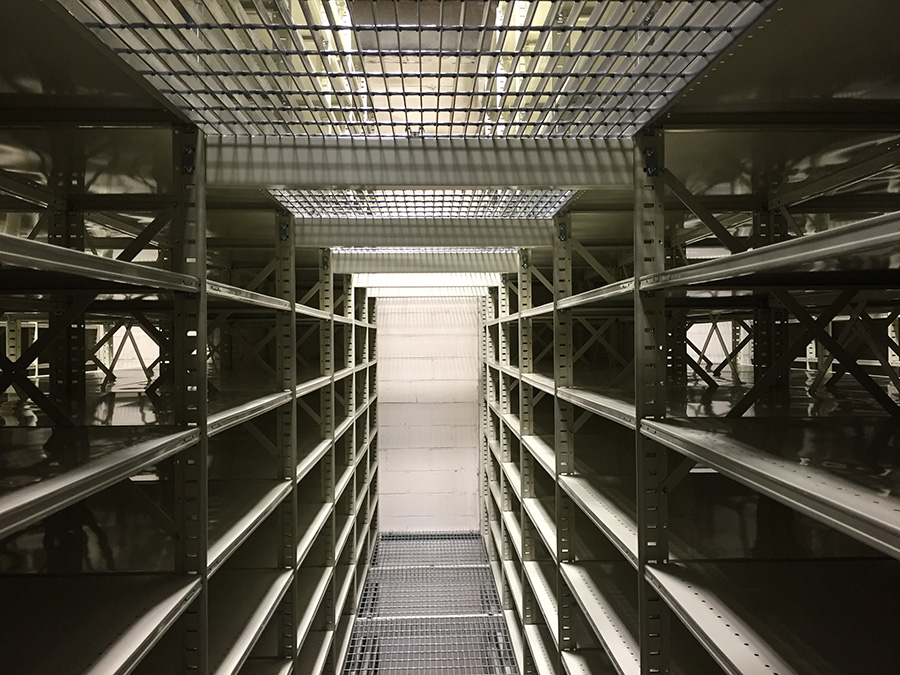

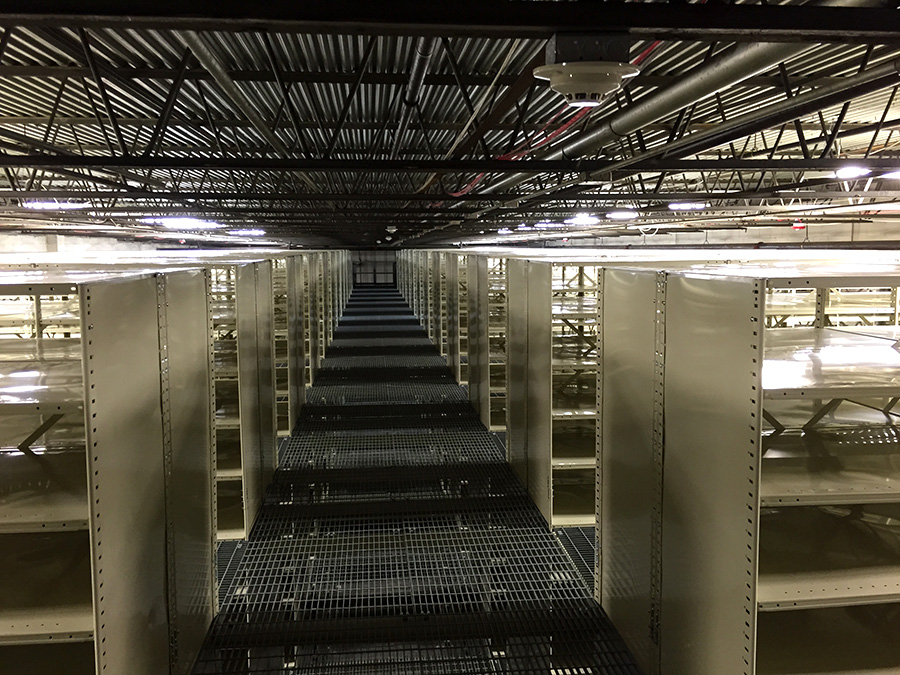

Multi Level

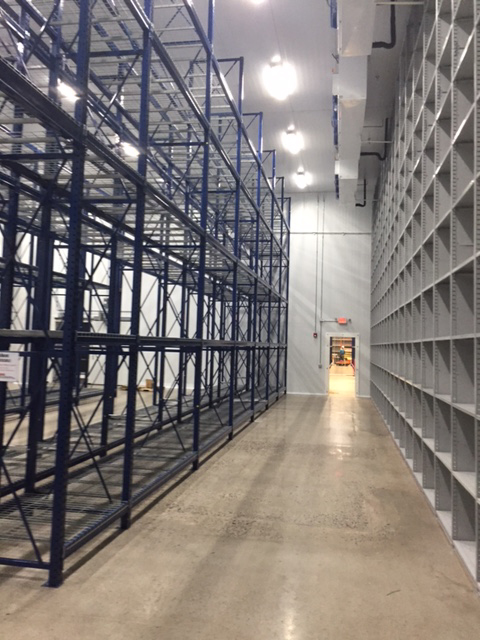

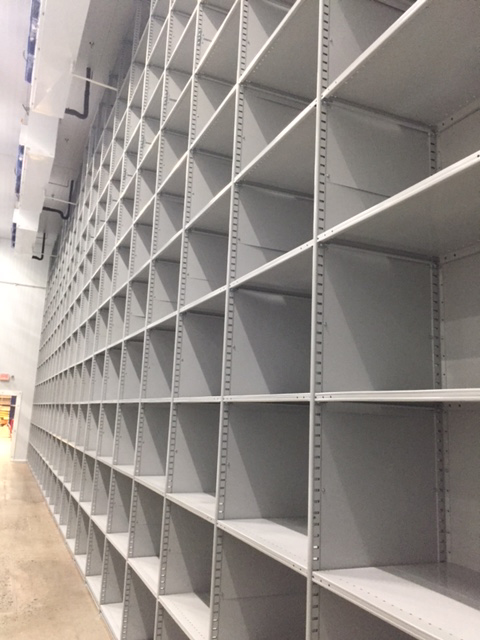

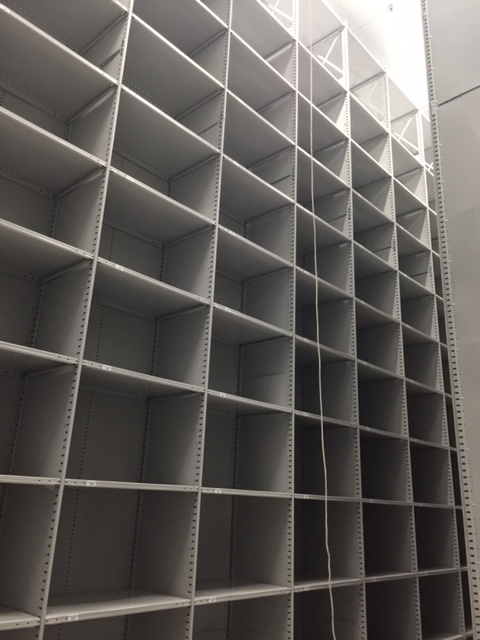

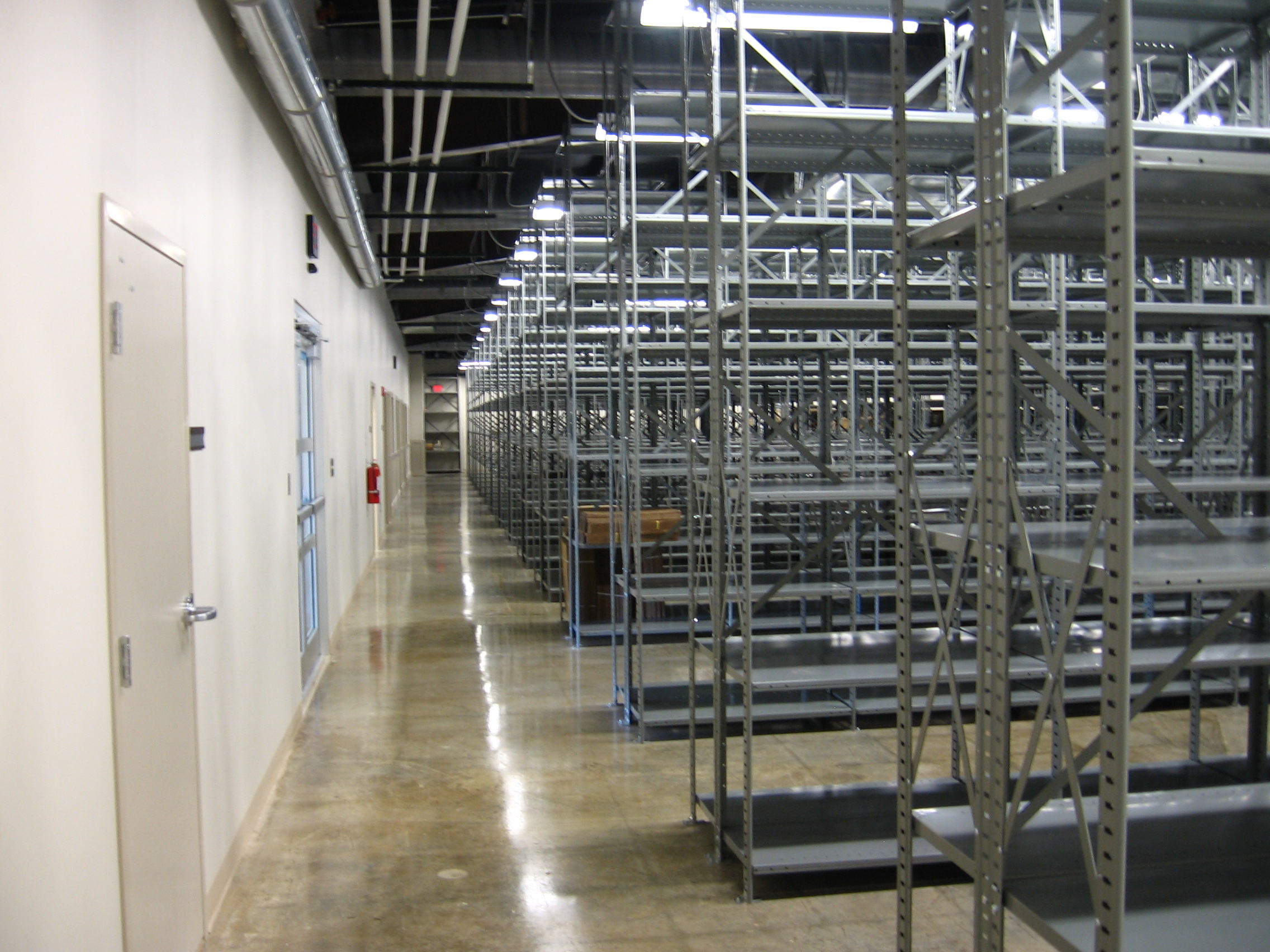

High Bay

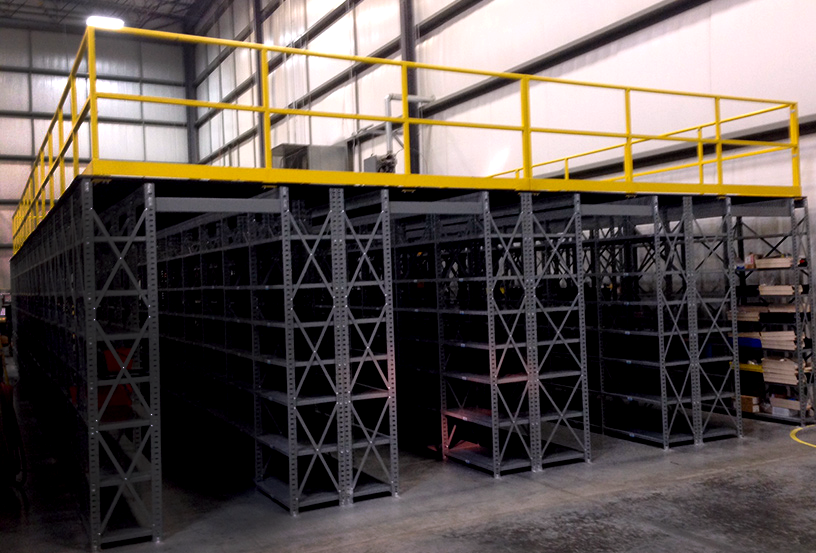

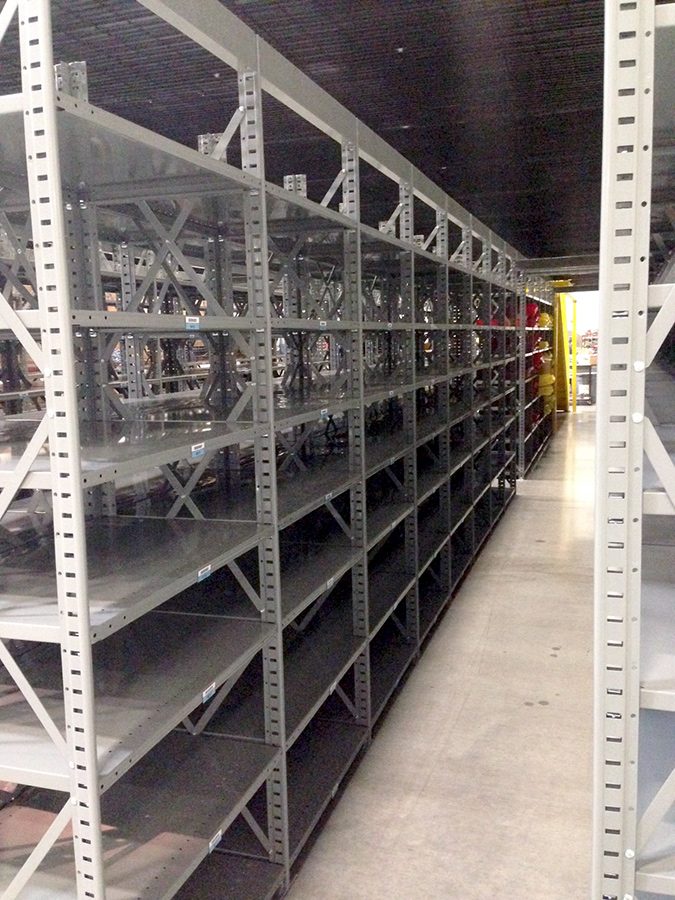

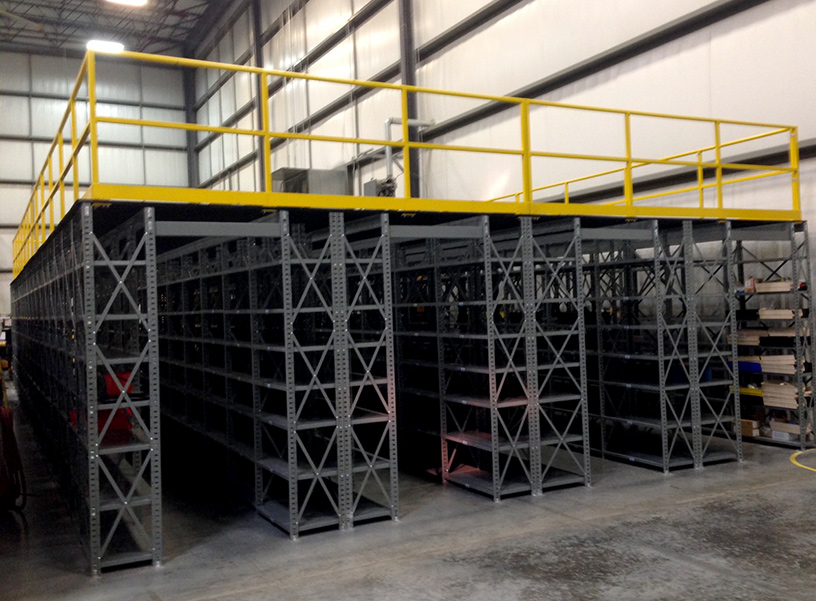

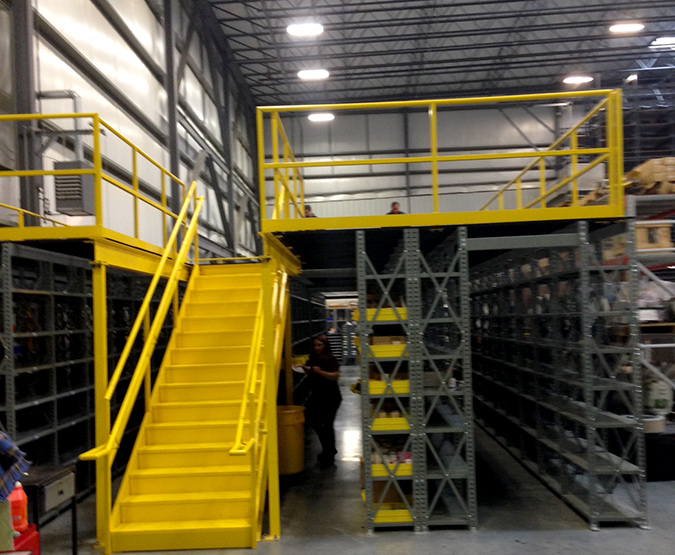

Deck Over

Components

Angle Back Posts

Angle Back Posts
5004

Angles for single or end units. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

Beaded Front Post

Beaded Front Posts
5002

True flush construction. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

T-Posts

T-Posts
5006

Two back Posts welded together. For use when adjoining models are added to form a continuous row.

Post Slice Channels

Post Slice Channels
5009

A channel formed an internal splice. Used to splice beaded front posts, back posts, and T-posts for added height.

Back Sway Braces

Back Sway Braces
5342

(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an "X"

Side Panels
5091

Fabricated from 24 or 18 gauge cold rolled sheet steel, field bolted to front and back posts. Provide at all side locations for closed shelving sections.

Side Sway Braces

Side Sway Braces
5344

(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an "X"

Box Beam Shelves

Box Beam Shelves
5135 & 5138 & 5139

Medium-Duty, Heavy-Duty, or Extra-Heavy-Duty Roll-formed & triple-flanged. Top pierced to accept dividers.

Shelf Clip

Shelf Clip
5133

One-piece zinc plated compression clip fits snugly against side of posts to hold shelves in place. Four required per shelf.

Back Panels, 24 & 18 Gauge

Back Panels, 24 & 18 Gauge
5110

Two piece sections punched on 1" centers at vertical edges and center for mounting on back of posts and shelves.

Back Panel Clips

Back Panel Clips
5120

Formed to fit bottom flange of standard shelf and tabbed to pick up holes in center of back panel. Holds back panel to shelf and prevents panel bowing.

Base Strips

Base Strips
5233

Shaped to fit directly between bottom shelf and floor. 2-15/16" high giving an overall base height of 3" including bottom of shelf.

Swinging Doors (With Locks)

Swinging Doors (With Locks)
5300

Reinforced door / frame attaches to beaded front posts and opens quietly to a full 150°. Chrome finished handle with built-in grooved key cylinder lock. Positive 3-point locking. Universal clips (Part No. 5315) are required to mount doors on beaded front posts.

Universal Clip To Mount Doors

Universal Clip To Mount Doors
5315

Available in sets of 6. One set required to mount swinging doors to beaded front posts.

Label Holders

Label Holders
5370

Pierced for attaching to front flange of shelves with top and bottom edges folded over to accommodate labels approximately 1" high.

Welded End Panels

Welded End Panels
5092

Sections consisting of beaded front post, angle back post, and one-piece side panel.
Factory welded.

Welded End Panels H-post

Welded End Panels H-post
5095

Sections consisting of front H-post,  back H-post, and one-piece side panel.
Factory welded.

Welded T-Panels

Welded T-Panels
5094

Sections consisting of beaded front post, back T-Post, and one-piece side panel.
Factory welded.

Bin Fronts

Bin Fronts
5220

Offset type with bead at top and triple flange at bottom to telescope over shelf flange.

Partial Dividers
5250

Flanged at top rear and bottom, or just bottom to form shelf dividers.

Full Dividers

Full Dividers
5240

Flanged at top rear and bottom, or just bottom to form shelf dividers.

Nylon Buttons

Nylon Buttons
5260

Available in sets of 6. One set required to mount swinging doors to beaded front posts.

Cross Aisle Supports H-Post

Cross Aisle Supports H-Post
5910

For beaded posts.

Cross Aisle Supports
CAS

For beaded posts.

Cross Aisle Support Brackets

Cross Aisle Support Brackets
5914

Brackets for cross aisle supports.

Down Aisle Supports

Down Aisle Supports
5905

For beaded posts and H-posts.

Down Aisle Support Brackets
5912

For beaded posts and H-posts.

Combination Clips

Combination Clips
5027

Connection Strips

Connection Strips
5114

Row ends.

Connection Strips

Connection Strips
5115

Intermediate.

Foot Plates

Foot Plates
5050

For beaded, angle, and T-posts.

Shim Plates
5033

Medium/light-duty or heavy-duty

Shim Plates
5026

Medium/light-duty or heavy-duty

Foot Plate Heavy-duty

Foot Plate Heavy-duty
5032

Extra-heavy-duty for beaded, angle and T-posts

Find more info about Hi-Tech shelving here
