Rivetwell

Boltless Steel Shelving

Rivetwell boltless shelving systems are easy and fast to assemble while still being a strong and sturdy unit. Hallowell shelving can be individually tailored to meet your customer's needs. Contact us to discuss your next shelving system.

See the components below for more information about the Rivetwell boltless shelving system

When designing a shelving layout, unit growth must be considered. To determine the overall dimension of a continuous row of shelving employing T-Posts or Angle Posts with tie plates refer to the table HERE.

Post Capacity Chart & Beam Load Table HERE

Rivetwell particle board and E-Z deck capacity ratings HERE

Shelving

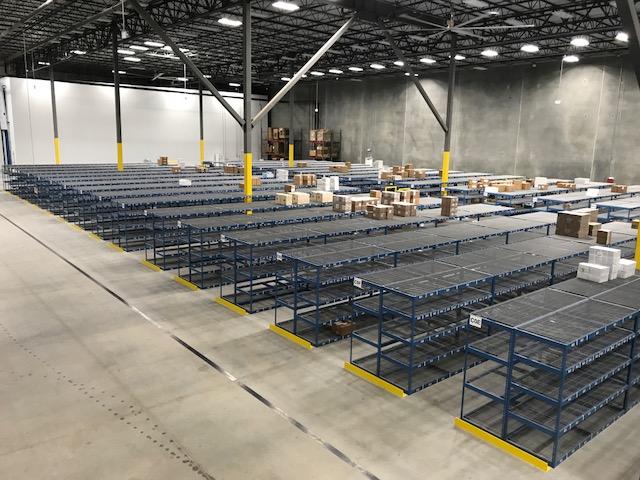

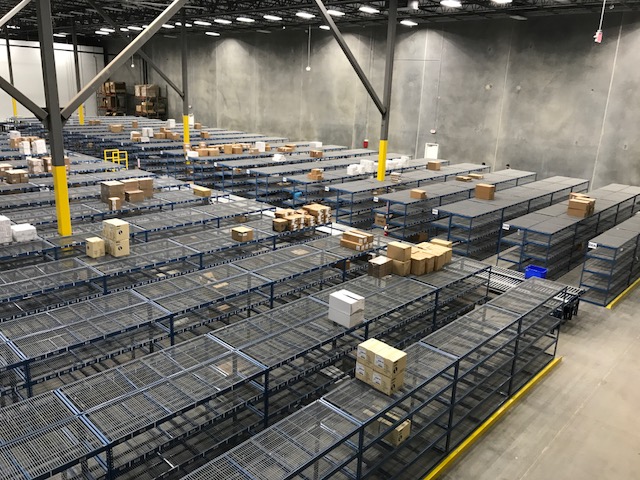

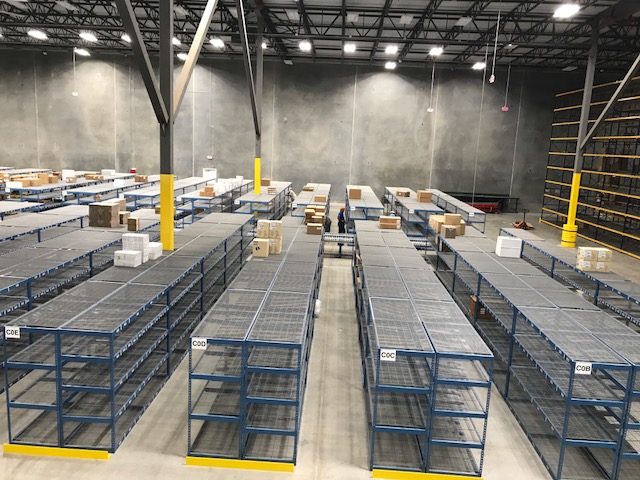

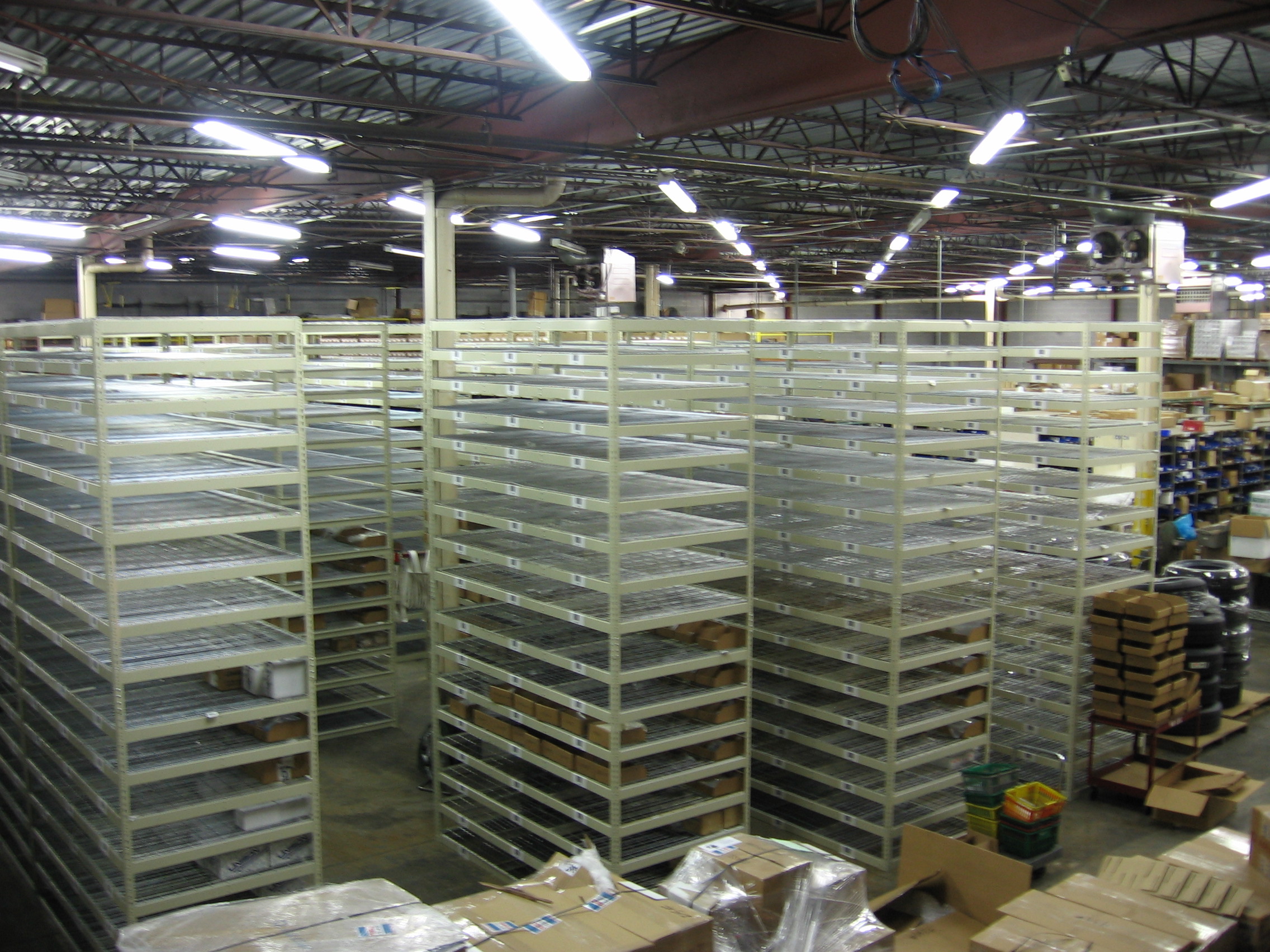

Galleries

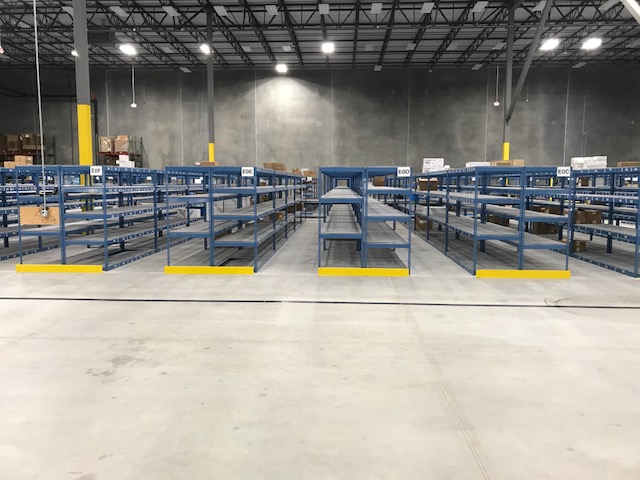

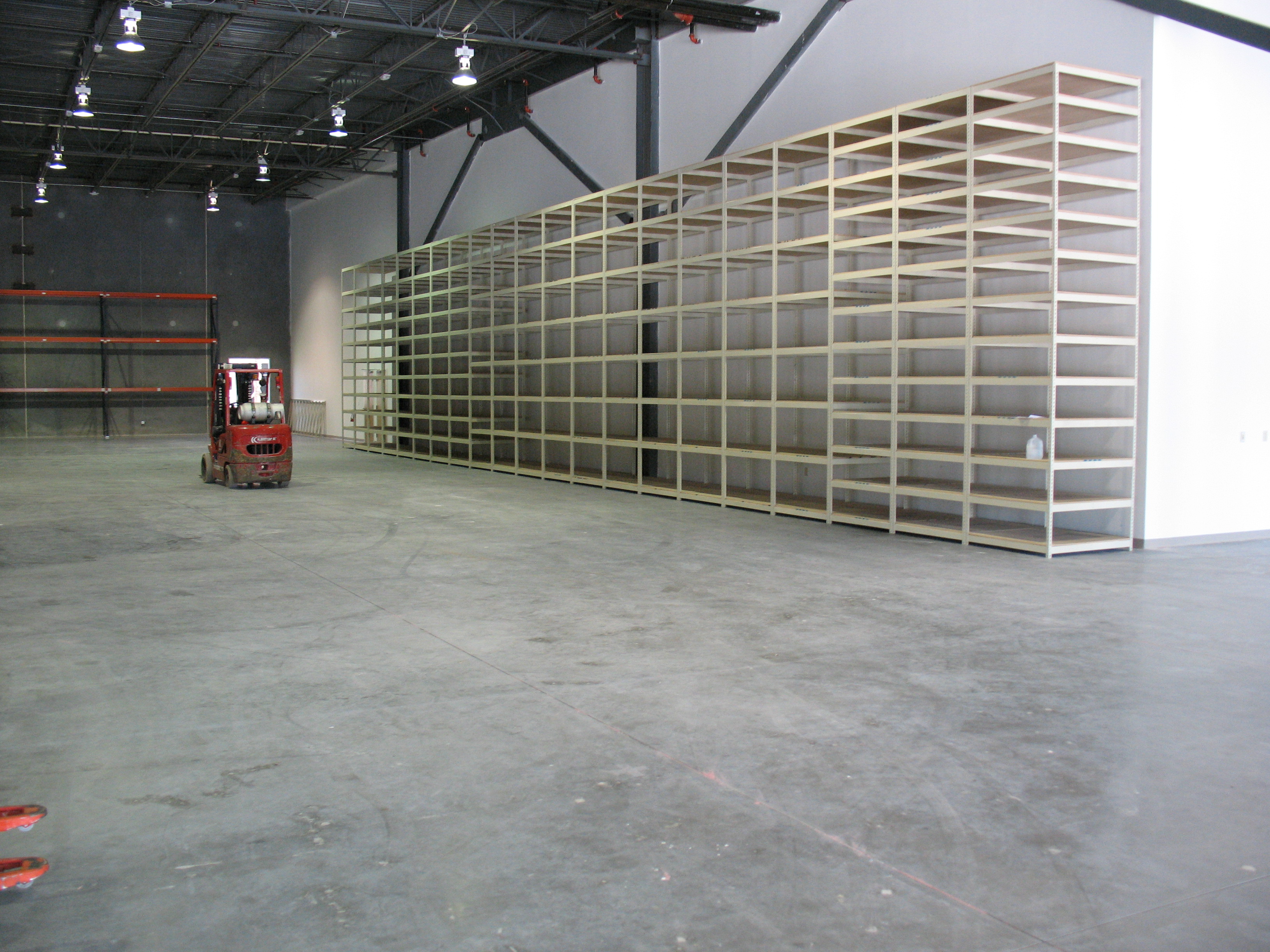

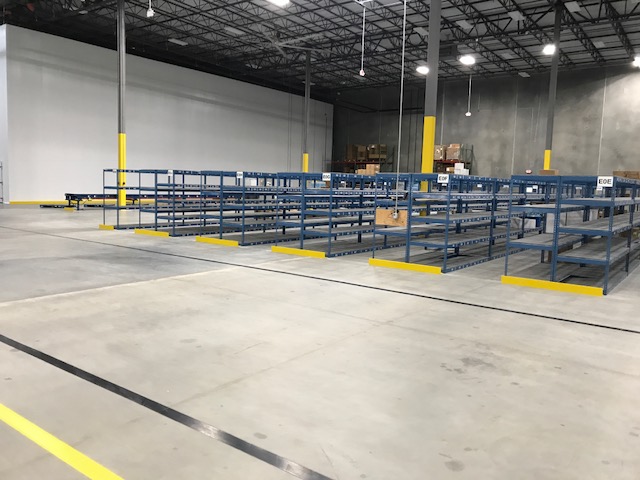

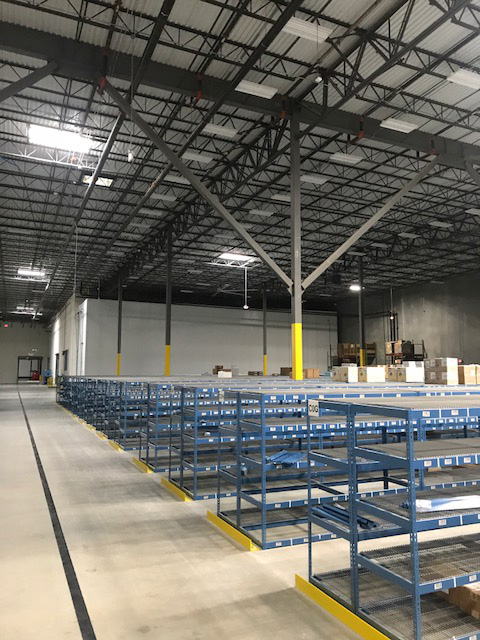

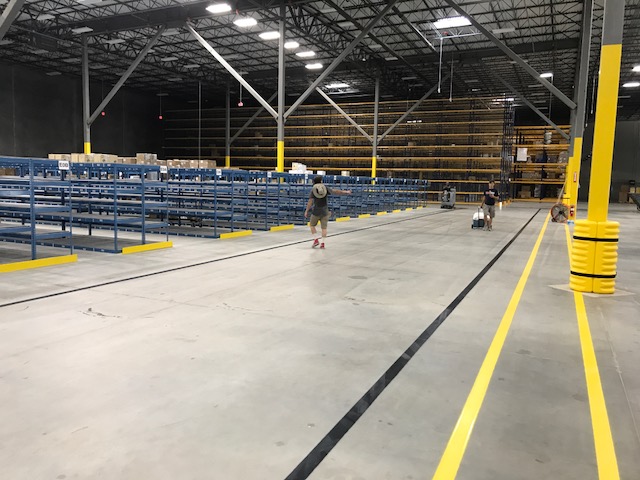

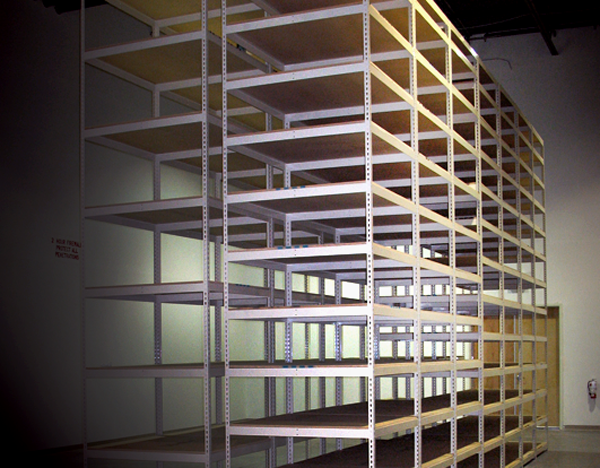

Single Level

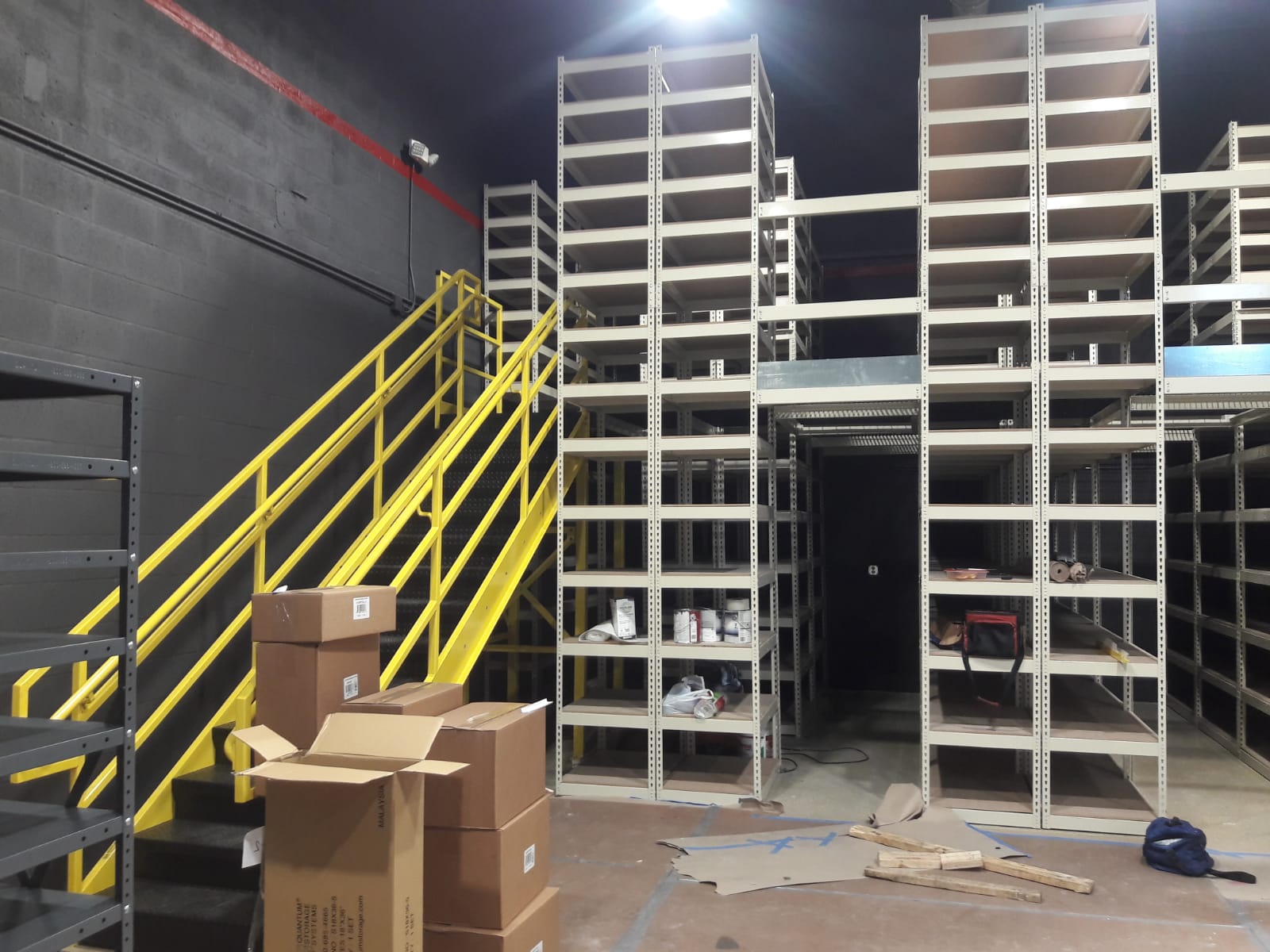

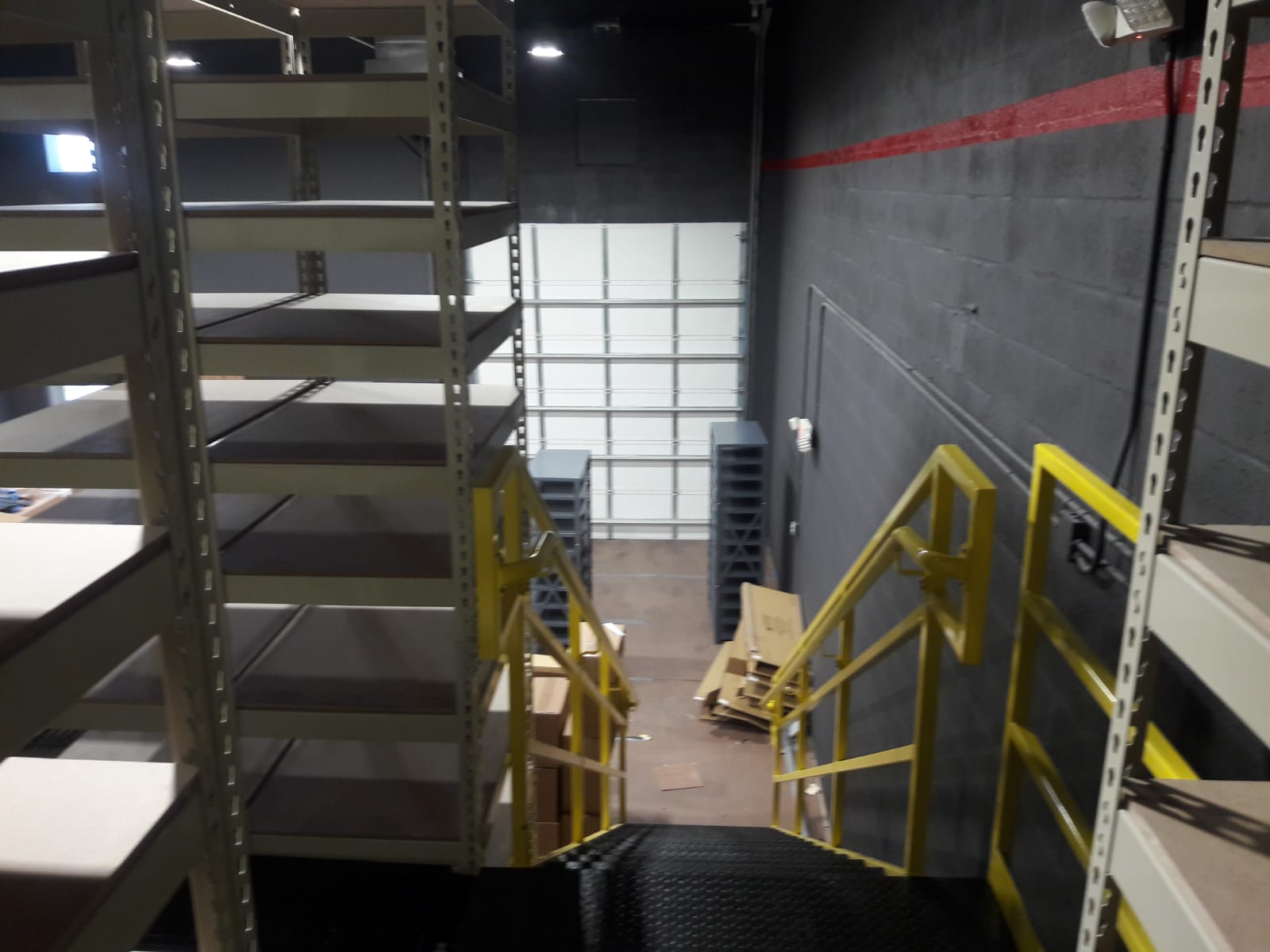

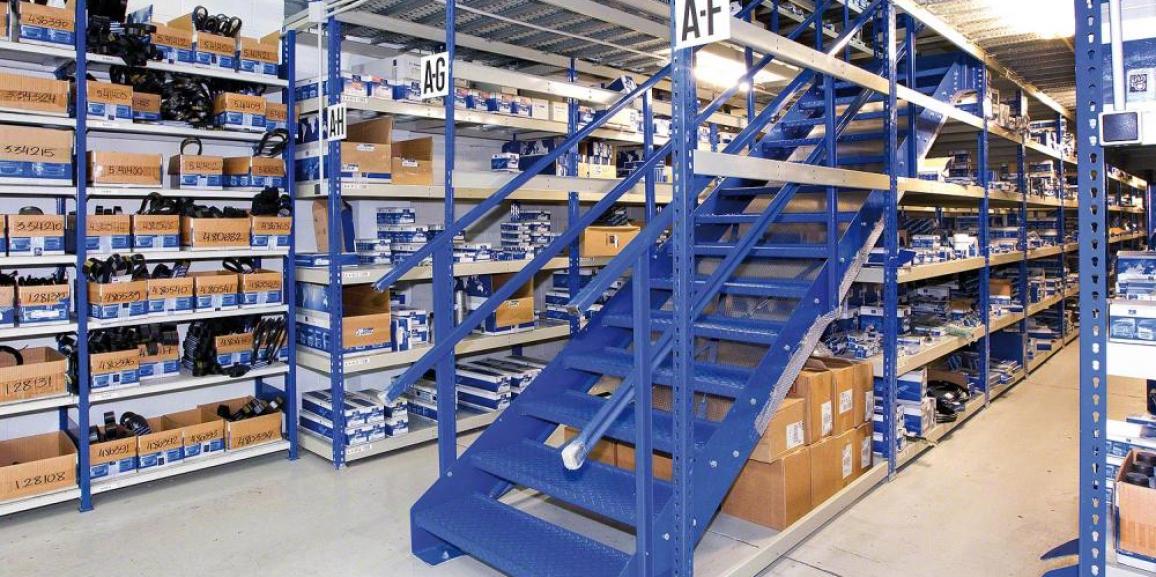

Multi Level

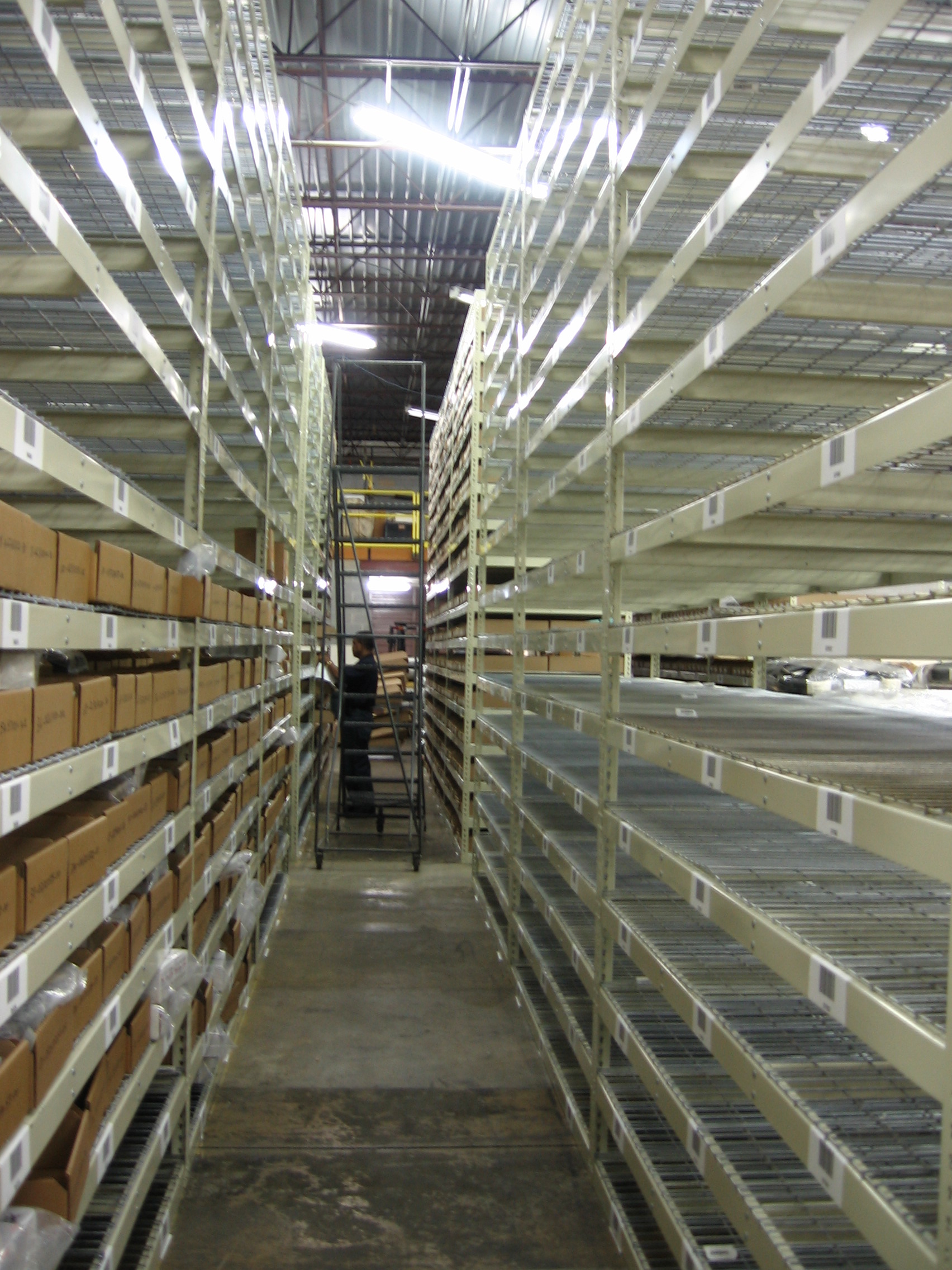

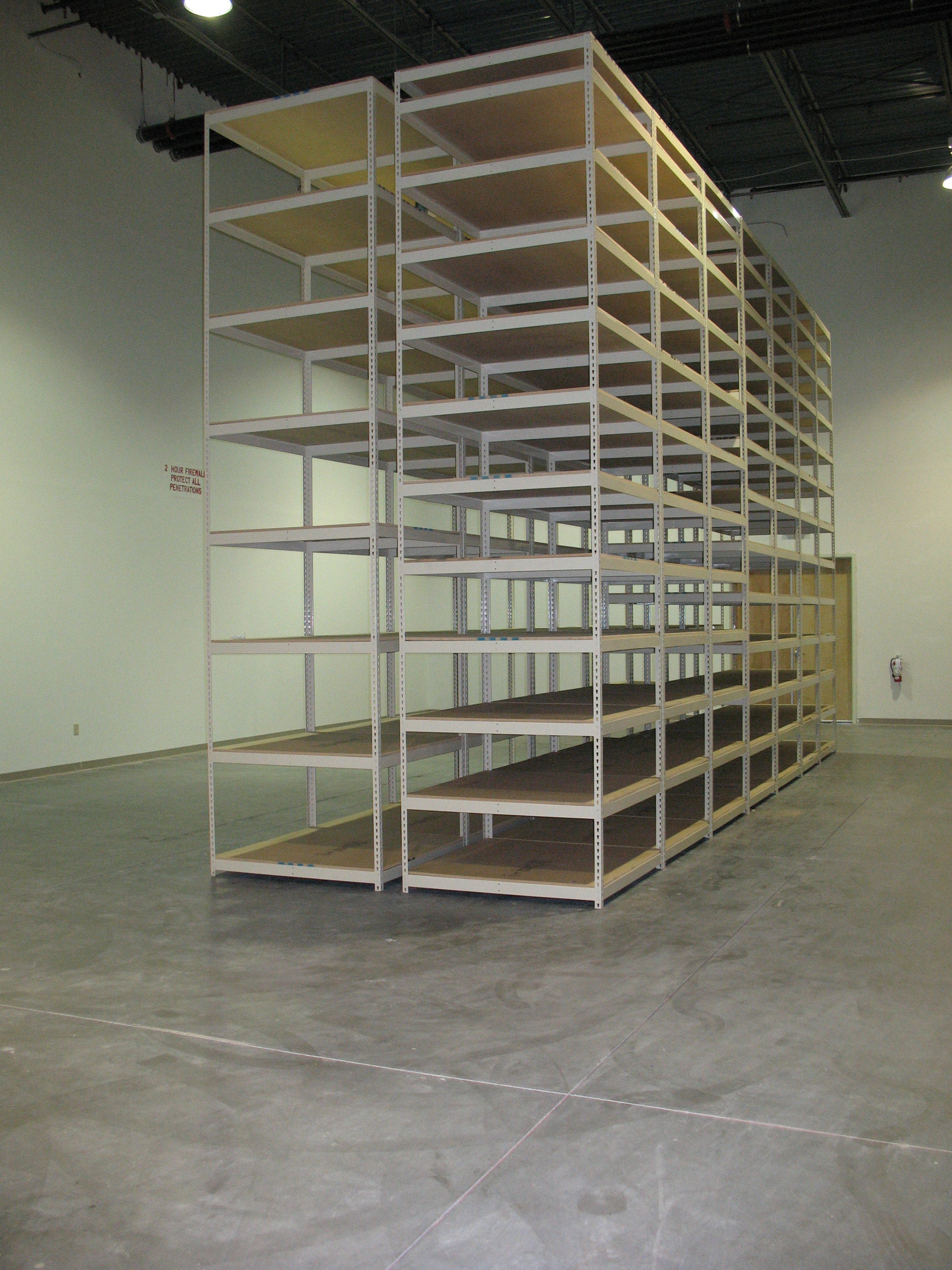

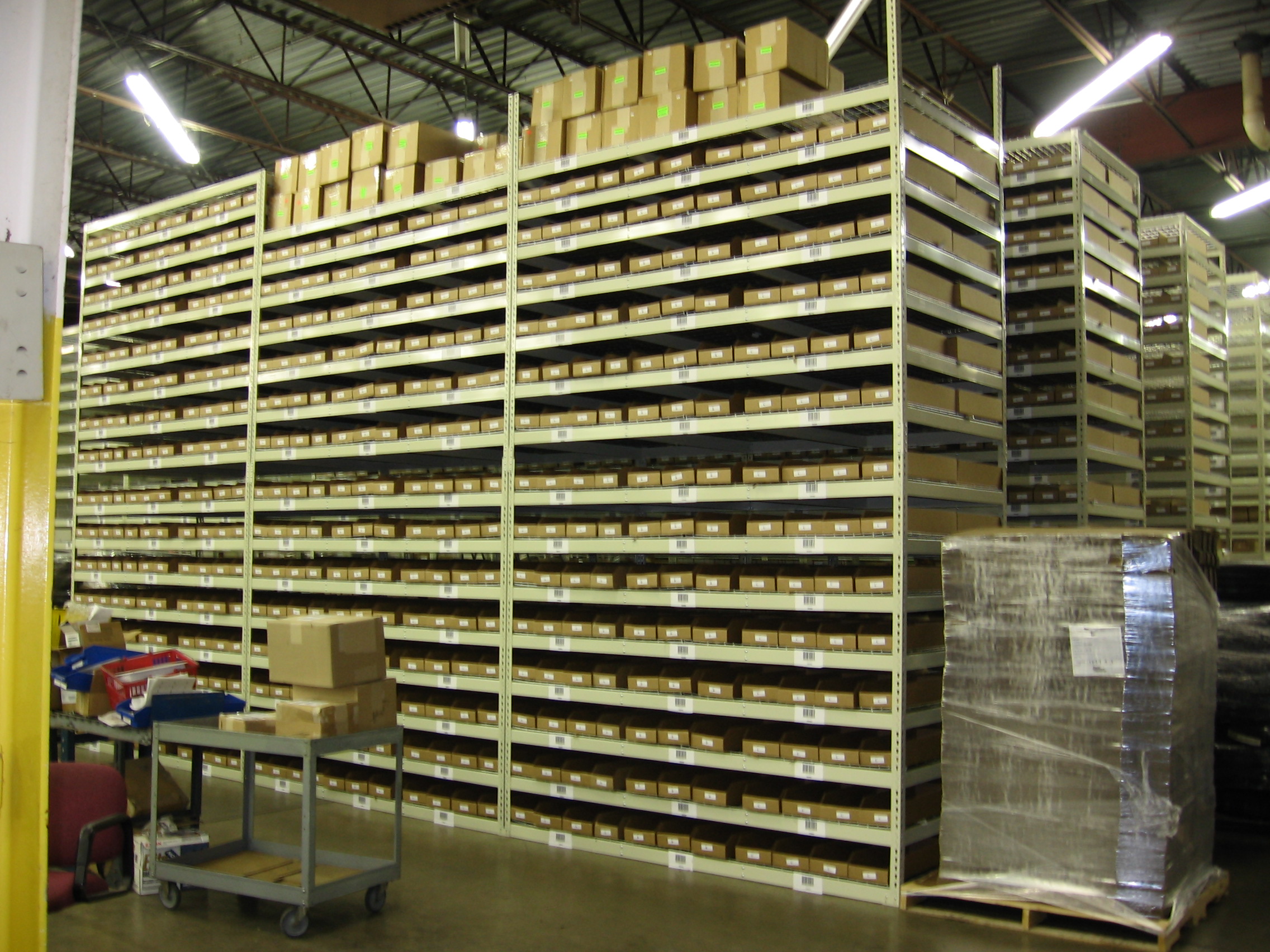

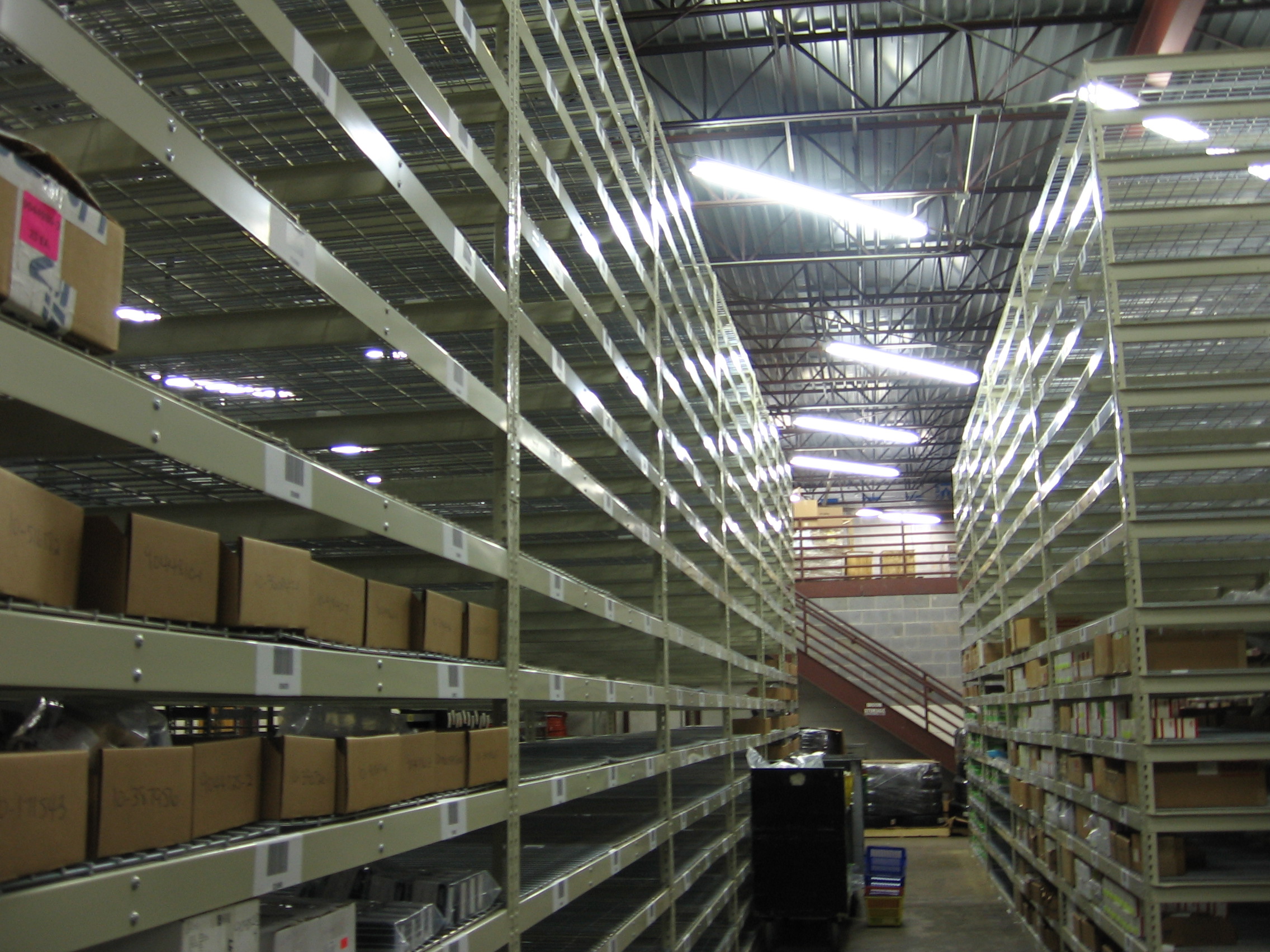

High Bay

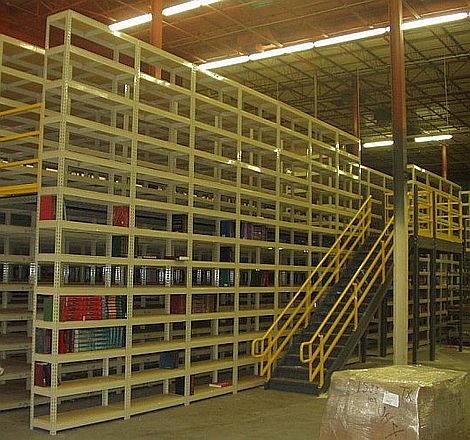

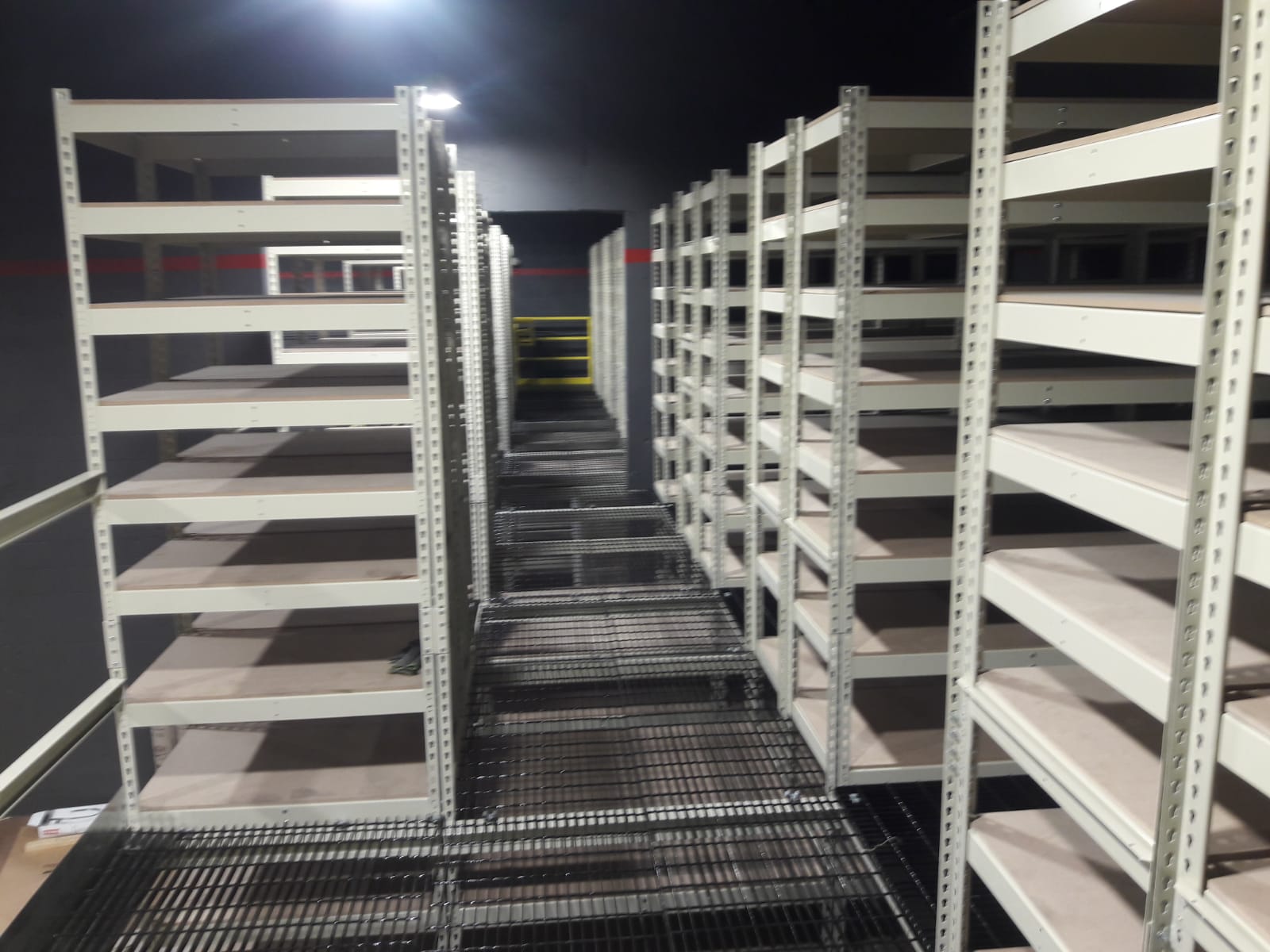

Deck Over

Components

Angle Post
APS ( HEIGHT 3' TO 16' )

Punched for self-adjustment on 1-1/2" centers

T Post

T Post
TPS ( HEIGHT 3' THROUGH 16' )

Punched for self-adjustment on 1-1/2" centers

Double Rivet Angle Beam

Double Rivet Angle Beam
ABS ( Lengths 12" through 42" )

For left to right and front to back shelf support.

Double Rivet Channel Beam
CBH ( LENGTHS 48" THROUGH 96" )

For left to right shelf support. Provides for a higher capacity than heavy-duty rivet angle beams

Single Rivet Beam

Single Rivet Beam
SRB ( LENGTHS 12" THROUGH 48" ) SRBH ( LENGTHS 36" THROUGH 48" )

For use as left to right and front to back support.

Center Support

Center Support
CS ( LENGTHS 12" THROUGH 48" )

Bolts to double rivet angle or channel beams to add support to decking and stabilize beams. Supplied with nuts and bolts for fast assembly.

Double Row & Top Tie

Double Row & Top Tie
DRTT ( LENGTHS 9.25" THROUGH 48.25" )

Use to space back-to-back units and to top-tie rows across aisle for added stability.

Wall Tie

Wall Tie
WT09

Used to secure units to wall and provide space between wall and unit ( hardware not included to attached to wall )

Foot Plate

Foot Plate
FPR100

For use in anchoring angle and T posts to floor.

Post Splice

Post Splice
PS05

Used to extend post, attaches to outside of post. Order one per Angle Post, two per T-Post.

Tie Plate

Tie Plate
TP1

Used for structural integrity of T-Post and to join Angle Post units side by side to ensure proper row alignment.

Tire Rack Beam

Tire Rack Beam
TRB48 & TRB60

For left to right shelf support of tires. 9 degrees angle on supporting edge.

Hanger Bar

Hanger Bar
HB ZBH ( LENGTHS 36" THROUGH 60" )

For hanging items between double rivet beams. One or more may be used per level.

DOGS Deck Over Grating Support

DOGS Deck Over Grating Support
DOGS ( LENGTHS 36" THROUGH 72" )

Provides secure support for grating when decking over entire installation.

Down Aisle Grating Support

Down Aisle Grating Support
DAGS ( LENGTHS 36" THROUGH 72" )

Attaches to unit front between rows to provide support for grating on 2-level Rivetwell installations

Beam Cleat
BC-L & BC-R

For hanging items between double rivet beams. One or more may be used per level.

Slotted Angle Cleat

Slotted Angle Cleat
SAC-L & SAC-R

For use where slotted angle pieces must be joined, such as special grating supports and top ties.

Double Rivet Z-Beam (standard or Heavy-Duty)

Double Rivet Z-Beam (standard or Heavy-Duty)
ZBH ( LENGTHS 48" THROUGH 72" )

For front to back and left to right. allows particle board decking to sit flush with top of beam.

Center Support for Z-Beams

Center Support for Z-Beams
ZCS ( LENGTHS 24" THROUGH 48" )

Use with Z-beams for additional decking support front to back.

Coat Rod Support Beam

Coat Rod Support Beam
ABH ( LENGTHS 18" THROUGH 48" )

For supporting Rivetwell coat rods

RCR  Rivetwell Coat Rod

RCR Rivetwell Coat Rod
RCR ( LENGTHS 36" THROUGH 72" )

For use with coat rods and support beams

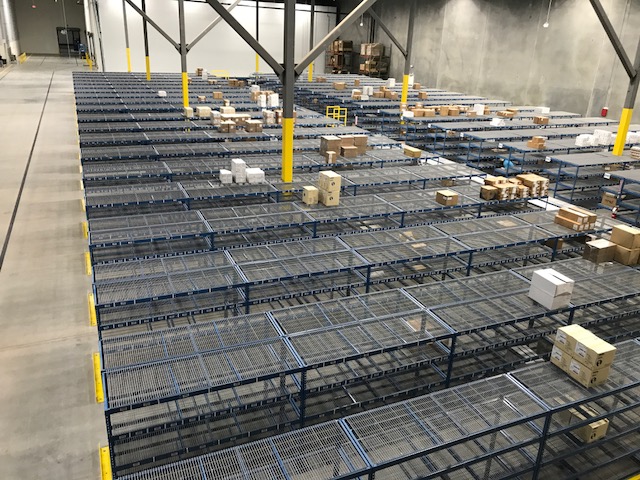

Wire Deck

Wire Deck

Rivetwell wire decking is powdercoat gray

Particle Board Decking

Particle Board Decking

Smooth high-quality particleboard decking for Rivetwell units

EZ-Deck Steel Decking

EZ-Deck Steel Decking

EZ-deck steel decking fro Rivetwell shelving units
