Backpack / Laptop Lockers

More from: Corridor Lockers Lockers

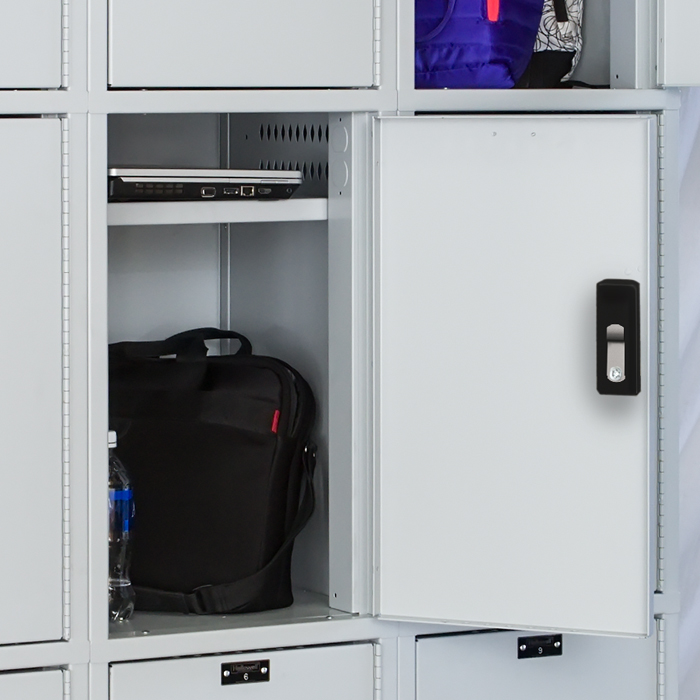

Lockers designed for laptop and backpack storage.

Electronic access door keeps items secure. One shelf per opening. Prepared for aftermarket wiring to allow charging. Side ventilation allows maximum airflow for cooling while maintaining security. 711 Platinum (light gray) powder coat finish.

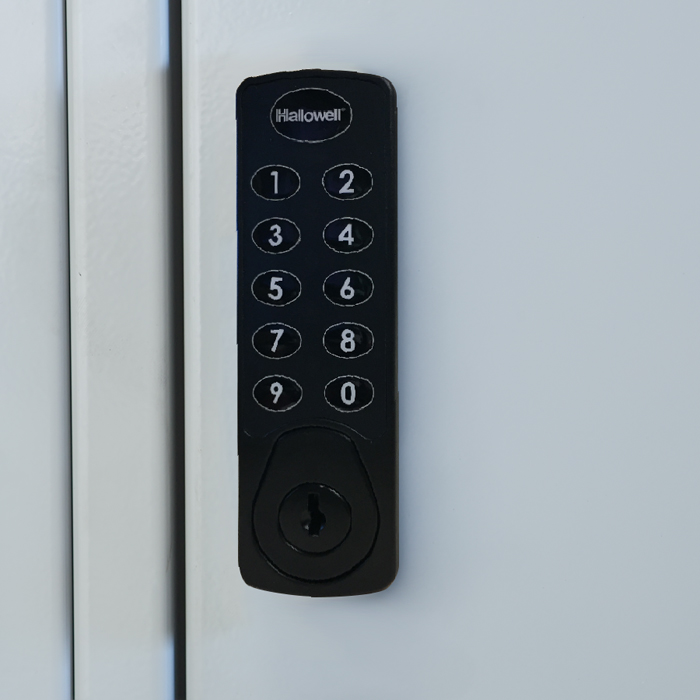

Digitech H1 Lock

The built-in electronic keypad allows a user to type in their code to open the locker. The locker can be opened when the battery is low or dead with a mechanical master key override.

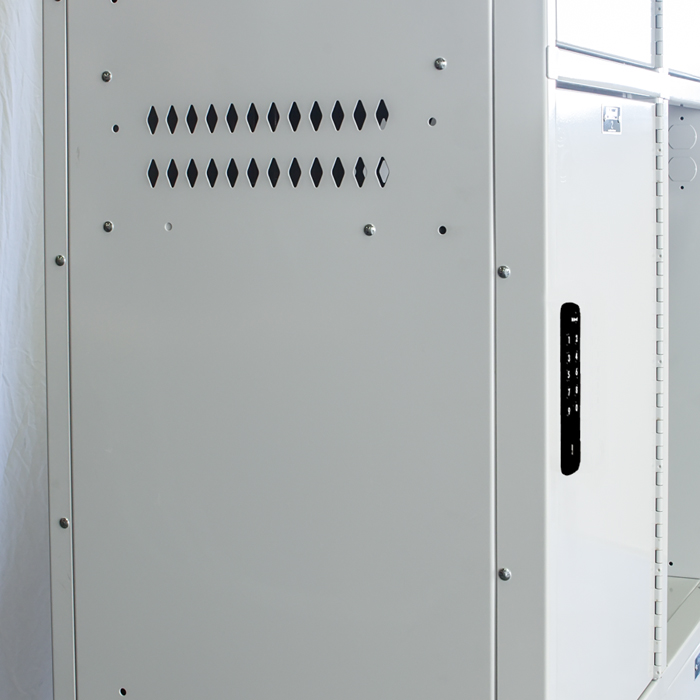

Diamond Perforated Ventilation

Diamond perforated and sides provide secure ventilation.

Built in Outlet Punch-Out's

Outlet punch-out's are built into each opening to allow for a wiring kit to provide power for charging.

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Continuous vertical door strike at both hinge and latch side for extra safety

Lockers designed for laptop and backpack storage include channeling and punchouts.

Each locker has a built-in channel for concealed aftermarket wiring to convert lockers to charging stations.

Channel shall include punch-outs for an electrical outlet in each opening. Wiring and outlets will be supplied by others. Diamond perforated locker sides promote continuous airflow to cool chargers and components while keeping your items secure.

Electronic access door keeps items secure.

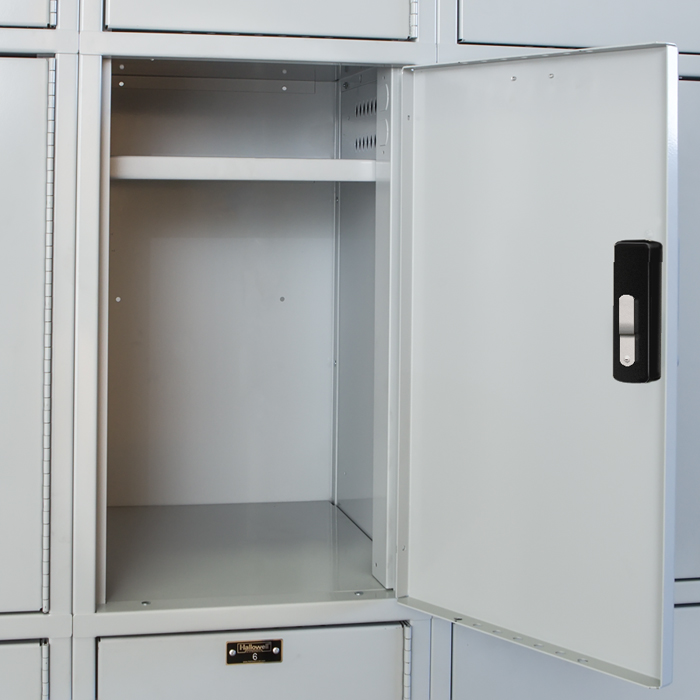

One shelf per opening.
Prepared for after market wiring to allow charging.
Side ventilation allows maximum airflow for cooling while maintaining security.
711 Light Gray (light gray) powder coat finish.

Body/Frame Description:

16 gauge cold rolled sheet steel with sides diamond perforated, 3-tier, 4-tier

Body/Frame:

KD

Doors:

14 gauge solid sheet

Handle:

Hallowell Digitech electronic code access lock also acts as handle

Hinges:

16 gauge continuous piano hinge

Shelves:

1 fixed hat shelf

Catalog

Laptop / Backpack Lockers

3-Tier
Width	Depth	Frame Height	Grouping	Openings per Group	KD	Assembled

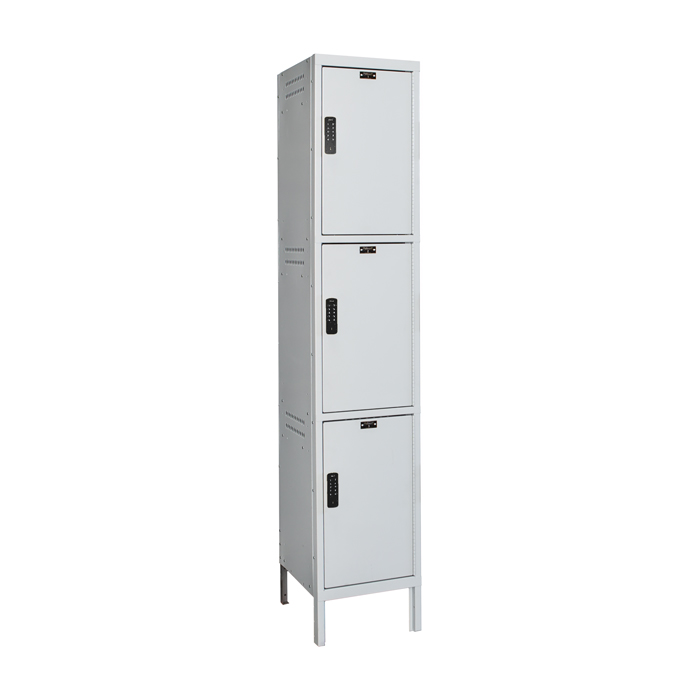

15	18	78	1-wide	3	UELBP1588-3PL	UELBP1588-3A-PL
15	21	78	1-wide	3	UELBP1518-3PL	UELBP1518-3A-PL
18	18	78	1-wide	3	UELBP1888-3PL	UELBP1888-3A-PL
18	21	78	1-wide	3	UELBP1818-3PL	UELBP1818-3PL
45	18	78	3-wide	9	UELBP3588-3PL	UELBP3588-3A-PL
45	21	78	3-wide	9	UELBP3518-3PL	UELBP3518-3A-PL
54	18	78	3-wide	9	UELBP3888-3PL	UELBP3888-3A-PL
54	21	78	3-wide	9	UELBP3818-3PL	UELBP3818-3A-PL

4-Tier
Width	Depth	Frame Height	Grouping	Openings per Group	KD	Assembled

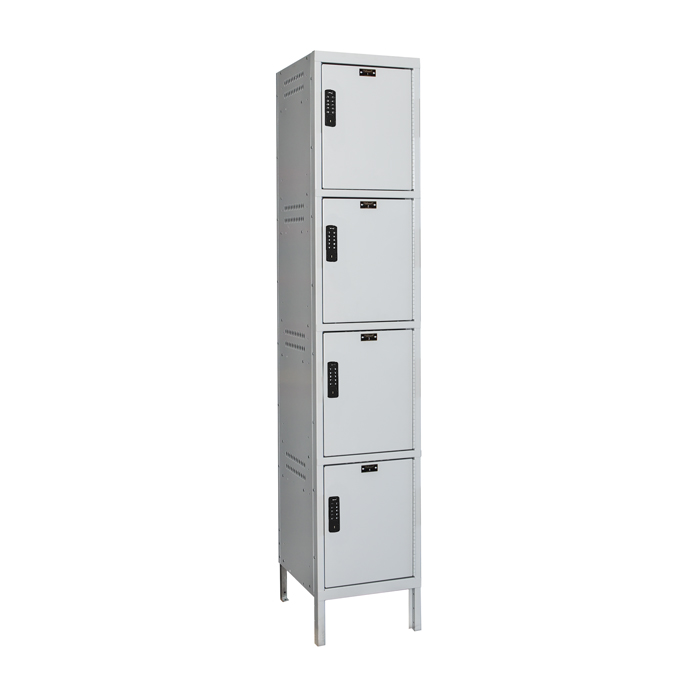

15	18	78	1-wide	4	UELBP1588-4PL	UELBP1588-4A-PL
15	21	78	1-wide	4	UELBP1518-4PL	UELBP1518-4A-PL
18	18	78	1-wide	4	UELBP1888-4PL	UELBP1888-4A-PL
18	21	78	1-wide	4	UELBP1818-4PL	UELBP1818-4A-PL

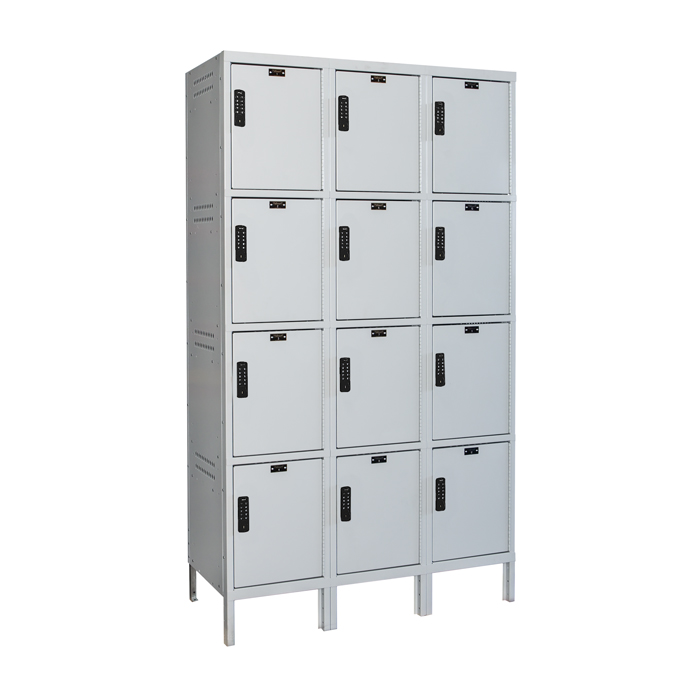

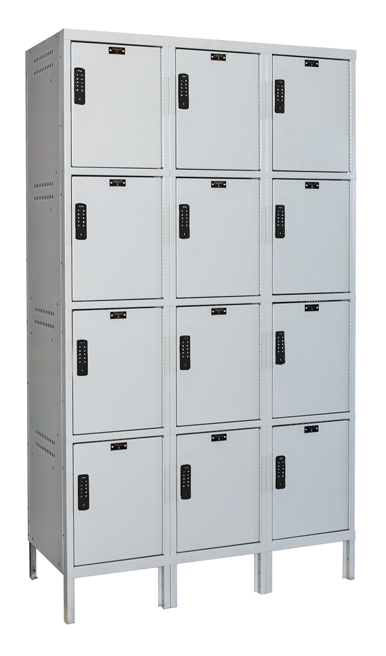

45	18	78	3-wide	12	UELBP3588-4PL	UELBP3588-4A-PL
45	21	78	3-wide	12	UELBP3518-4PL	UELBP3518-4A-PL
54	18	78	3-wide	12	UELBP3888-4PL	UELBP3888-4A-PL
54	21	78	3-wide	12	UELBP3818-4PL	UELBP3818-4A-PL
