H-Post™ High Capacity Shelving - Closed

Product Overview

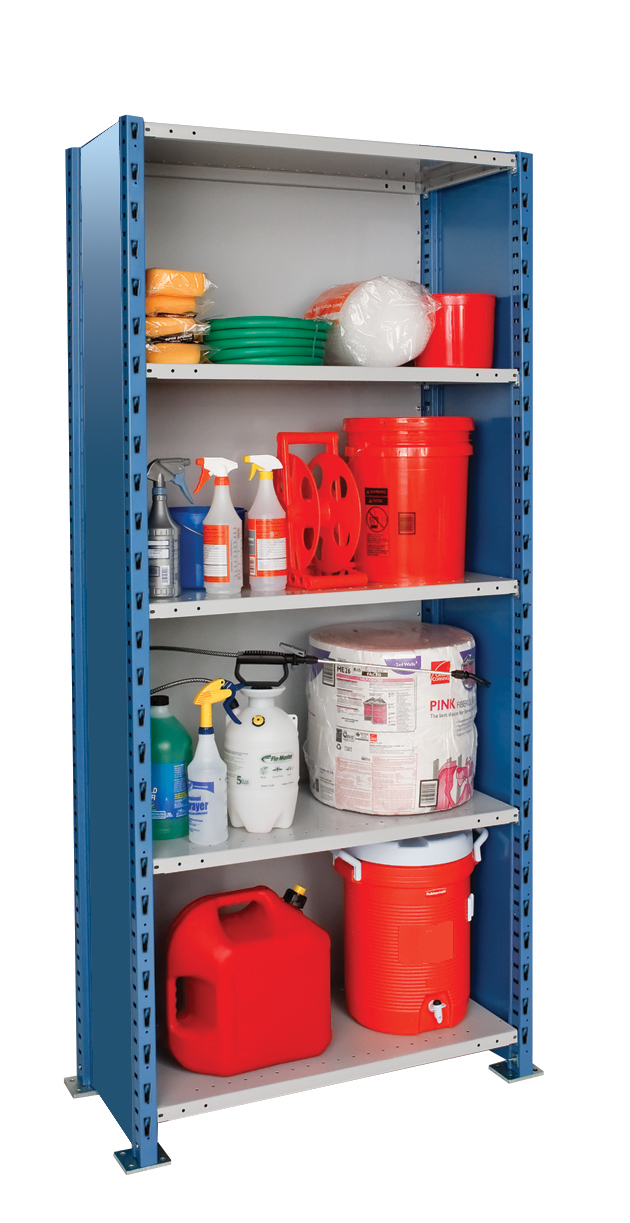

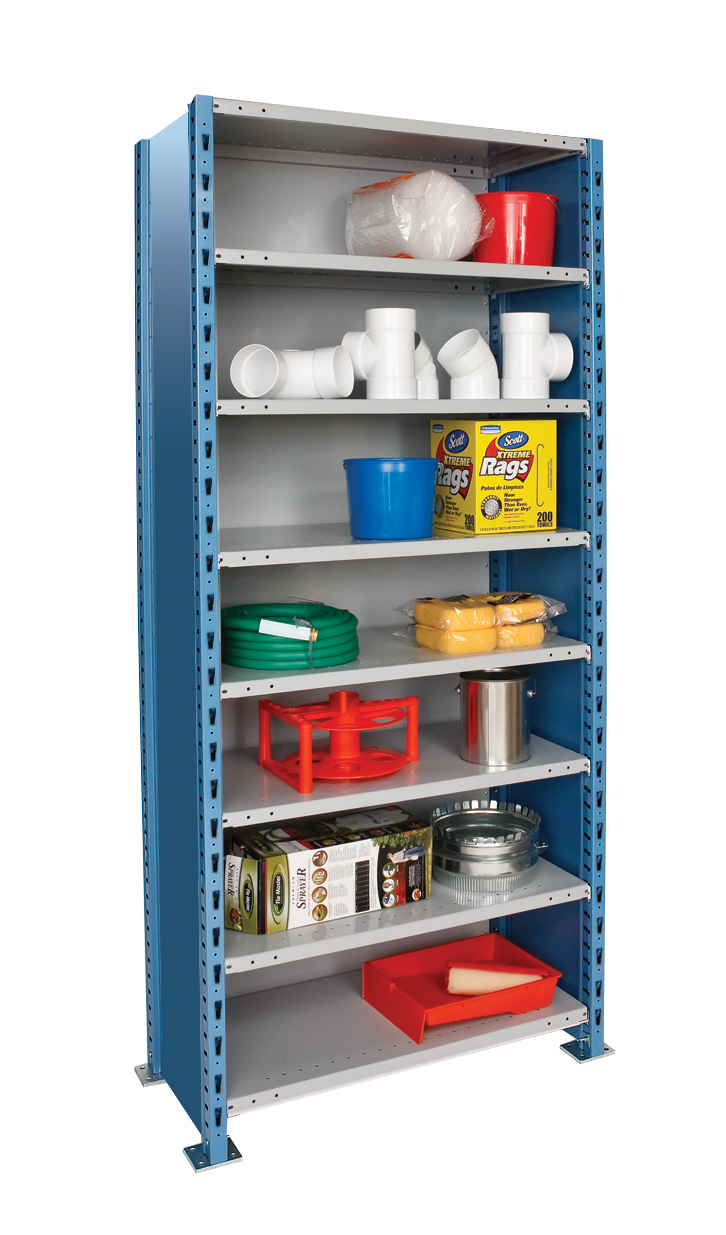

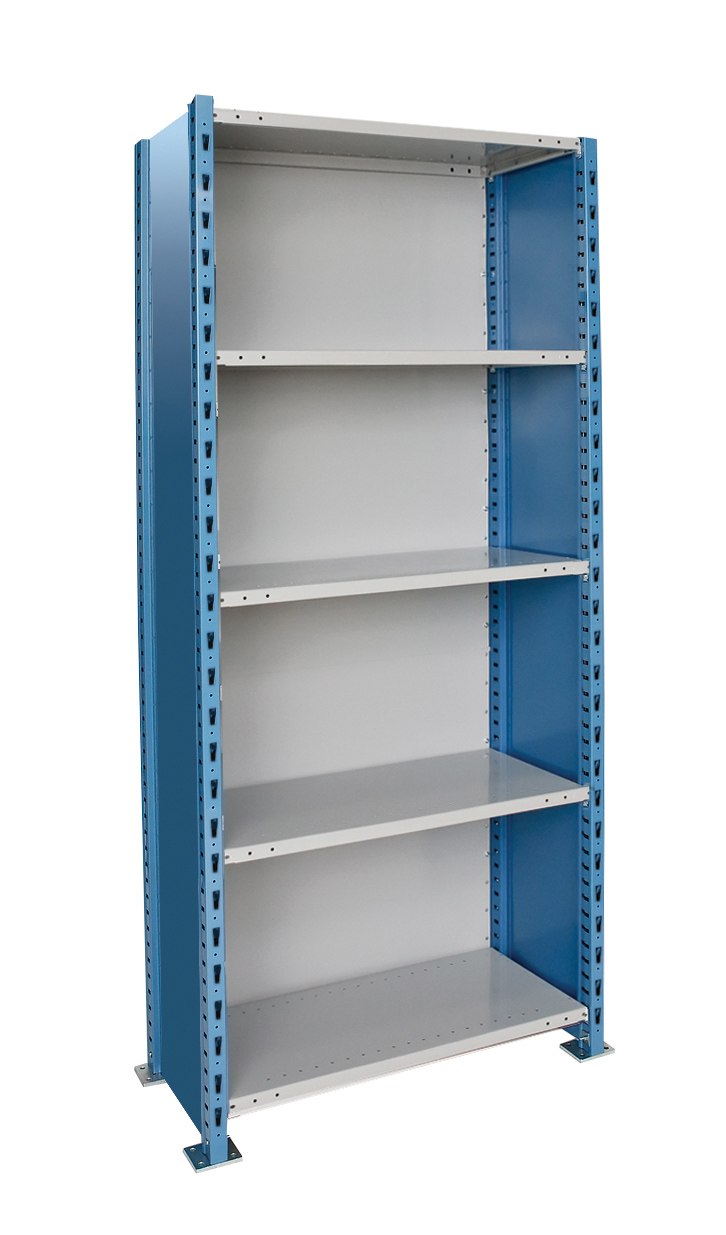

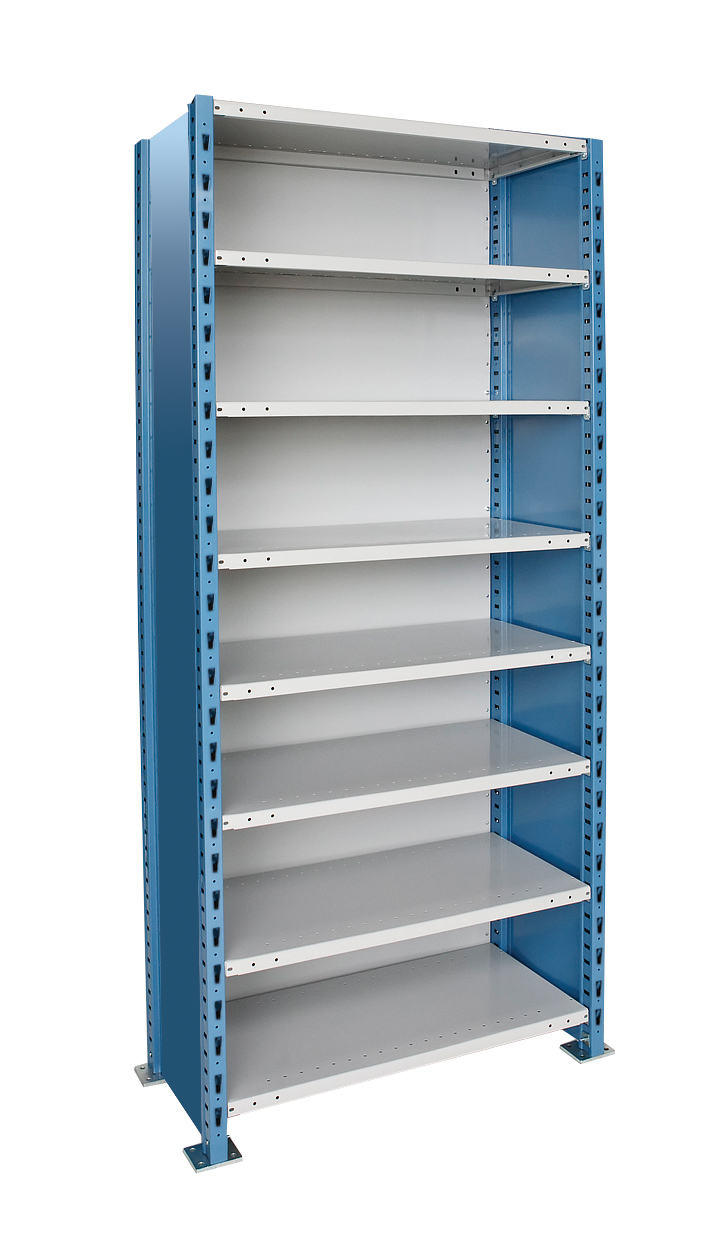

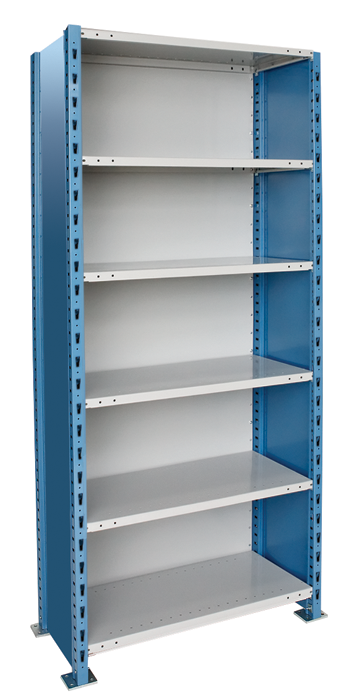

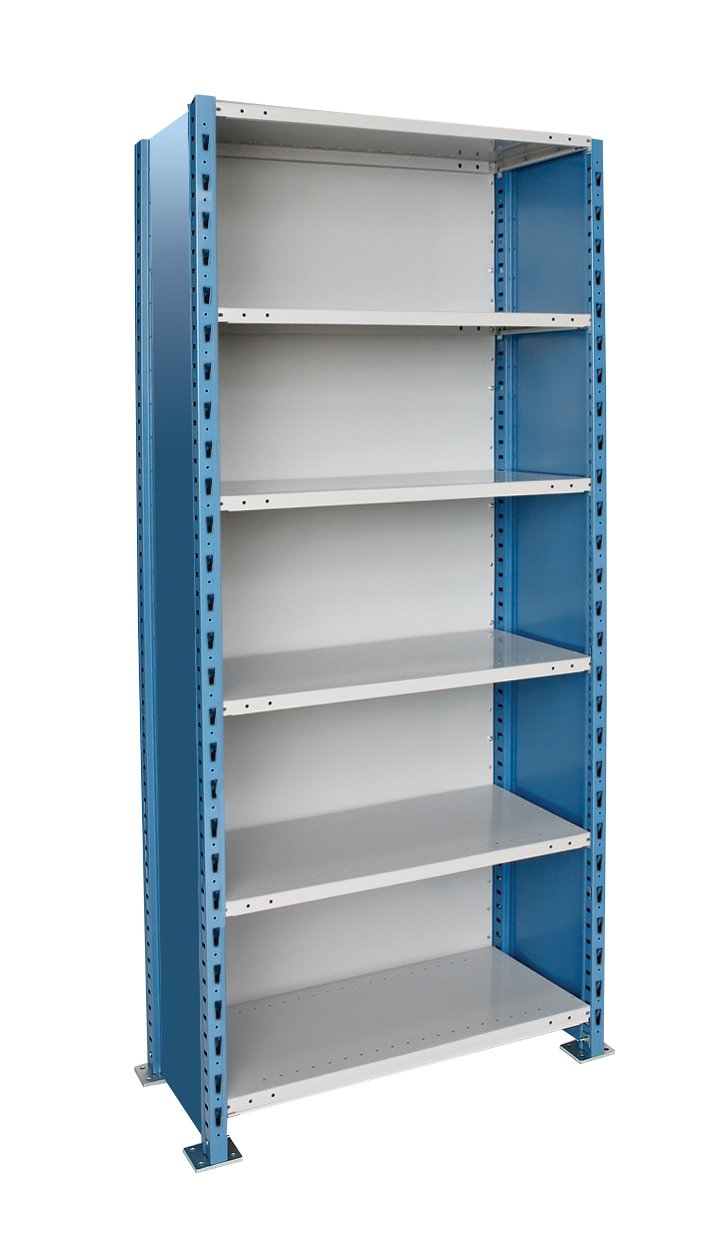

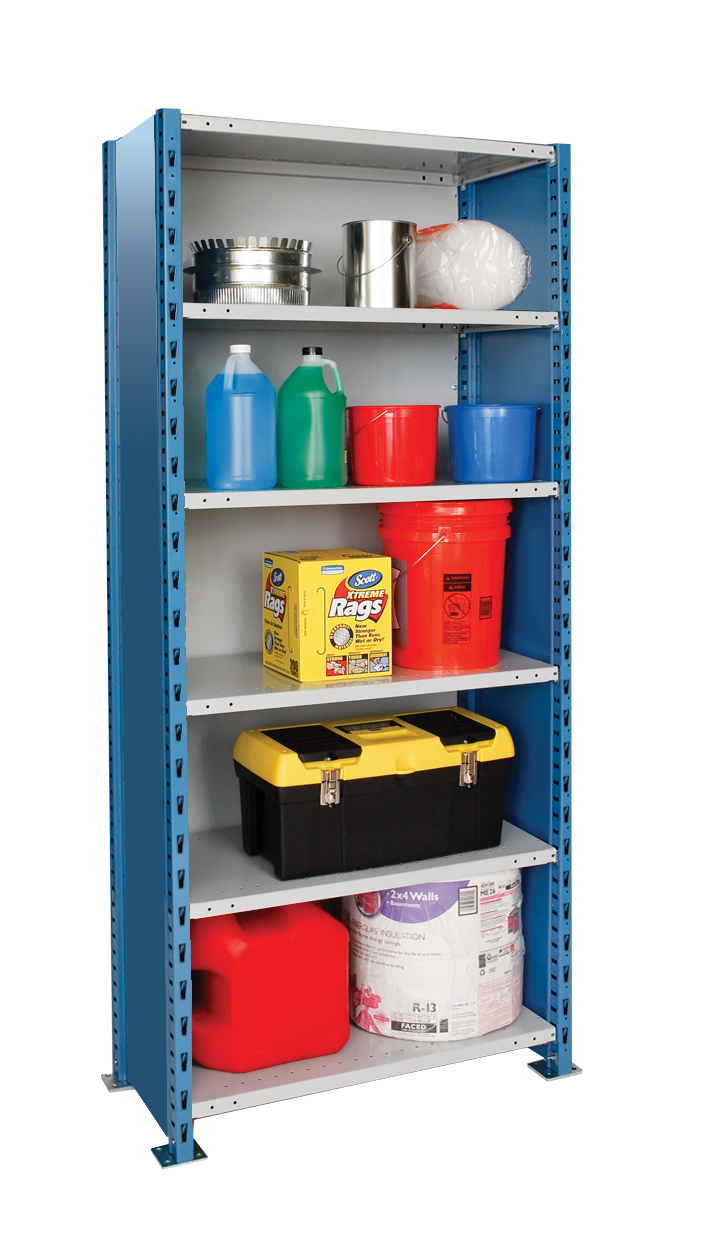

Starter Unit

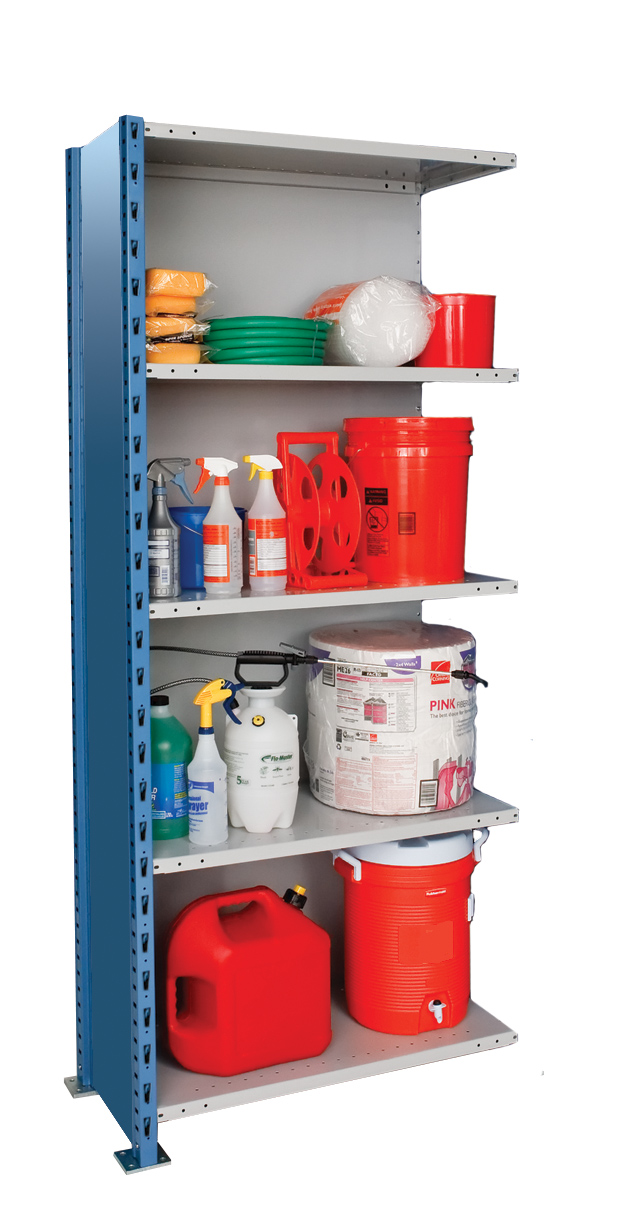

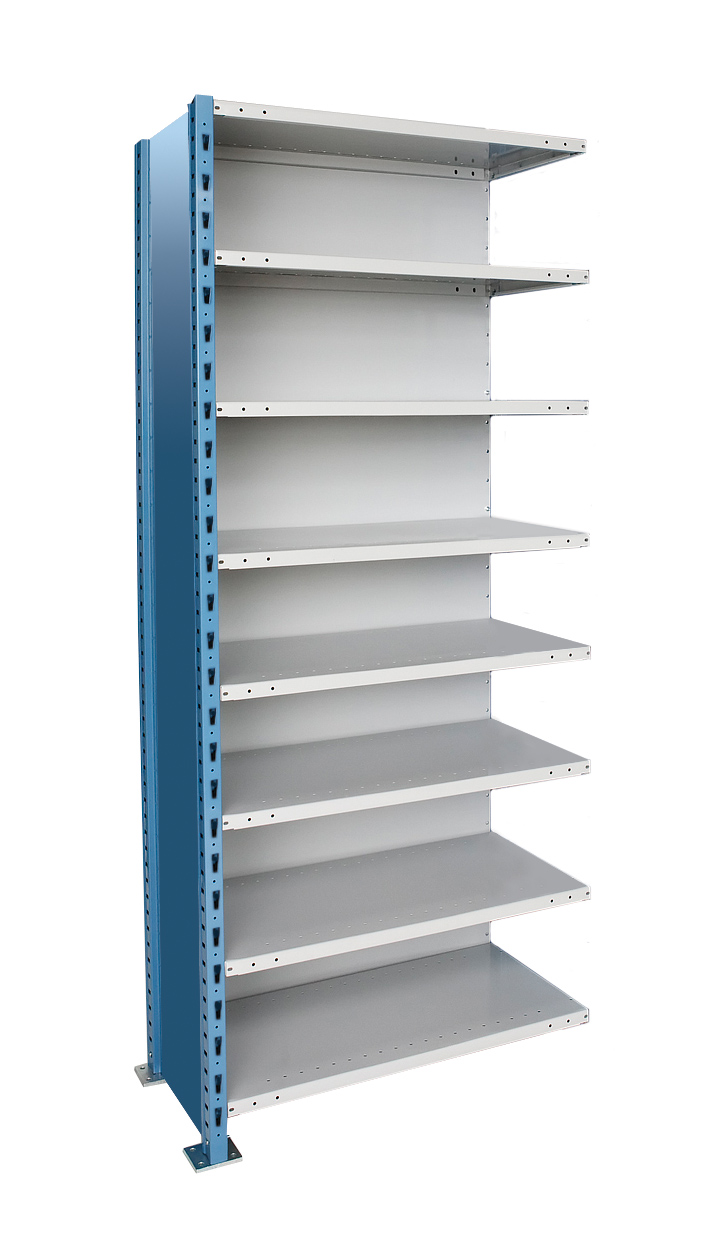

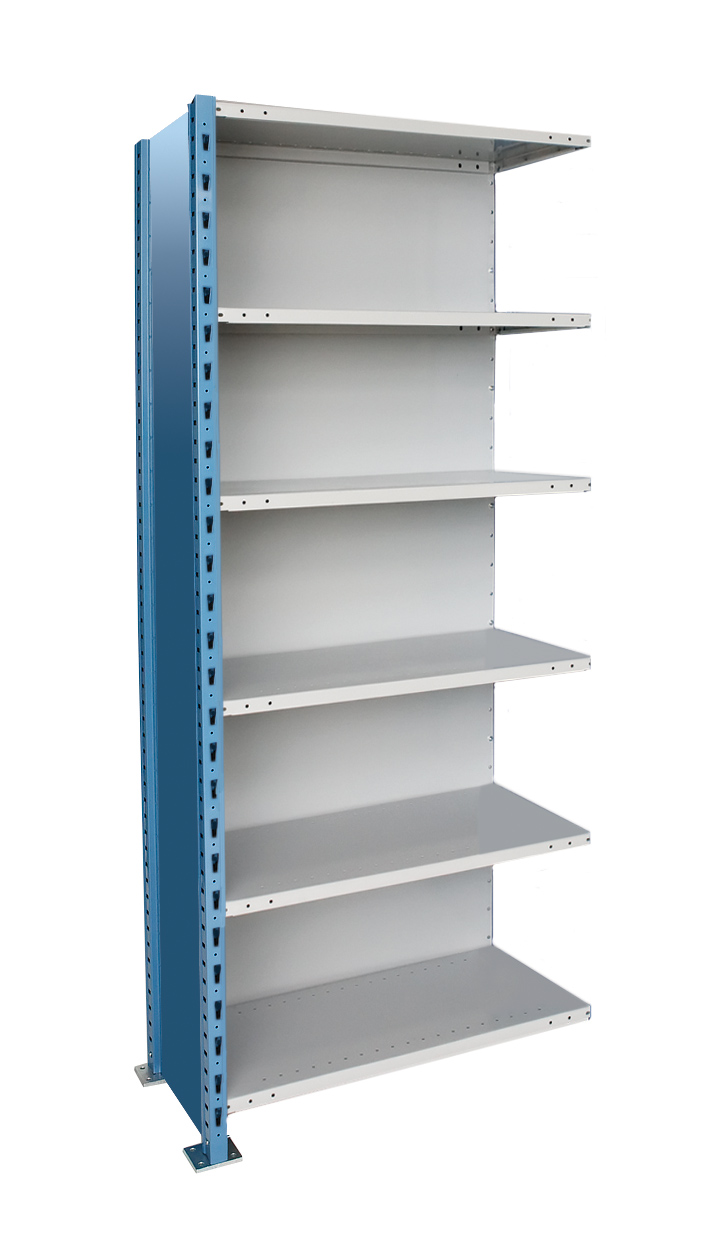

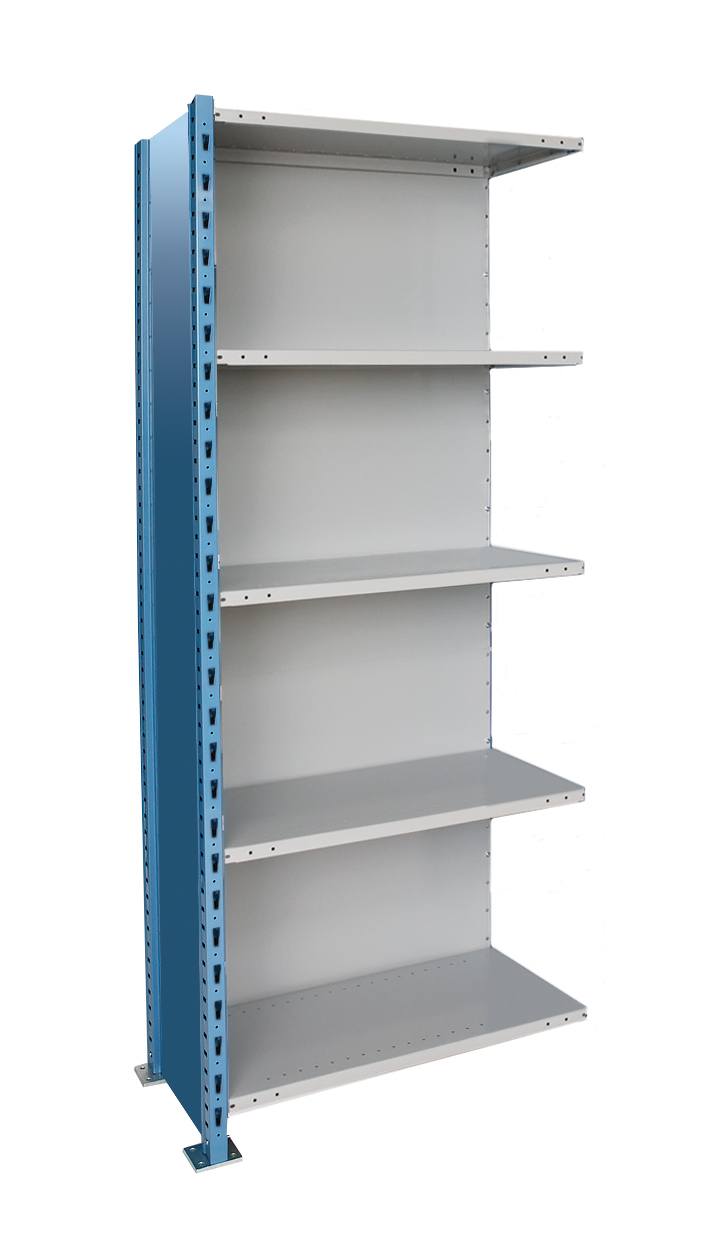

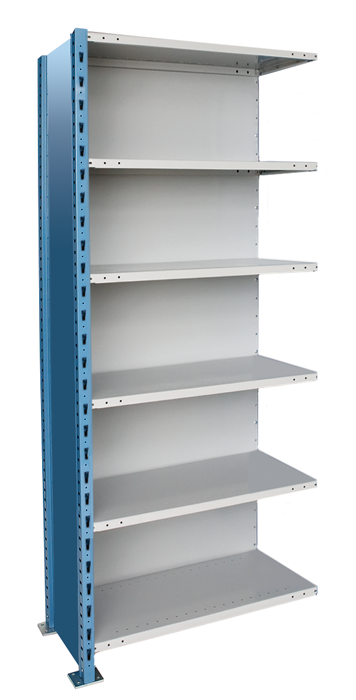

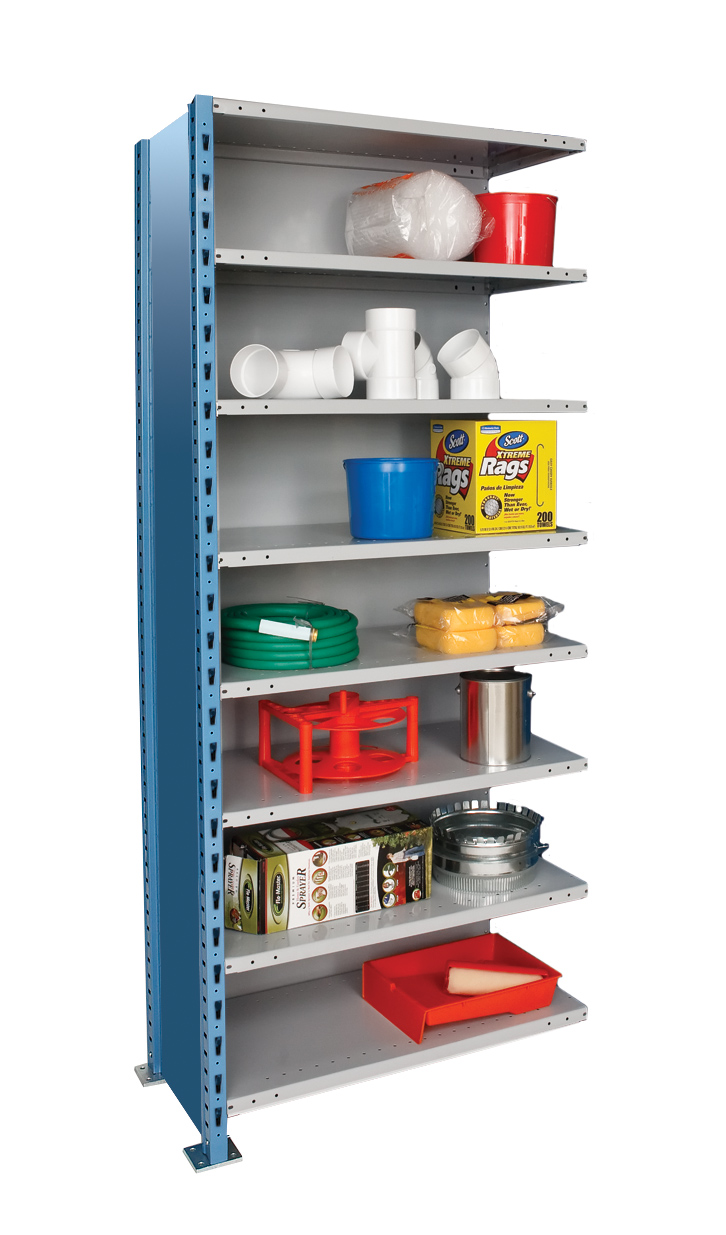

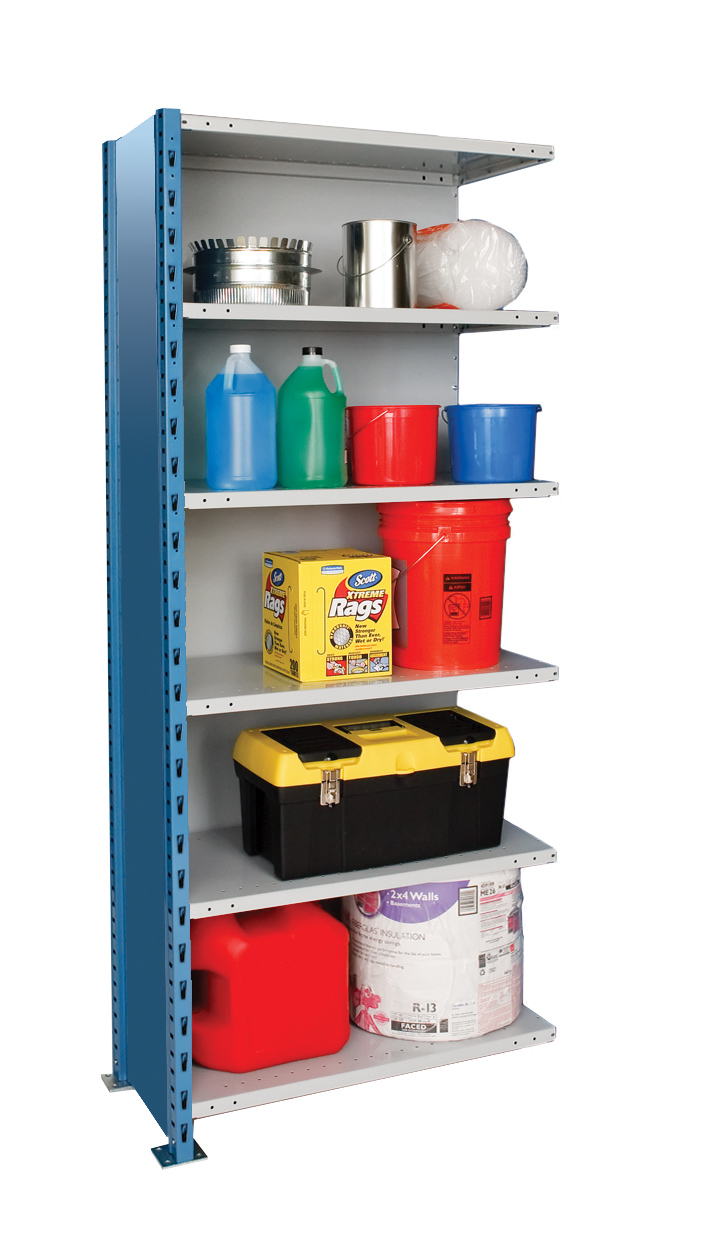

Adder Unit

Good for Multilevels and Mezzanines.

H-Posts are fabricated from 14 gauge cold rolled steel and formed into a unique tubular design to provide more than twice the load capacity compared to standard posts.

Hi-Tech Shelving is a complete shelving line with the strength needed to handle most industrial applications with the versatility needed for today's modern facilities. Every shelving unit is designed and engineered to handle daily use for a lifetime without losing its integrity.

A full complement of accessories including full dividers, partial dividers, label holders, swinging doors, post splices for multilevel systems, and footplates are available to complete your steel shelf system.

QUICKSHIP: 5 day shipping on all in-stock shelving!

All Hi-Tech™ shelving comes in starter and/or adder units to allow for customization to any specification. In addition to free-standing, the Hi-Tech steel shelving units can be bolted side by side or back to back to create the best storage solution for your garage, warehouse, storage unit, stock room or other space.

Each Hi-Tech metal heavy-duty shelf has a tubular welded box beam in front and rear for maximum strength, exclusive triple bend side flanges for even more strength, lapped and welded corners, and the shelves are punched to accept shelf dividers. Each shelf is installed using only 4 shelf clips and can be installed together with both beaded front and angle back posts as well as T-posts and H-posts. Hi-Tech Steel Shelving is perfect for most medium-duty and heavy-duty product, tool, and gear storage.

Unit Load Capacity Information - HERE

Catalog

H-Post™ High Capacity - Closed Shelving

Extra Heavy-Duty
SKU	Shelving Type	Width	Depth	Frame Height	Durability	Number of Shelves	Shelf Capacity	Assembled
H7720-1807	Starter	36	18	87	Extra Heavy-Duty	5	900	KD
AH7720-1807	Adder	36	18	87	Extra Heavy-Duty	5	900	KD
H7721-1807	Starter	36	18	87	Extra Heavy-Duty	6	900	KD
AH7721-1807	Adder	36	18	87	Extra Heavy-Duty	6	900	KD
H7723-1807	Starter	36	18	87	Extra Heavy-Duty	8	900	KD
AH7723-1807	Adder	36	18	87	Extra Heavy-Duty	8	900	KD
H7520-2407	Starter	36	24	87	Extra Heavy-Duty	5	1250	KD
H7520-2410	Starter	36	24	123	Extra Heavy-Duty	5	1250	KD
AH7520-2410	Adder	36	24	123	Extra Heavy-Duty	5	1250	KD
AH7520-2407	Adder	36	24	87	Extra Heavy-Duty	5	1250	KD
H7521-2410	Starter	36	24	123	Extra Heavy-Duty	6	1250	KD
H7521-2407	Starter	36	24	87	Extra Heavy-Duty	6	1250	KD
AH7521-2407	Adder	36	24	87	Extra Heavy-Duty	6	1250	KD
AH7521-2410	Adder	36	24	123	Extra Heavy-Duty	6	1250	KD
H7523-2407	Starter	36	24	87	Extra Heavy-Duty	8	1250	KD
H7523-2410	Starter	36	24	123	Extra Heavy-Duty	8	1250	KD
AH7523-2410	Adder	36	24	123	Extra Heavy-Duty	8	1250	KD
AH7523-2407	Adder	36	24	87	Extra Heavy-Duty	8	1250	KD
H7520-1807	Starter	36	18	87	Extra Heavy-Duty	5	1200	KD
H7520-1810	Starter	36	18	123	Extra Heavy-Duty	5	1200	KD
AH7520-1807	Adder	36	18	87	Extra Heavy-Duty	5	1200	KD
AH7520-1810	Adder	36	18	123	Extra Heavy-Duty	5	1200	KD
H7521-1807	Starter	36	18	87	Extra Heavy-Duty	6	1200	KD
H7521-1810	Starter	36	18	123	Extra Heavy-Duty	6	1200	KD
AH7521-1810	Adder	36	18	123	Extra Heavy-Duty	6	1200	KD
AH7521-1807	Adder	36	18	87	Extra Heavy-Duty	6	1200	KD
H7523-1807	Starter	36	18	87	Extra Heavy-Duty	8	1200	KD
H7523-1810	Starter	36	18	123	Extra Heavy-Duty	8	1200	KD
AH7523-1807	Adder	36	18	87	Extra Heavy-Duty	8	1200	KD
AH7523-1810	Adder	36	18	123	Extra Heavy-Duty	8	1200	KD
H7720-2407	Starter	48	24	87	Extra Heavy-Duty	5	900	KD
AH7720-2407	Adder	48	24	87	Extra Heavy-Duty	5	900	KD
H7721-2407	Starter	48	24	87	Extra Heavy-Duty	6	900	KD
AH7721-2407	Adder	48	24	87	Extra Heavy-Duty	6	900	KD
H7723-2407	Starter	48	24	87	Extra Heavy-Duty	8	900	KD
AH7723-2407	Adder	48	24	87	Extra Heavy-Duty	8	900	KD
H7720-2410	Starter	48	24	123	Extra Heavy-Duty	5	1250	KD
AH7720-2410	Adder	48	24	123	Extra Heavy-Duty	5	1250	KD
H7721-2410	Starter	48	24	123	Extra Heavy-Duty	6	1250	KD
AH7721-2410	Adder	48	24	123	Extra Heavy-Duty	6	1250	KD
H7723-2410	Starter	48	24	123	Extra Heavy-Duty	8	1250	KD
AH7723-2410	Adder	48	24	123	Extra Heavy-Duty	8	1250	KD
H7720-1810	Starter	48	18	123	Extra Heavy-Duty	5	1200	KD
AH7720-1810	Adder	48	18	123	Extra Heavy-Duty	5	1200	KD
H7721-1810	Starter	48	18	123	Extra Heavy-Duty	6	1200	KD
AH7721-1810	Adder	48	18	123	Extra Heavy-Duty	6	1200	KD
H7723-1810	Starter	48	18	123	Extra Heavy-Duty	8	1200	KD
AH7723-1810	Adder	48	18	123	Extra Heavy-Duty	8	1200	KD

Heavy-Duty
SKU	Shelving Type	Width	Depth	Frame Height	Durability	Number of Shelves	Shelf Capacity	Assembled
H5520-1807	Starter	36	18	87	Heavy-Duty	5	800	KD
H5520-1810	Starter	36	18	123	Heavy-Duty	5	800	KD
AH5520-1807	Adder	36	18	87	Heavy-Duty	5	800	KD
AH5520-1810	Adder	36	18	123	Heavy-Duty	5	800	KD
H5521-1810	Starter	36	18	123	Heavy-Duty	6	800	KD
H5521-1807	Starter	36	18	87	Heavy-Duty	6	800	KD
AH5521-1810	Adder	36	18	123	Heavy-Duty	6	800	KD
AH5521-1807	Adder	36	18	87	Heavy-Duty	6	800	KD
H5523-1807	Starter	36	18	87	Heavy-Duty	8	800	KD
H5523-1810	Starter	36	18	123	Heavy-Duty	8	800	KD
AH5523-1807	Adder	36	18	87	Heavy-Duty	8	800	KD
AH5523-1810	Adder	36	18	123	Heavy-Duty	8	800	KD
H5520-2407	Starter	36	24	87	Heavy-Duty	5	800	KD
AH5520-2407	Adder	36	24	87	Heavy-Duty	5	800	KD
H5521-2407	Starter	36	24	87	Heavy-Duty	6	800	KD
AH5521-2407	Adder	36	24	87	Heavy-Duty	6	800	KD
H5523-2407	Starter	36	24	87	Heavy-Duty	8	800	KD
AH5523-2407	Adder	36	24	87	Heavy-Duty	8	800	KD
H5520-2410	Starter	48	24	123	Heavy-Duty	5	800	KD
AH5520-2410	Adder	48	24	123	Heavy-Duty	5	800	KD
H5521-2410	Starter	48	24	123	Heavy-Duty	6	800	KD
AH5521-2410	Adder	48	24	123	Heavy-Duty	6	800	KD
H5523-2410	Starter	48	24	123	Heavy-Duty	8	800	KD
AH5523-2410	Adder	48	24	123	Heavy-Duty	8	800	KD
H5720-2407	Starter	48	24	87	Heavy-Duty	5	500	KD
H5720-2410	Starter	48	24	123	Heavy-Duty	5	500	KD
AH5720-2407	Adder	48	24	87	Heavy-Duty	5	500	KD
AH5720-2410	Adder	48	24	123	Heavy-Duty	5	500	KD
H5721-2410	Starter	48	24	123	Heavy-Duty	6	500	KD
H5721-2407	Starter	48	24	87	Heavy-Duty	6	500	KD
AH5721-2410	Adder	48	24	123	Heavy-Duty	6	500	KD
AH5721-2407	Adder	48	24	87	Heavy-Duty	6	500	KD
H5723-2407	Starter	48	24	87	Heavy-Duty	8	500	KD
H5723-2410	Starter	48	24	123	Heavy-Duty	8	500	KD
AH5723-2407	Adder	48	24	87	Heavy-Duty	8	500	KD
AH5723-2410	Adder	48	24	123	Heavy-Duty	8	500	KD
H5720-1810	Starter	48	18	123	Heavy-Duty	5	450	KD
H5720-1807	Starter	48	18	87	Heavy-Duty	5	450	KD
AH5720-1810	Adder	48	18	123	Heavy-Duty	5	450	KD
AH5720-1807	Adder	48	18	87	Heavy-Duty	5	450	KD
H5721-1807	Starter	48	18	87	Heavy-Duty	6	450	KD
H5721-1810	Starter	48	18	123	Heavy-Duty	6	450	KD
AH5721-1807	Adder	48	18	87	Heavy-Duty	6	450	KD
AH5721-1810	Adder	48	18	123	Heavy-Duty	6	450	KD
H5723-1810	Starter	48	18	123	Heavy-Duty	8	450	KD
H5723-1807	Starter	48	18	87	Heavy-Duty	8	450	KD
AH5723-1810	Adder	48	18	123	Heavy-Duty	8	450	KD
AH5723-1807	Adder	48	18	87	Heavy-Duty	8	450	KD
