Hi-Tech™ Standard Metal Shelving - Open

Product Overview

Open Starter Unit

Open Adder Unit

CONTINUING A TRADITION OF QUALITY ESTABLISHED GENERATIONS AGO.

Hi-Tech Standard Open Metal Shelving

Hi-Tech shelving has the strength needed to handle most industrial applications and versatility for today’s modern facilities. Every shelving unit is designed and engineered to meet the highest standards.

A full complement of accessories including full dividers, partial dividers, label holders, swinging doors, post splices for multilevel systems and foot plates are available to complete your system.

Each Hi-Tech metal heavy-duty shelf has a tubular welded box beam in front and rear for maximum strength, exclusive triple bend side flanges for even more strength, lapped and welded corners, and the shelves are punched to accept shelf dividers. Each shelf is installed using only 4 shelf clips and can be installed together with both beaded front and angle back posts as well as T-posts and H-posts. Hi-Tech Steel Shelving is perfect for most medium-duty and heavy-duty products, tools, and gear storage.

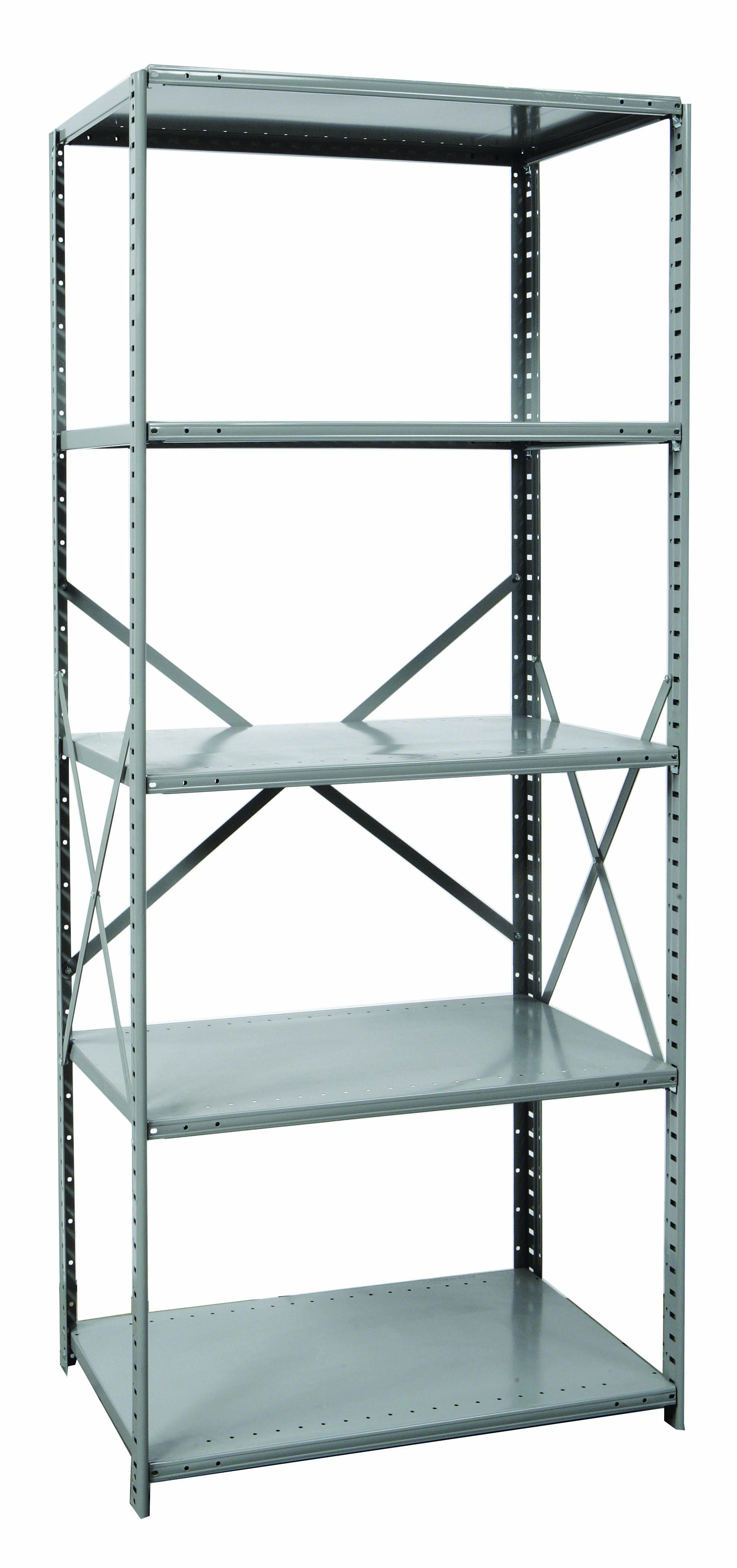

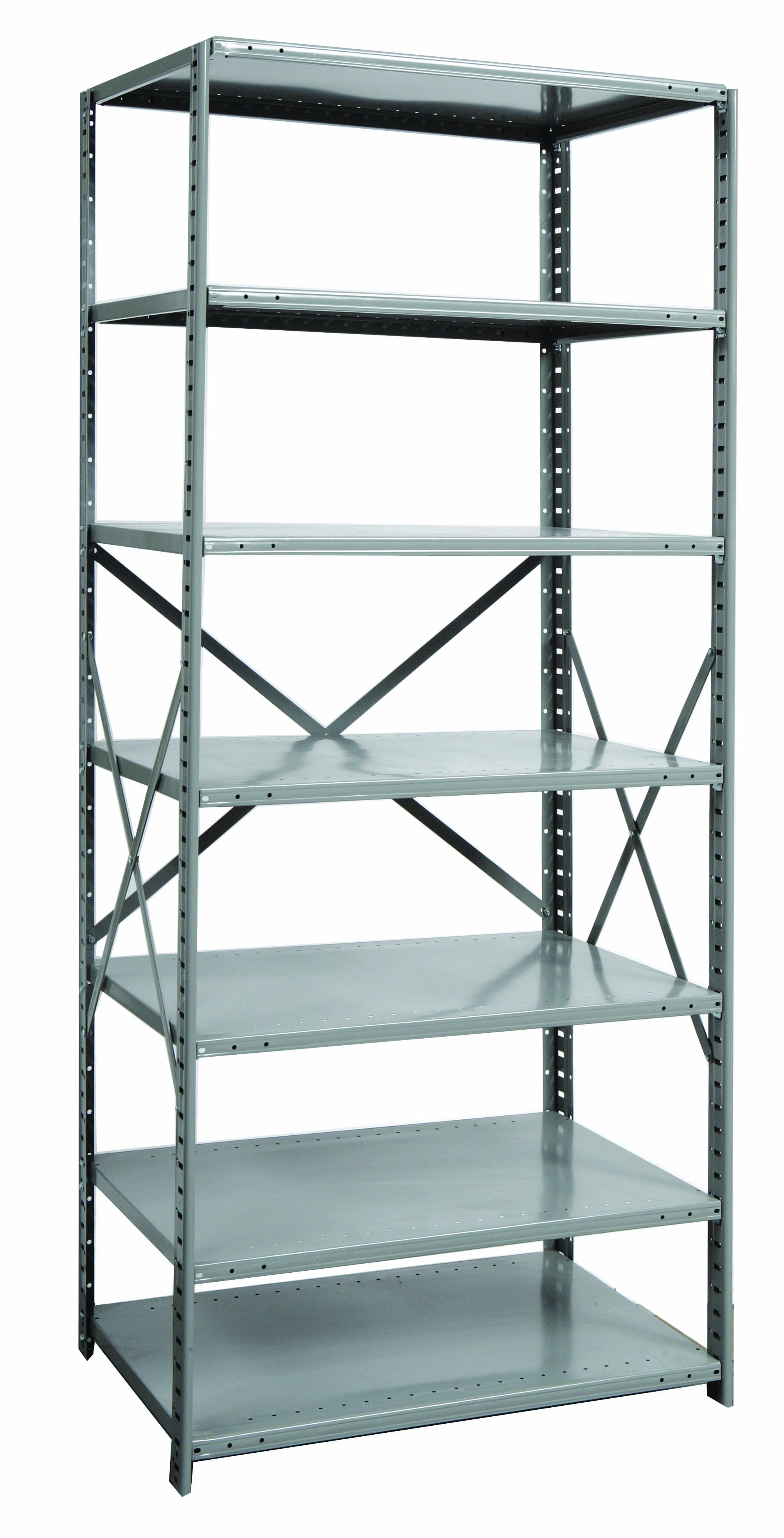

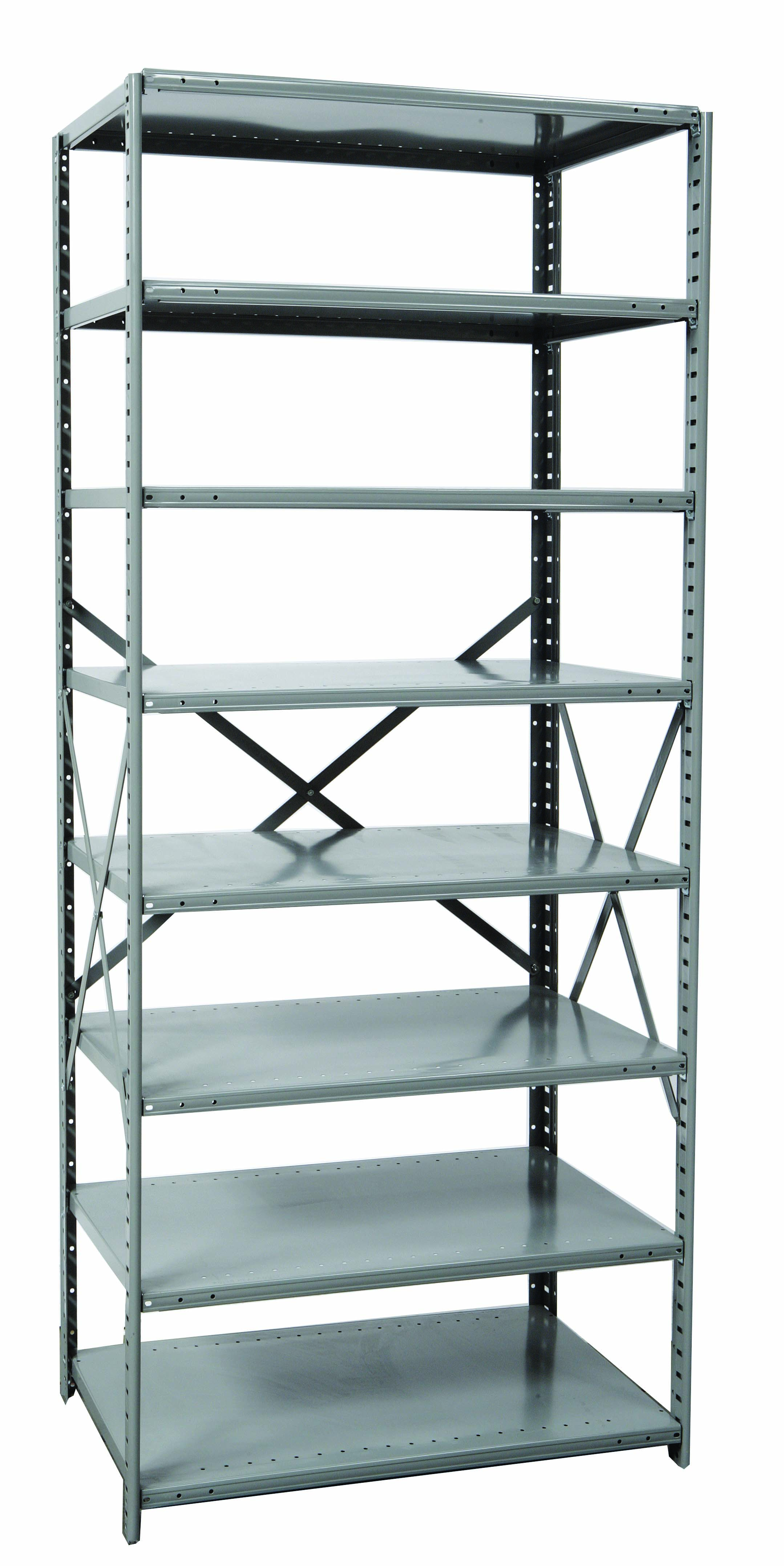

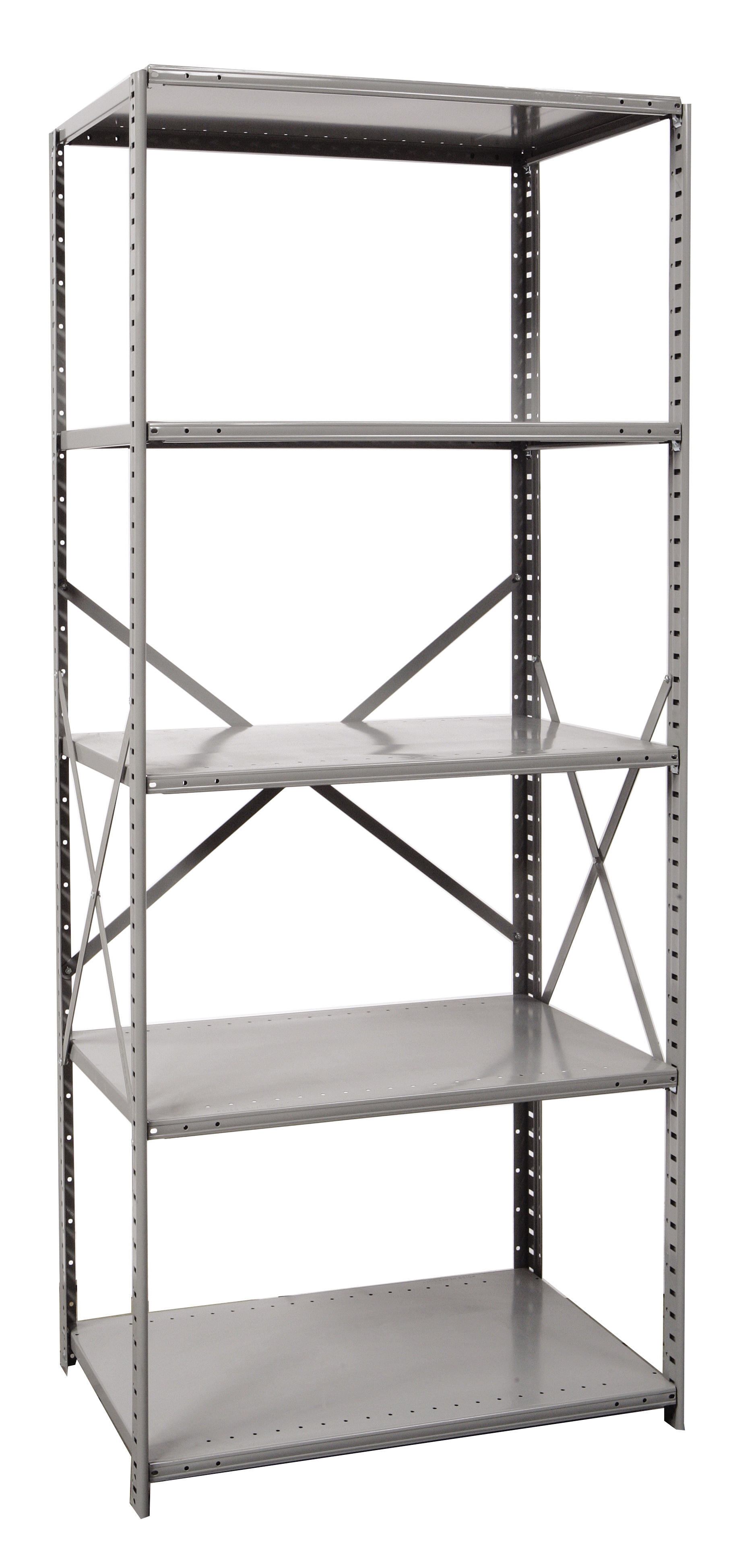

Open Starter units include: two beaded front posts, two angle back posts, one pair of back sway braces, two pair of side sway braces, and shelves with shelf clips applicable to unit ordered.

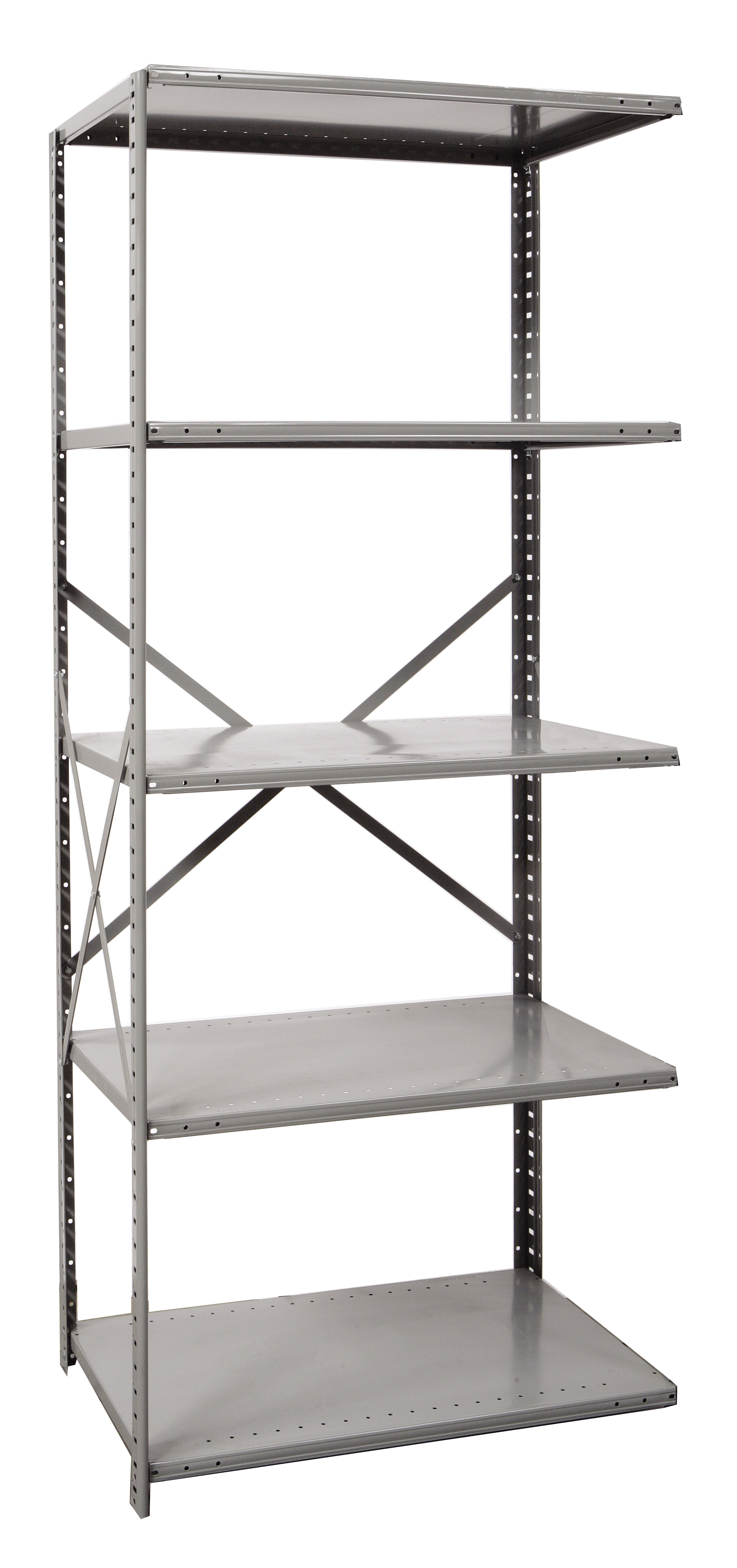

Open Adder units include: One beaded front post, two angle back posts, one pair of back sway braces, one pair of side sway braces, and shelves with shelf clips applicable to unit ordered .

Unit Load Capacity Information - HERE

Catalog

Hi-Tech™ Open Shelving

Medium-Duty
SKU	Shelving Type	Width	Depth	Frame Height	Number of Shelves	colors	Shelf Capacity	Assembled
4510-12	Starter	36	12	87	5	Hallowell Gray	500	KD
A4510-12	Adder	36	12	87	5	Hallowell Gray	500	KD
4511-12	Starter	36	12	87	6	Hallowell Gray	500	KD
A4511-12	Adder	36	12	87	6	Hallowell Gray	500	KD
4513-12	Starter	36	12	87	8	Hallowell Gray	500	KD
A4513-12	Adder	36	12	87	8	Hallowell Gray	500	KD
4510-18	Starter	36	18	87	5	Hallowell Gray	500	KD
A4510-18	Adder	36	18	87	5	Hallowell Gray	500	KD
4511-18	Starter	36	18	87	6	Hallowell Gray	500	KD
A4511-18	Adder	36	18	87	6	Hallowell Gray	500	KD
4513-18	Starter	36	18	87	8	Hallowell Gray	500	KD
A4513-18	Adder	36	18	87	8	Hallowell Gray	500	KD
4510-24	Starter	36	24	87	5	Hallowell Gray	500	KD
A4510-24	Adder	36	24	87	5	Hallowell Gray	500	KD
4511-24	Starter	36	24	87	6	Hallowell Gray	500	KD
A4511-24	Adder	36	24	87	6	Hallowell Gray	500	KD
4513-24	Starter	36	24	87	8	Hallowell Gray	500	KD
A4513-24	Adder	36	24	87	8	Hallowell Gray	500	KD
4710-12	Starter	48	12	87	5	Hallowell Gray	375	KD
A4710-12	Adder	48	12	87	5	Hallowell Gray	375	KD
4711-12	Starter	48	12	87	6	Hallowell Gray	375	KD
A4711-12	Adder	48	12	87	6	Hallowell Gray	375	KD
4713-12	Starter	48	12	87	8	Hallowell Gray	375	KD
A4713-12	Adder	48	12	87	8	Hallowell Gray	375	KD
4710-18	Starter	48	18	87	5	Hallowell Gray	375	KD
A4710-18	Adder	48	18	87	5	Hallowell Gray	375	KD
4711-18	Starter	48	18	87	6	Hallowell Gray	375	KD
4713-18	Starter	48	18	87	8	Hallowell Gray	375	KD
A4711-18	Adder	48	18	87	8	Hallowell Gray	375	KD
4710-24	Starter	48	24	87	5	Hallowell Gray	350	KD
A4710-24	Adder	48	24	87	5	Hallowell Gray	350	KD
4711-24	Starter	48	24	87	6	Hallowell Gray	350	KD
4713-24	Starter	48	24	87	8	Hallowell Gray	350	KD
A4711-24	Adder	48	24	87	8	Hallowell Gray	350	KD

Heavy-Duty
SKU	Shelving Type	Width	Depth	Frame Height	Number of Shelves	colors	Shelf Capacity	Assembled
5510-12	Starter	36	12	87	5	Hallowell Gray	800	KD
A5510-12	Adder	36	12	87	5	Hallowell Gray	800	KD
5511-12	Starter	36	12	87	6	Hallowell Gray	800	KD
A5511-12	Adder	36	12	87	6	Hallowell Gray	800	KD
5513-12	Starter	36	12	87	8	Hallowell Gray	800	KD
A5513-12	Adder	36	12	87	8	Hallowell Gray	800	KD
5510-18	Starter	36	18	87	5	Hallowell Gray	800	KD
A5510-18	Adder	36	18	87	5	Hallowell Gray	800	KD
5511-18	Starter	36	18	87	6	Hallowell Gray	800	KD
A5511-18	Adder	36	18	87	6	Hallowell Gray	800	KD
5513-18	Starter	36	18	87	8	Hallowell Gray	800	KD
A5513-18	Adder	36	18	87	8	Hallowell Gray	800	KD
5510-24	Starter	36	24	87	5	Hallowell Gray	800	KD
A5510-24	Adder	36	24	87	5	Hallowell Gray	800	KD
5511-24	Starter	36	24	87	6	Hallowell Gray	800	KD
A5511-24	Adder	36	24	87	6	Hallowell Gray	800	KD
5513-24	Starter	36	24	87	8	Hallowell Gray	800	KD
A5513-24	Adder	36	24	87	8	Hallowell Gray	800	KD
5710-12	Starter	48	12	87	5	Hallowell Gray	400	KD
A5710-12	Adder	48	12	87	5	Hallowell Gray	400	KD
5711-12	Starter	48	12	87	6	Hallowell Gray	400	KD
A5711-12	Adder	48	12	87	6	Hallowell Gray	400	KD
5713-12	Starter	48	12	87	8	Hallowell Gray	400	KD
A5713-12	Adder	48	12	87	8	Hallowell Gray	400	KD
5710-18	Starter	48	18	87	5	Hallowell Gray	450	KD
A5710-18	Adder	48	18	87	5	Hallowell Gray	450	KD
5711-18	Starter	48	18	87	6	Hallowell Gray	450	KD
A5711-18	Adder	48	18	87	6	Hallowell Gray	450	KD
5713-18	Starter	48	18	87	8	Hallowell Gray	450	KD
A5713-18	Adder	48	18	87	8	Hallowell Gray	450	KD
5710-24	Starter	48	24	87	5	Hallowell Gray	500	KD
A5710-24	Adder	48	24	87	5	Hallowell Gray	500	KD
5711-24	Starter	48	24	87	6	Hallowell Gray	500	KD
A5711-24	Adder	48	24	87	6	Hallowell Gray	500	KD
5713-24	Starter	48	24	87	8	Hallowell Gray	500	KD
A5713-24	Adder	48	24	87	8	Hallowell Gray	500	KD

Extra Heavy-Duty
SKU	Shelving Type	Width	Depth	Frame Height	Number of Shelves	colors	Shelf Capacity	Assembled
7510-12	Starter	36	12	87	5	Hallowell Gray	1100	KD
A7510-12	Adder	36	12	87	5	Hallowell Gray	1100	KD
7511-12	Starter	36	12	87	6	Hallowell Gray	1100	KD
A7511-12	Adder	36	12	87	6	Hallowell Gray	1100	KD
7513-12	Starter	36	12	87	8	Hallowell Gray	1100	KD
A7513-12	Adder	36	12	87	8	Hallowell Gray	1100	KD
7510-18	Starter	36	18	87	5	Hallowell Gray	1200	KD
A7510-18	Adder	36	18	87	5	Hallowell Gray	1200	KD
7511-18	Starter	36	18	87	6	Hallowell Gray	1200	KD
A7511-18	Adder	36	18	87	6	Hallowell Gray	1200	KD
7513-18	Starter	36	18	87	8	Hallowell Gray	1200	KD
A7513-18	Adder	36	18	87	8	Hallowell Gray	1200	KD
7510-24	Starter	36	24	87	5	Hallowell Gray	1250	KD
A7510-24	Adder	36	24	87	5	Hallowell Gray	1250	KD
7511-24	Starter	36	24	87	6	Hallowell Gray	1250	KD
A7511-24	Adder	36	24	87	6	Hallowell Gray	1250	KD
7513-24	Starter	36	24	87	8	Hallowell Gray	1250	KD
A7513-24	Adder	36	24	87	8	Hallowell Gray	1250	KD
7710-12	Starter	48	12	87	5	Hallowell Gray	750	KD
A7710-12	Adder	48	12	87	5	Hallowell Gray	750	KD
7711-12	Starter	48	12	87	6	Hallowell Gray	750	KD
A7711-12	Adder	48	12	87	6	Hallowell Gray	750	KD
7713-12	Starter	48	12	87	8	Hallowell Gray	750	KD
A7713-12	Adder	48	12	87	8	Hallowell Gray	750	KD
7710-18	Starter	48	18	87	5	Hallowell Gray	900	KD
A7710-18	Adder	48	18	87	5	Hallowell Gray	900	KD
7711-18	Starter	48	18	87	6	Hallowell Gray	900	KD
A7711-18	Adder	48	18	87	6	Hallowell Gray	900	KD
7713-18	Starter	48	18	87	8	Hallowell Gray	900	KD
A7713-18	Adder	48	18	87	8	Hallowell Gray	900	KD
7710-24	Starter	48	24	87	5	Hallowell Gray	900	KD
A7710-24	Adder	48	24	87	5	Hallowell Gray	900	KD
7711-24	Starter	48	24	87	6	Hallowell Gray	900	KD
A7711-24	Adder	48	24	87	6	Hallowell Gray	900	KD
7713-24	Starter	48	24	87	8	Hallowell Gray	900	KD
A7713-24	Adder	48	24	87	8	Hallowell Gray	900	KD

Components

Open Shelving Components

Angle Back Posts

5004

Angles for single or end units. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

Beaded Front Posts

5002

True flush construction. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

T-Posts

5006

Two back Posts welded together. For use when adjoining models are added to form a continuous row.

Post Slice Channels

5009

A channel formed an internal splice. Used to splice beaded front posts, back posts, and T-posts for added height.

Back Sway Braces

5342

(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an "X"

Side Sway Braces

5344

(2x) 1" x 11 ga. steel strips with safety edges bolted together at center to form an "X"

Box Beam Shelves

5135 & 5138 & 5139

Medium-Duty, Heavy-Duty, or Extra-Heavy-Duty Roll-formed & triple-flanged. Top pierced to accept dividers.

Shelf Clip

5133

One-piece zinc plated compression clip fits snugly against side of posts to hold shelves in place. Four required per shelf.

Base Strips

5233

Shaped to fit directly between bottom shelf and floor. 2-15/16" high giving an overall base height of 3" including bottom of shelf.

Swinging Doors (With Locks)

5300

Reinforced door / frame attaches to beaded front posts and opens quietly to a full 150°. Chrome finished handle with built-in grooved key cylinder lock. Positive 3-point locking. Universal clips (Part No. 5315) are required to mount doors on beaded front posts.
