Hi-Tech H-Post shelving systems have been specifically designed to allow for fast and easy assembly.
H-Post High Capacity Shelving is part of the Hi-Tech Shelving System and is ideal when additional strength is required for any shelving installation. It is also recommended for multi-level high-rise applications.
Foot Plate

The standard footplate provides a strong, secure anchoring point.
H-Post Brace Clip

Special triple point brace clip provides a strong and rigid anchor point for the cross braces.
H-Post - Posts

H-Posts are fabricated from 14 gauge cold rolled steel and formed into a unique tubular design to provide more than twice the load capacity compared to standard posts.
Back to top

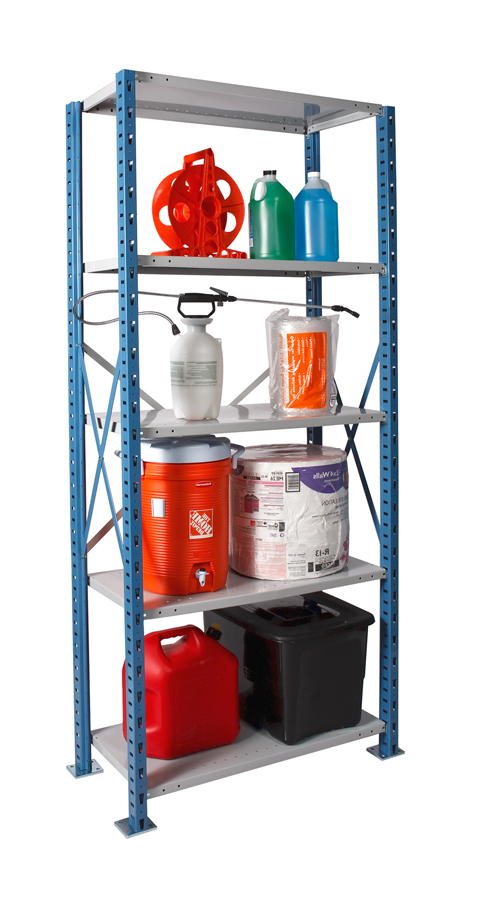

Product Overview

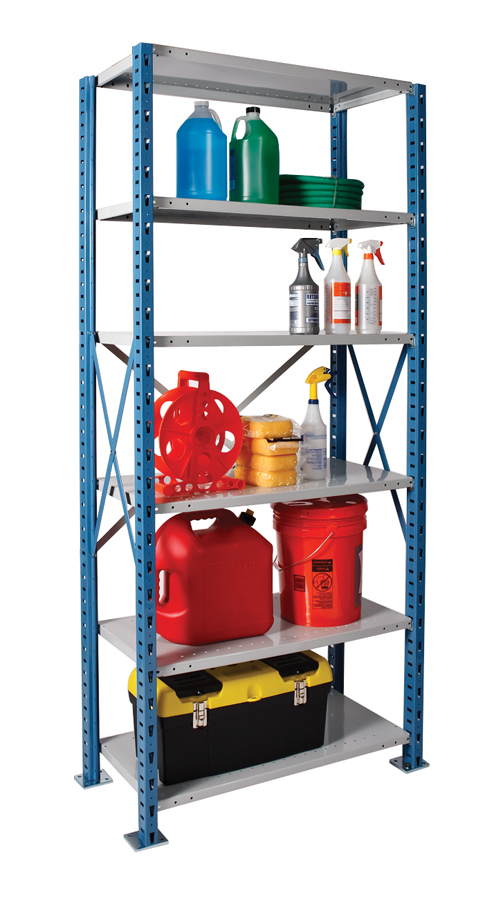

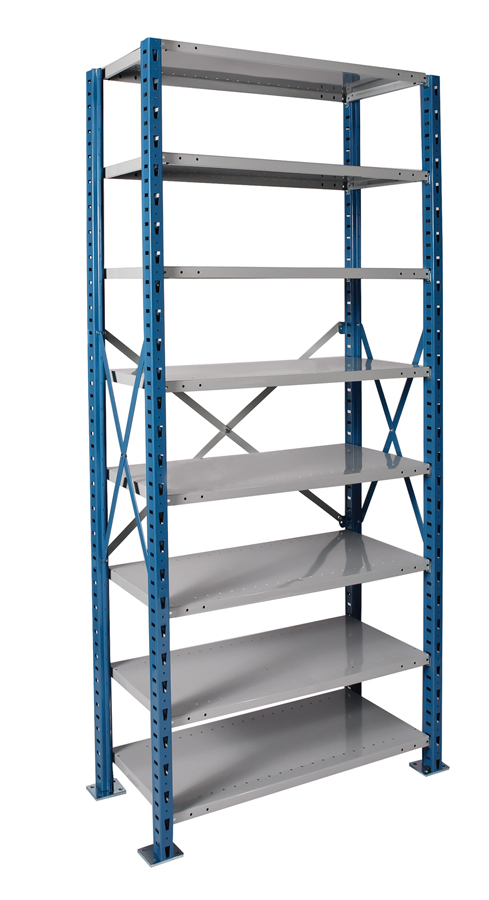

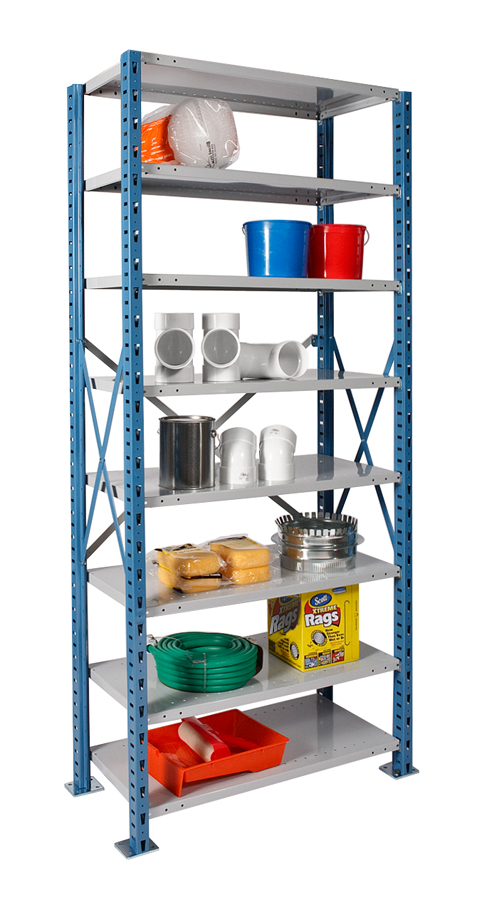

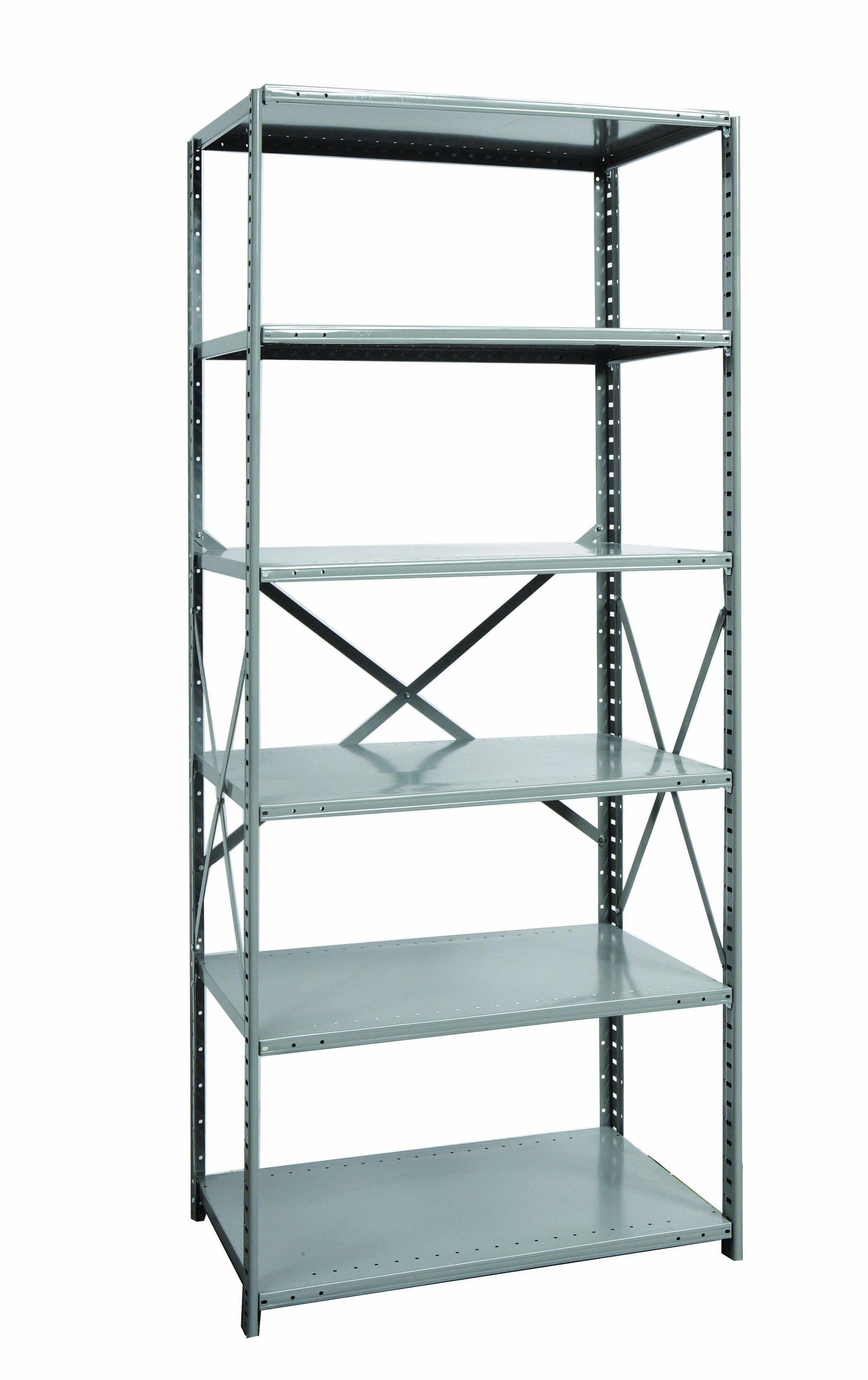

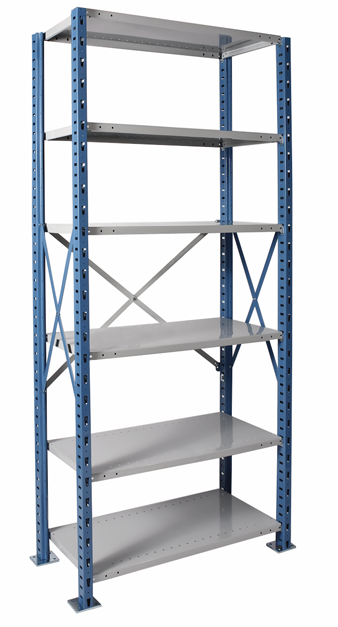

Starter Unit

Starter Unit

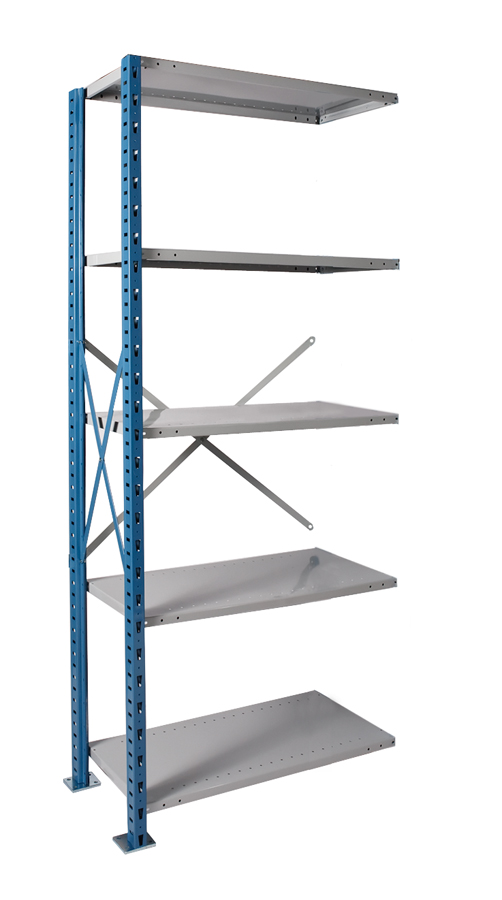

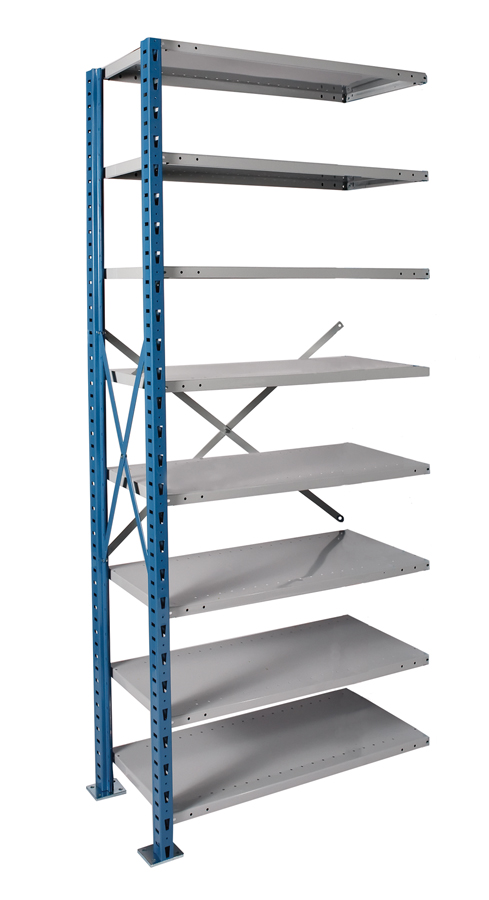

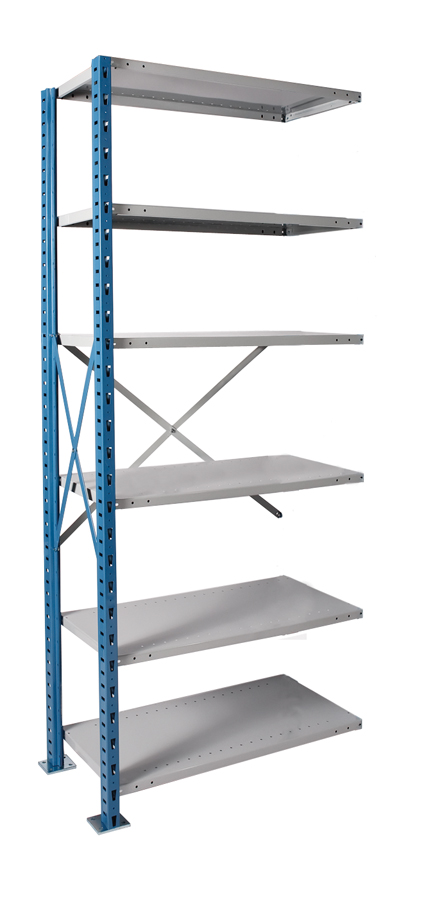

Adder Unit

Adder Unit

Good for Multilevels and Mezzanines.

H-Posts are fabricated from 14 gauge cold rolled steel and formed into a unique tubular design to provide more than twice the load capacity compared to standard posts.

Hi-Tech Shelving is a complete shelving line with the strength needed to handle most industrial applications with the versatility needed for today's modern facilities. Every shelving unit is designed and engineered to handle daily use for a lifetime without losing its integrity.

A full complement of accessories including full dividers, partial dividers, label holders, swinging doors, post splices for multilevel systems, and footplates are available to complete your steel shelf system.

QUICKSHIP: 5 day shipping on all in-stock shelving!

All Hi-Tech™ shelving comes in starter and/or adder units to allow for customization to any specification. In addition to free-standing, the Hi-Tech steel shelving units can be bolted side by side or back to back to create the best storage solution for your garage, warehouse, storage unit, stock room or other space.

Each Hi-Tech metal heavy-duty shelf has a tubular welded box beam in front and rear for maximum strength, exclusive triple bend side flanges for even more strength, lapped and welded corners, and the shelves are punched to accept shelf dividers. Each shelf is installed using only 4 shelf clips and can be installed together with both beaded front and angle back posts as well as T-posts and H-posts. Hi-Tech Steel Shelving is perfect for most medium-duty and heavy-duty product, tool, and gear storage.

Unit Load Capacity Information - HERE

Catalog
H-Post™ High Capacity - Open Shelving
Extra Heavy-Duty
SKU Shelving Type Width Depth Frame Height Durability Number of Shelves Shelf Capacity Assembled
H7710-1807 Starter 36 18 87 Extra Heavy-Duty 5 900 KD
AH7710-1807 Adder 36 18 87 Extra Heavy-Duty 5 900 KD
H7711-1807 Starter 36 18 87 Extra Heavy-Duty 6 900 KD
AH7711-1807 Adder 36 18 87 Extra Heavy-Duty 6 900 KD
H7713-1807 Starter 36 18 87 Extra Heavy-Duty 8 900 KD
AH7713-1807 Adder 36 18 87 Extra Heavy-Duty 8 900 KD
H7510-2407 Starter 36 24 87 Extra Heavy-Duty 5 1250 KD
H7510-2410 Starter 36 24 123 Extra Heavy-Duty 5 1250 KD
AH7510-2410 Adder 36 24 123 Extra Heavy-Duty 5 1250 KD
AH7510-2407 Adder 36 24 87 Extra Heavy-Duty 5 1250 KD
H7511-2410 Starter 36 24 123 Extra Heavy-Duty 6 1250 KD
H7511-2407 Starter 36 24 87 Extra Heavy-Duty 6 1250 KD
AH7511-2407 Adder 36 24 87 Extra Heavy-Duty 6 1250 KD
AH7511-2410 Adder 36 24 123 Extra Heavy-Duty 6 1250 KD
H7513-2407 Starter 36 24 87 Extra Heavy-Duty 8 1250 KD
H7513-2410 Starter 36 24 123 Extra Heavy-Duty 8 1250 KD
AH7513-2410 Adder 36 24 123 Extra Heavy-Duty 8 1250 KD
AH7513-2407 Adder 36 24 87 Extra Heavy-Duty 8 1250 KD
H7510-1807 Starter 36 18 87 Extra Heavy-Duty 5 1200 KD
H7510-1810 Starter 36 18 123 Extra Heavy-Duty 5 1200 KD
AH7510-1807 Adder 36 18 87 Extra Heavy-Duty 5 1200 KD
AH7510-1810 Adder 36 18 123 Extra Heavy-Duty 5 1200 KD
H7511-1807 Starter 36 18 87 Extra Heavy-Duty 6 1200 KD
H7511-1810 Starter 36 18 123 Extra Heavy-Duty 6 1200 KD
AH7511-1810 Adder 36 18 123 Extra Heavy-Duty 6 1200 KD
AH7511-1807 Adder 36 18 87 Extra Heavy-Duty 6 1200 KD
H7513-1807 Starter 36 18 87 Extra Heavy-Duty 8 1200 KD
H7513-1810 Starter 36 18 123 Extra Heavy-Duty 8 1200 KD
AH7513-1807 Adder 36 18 87 Extra Heavy-Duty 8 1200 KD
AH7513-1810 Adder 36 18 123 Extra Heavy-Duty 8 1200 KD
H7710-2407 Starter 48 24 87 Extra Heavy-Duty 5 900 KD
AH7710-2407 Adder 48 24 87 Extra Heavy-Duty 5 900 KD
H7711-2407 Starter 48 24 87 Extra Heavy-Duty 6 900 KD
AH7711-2407 Adder 48 24 87 Extra Heavy-Duty 6 900 KD
H7713-2407 Starter 48 24 87 Extra Heavy-Duty 8 900 KD
AH7713-2407 Adder 48 24 87 Extra Heavy-Duty 8 900 KD
H7710-2410 Starter 48 24 123 Extra Heavy-Duty 5 1250 KD
AH7710-2410 Adder 48 24 123 Extra Heavy-Duty 5 1250 KD
H7711-2410 Starter 48 24 123 Extra Heavy-Duty 6 1250 KD
AH7711-2410 Adder 48 24 123 Extra Heavy-Duty 6 1250 KD
H7713-2410 Starter 48 24 123 Extra Heavy-Duty 8 1250 KD
AH7713-2410 Adder 48 24 123 Extra Heavy-Duty 8 1250 KD
H7710-1810 Starter 48 18 123 Extra Heavy-Duty 5 1200 KD
AH7710-1810 Adder 48 18 123 Extra Heavy-Duty 5 1200 KD
H7711-1810 Starter 48 18 123 Extra Heavy-Duty 6 1200 KD
AH7711-1810 Adder 48 18 123 Extra Heavy-Duty 6 1200 KD
H7713-1810 Starter 48 18 123 Extra Heavy-Duty 8 1200 KD
AH7713-1810 Adder 48 18 123 Extra Heavy-Duty 8 1200 KD
Heavy-Duty
SKU Shelving Type Width Depth Frame Height Durability Number of Shelves Shelf Capacity Assembled
H5510-1807 Starter 36 18 87 Heavy-Duty 5 800 KD
H5510-1810 Starter 36 18 123 Heavy-Duty 5 800 KD
AH5510-1807 Adder 36 18 87 Heavy-Duty 5 800 KD
AH5510-1810 Adder 36 18 123 Heavy-Duty 5 800 KD
H5511-1810 Starter 36 18 123 Heavy-Duty 6 800 KD
H5511-1807 Starter 36 18 87 Heavy-Duty 6 800 KD
AH5511-1810 Adder 36 18 123 Heavy-Duty 6 800 KD
AH5511-1807 Adder 36 18 87 Heavy-Duty 6 800 KD
H5513-1807 Starter 36 18 87 Heavy-Duty 8 800 KD
H5513-1810 Starter 36 18 123 Heavy-Duty 8 800 KD
AH5513-1807 Adder 36 18 87 Heavy-Duty 8 800 KD
AH5513-1810 Adder 36 18 123 Heavy-Duty 8 800 KD
H5510-2407 Starter 36 24 87 Heavy-Duty 5 800 KD
AH5510-2407 Adder 36 24 87 Heavy-Duty 5 800 KD
H5511-2407 Starter 36 24 87 Heavy-Duty 6 800 KD
AH5511-2407 Adder 36 24 87 Heavy-Duty 6 800 KD
H5513-2407 Starter 36 24 87 Heavy-Duty 8 800 KD
AH5513-2407 Adder 36 24 87 Heavy-Duty 8 800 KD
5138-3618PL Additional Shelf 36 18 Heavy-Duty 1 KD
5138-3624PL Additional Shelf 36 24 Heavy-Duty 1 KD

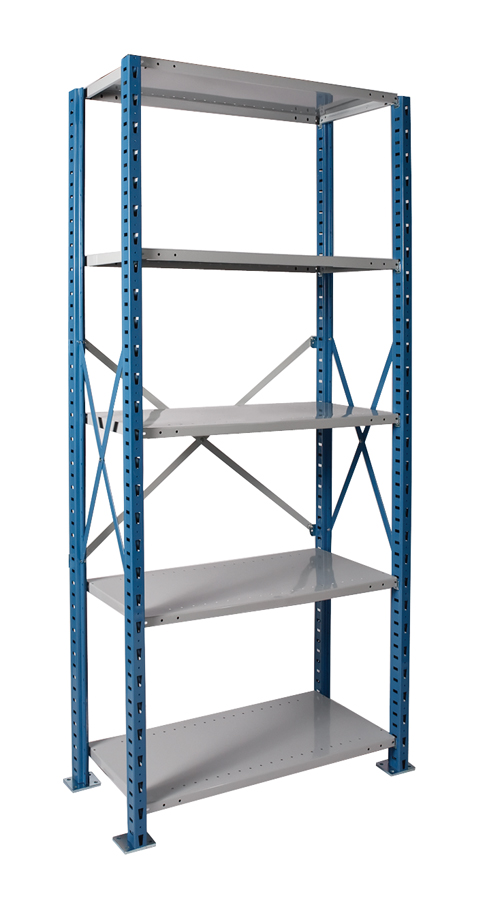

H5510-2410 Starter 48 24 123 Heavy-Duty 5 800 KD
AH5510-2410 Adder 48 24 123 Heavy-Duty 5 800 KD

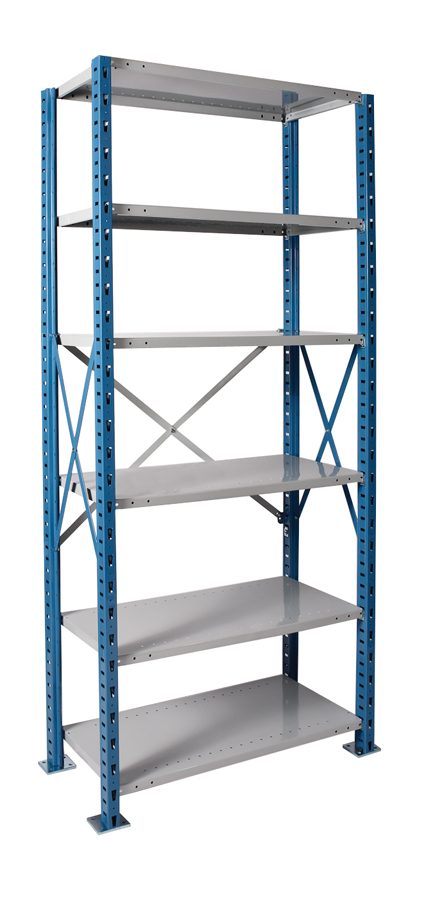

H5511-2410 Starter 48 24 123 Heavy-Duty 6 800 KD
AH5511-2410 Adder 48 24 123 Heavy-Duty 6 800 KD
H5513-2410 Starter 48 24 123 Heavy-Duty 8 800 KD
AH5513-2410 Adder 48 24 123 Heavy-Duty 8 800 KD
H5710-2407 Starter 48 24 87 Heavy-Duty 5 500 KD
H5710-2410 Starter 48 24 123 Heavy-Duty 5 500 KD
AH5710-2407 Adder 48 24 87 Heavy-Duty 5 500 KD
AH5710-2410 Adder 48 24 123 Heavy-Duty 5 500 KD
H5711-2410 Starter 48 24 123 Heavy-Duty 6 500 KD
H5711-2407 Starter 48 24 87 Heavy-Duty 6 500 KD
AH5711-2410 Adder 48 24 123 Heavy-Duty 6 500 KD
AH5711-2407 Adder 48 24 87 Heavy-Duty 6 500 KD
H5713-2407 Starter 48 24 87 Heavy-Duty 8 500 KD
H5713-2410 Starter 48 24 123 Heavy-Duty 8 500 KD
AH5713-2407 Adder 48 24 87 Heavy-Duty 8 500 KD
AH5713-2410 Adder 48 24 123 Heavy-Duty 8 500 KD
H5710-1810 Starter 48 18 123 Heavy-Duty 5 450 KD
H5710-1807 Starter 48 18 87 Heavy-Duty 5 450 KD
AH5710-1810 Adder 48 18 123 Heavy-Duty 5 450 KD
AH5710-1807 Adder 48 18 87 Heavy-Duty 5 450 KD
H5711-1807 Starter 48 18 87 Heavy-Duty 6 450 KD
H5711-1810 Starter 48 18 123 Heavy-Duty 6 450 KD
AH5711-1807 Adder 48 18 87 Heavy-Duty 6 450 KD
AH5711-1810 Adder 48 18 123 Heavy-Duty 6 450 KD
H5713-1810 Starter 48 18 123 Heavy-Duty 8 450 KD
H5713-1807 Starter 48 18 87 Heavy-Duty 8 450 KD
AH5713-1810 Adder 48 18 123 Heavy-Duty 8 450 KD
AH5713-1807 Adder 48 18 87 Heavy-Duty 8 450 KD
5138-4818PL Additional Shelf 48 18 Heavy-Duty 1 KD
5138-4824PL Additional Shelf 48 24 Heavy-Duty 1 KD
Extra Heavy Duty
SKU Shelving Type Width Depth Durability Number of Shelves Assembled
5139-3618PL Additional Shelf 36 18 Extra Heavy Duty 1 KD
5139-3624PL Additional Shelf 36 24 Extra Heavy Duty 1 KD
5139-4818PL Additional Shelf 48 18 Extra Heavy Duty 1 KD
5139-4824PL Additional Shelf 48 24 Extra Heavy Duty 1 KD
Components

Components

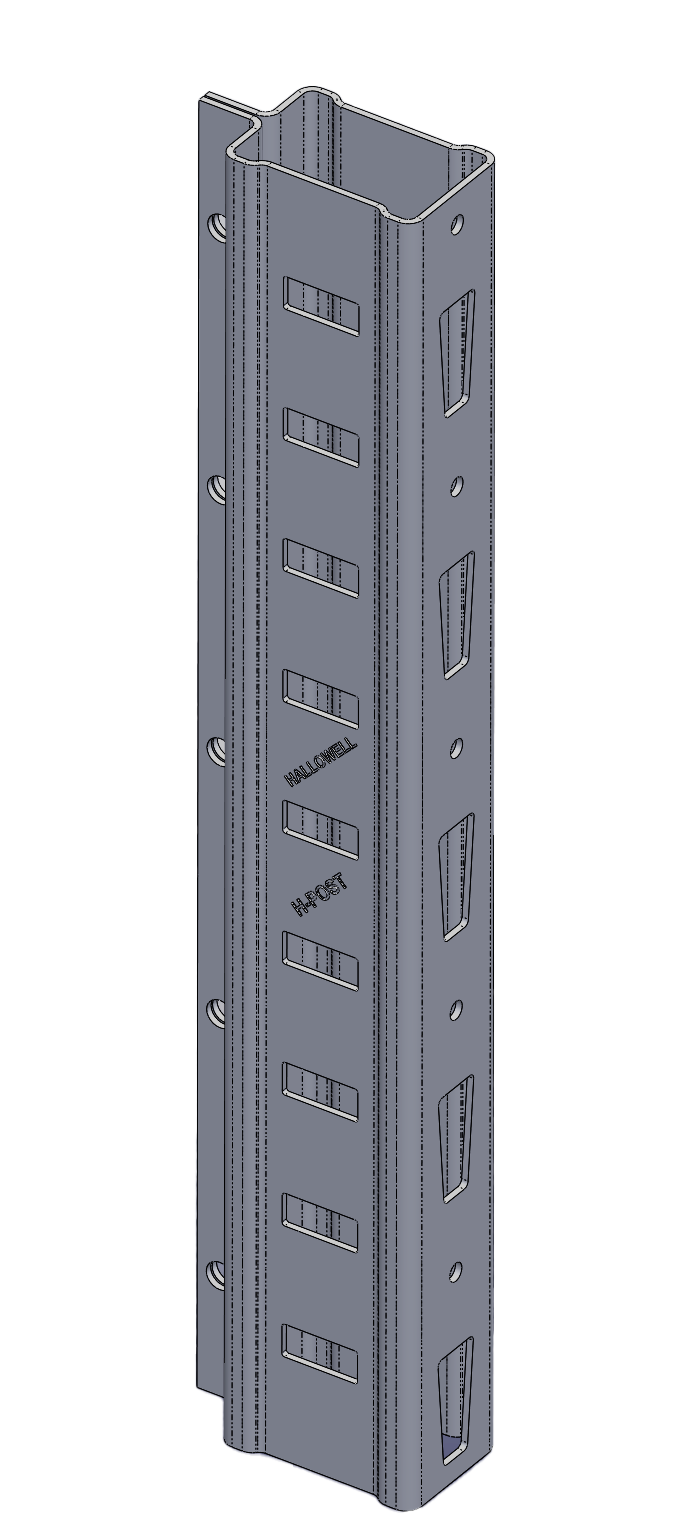

H-Posts

H-Posts
5003

Used for high-density shelving requirements. Used with standard Hi-Tech shelving components side sway braces (5341). Order H-Posts front and back

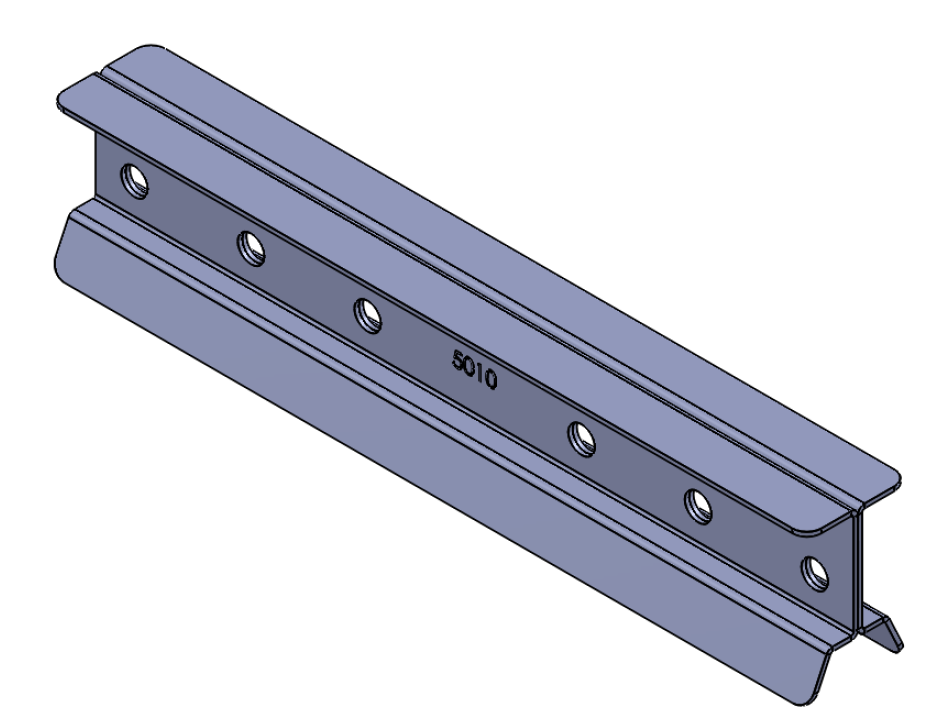

H-Post Splice

H-Post Splice
5010

Used to splice H-posts for added height requirements

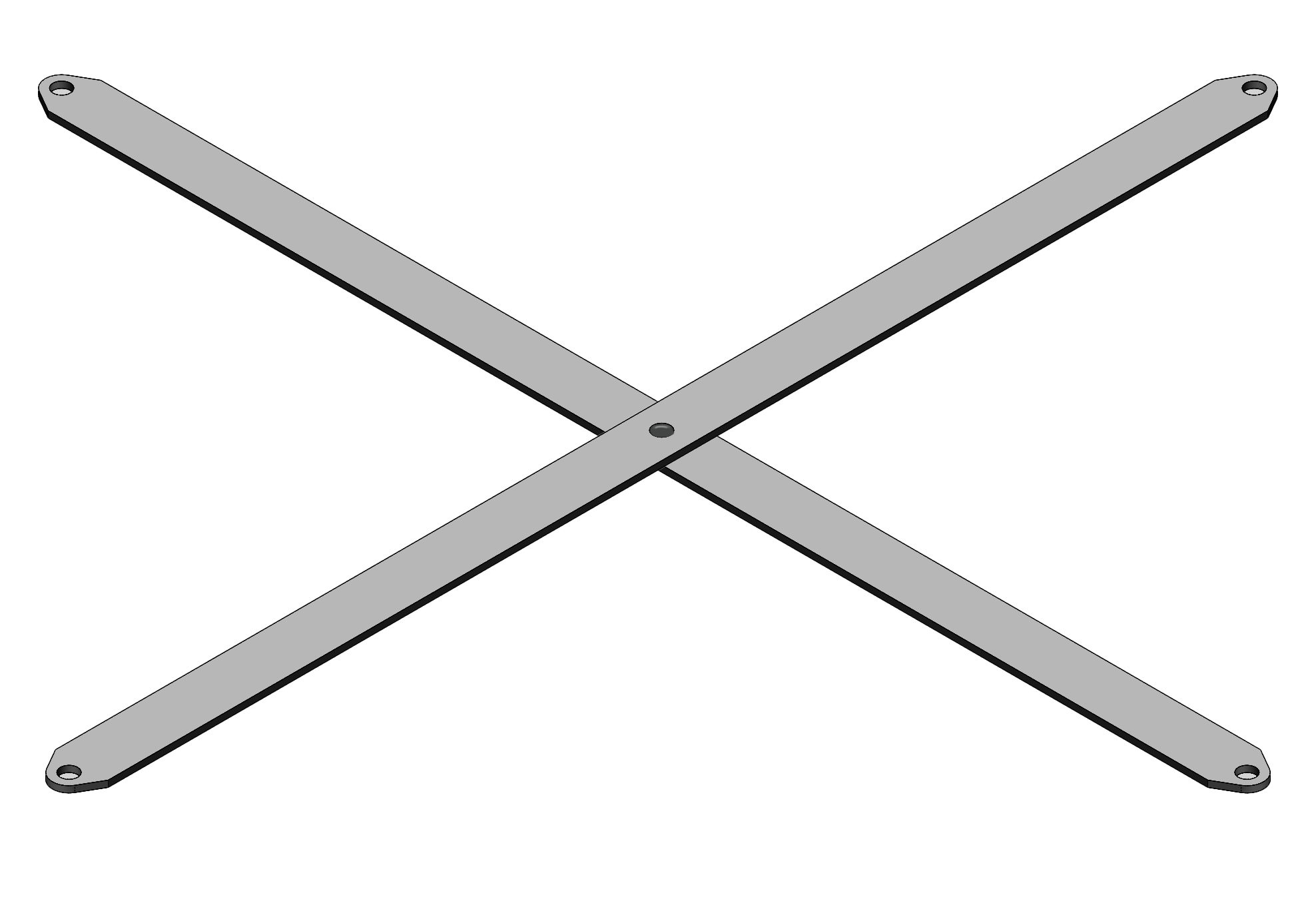

Side Sway Braces

Side Sway Braces
5341

For H-post only

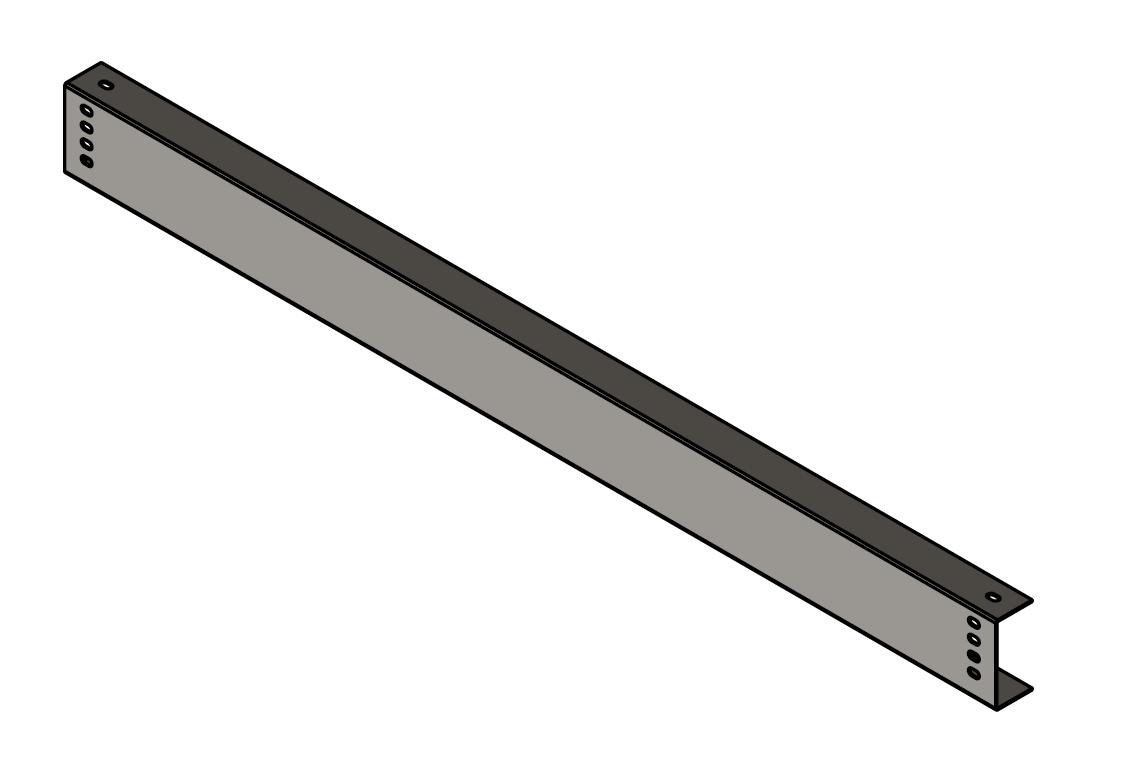

Cross Aisle Supports

Cross Aisle Supports
5910

For H-posts.

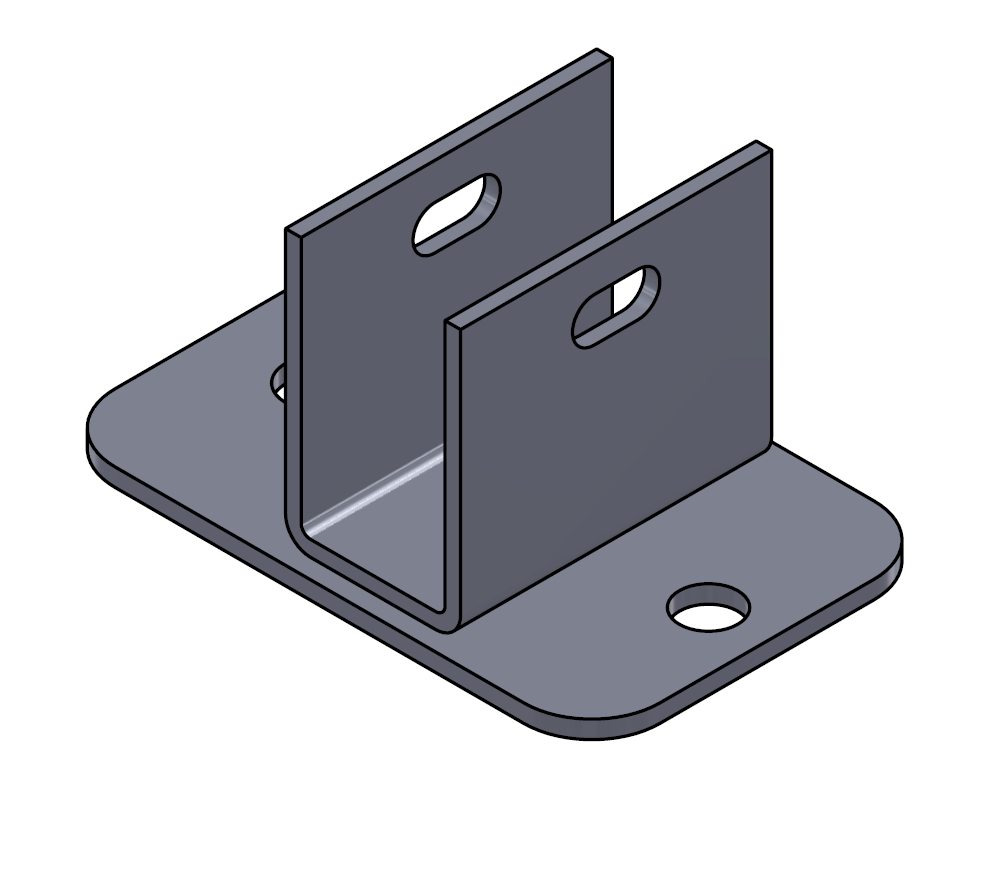

Foot Plates

Foot Plates
5025

For H-post medium/light-duty

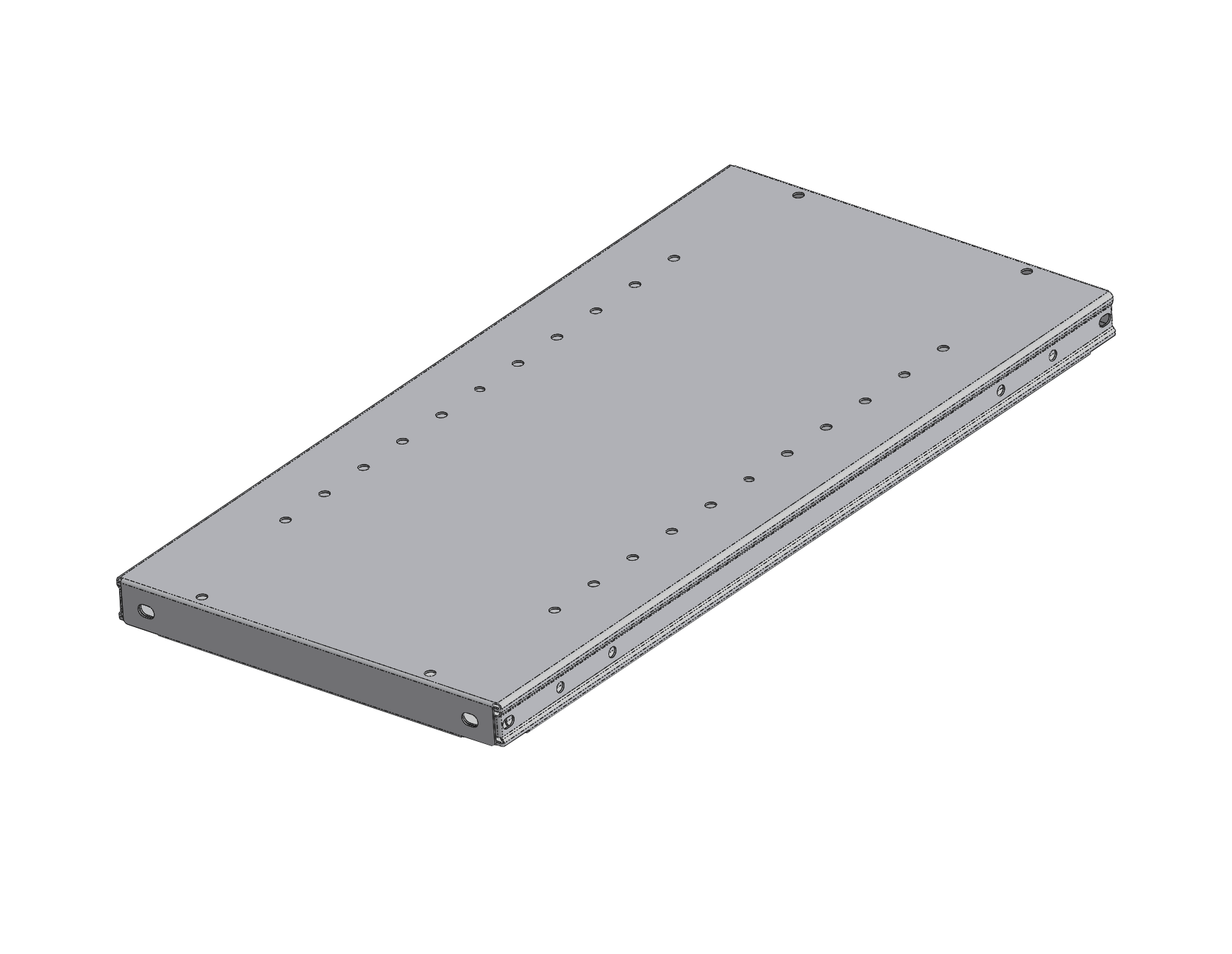

Box Beam Shelves

Box Beam Shelves
5135 & 5138 & 5139

Medium-Duty, Heavy-Duty, or Extra-Heavy-Duty Roll-formed & triple-flanged. Top pierced to accept dividers.

Heavy-Duty Foot Plate for H-Post

Heavy-Duty Foot Plate
5015

Heavy-Duty Foot Plate for H-Posts

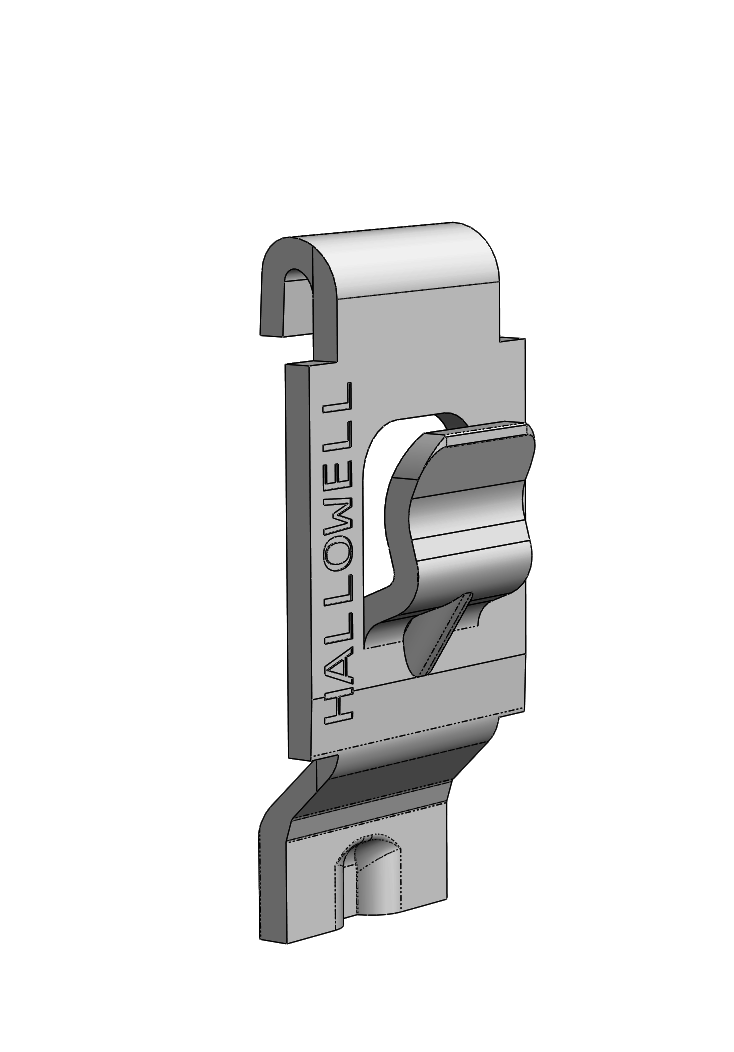

Shelf Clip

Shelf Clip
5133

One-piece zinc plated compression clip fits snugly against side of posts to hold shelves in place. Four required per shelf.

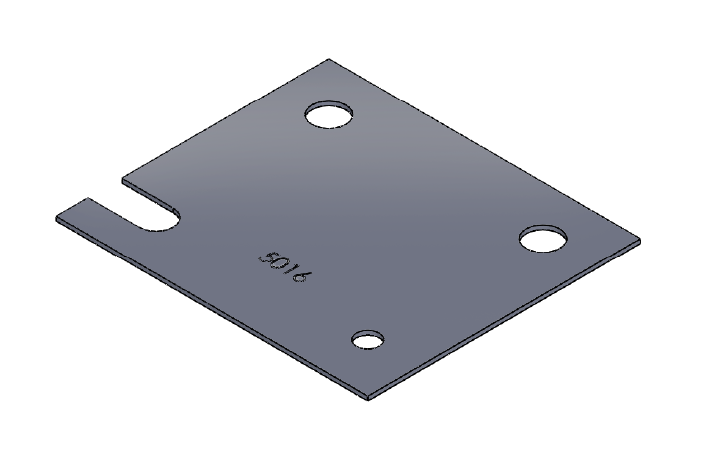

Shim Plates

Shim Plates
5016

Fits under heavy-duty foot plate for leveling.

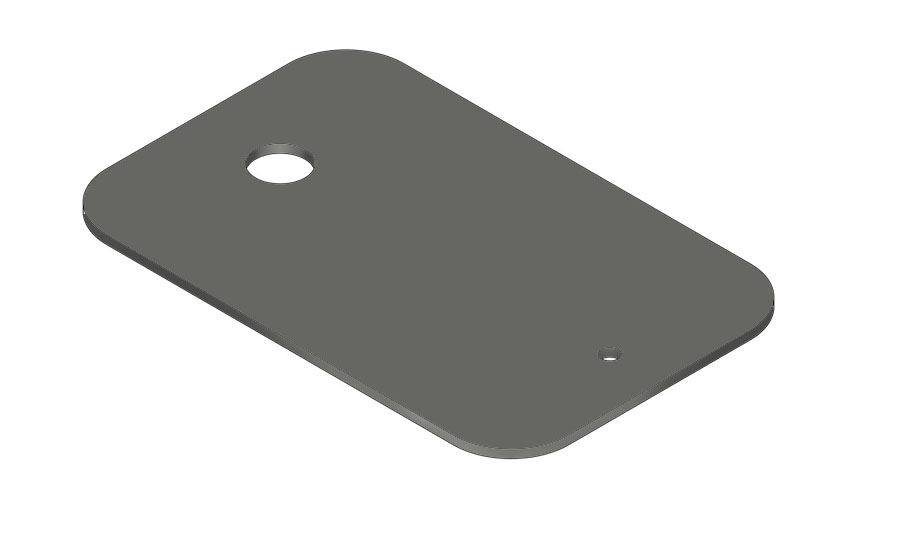

Shim Plates
5026

For H-post medium/light-duty footplate leveling.

Colors

Marine Blue Posts with Platinum Shelves

Color Selection:

#3d7da0
707 Marine Blue (MB)
#d4d4d4
711 Light Gray (PL)
Documents
Simple Specification:
PDF icon H-Post Open Shelving Specification - PDF
Microsoft Office document icon H-Post Open Shelving Specification - DOC
Assembly Instructions:
PDF icon H-Post Assembly Instructions

Shelving

Bin Shelving Bin Shelving
Hi-Tech Shelving System Hi-Tech Shelving System

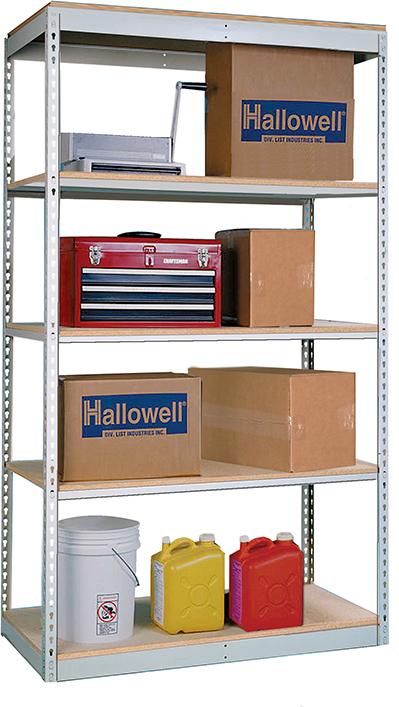

Rivetwell Boltless Shelving Rivetwell Boltless Shelving
H-post High Capacity Shelving
Duratech Pass-Thru Shelving Duratech 360 Access Shelving

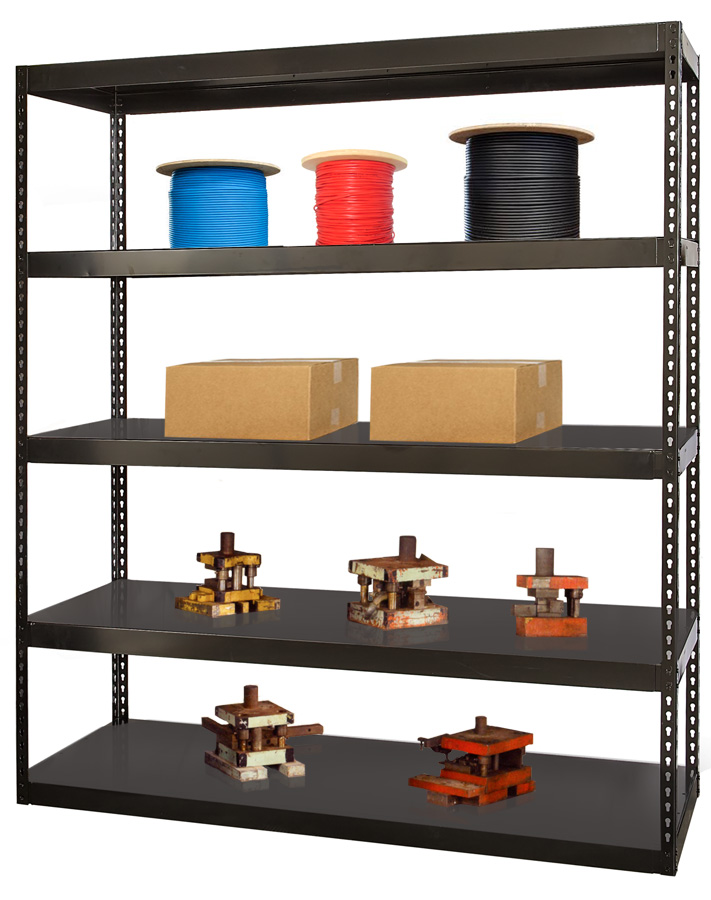

High Capacity Die Shelving High Capacity Die Shelving
