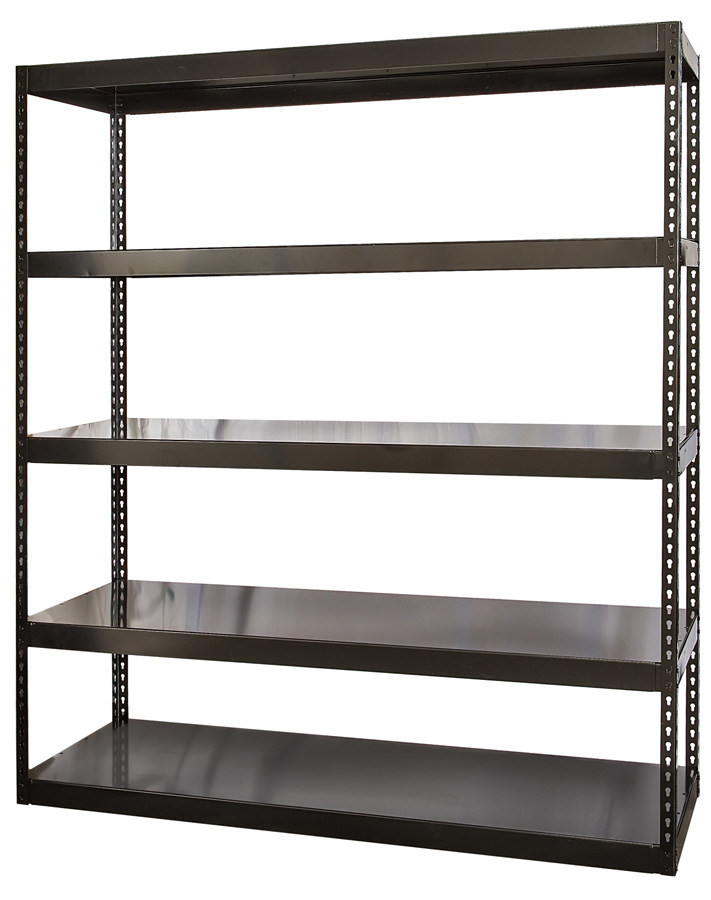

High Capacity Steel shelves are 14 gauge cold rolled sheet steel with flange formed at front and back designed to overhang left to right beams at front and back.

Features:

• Shelves adjust in 1-1/2” increments
• 5 shelf levels
• Easy assembly
• Holds up to 2,300 lb. per shelf (Based on evenly distributed loads)
• Black powder coat finish
• Levels are center supported for increased capacity

2 sizes from stock - 84" high and 96" high

Angle Post: 1-1/2” x 1-1/2” x 14 gauge cold rolled steel corner post uprights.
Double Rivet Angle Beam up to 36” in length are 2-3/4” x 1” x 16 gauge cold rolled steel.
Double Rivet Angle Beam 48” long and greater are 2-3/4” x 1” x 14 gauge cold rolled steel.
Center Support  2-3/4” x 1” x 1” x 16 gauge cold rolled steel, provide additional shelf support front-to-back.
