Reel Rack | Hallowell

Reel Storage Rack provides strength and adjustability.

Reel Storage Rack easily stores and dispenses a wide variety of cable, rope, wire, or any other coiled material.

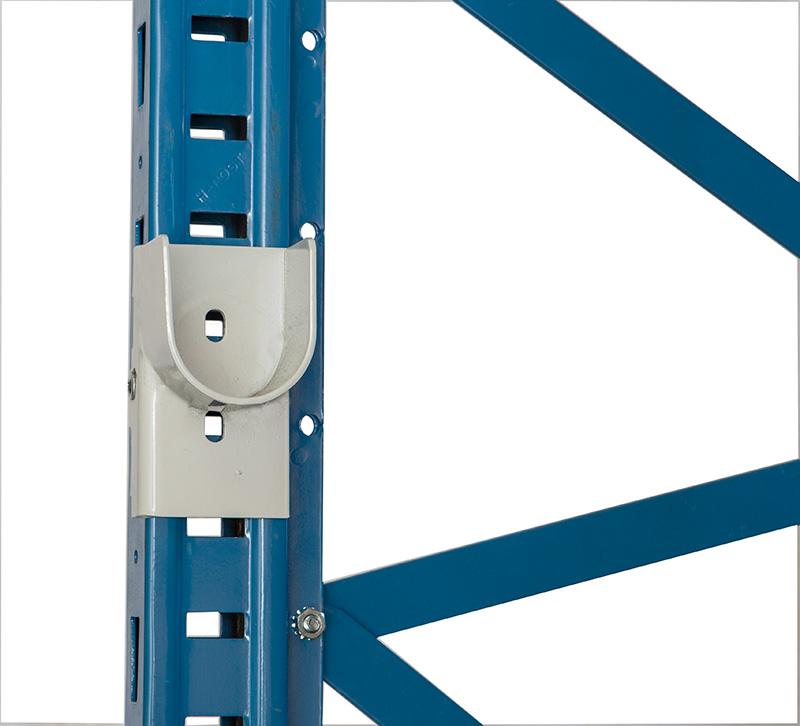

Steel Brackets

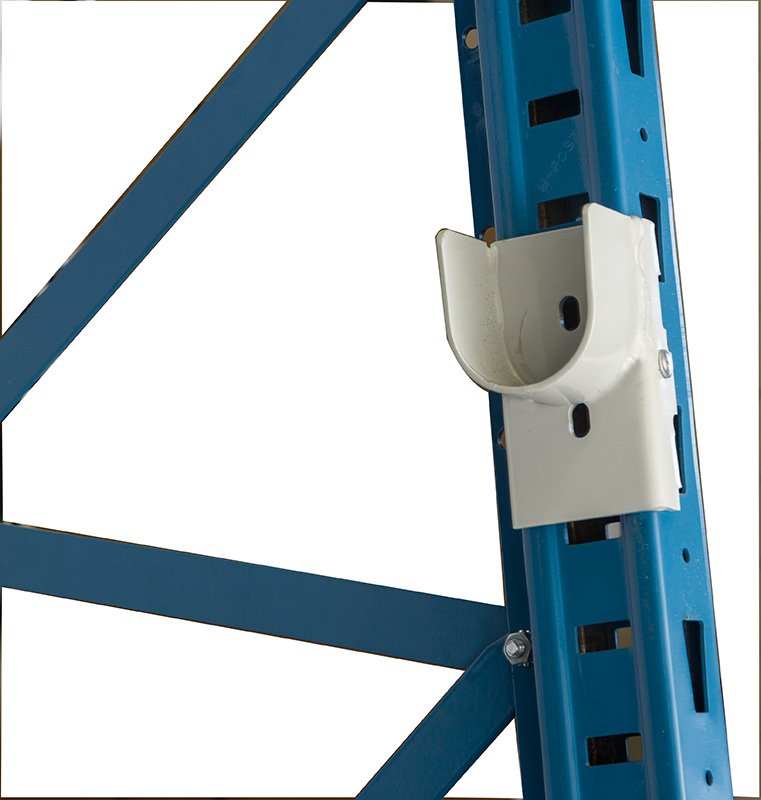

Reel Rack steel adjustable axle bracket

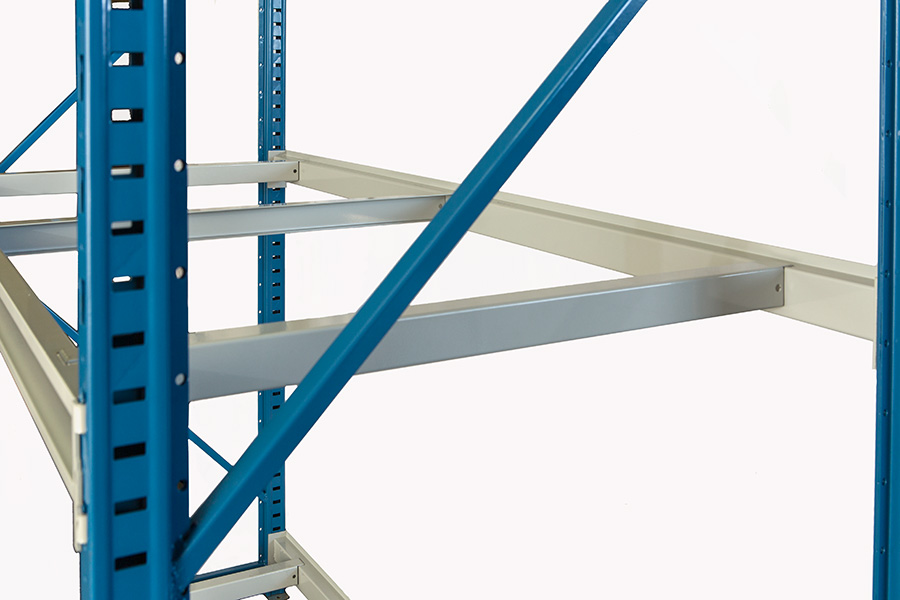

Base

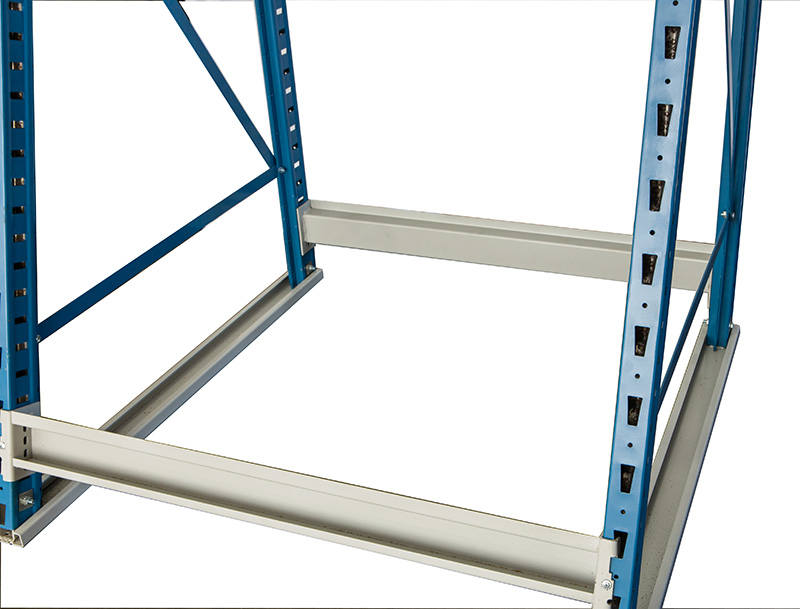

Reel Rack base is engineered from steel support beams to maintain a rigid structure

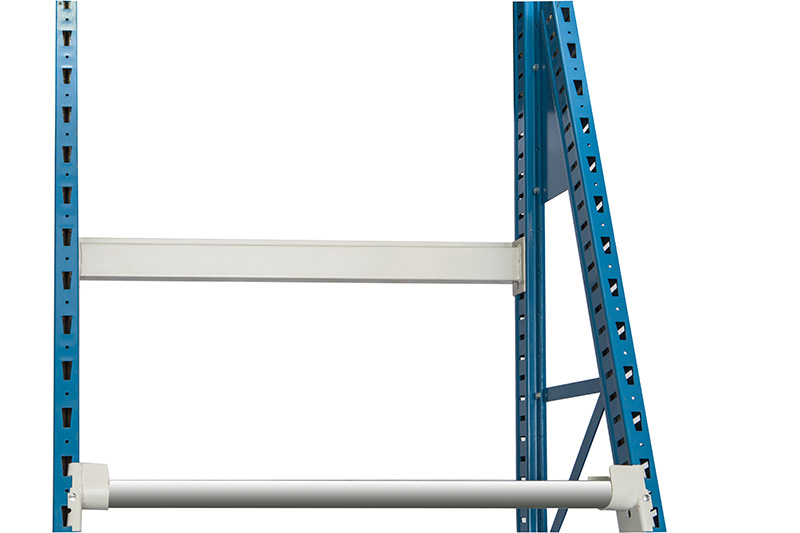

Beams

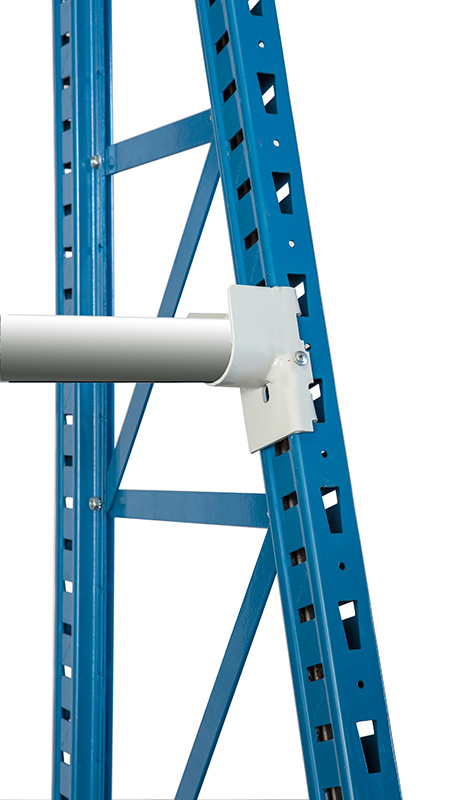

Reel Rack support beams and adjustable axle

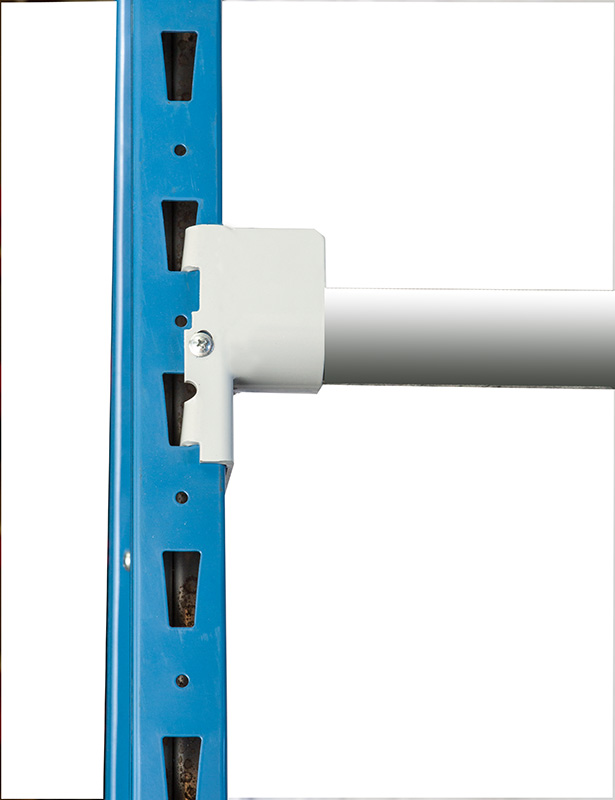

Easy Adjustments

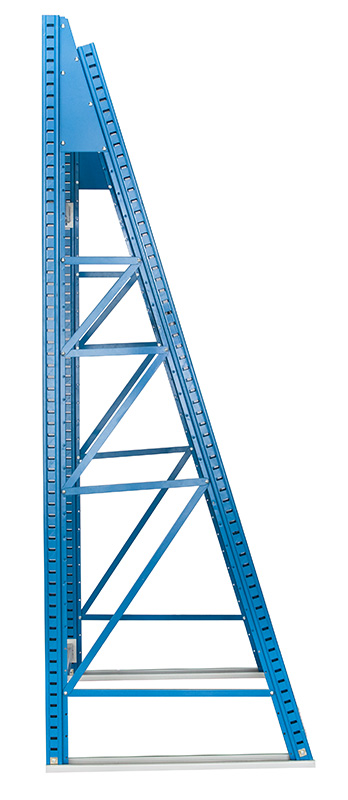

Reel Rack easily adjusts on 3 inch increments to accommodate various sized spools of rope, chain, cable or other material

Overview
Catalog
Components
Color
Documents

Back to top

Product Overview

Starter

Adder

Starter

Adder

Adjustable Reel Storage Racks

With Hallowell's H-Post as the vertical members of this unique storage rack, our Reel Storage Rack provides the strength and adjustability to store and dispense a wide variety of cable, rope, wire, or any other coiled material.

Reel Storage Rack

Steel frame construction is designed to support 2,000 lbs. per axle (UDL)
Total unit capacity is 6,000 lbs.
Axle support brackets adjust in 3" increments to accommodate a variety of spool diameters on the same rack.

Catalog

Reel Rack

Specs
SKU	Shelving Type	Width	Depth	Frame Height	Description	Assembled

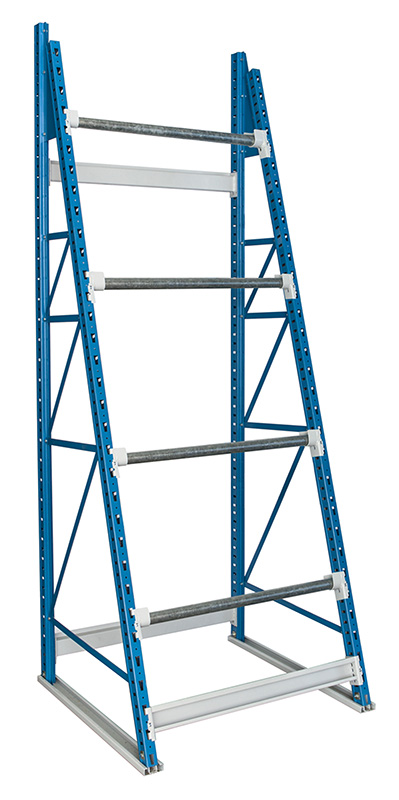

HRR3636123-4S-PB	Starter	36	36	123	(4) 2-3/8" O.D. Axles, 4 Pairs Axle Bracket	KD

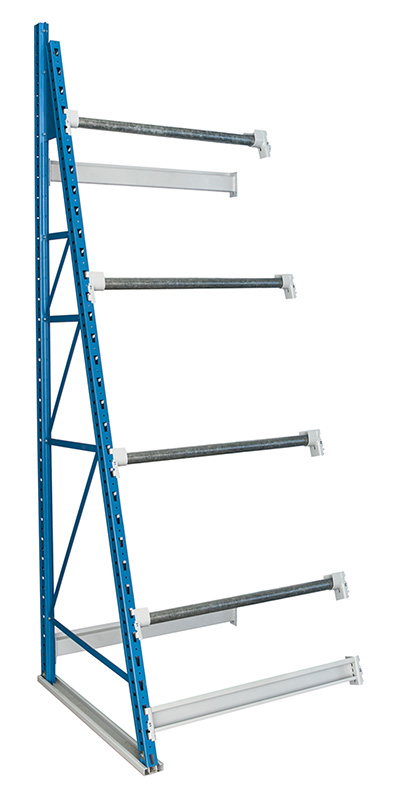

HRR3636123-4A-PB	Adder	36	36	123	(4) 2-3/8" O.D. Axles, 4 Pairs Axle Bracket	KD

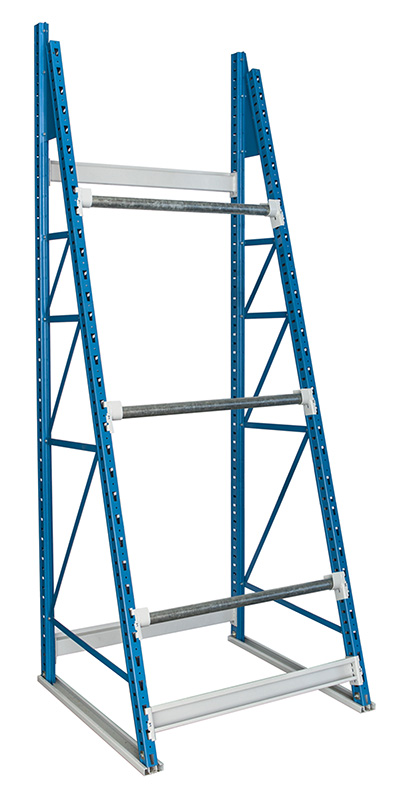

HRR363699-3S-PB	Starter	36	36	99	(3) 2-3/8" O.D. Axles, 3 Pairs Axle Bracket	KD

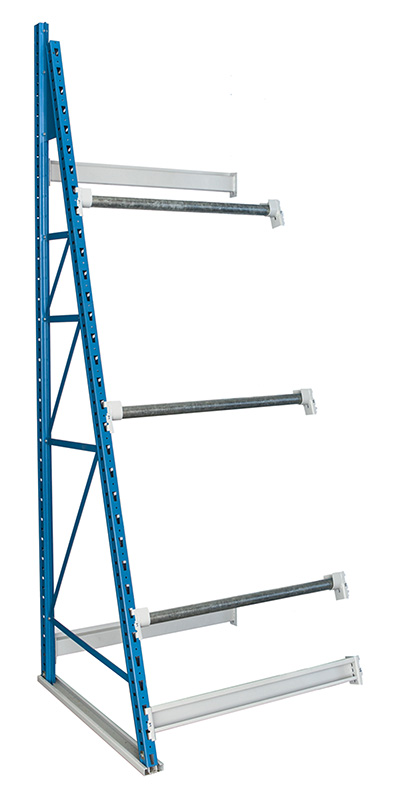

HRR363699-3A-PB	Adder	36	36	99	(3) 2-3/8" O.D. Axles, 3 Pairs Axle Bracket	KD
HRR4836123-4S-PB	Starter	48	36	123	(4) 2-3/8" O.D. Axles, 4 Pairs Axle Bracket	KD
HRR4836123-4A-PB	Adder	48	36	123	(4) 2-3/8" O.D. Axles, 4 Pairs Axle Bracket	KD
HRR483699-3S-PB	Starter	48	36	99	(3) 2-3/8" O.D. Axles, 3 Pairs Axle Bracket	KD
HRR483699-3A-PB	Adder	48	36	99	(3) 2-3/8" O.D. Axles, 3 Pairs Axle Bracket	KD
