Heavy Duty Deep Bin Shelving

Product Overview

18 Bin Unit

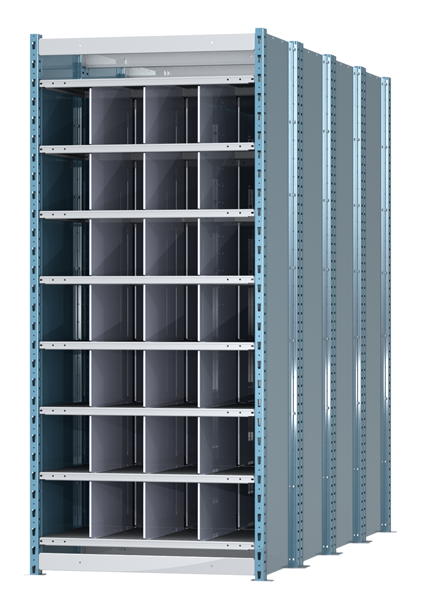

28 Bin Unit

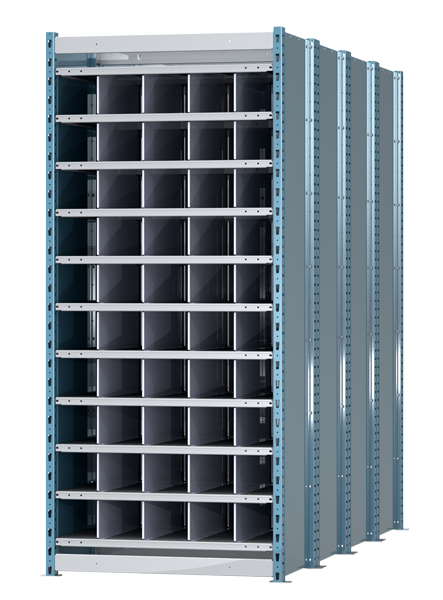

50 Bin Unit

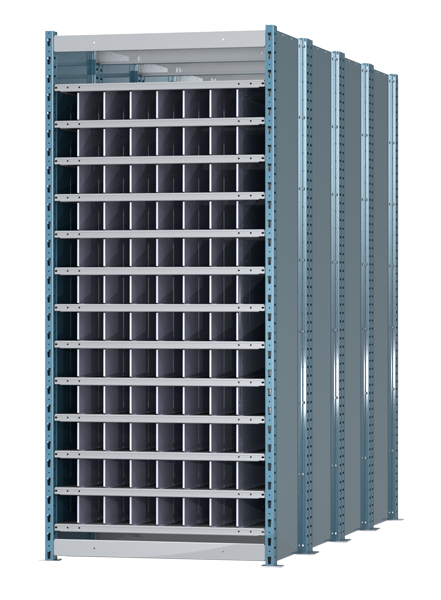

96 Bin Unit

Industrial Grade Heavy-Duty Deep Bin Shelving Starter Units

H-Post Deep Bin Units

For storage of long materials, see various sizes and configurations to find the perfect unit for your needs.
Marine Blue Plywood backing creates a sturdy 'stop' for your materials and absorbs contact.
Starter and Adder units are made up of the same components as shown in the Hi-Tech H-Post section.

H-Post
Heavy-duty Hi-Tech box formed shelves
Vertical dividers bolt in for added strength & durability
3/4” Plywood back painted Marine Blue [MB] to absorb impact
Horizontal stabilization beams eliminate sway
18 gauge side panels
All Units 36" wide by 87" high

Unit Load Capacity Information - HERE

Catalog

Heavy Duty Deep Bin Shelving

Specs
SKU	Shelving Type	Width	Depth	Frame Height	# bins high	# bins wide	Total # of bins	Assembled
HDB18-48	Starter	12	48	10.5	3	6	18	KD
AHDB18-48	Adder	12	48	10.75	3	6	18	KD
HDB18-72	Starter	12	72	10.5	3	6	18	KD
AHDB18-72	Adder	12	72	10.75	3	6	18	KD
HDB18-96	Starter	12	96	10.5	3	6	18	KD
AHDB18-96	Adder	12	96	10.75	3	6	18	KD
HDB96-48	Starter	4	48	4.5	8	12	96	KD
AHDB96-48	Adder	4	48	4.5	8	12	96	KD
HDB96-72	Starter	4	72	4.5	8	12	96	KD
AHDB96-72	Adder	4	72	4.5	8	12	96	KD
HDB96-96	Starter	4	96	4.5	8	12	96	KD
AHDB96-96	Adder	4	96	4.5	8	12	96	KD
HDB50-48	Starter	6	48	6	5	10	50	KD
AHDB50-48	Adder	6	48	6	5	10	50	KD
HDB50-72	Starter	6	72	6	5	10	50	KD
AHDB50-72	Adder	6	72	6	5	10	50	KD
HDB50-96	Starter	6	96	6	5	10	50	KD
AHDB50-96	Adder	6	96	6	5	10	50	KD
HDB28-48	Starter	9	48	9	4	7	28	KD
AHDB28-48	Adder	9	48	9	4	7	28	KD
HDB28-72	Starter	9	72	9	4	7	28	KD
AHDB28-72	Adder	9	72	9	4	7	28	KD
HDB28-96	Starter	9	96	9	4	7	28	KD
AHDB28-96	Adder	9	96	9	4	7	28	KD

Components

Closed Shelving Components

Angle Back Posts

5004

Angles for single or end units. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

Beaded Front Posts

5002

True flush construction. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

T-Posts

5006

Two back Posts welded together. For use when adjoining models are added to form a continuous row.

Post Slice Channels

5009

A channel formed an internal splice. Used to splice beaded front posts, back posts, and T-posts for added height.

Side Panels

5091

Fabricated from 24 or 18 gauge cold rolled sheet steel, field bolted to front and back posts. Provide at all side locations for closed shelving sections.

Box Beam Shelves

5135 & 5138 & 5139

Medium-Duty, Heavy-Duty, or Extra-Heavy-Duty Roll-formed & triple-flanged. Top pierced to accept dividers.

Shelf Clip

5133

One-piece zinc plated compression clip fits snugly against side of posts to hold shelves in place. Four required per shelf.

Back Panels, 24 & 18 Gauge

5110

Two piece sections punched on 1" centers at vertical edges and center for mounting on back of posts and shelves.

Back Panel Clips

5120

Formed to fit bottom flange of standard shelf and tabbed to pick up holes in center of back panel. Holds back panel to shelf and prevents panel bowing.

Base Strips

5233

Shaped to fit directly between bottom shelf and floor. 2-15/16" high giving an overall base height of 3" including bottom of shelf.

Swinging Doors (With Locks)

5300

Reinforced door / frame attaches to beaded front posts and opens quietly to a full 150°. Chrome finished handle with built-in grooved key cylinder lock. Positive 3-point locking. Universal clips (Part No. 5315) are required to mount doors on beaded front posts.
