Hi-Tech™ MedSafe Antimicrobial Shelving - Closed

Product Overview

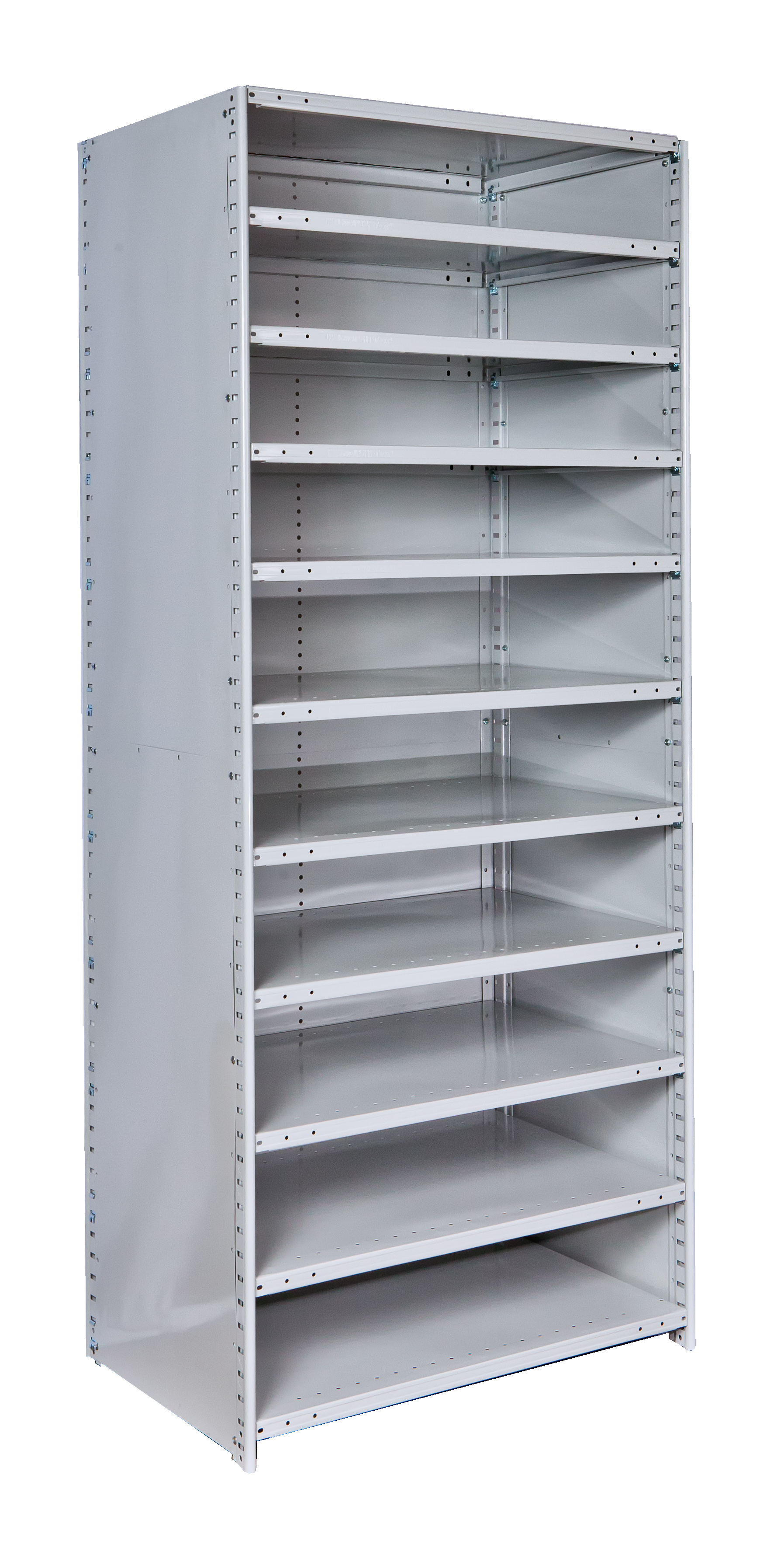

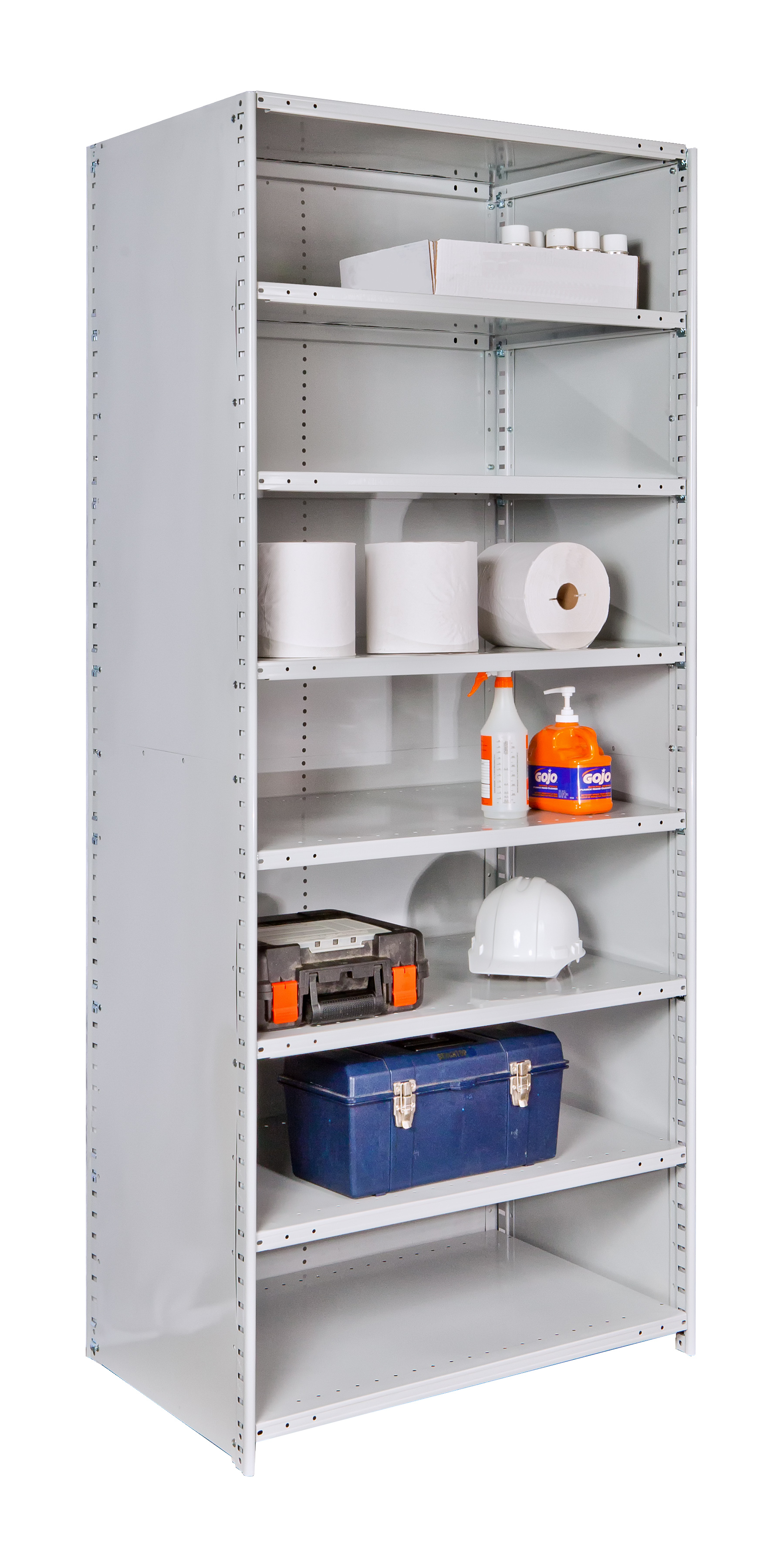

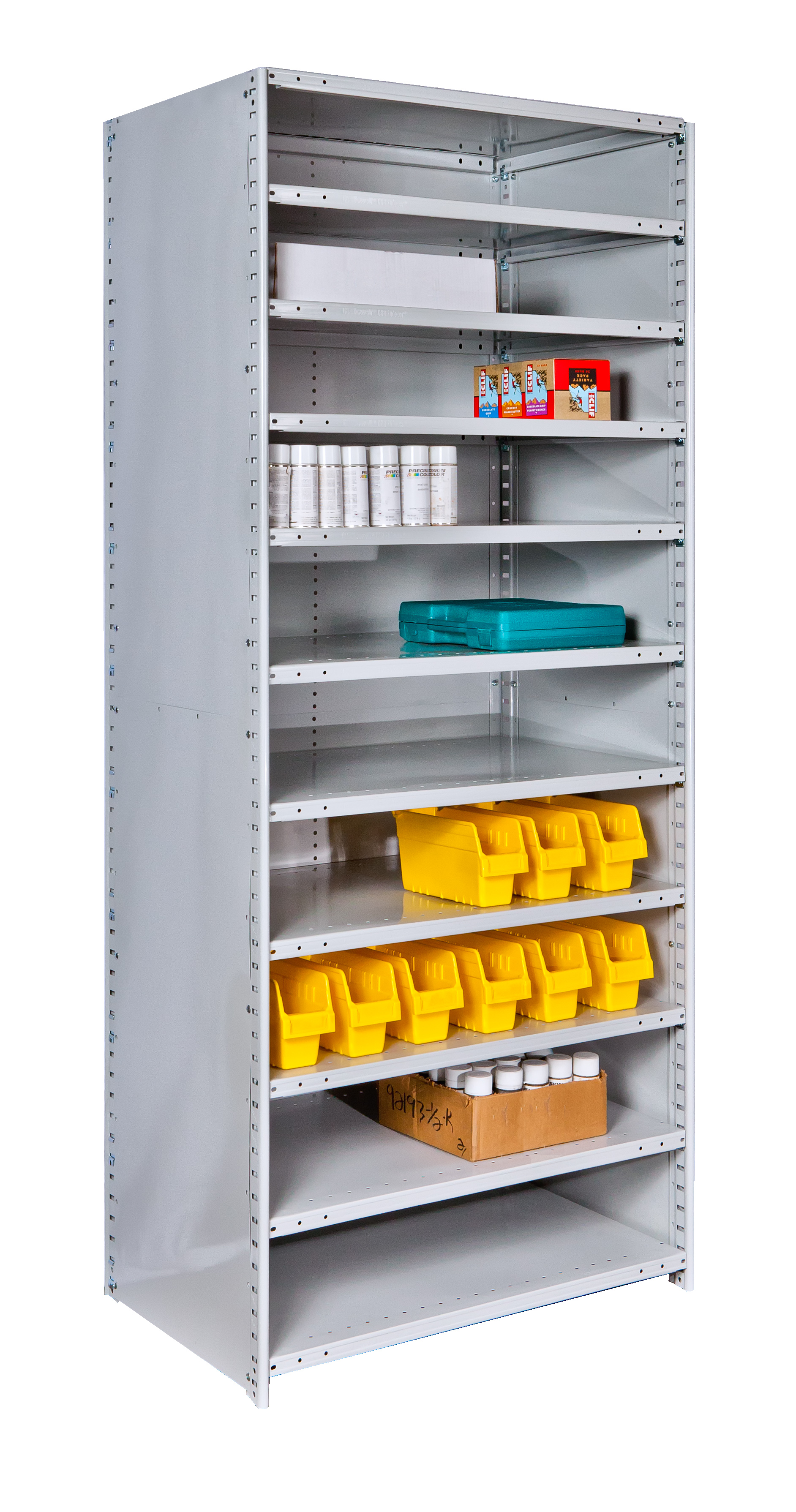

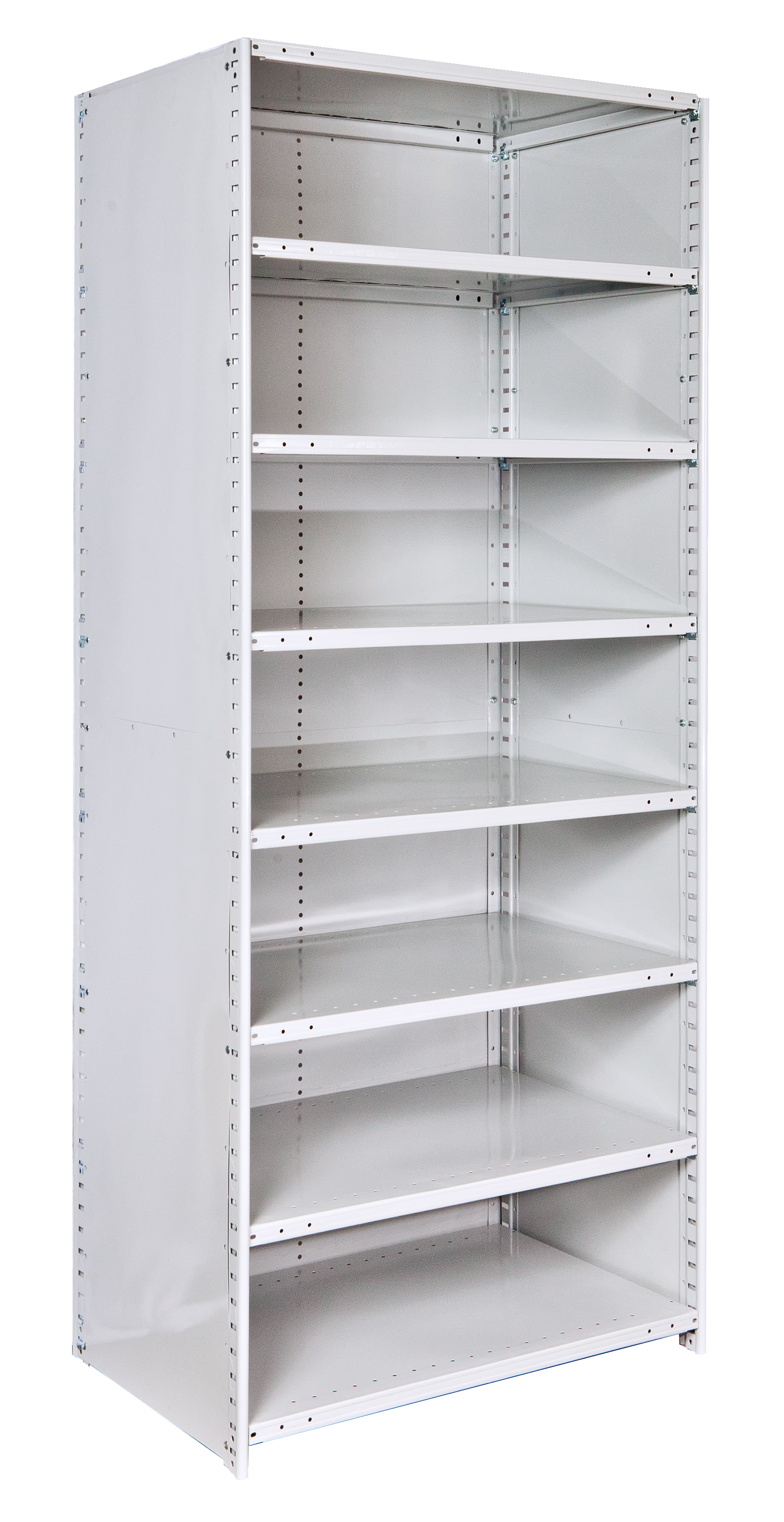

Closed Starter Unit

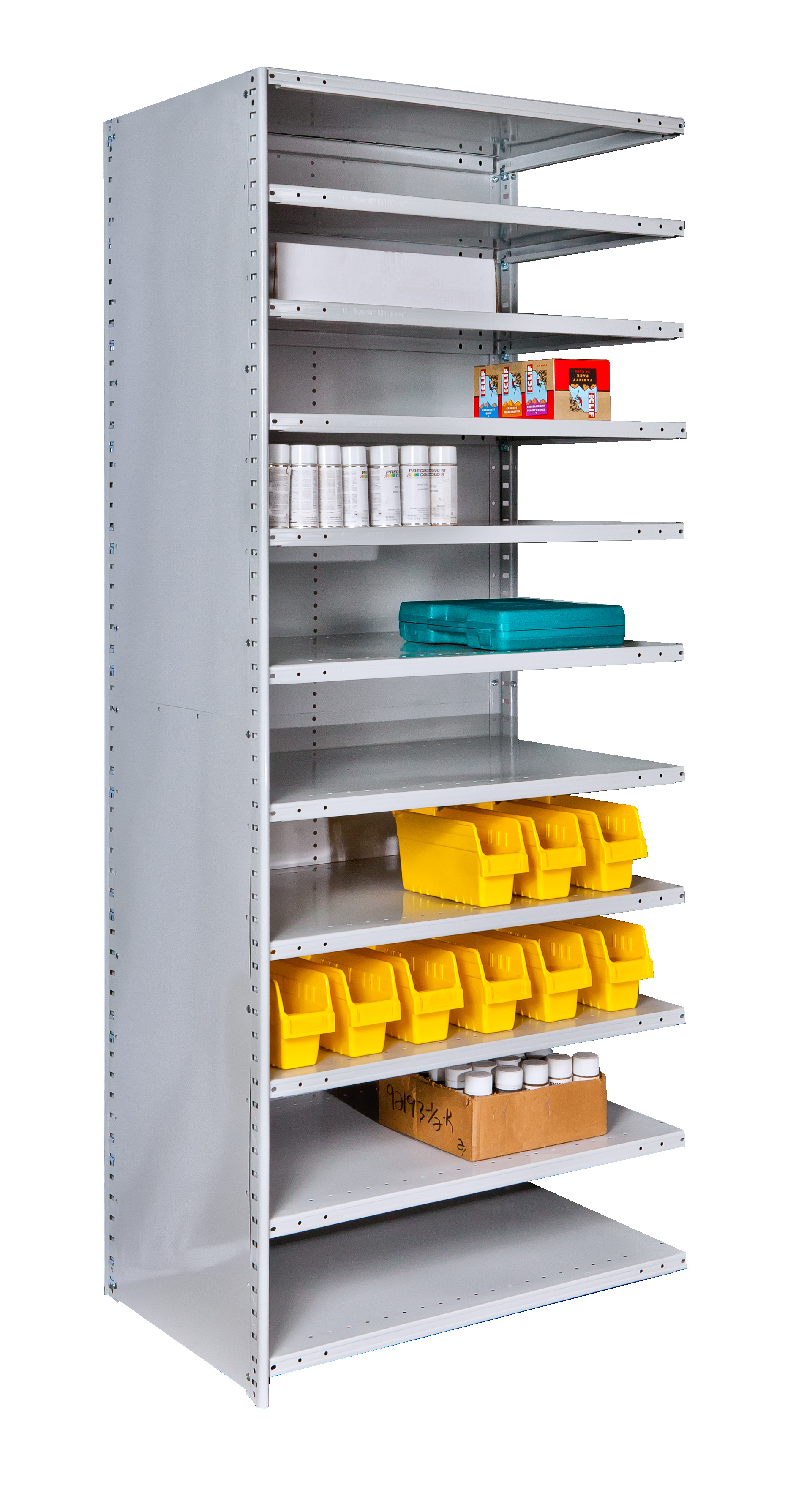

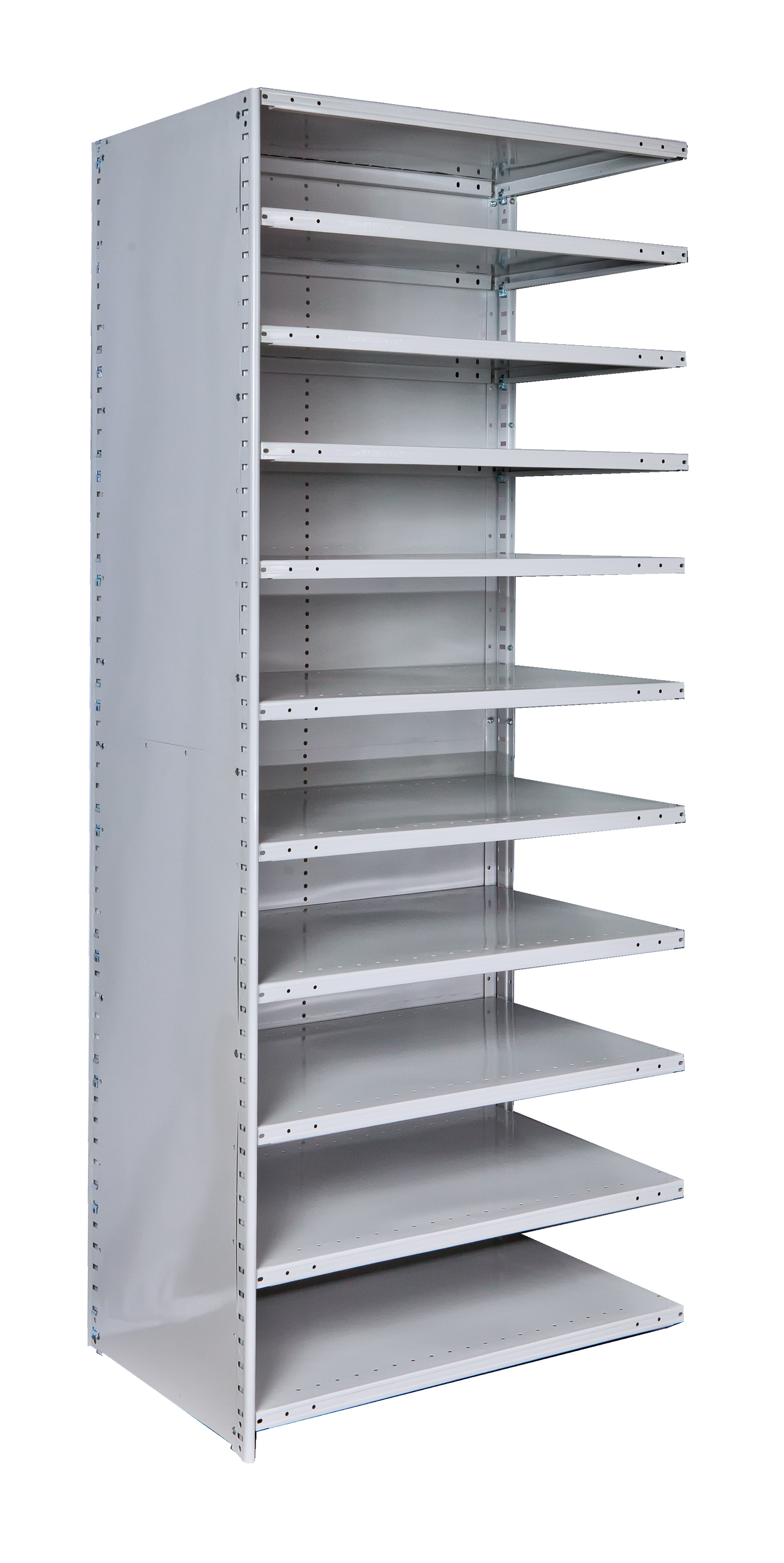

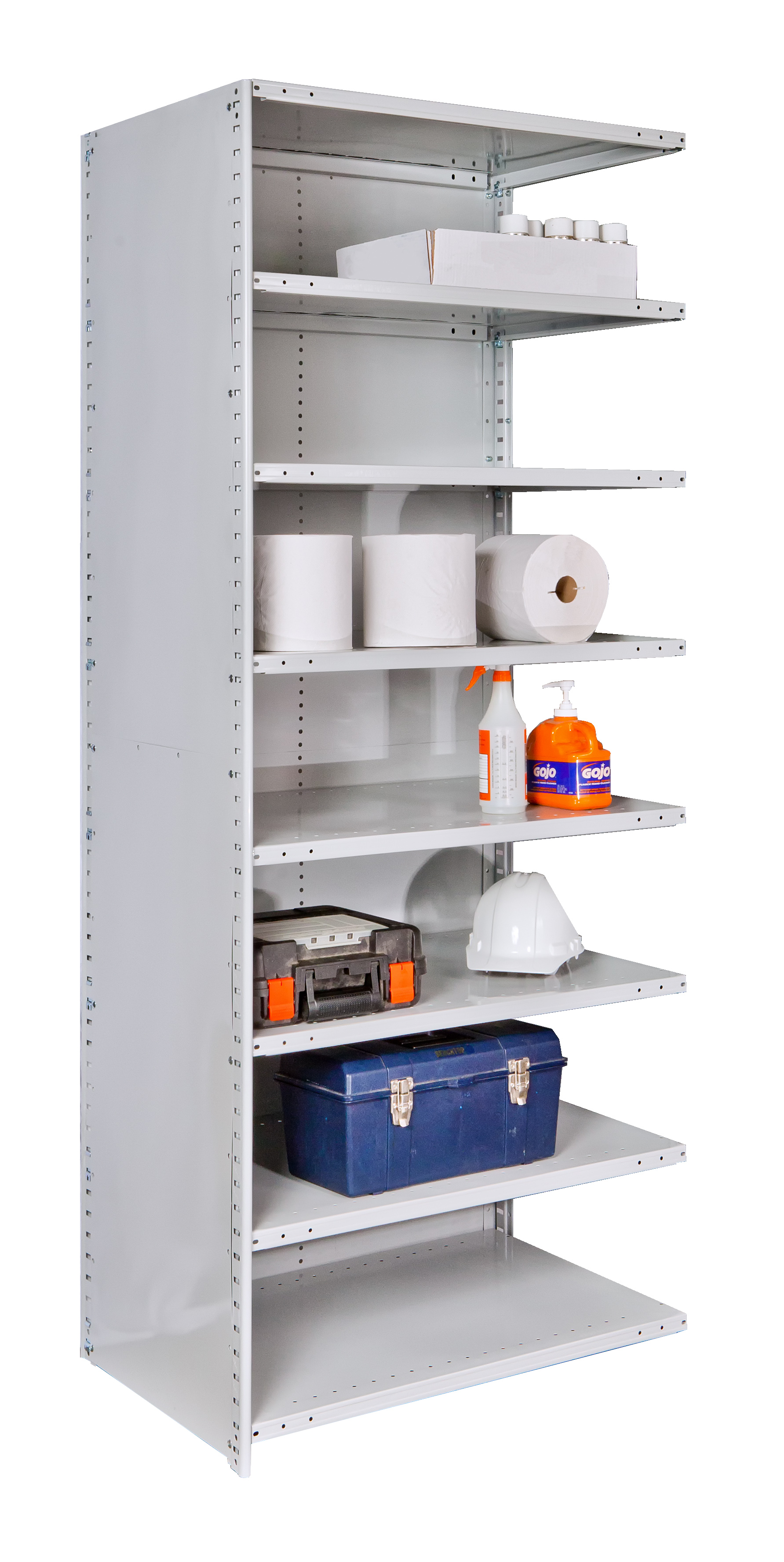

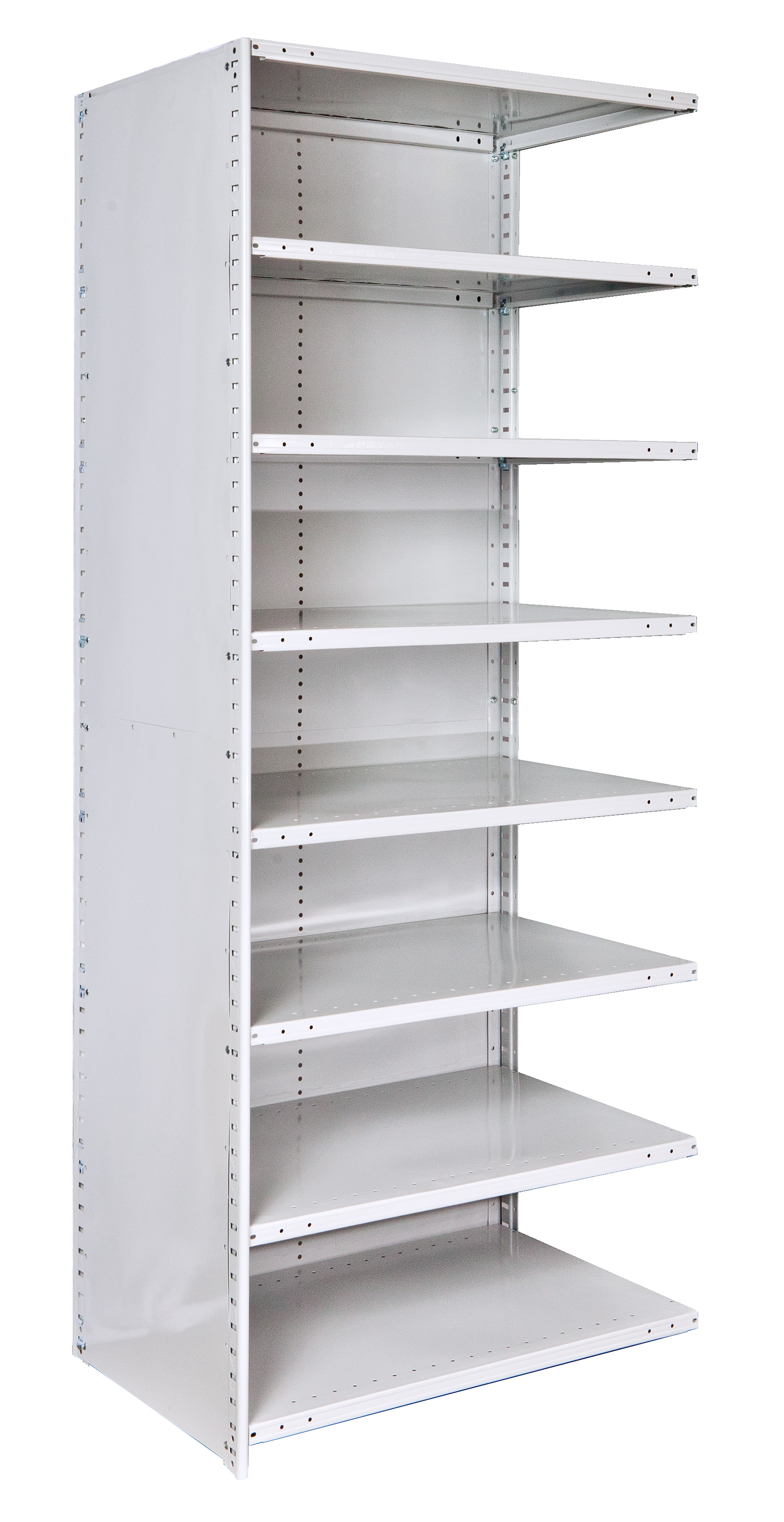

Closed Adder Unit

With Antimicrobial Protective Coating

If you are looking for a versatile and antimicrobial shelving solution, the Medsafe shelving unit is a great option. It is a durable and long-lasting solution that can help to keep areas clean and safe.

Here are some additional details about the Medsafe shelving unit:

The Medsafe shelving unit is made of high-quality steel that is powder-coated with an antimicrobial finish. This finish helps to prevent the growth of bacteria, mold, and mildew.
Available in a variety of sizes and configurations to meet the specific needs of each facility.
Easy to assemble and disassemble. This makes it a flexible and adaptable solution that can be easily moved as needed.
The Medsafe shelving unit is backed by a one-year warranty. This warranty ensures that you are protected against defects in materials and workmanship.

Closed Starter units include: Two beaded front posts, two angle back posts, one set of back panels, two sets of side panels and shelves with shelf clips applicable to unit ordered.

Closed Adder units include: One beaded front post, two angle back posts, one set of back panels, one set of side panels and shelves with shelf clips applicable to unit ordered.

Unit Load Capacity Information - HERE

Catalog

Hi-Tech™ MedSafe Closed Shelving

Antimicrobial Steel Shelving
SKU	Shelving Type	Width	Depth	Frame Height	Number of Shelves	colors	Shelf Capacity	Assembled
452C-12PL-AM	Starter	36	12	87	11	Antimicrobial-Platinum	500	KD
A452C-12PL-AM	Adder	36	12	87	11	Antimicrobial-Platinum	500	KD
4523-12PL-AM	Starter	36	12	87	8	Antimicrobial-Platinum	500	KD
A4523-12PL-AM	Adder	36	12	87	8	Antimicrobial-Platinum	500	KD
452C-18PL-AM	Starter	36	18	87	11	Antimicrobial-Platinum	500	KD
A452C-18PL-AM	Adder	36	18	87	11	Antimicrobial-Platinum	500	KD
4523-18PL-AM	Starter	36	18	87	8	Antimicrobial-Platinum	500	KD
A4523-18PL-AM	Adder	36	18	87	8	Antimicrobial-Platinum	500	KD
452C-24PL-AM	Starter	36	24	87	11	Antimicrobial-Platinum	500	KD
A452C-24PL-AM	Adder	36	24	87	11	Antimicrobial-Platinum	500	KD
4523-24PL-AM	Starter	36	24	87	8	Antimicrobial-Platinum	500	KD
A4523-24PL-AM	Adder	36	24	87	8	Antimicrobial-Platinum	500	KD
472C-12PL-AM	Starter	48	12	87	11	Antimicrobial-Platinum	375	KD
A472C-12PL-AM	Adder	48	12	87	11	Antimicrobial-Platinum	375	KD
4723-12PL-AM	Starter	48	12	87	8	Antimicrobial-Platinum	375	KD
A4723-12PL-AM	Adder	48	12	87	8	Antimicrobial-Platinum	375	KD
472C-18PL-AM	Starter	48	18	87	11	Antimicrobial-Platinum	375	KD
A472C-18PL-AM	Adder	48	18	87	11	Antimicrobial-Platinum	375	KD
4723-18PL-AM	Starter	48	18	87	8	Antimicrobial-Platinum	375	KD
A4723-18PL-AM	Adder	48	18	87	8	Antimicrobial-Platinum	375	KD
472C-24PL-AM	Starter	48	24	87	11	Antimicrobial-Platinum	350	KD
A472C-24PL-AM	Adder	48	24	87	11	Antimicrobial-Platinum	350	KD
4723-24PL-AM	Starter	48	24	87	8	Antimicrobial-Platinum	350	KD
A4723-24PL-AM	Adder	48	24	87	8	Antimicrobial-Platinum	350	KD

Components

Closed Shelving Components

Angle Back Posts

5004

Angles for single or end units. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

Beaded Front Posts

5002

True flush construction. Slotted on 1-1/2" centers for easy shelf adjustment. Splice multiple posts for additional height.

T-Posts

5006

Two back Posts welded together. For use when adjoining models are added to form a continuous row.

Post Slice Channels

5009

A channel formed an internal splice. Used to splice beaded front posts, back posts, and T-posts for added height.

Side Panels

5091

Fabricated from 24 or 18 gauge cold rolled sheet steel, field bolted to front and back posts. Provide at all side locations for closed shelving sections.

Box Beam Shelves

5135 & 5138 & 5139

Medium-Duty, Heavy-Duty, or Extra-Heavy-Duty Roll-formed & triple-flanged. Top pierced to accept dividers.

Shelf Clip

5133

One-piece zinc plated compression clip fits snugly against side of posts to hold shelves in place. Four required per shelf.

Back Panels, 24 & 18 Gauge

5110

Two piece sections punched on 1" centers at vertical edges and center for mounting on back of posts and shelves.

Back Panel Clips

5120

Formed to fit bottom flange of standard shelf and tabbed to pick up holes in center of back panel. Holds back panel to shelf and prevents panel bowing.

Base Strips

5233

Shaped to fit directly between bottom shelf and floor. 2-15/16" high giving an overall base height of 3" including bottom of shelf.

Swinging Doors (With Locks)

5300

Reinforced door / frame attaches to beaded front posts and opens quietly to a full 150°. Chrome finished handle with built-in grooved key cylinder lock. Positive 3-point locking. Universal clips (Part No. 5315) are required to mount doors on beaded front posts.
