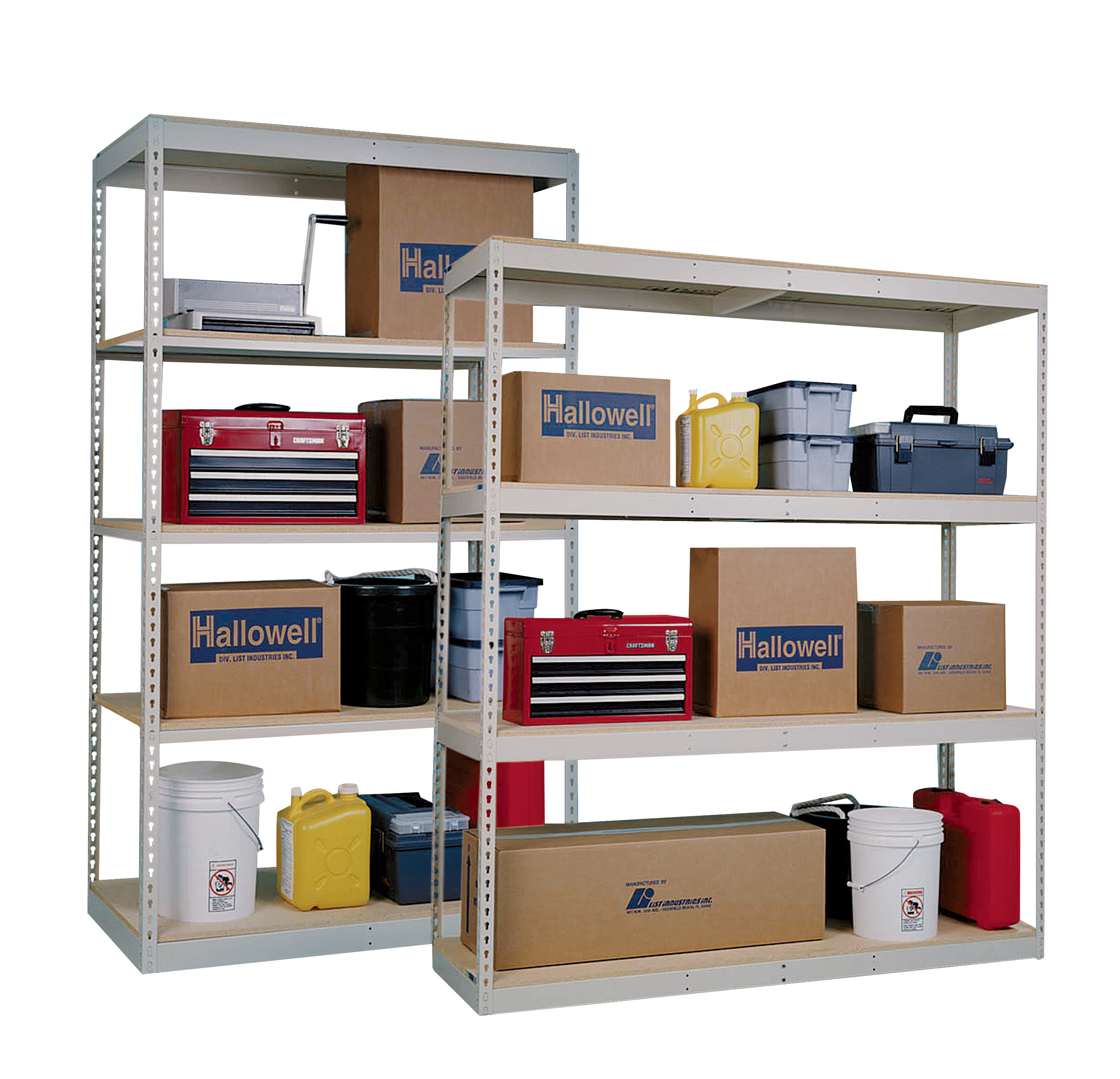

Boltless shelving is a type of shelving that is designed to be easy to assemble and disassemble. It is made up of a series of vertical posts and horizontal beams that are connected by rivets. The rivets align with keyhole slots in the vertical posts. Once tapped into place using a standard rubber mallet, the units are tightly assembled to provide maximum strength.

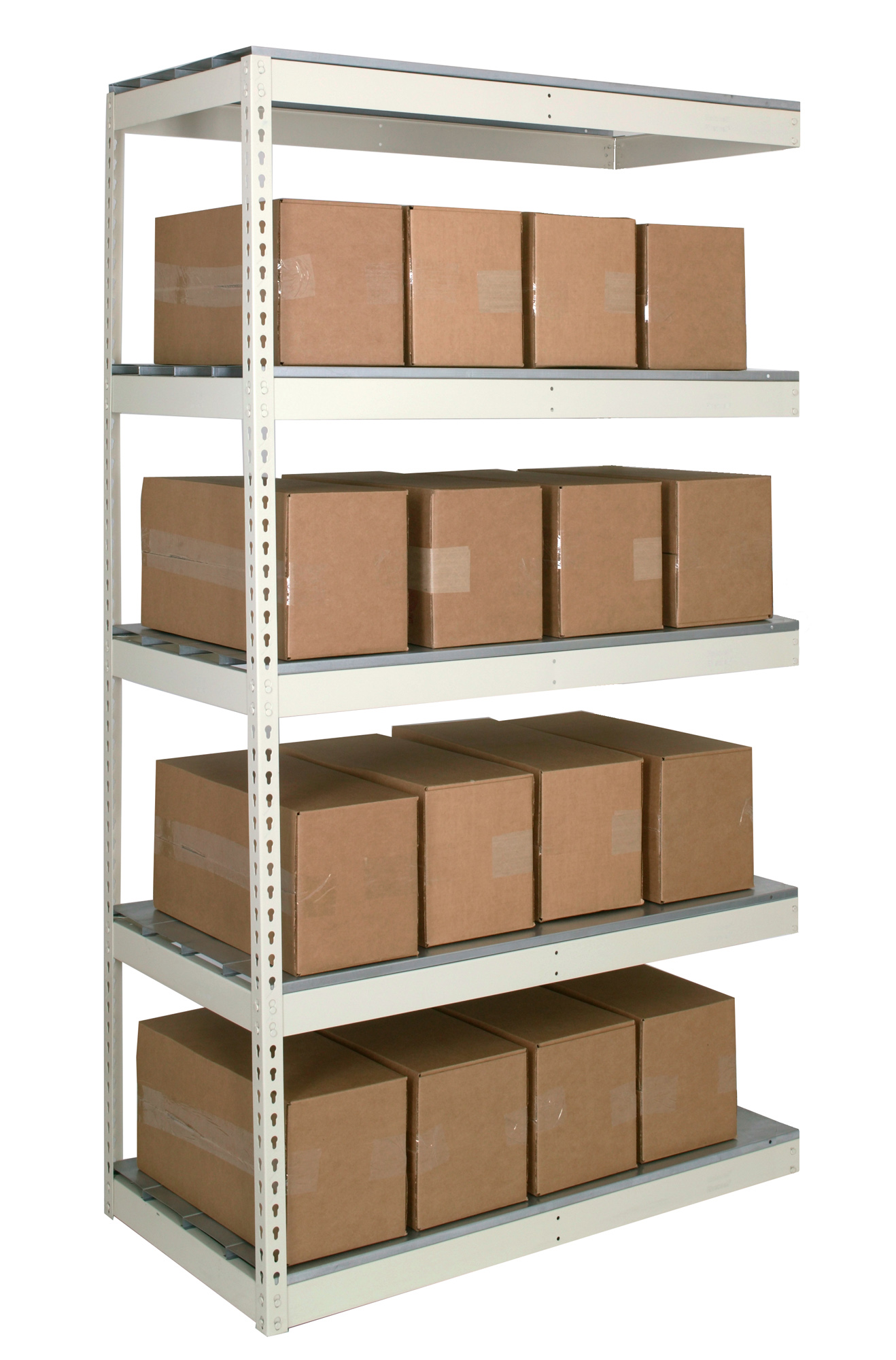

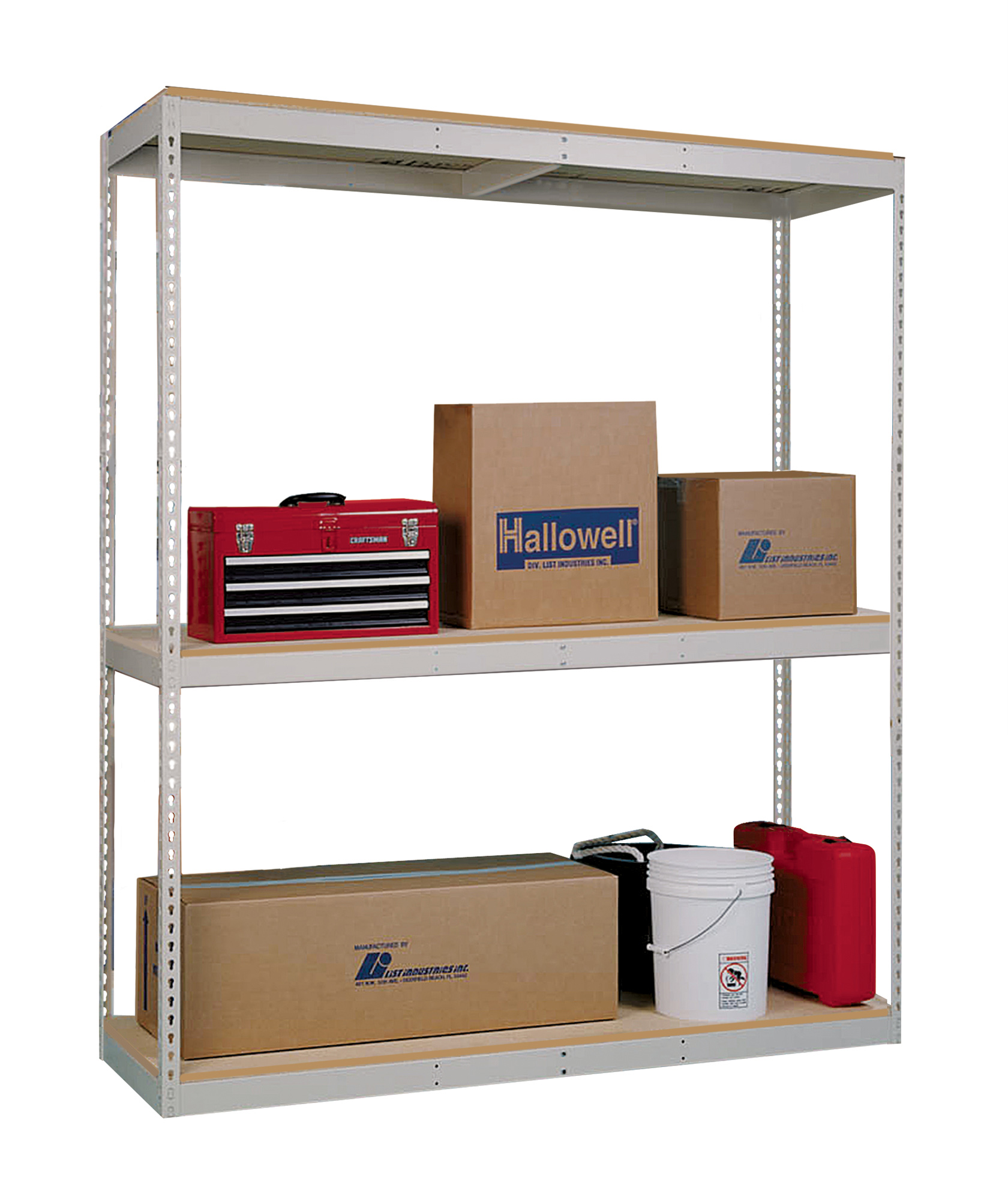

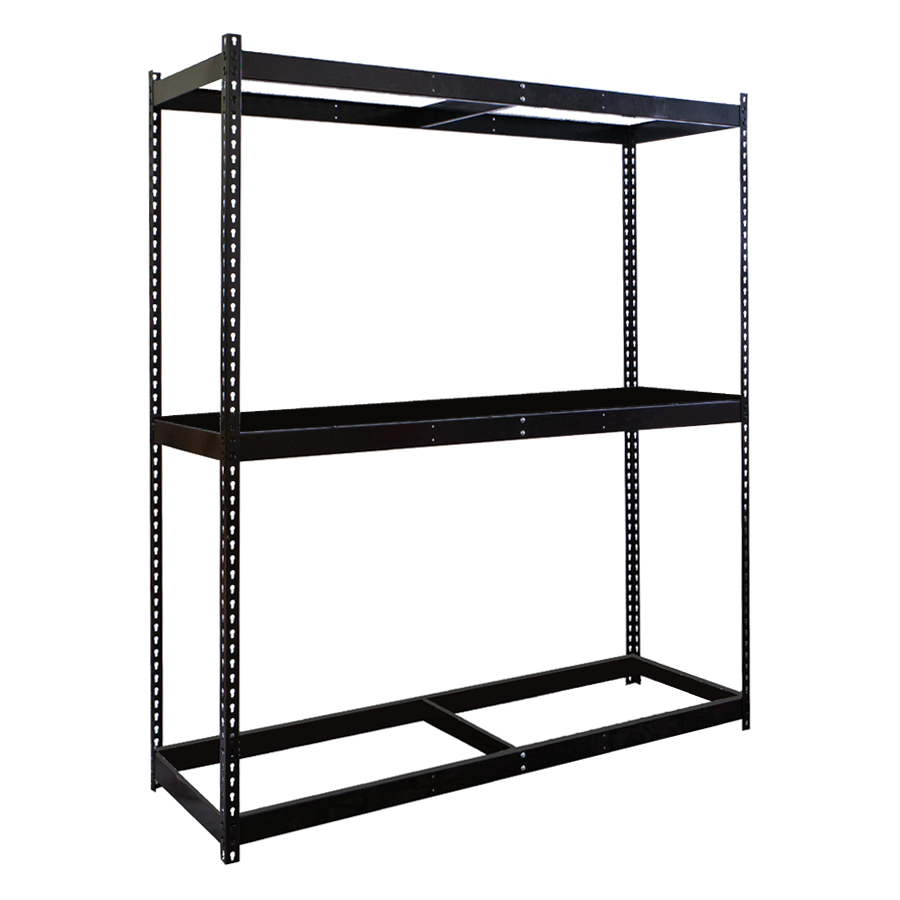

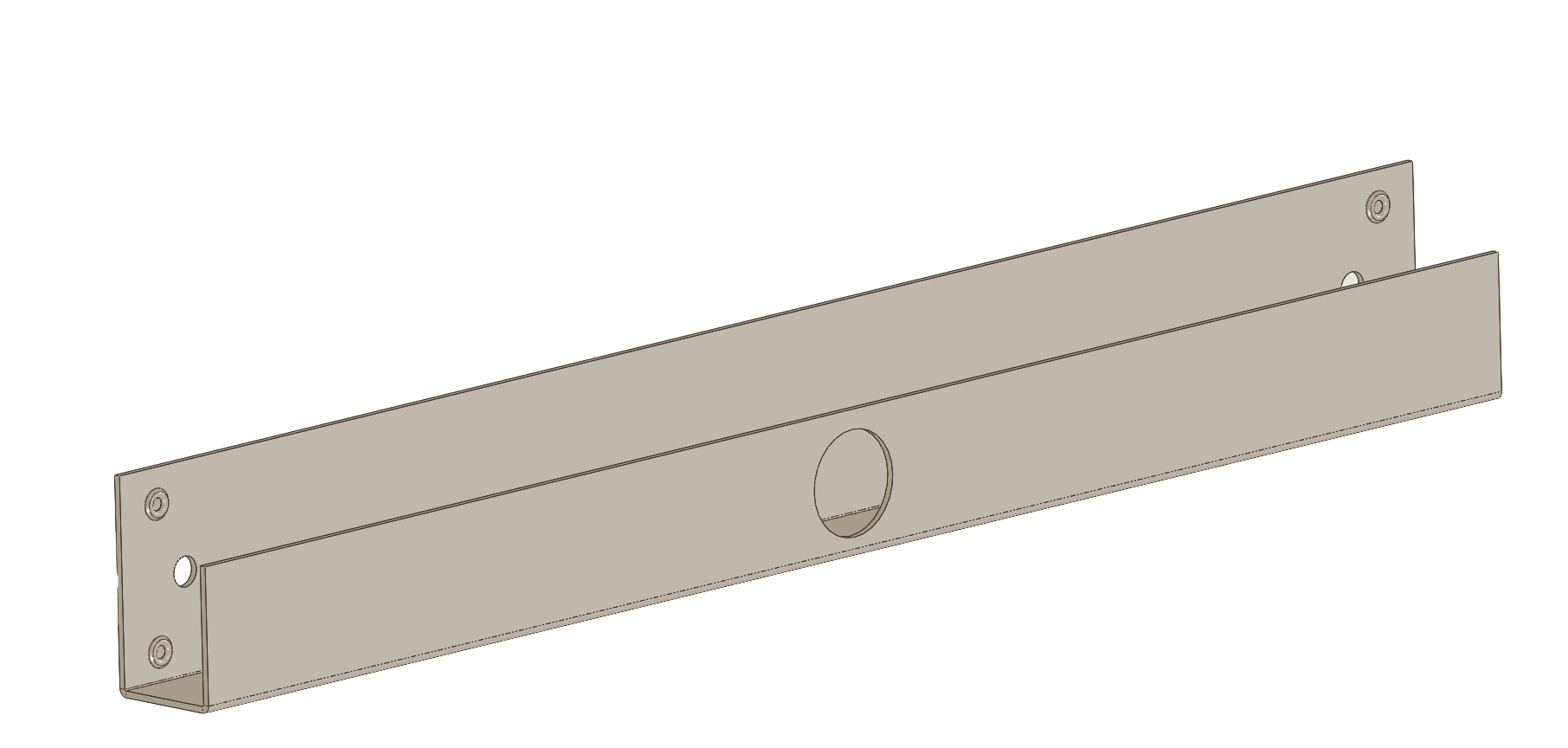

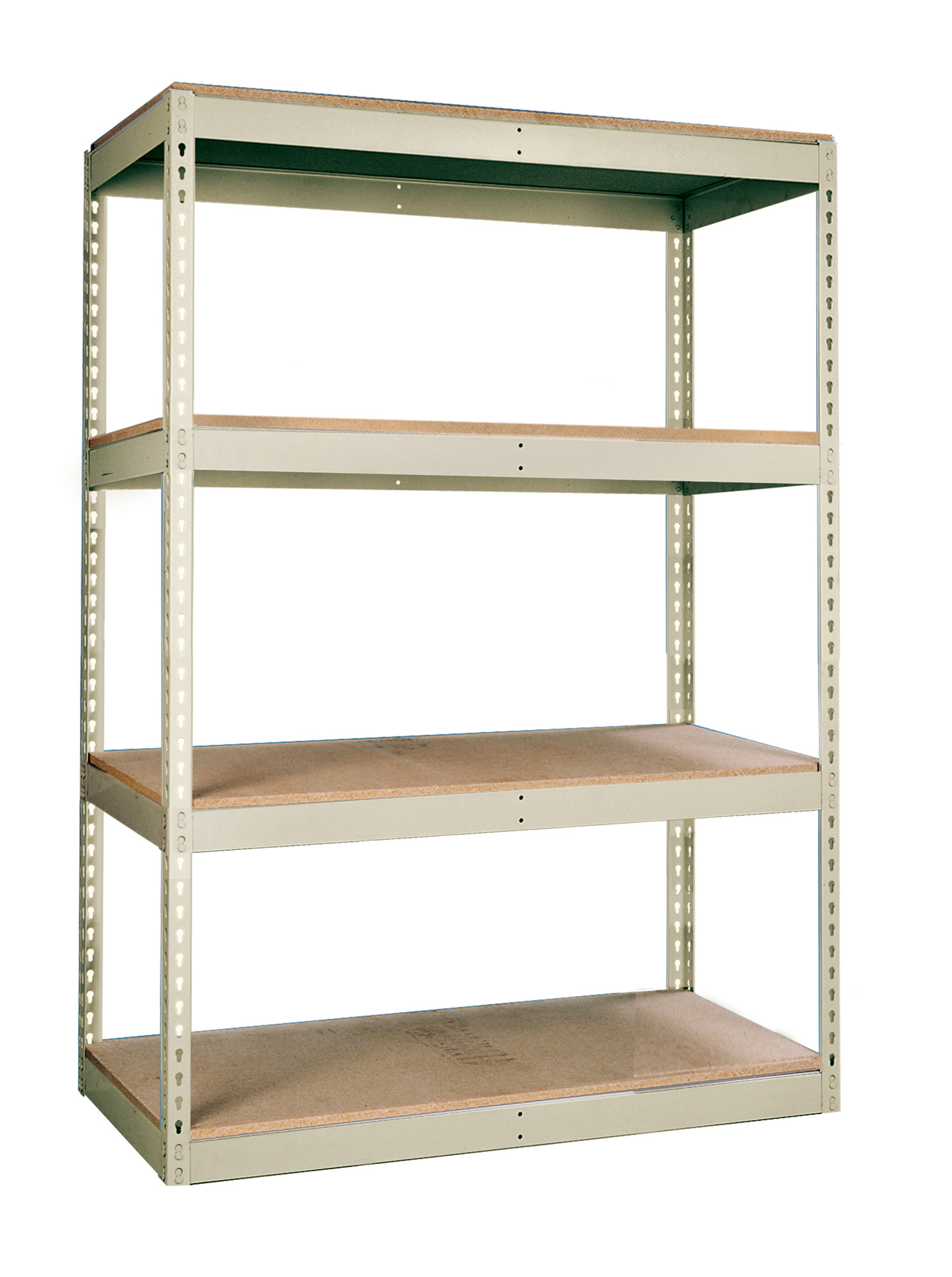

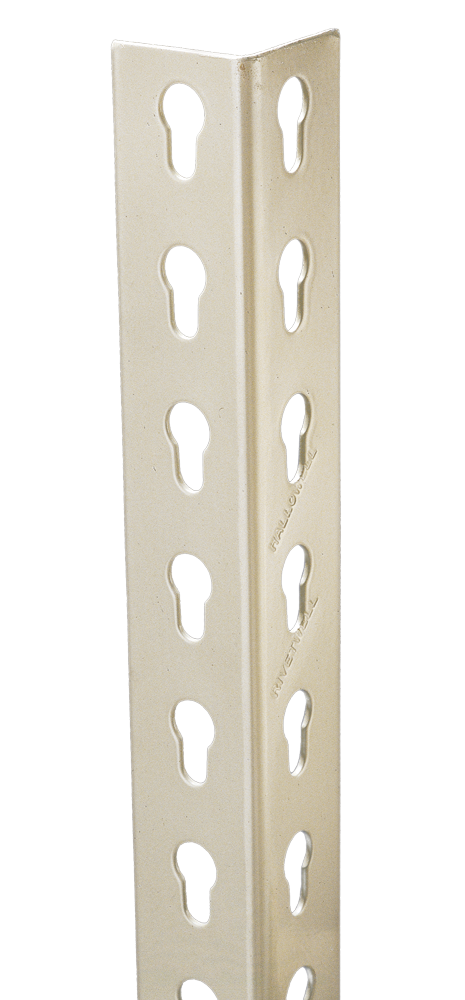

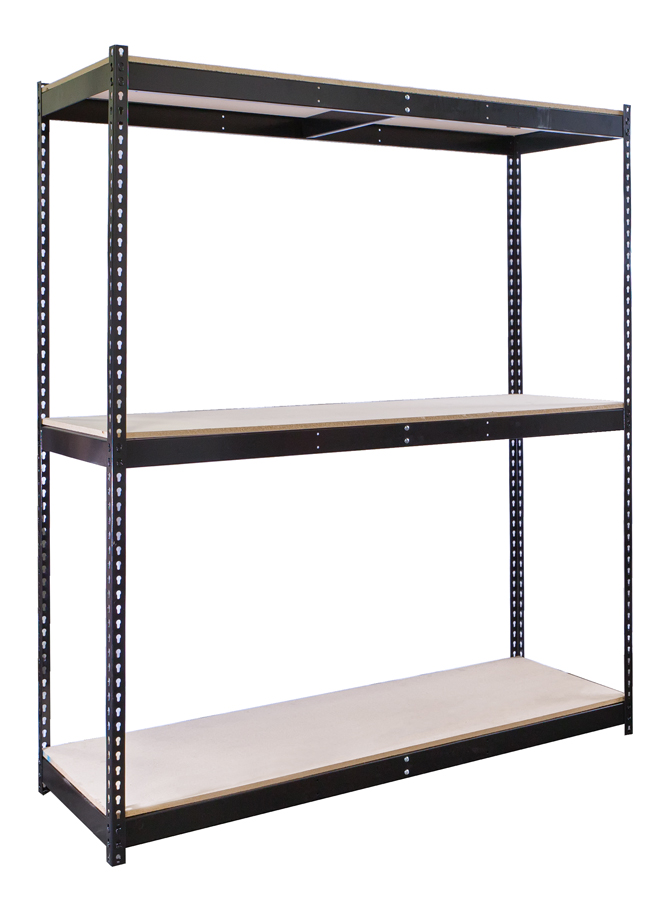

Starter Units consist of four standard angle posts, *two left-to-right standard double rivet angle/channel beams per level and two front-to-back standard double rivet angle beams per level.

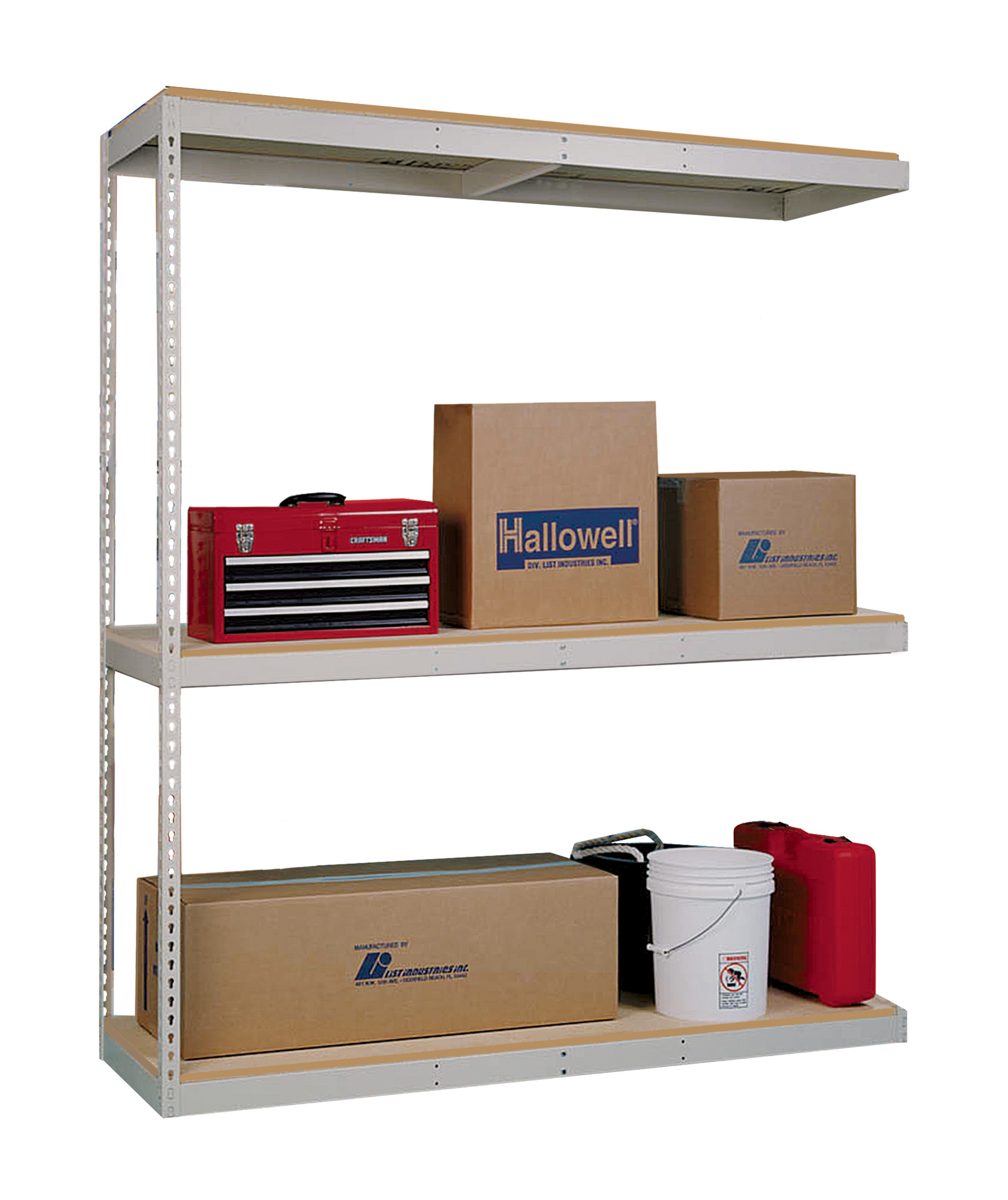

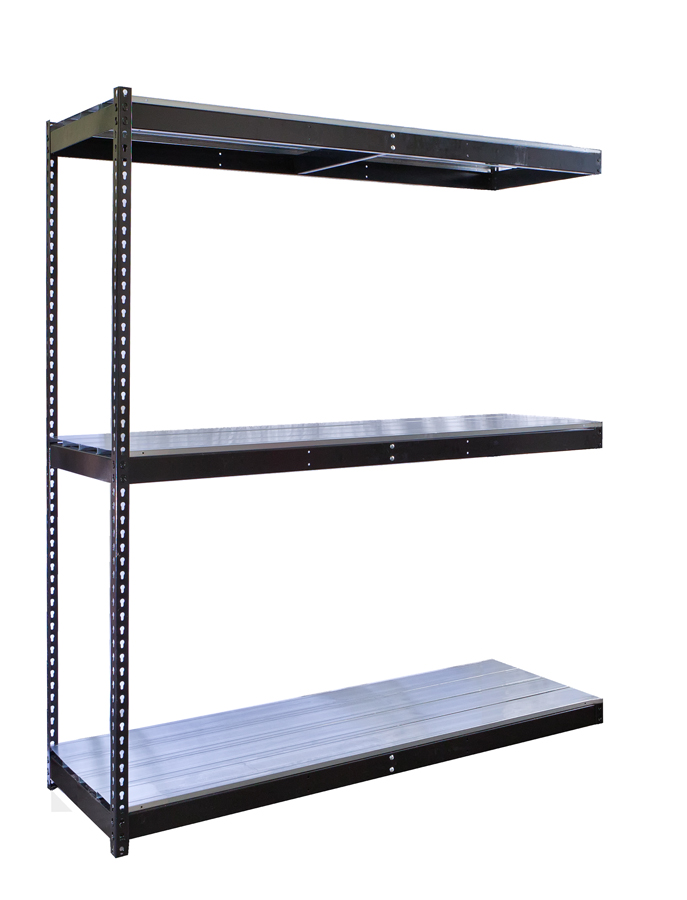

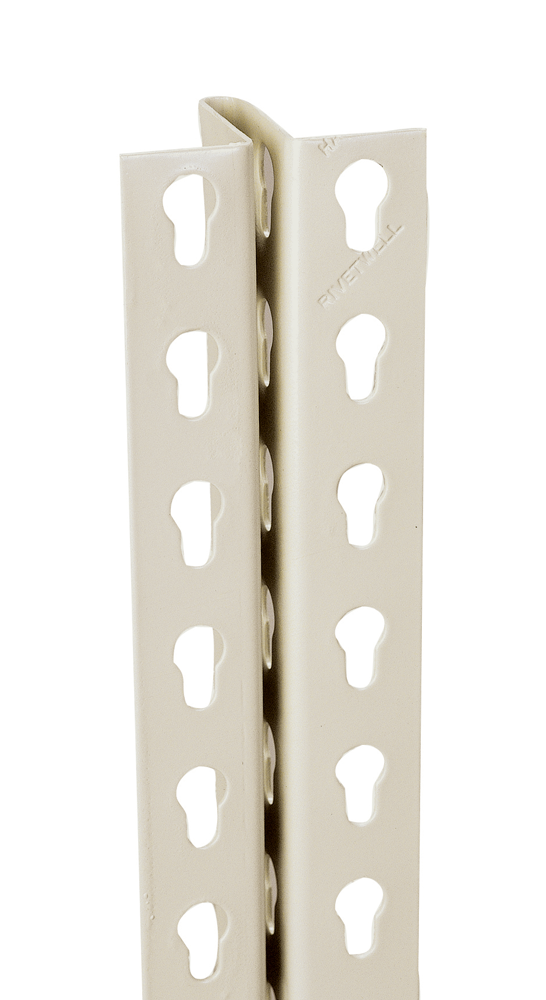

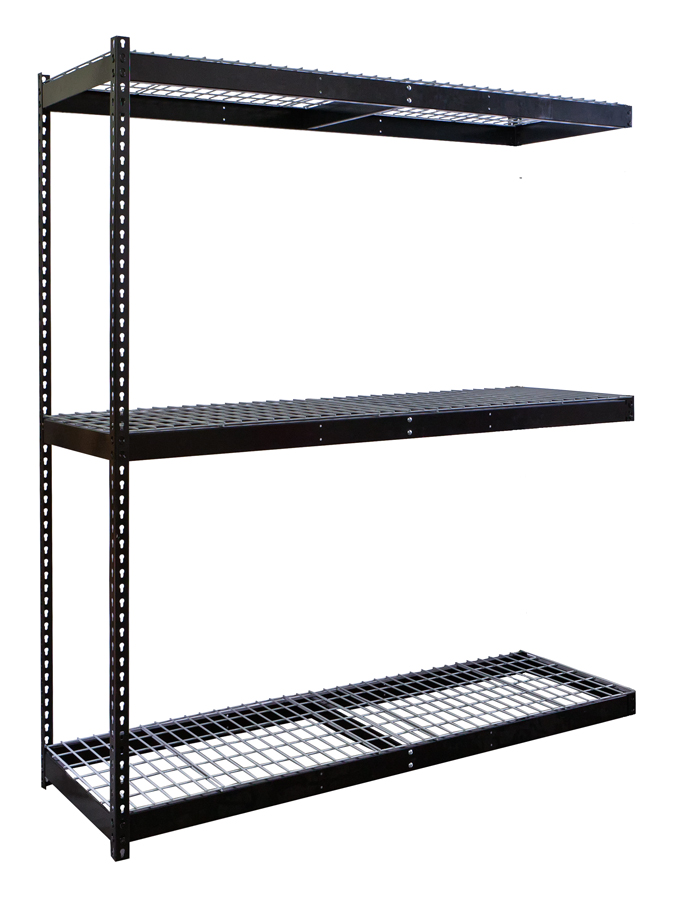

Adder Units consist of two standard T-Posts, *two left-to-right standard double rivet angle/channel beams per level, and two front-to-back standard double rivet angle beams per level.
*Channel beam units are provided with left-to-right double rivet angle beams at the bottom level.

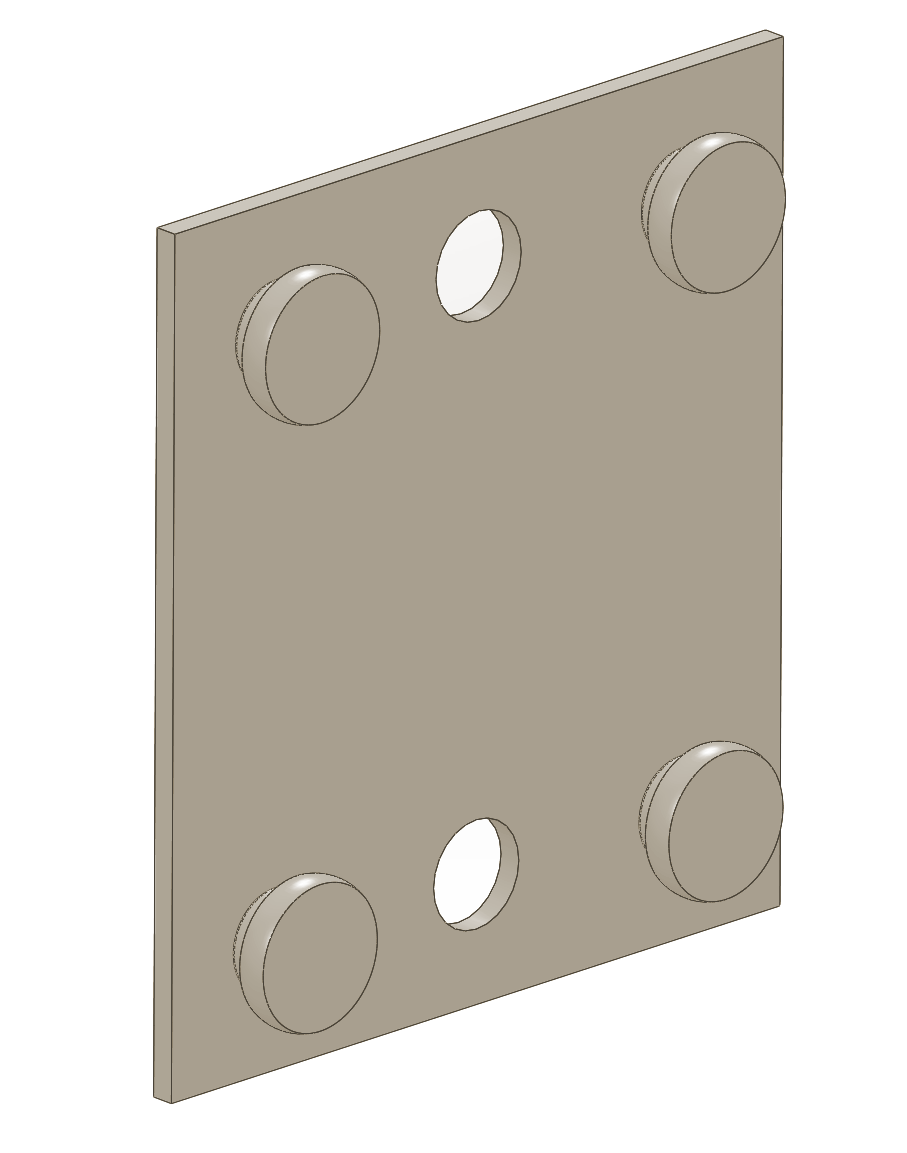

When designing a shelving layout, unit growth must be considered. To determine the overall dimension of a continuous row of shelving employing T-Posts or Angle Posts with tie plates refer to the table HERE.
Post Capacity Chart & Beam Load Table HERE
Be sure to order decking per level.
Rivetwell particle board and E-Z deck capacity ratings HERE
Your Choice of Decking - simply drop into place:

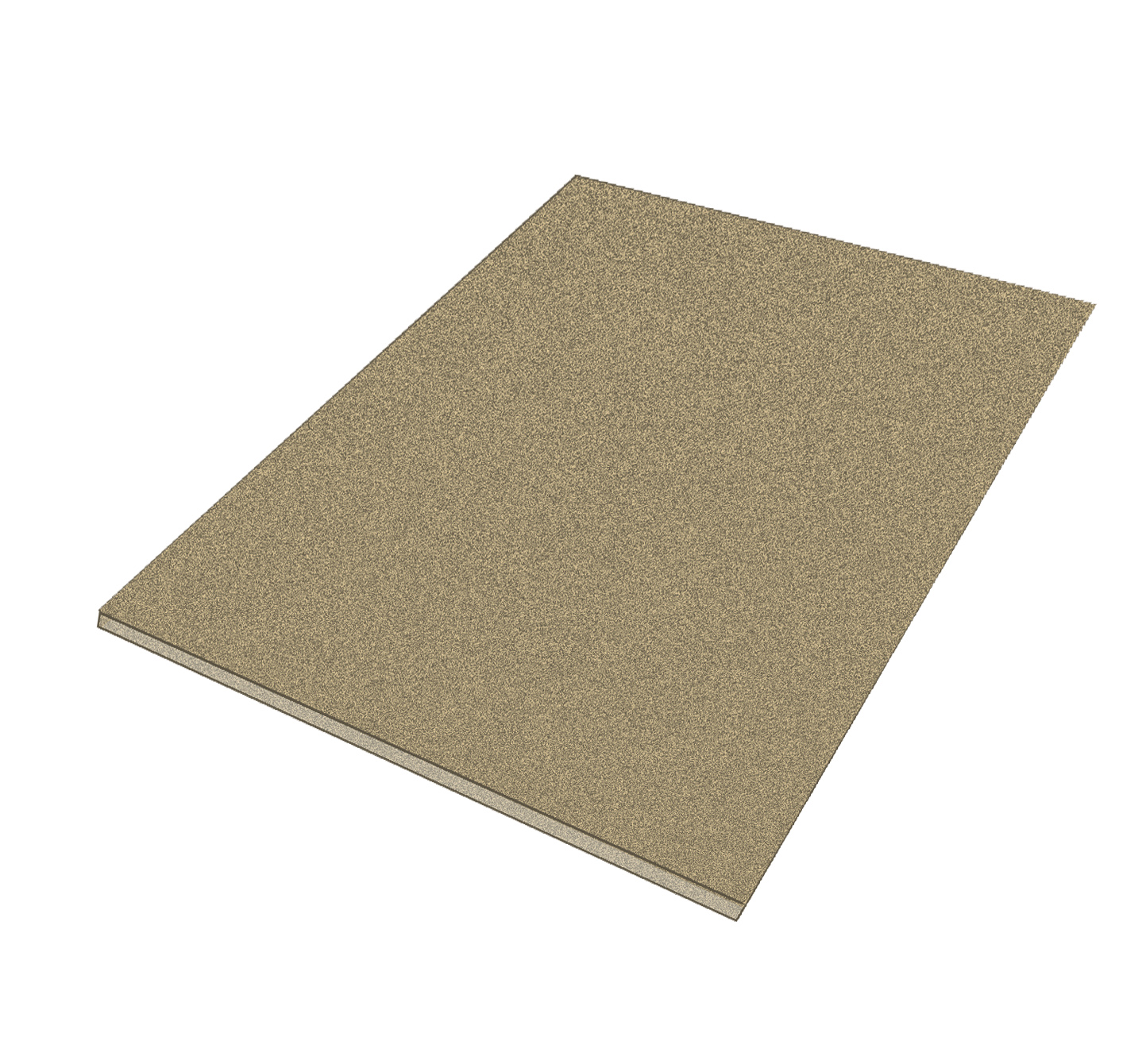

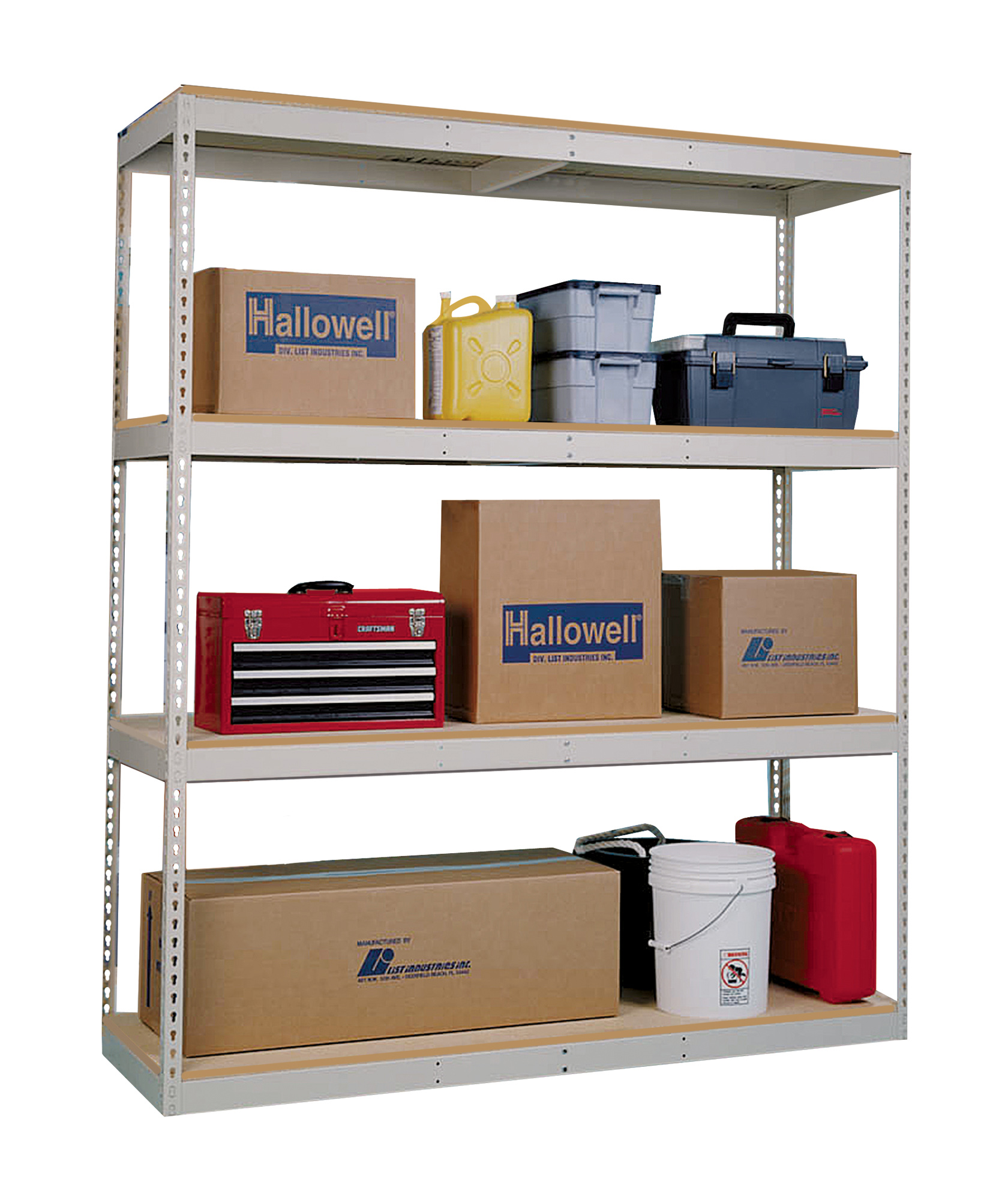

Particleboard: HPB 5/8" thick industrial grade 1-M-2

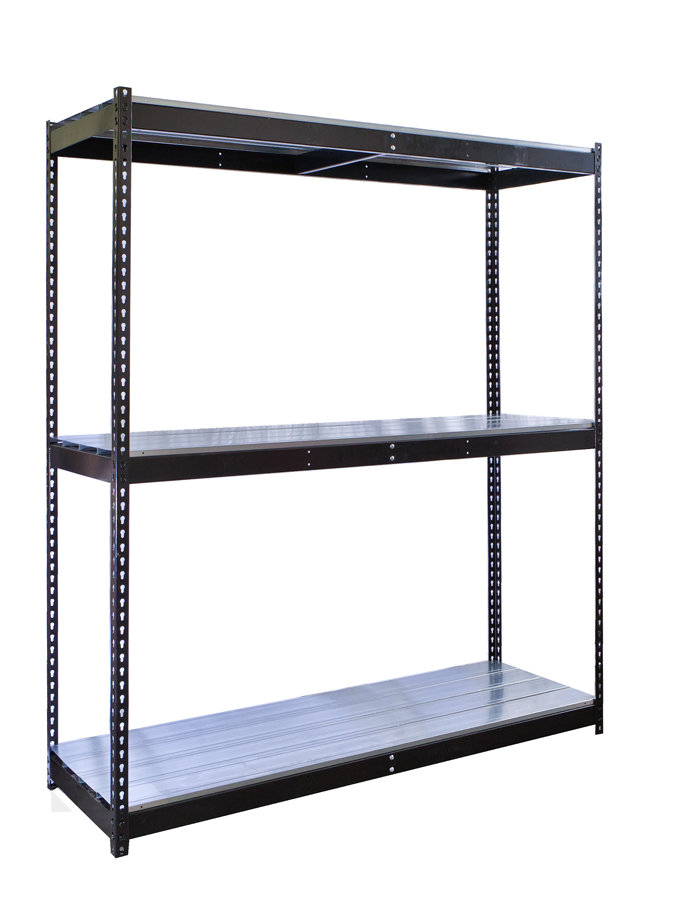

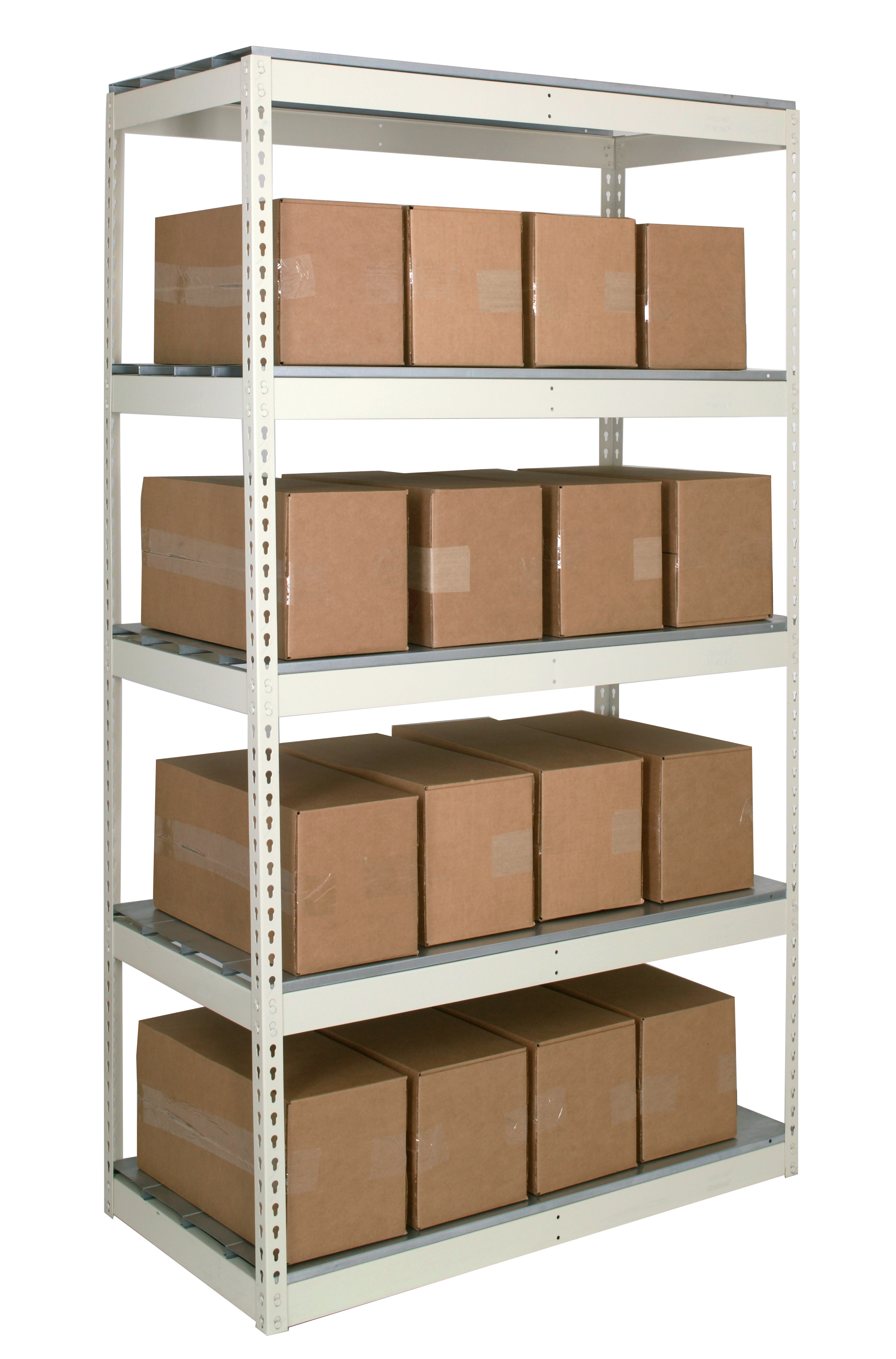

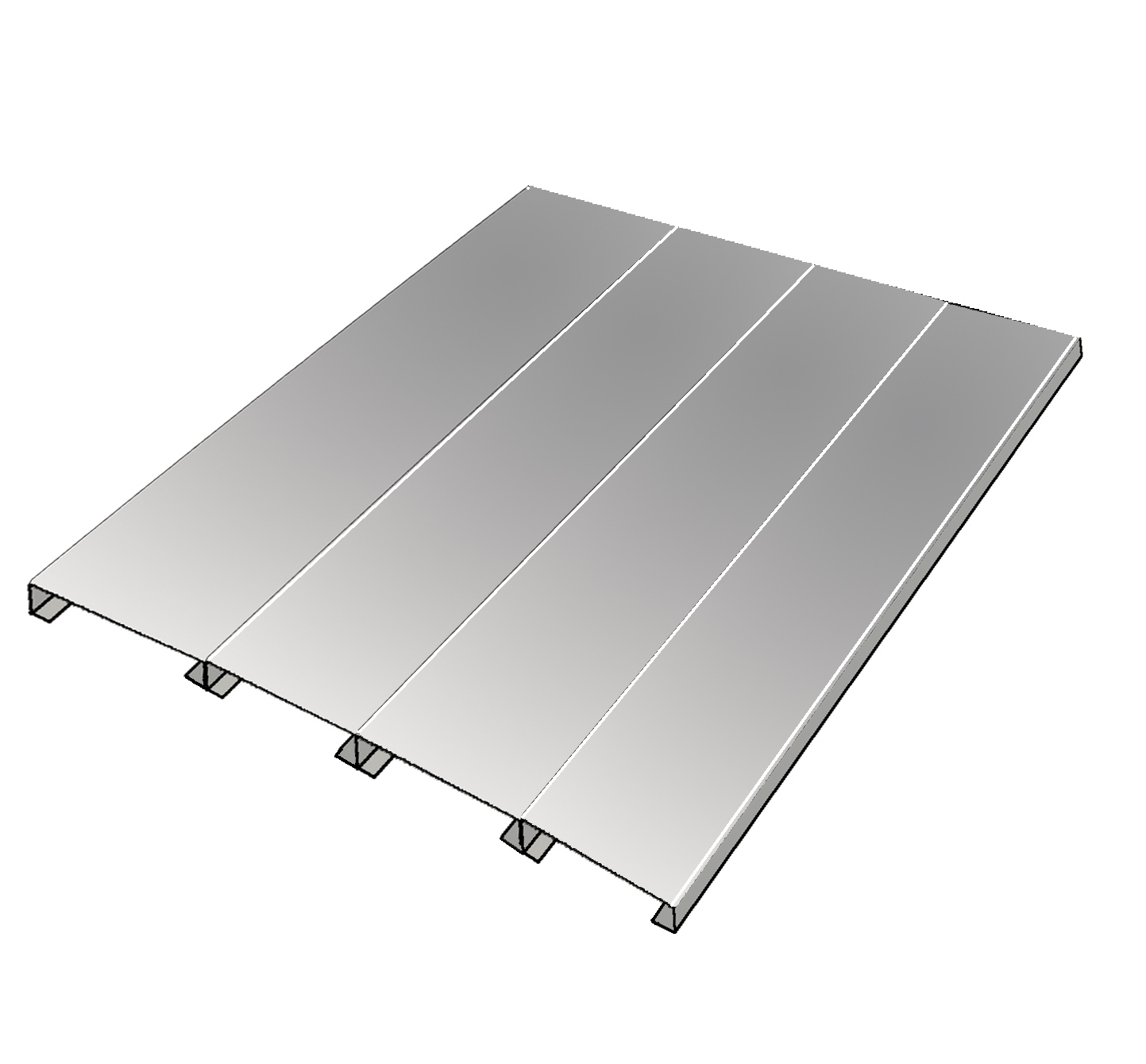

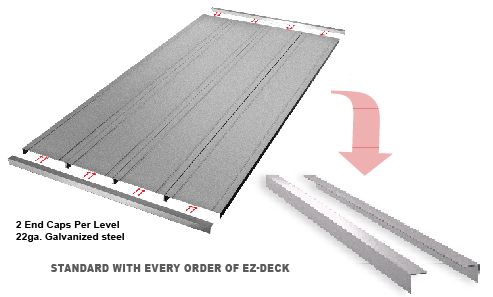

EZ-Deck Steel Decking: HEZD 22ga. Galvanized steel. Multiple 6" deep planks form each level. Two 7.5" planks on 15" deep units.

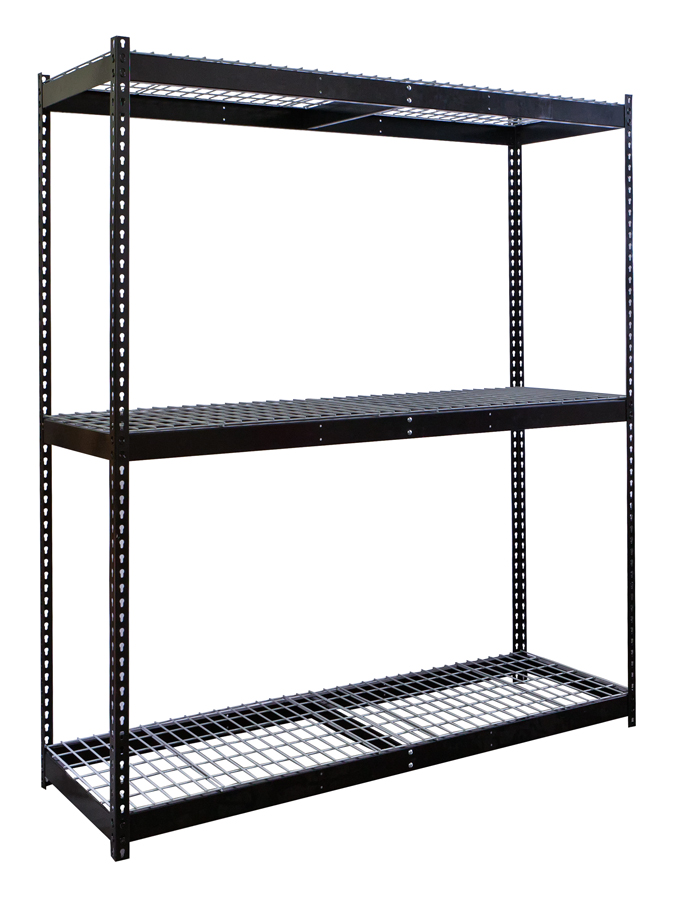

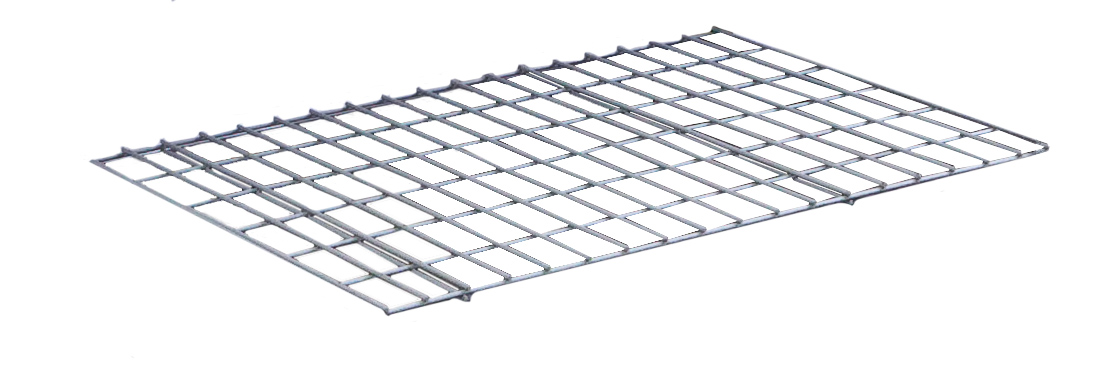

Flat Wire Decking: HWD 4 gauge wire in 2" x 4" pattern.

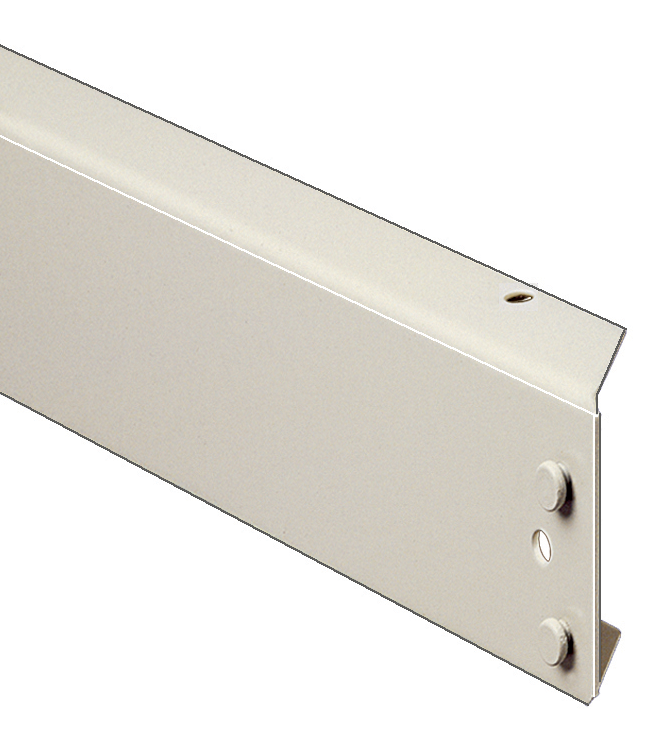

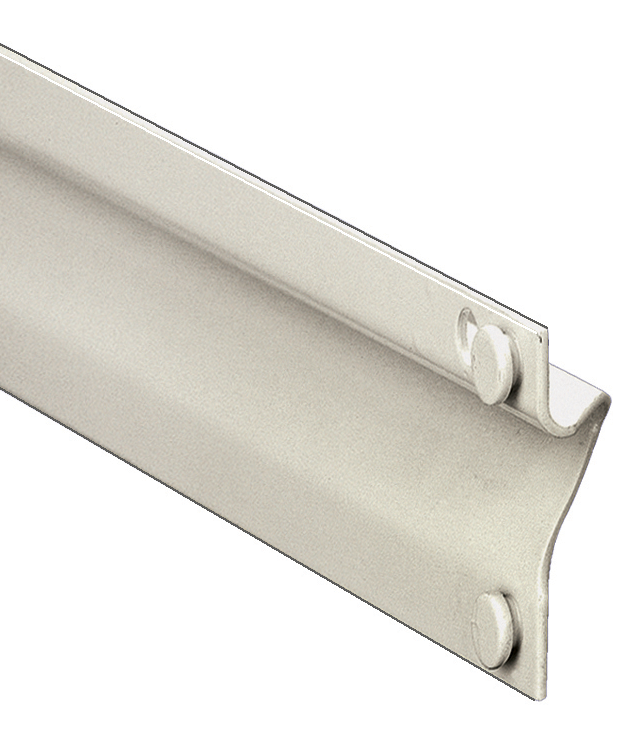

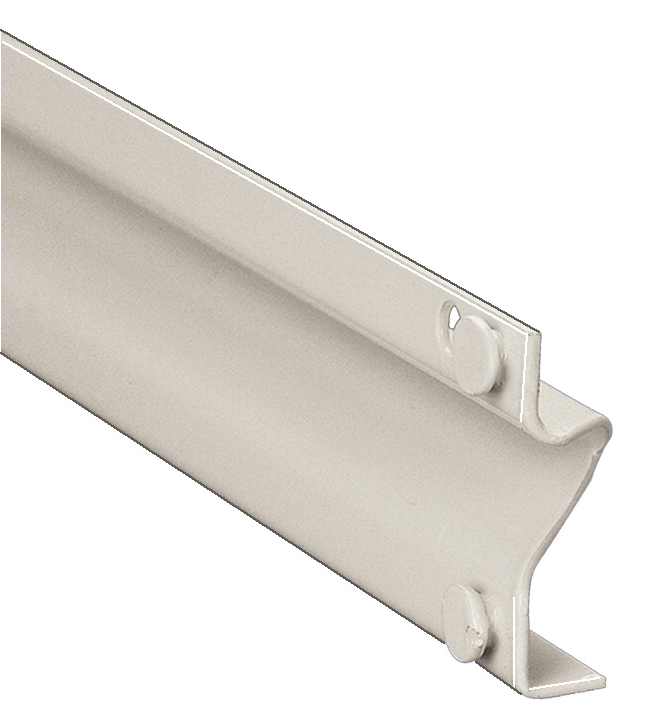

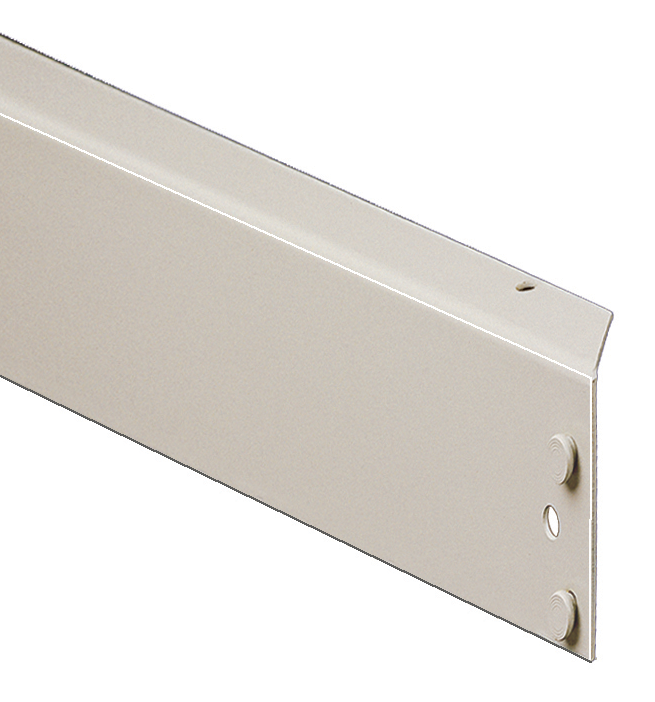

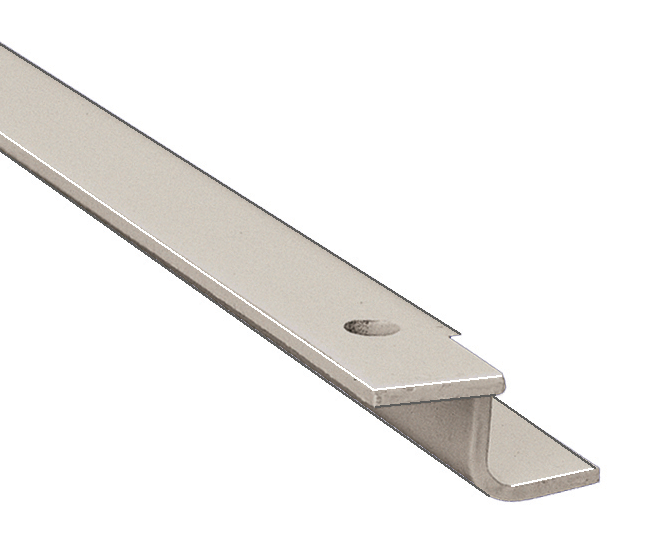

Shelf strength can be increased by adding single rivet beam or double rivet angle beam or double rivet channel beams beams running front-to-back at the intermediate levels.
See Below for Components.
• All units/components available in Tan (PT)
• Select units/components available in Black (ME)
• See charts for stock availability of Tan or Black
See also - Rivetwell Single Rivet Shelving
